Neomounts WL40S-850BL16 TV mount wall 40-70″ – full motion – fast installation
Neomounts LEVEL-850 WL40S-850BL16 Full motion TV mount wall – 40-70″ – max 45 kg – VESA 200×100-600×400 – d 4,7-55,5 cm – level adjustment – Rapid Install-model incl. fixing template – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

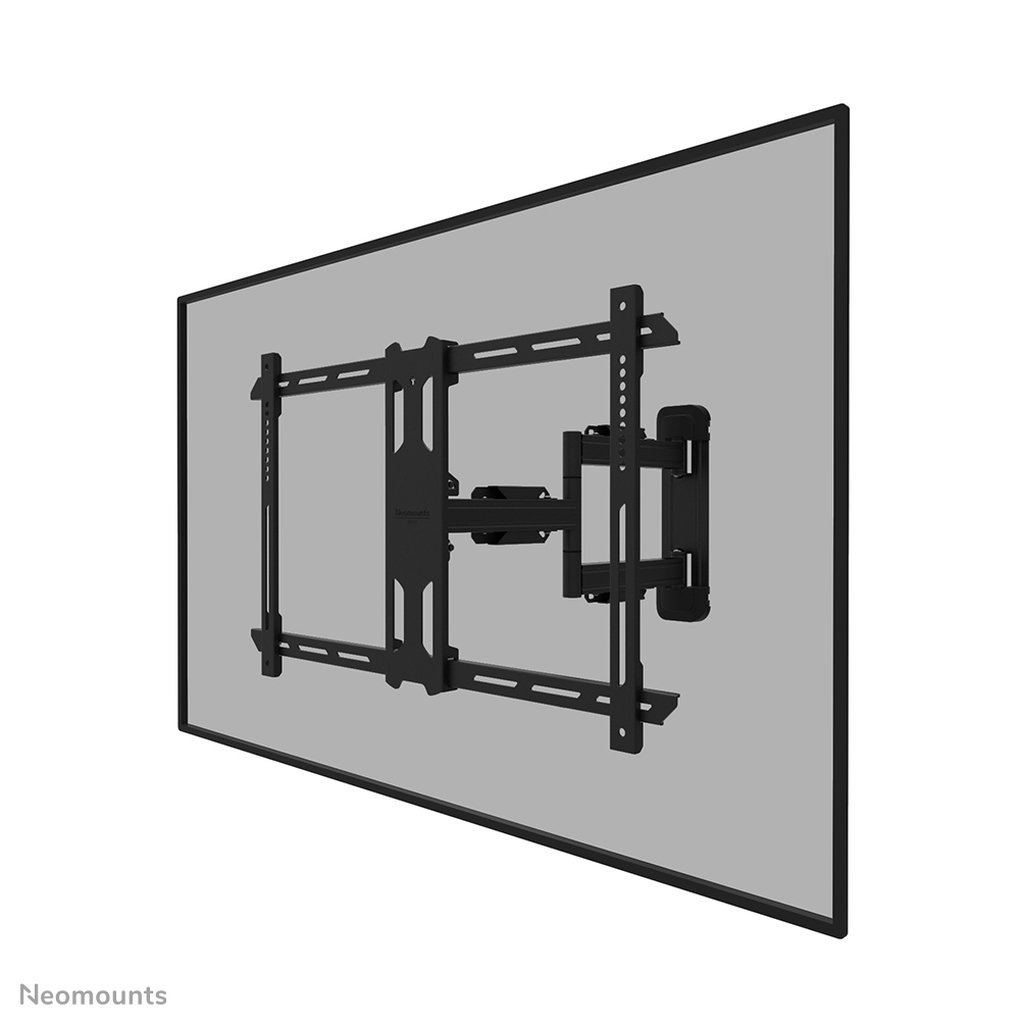

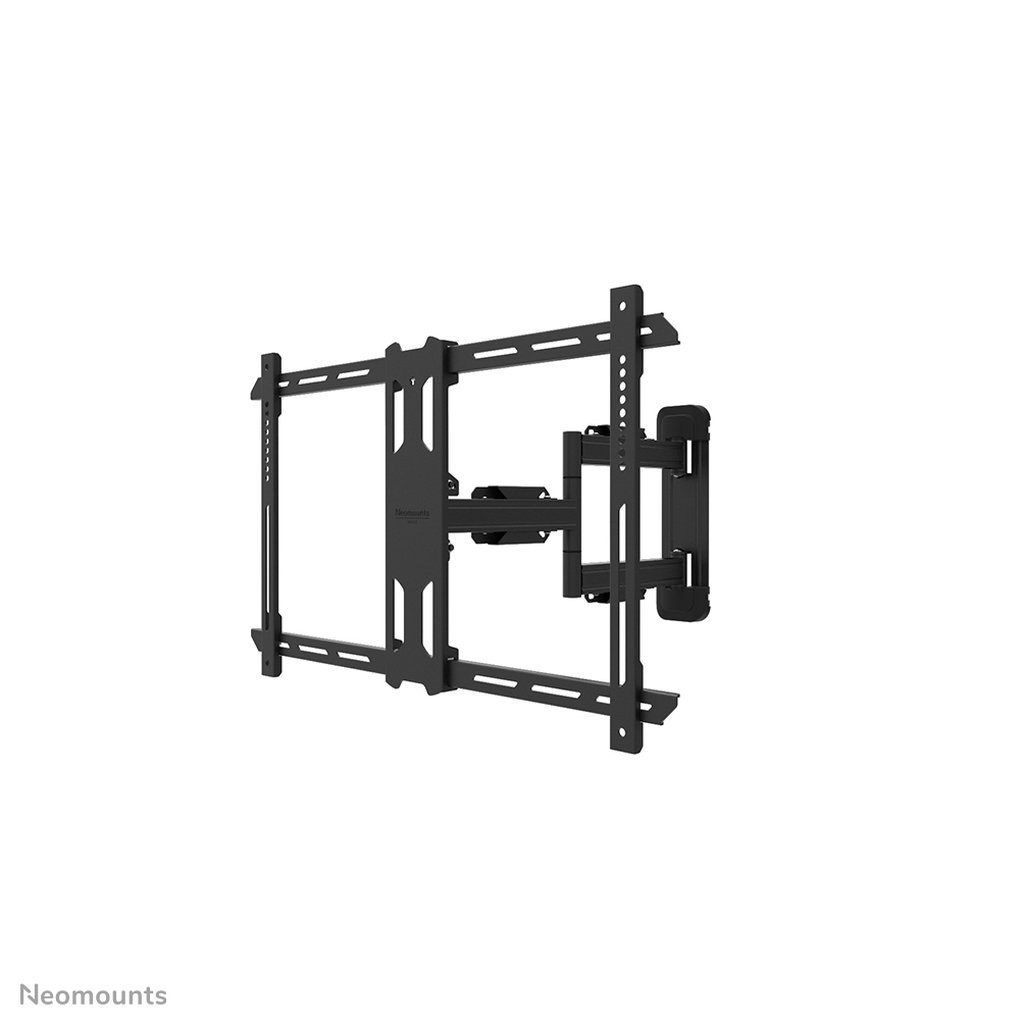

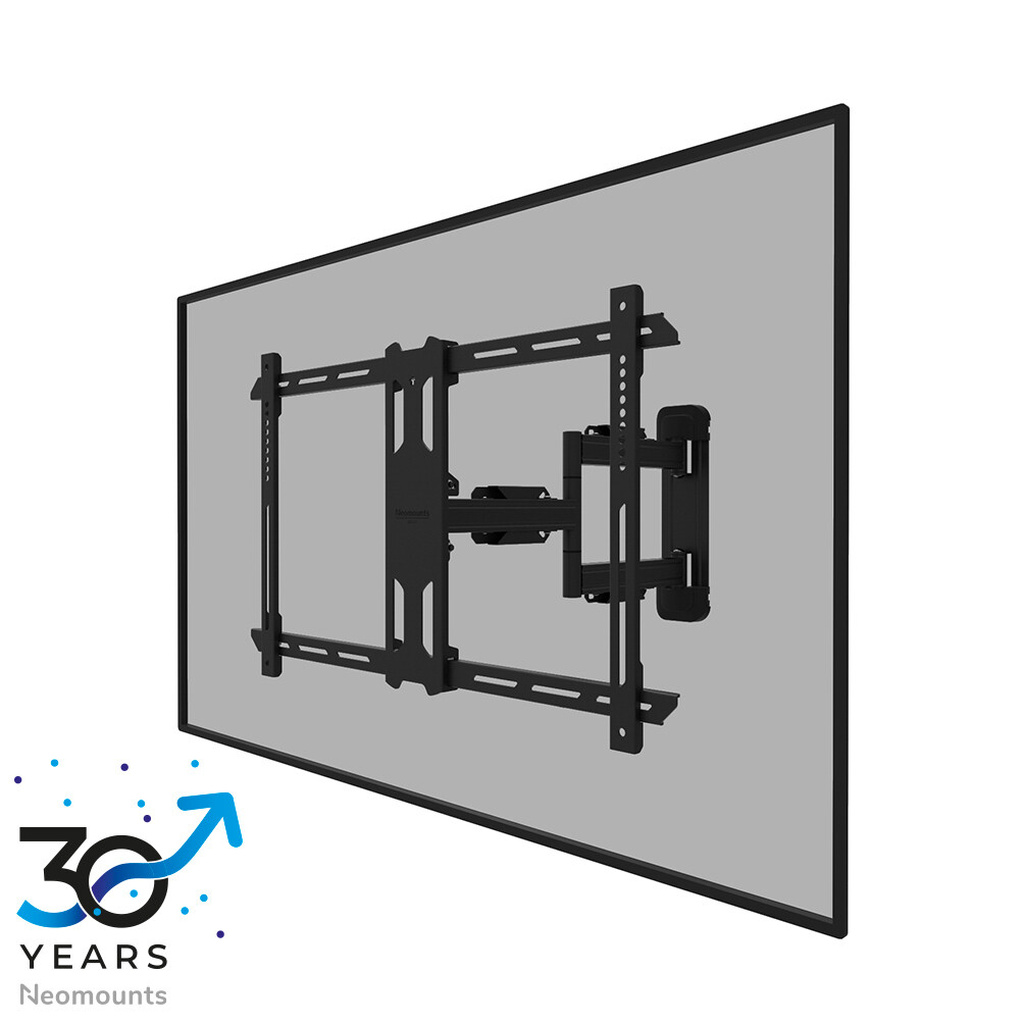

The Neomounts WL40S-850BL16 LEVEL is a full motion wall mount for flat screens up to 70″ with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

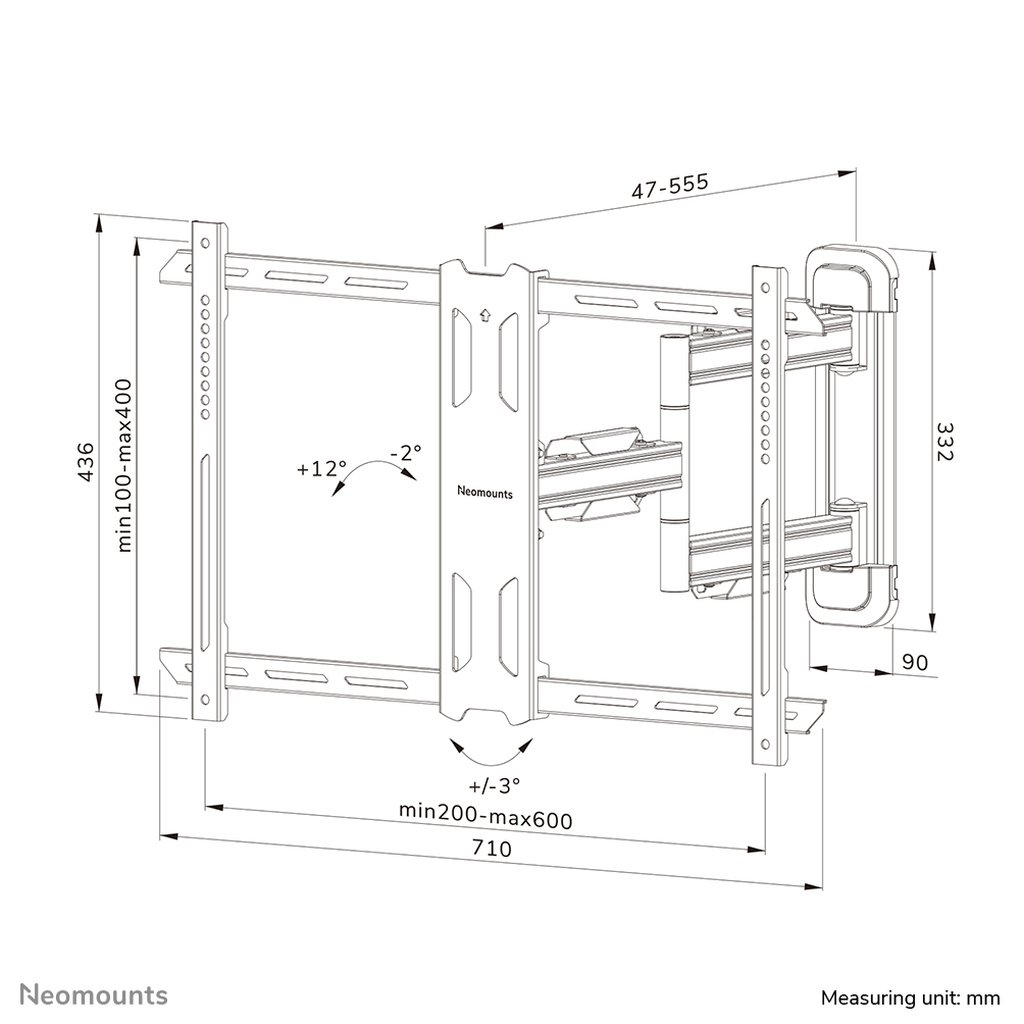

The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 200×100 to 600x400mm.

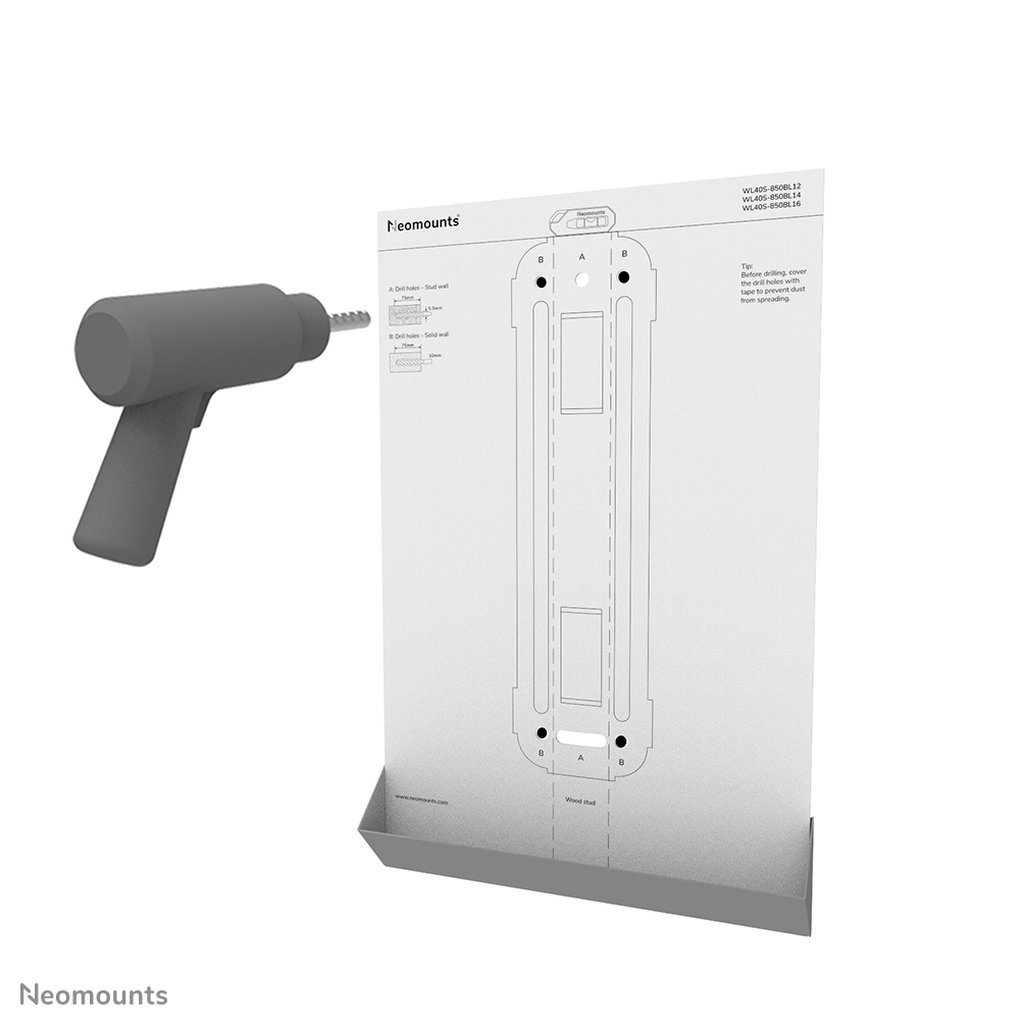

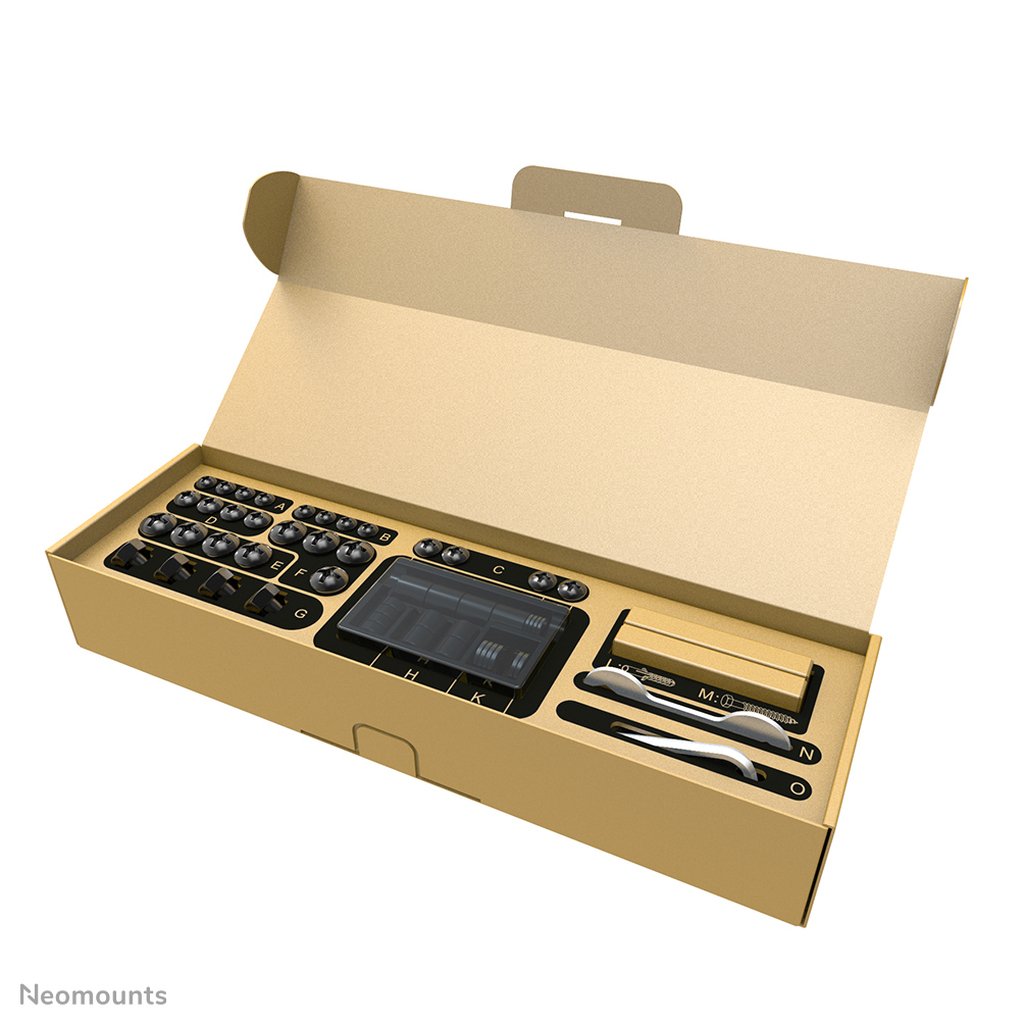

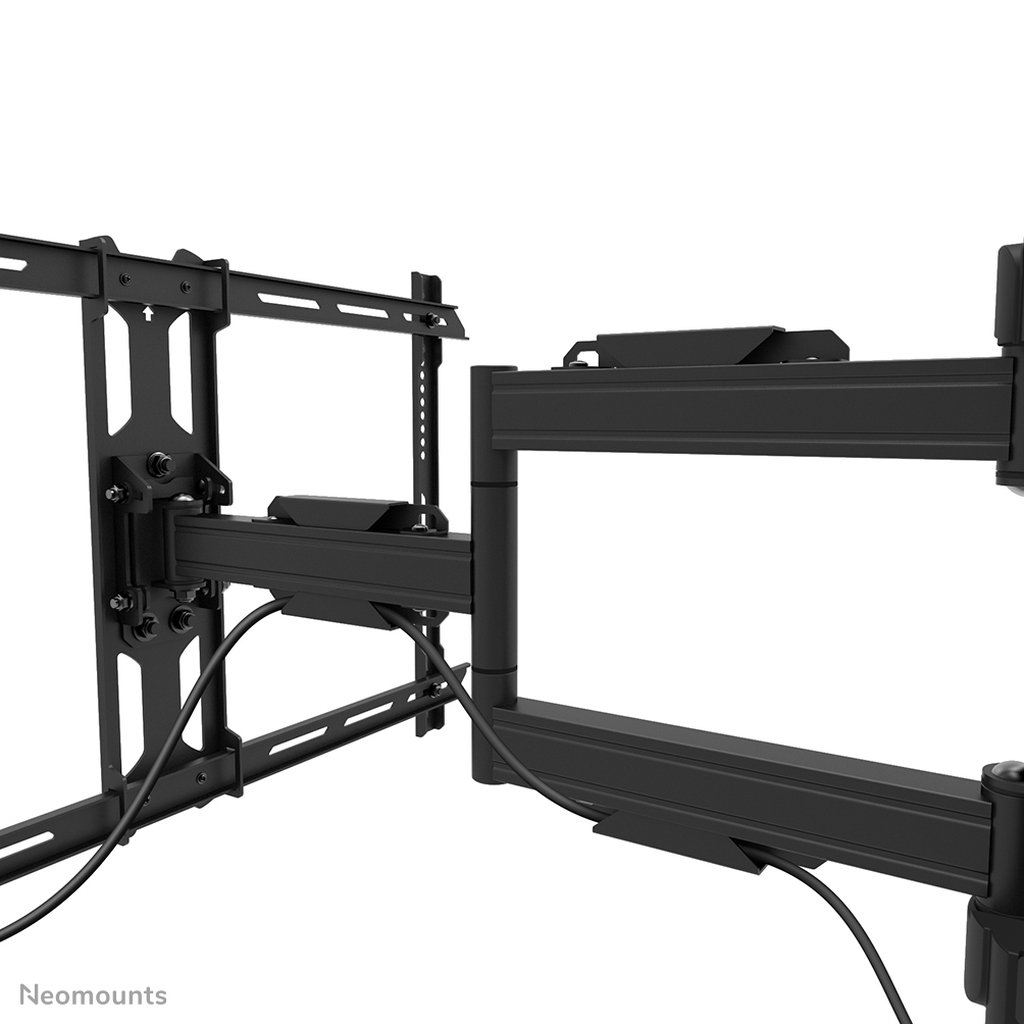

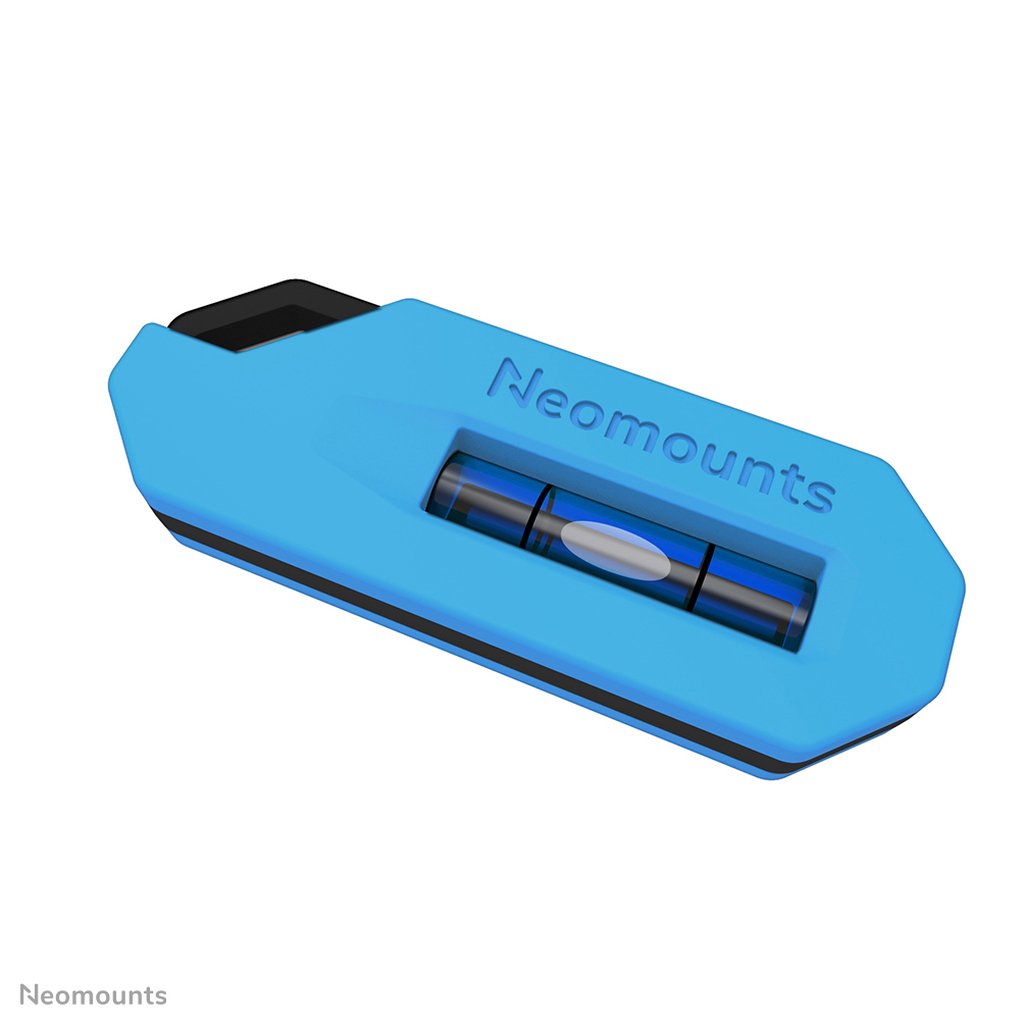

The WL40S-850BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Additional information
| Weight | 6.66 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Maximum weight capacity | 45 kg |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Minimum screen size | 101.6 cm (40") |
| Panel mounting interface | 200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400 |
| Tilt adjustment | Yes |
| Tilt angle range | -2 – 12° |
| Swivelling | Yes |
| Swivel angle | 40° |
| Swivel angle range | -45 – 45° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Type | Full motion |
| Distance to the wall (max) | 55.5 cm |

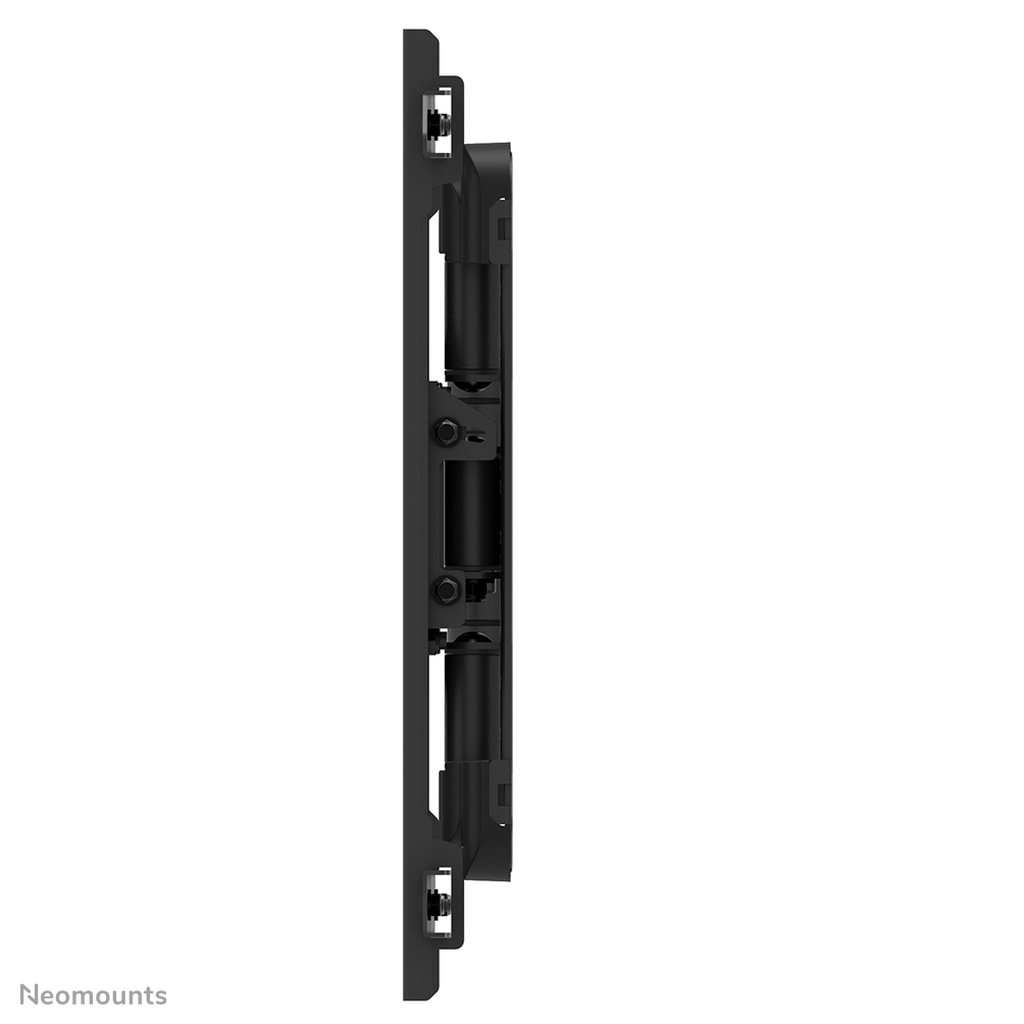

| Distance to the wall (min) | 4.7 cm |
| Product colour | Black |
| Housing material | Steel |
| Country of origin | China |
| Package net weight | 7.8 kg |
| Weight | 6.2 kg |
| Package width | 736 mm |
| Package depth | 366 mm |
| Package height | 60 mm |
| Package weight | 7.8 kg |
| Master (outer) case width | 756 mm |
| Master (outer) case length | 198 mm |
| Master (outer) case height | 386 mm |
| Master (outer) case gross weight | 24.1 kg |
| Master (outer) case net weight | 18.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 60 pc(s) |
| Height adjustment | No |

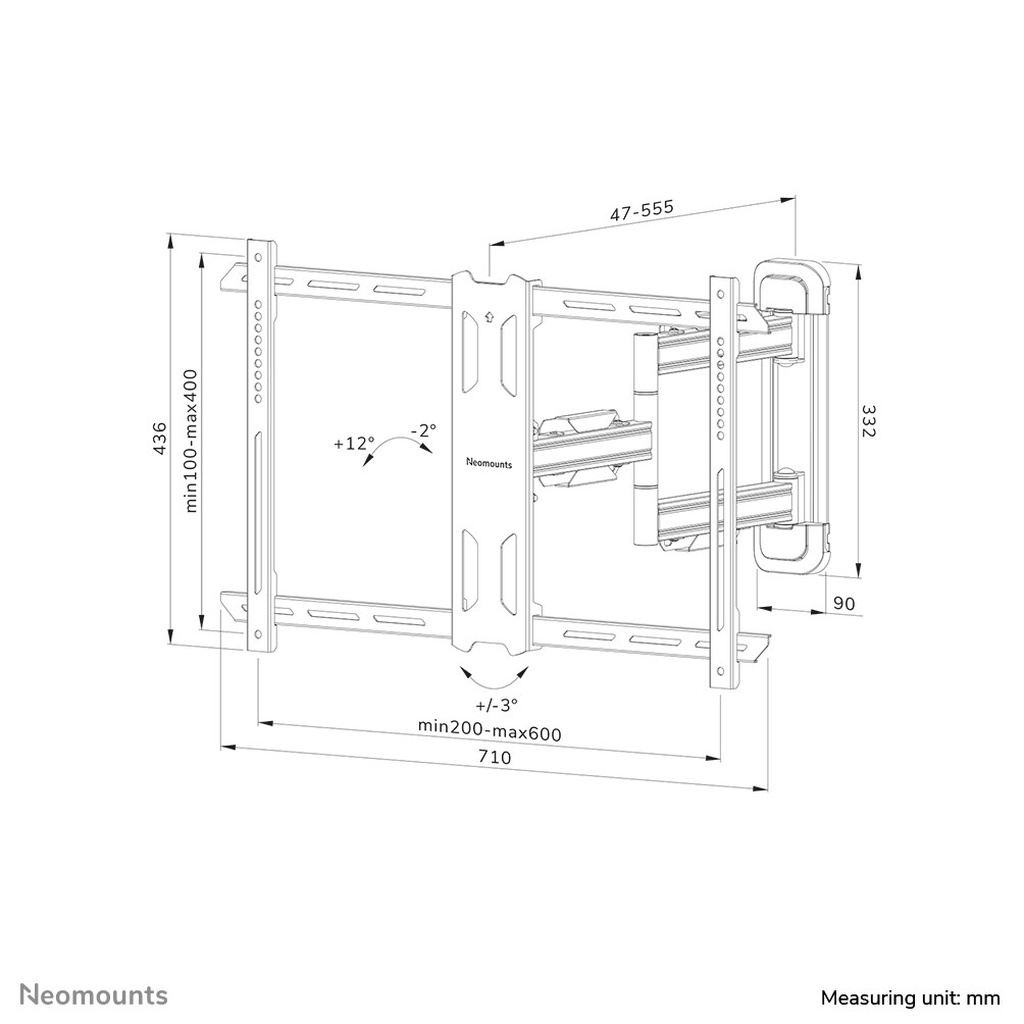

| Depth | 47 mm |
| Height | 436 mm |
| Width | 710 mm |
| Depth (max) | 4.7 cm |
| Cable management | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Lockable | Not lockable |
| Quantity per pack | 1 pc(s) |

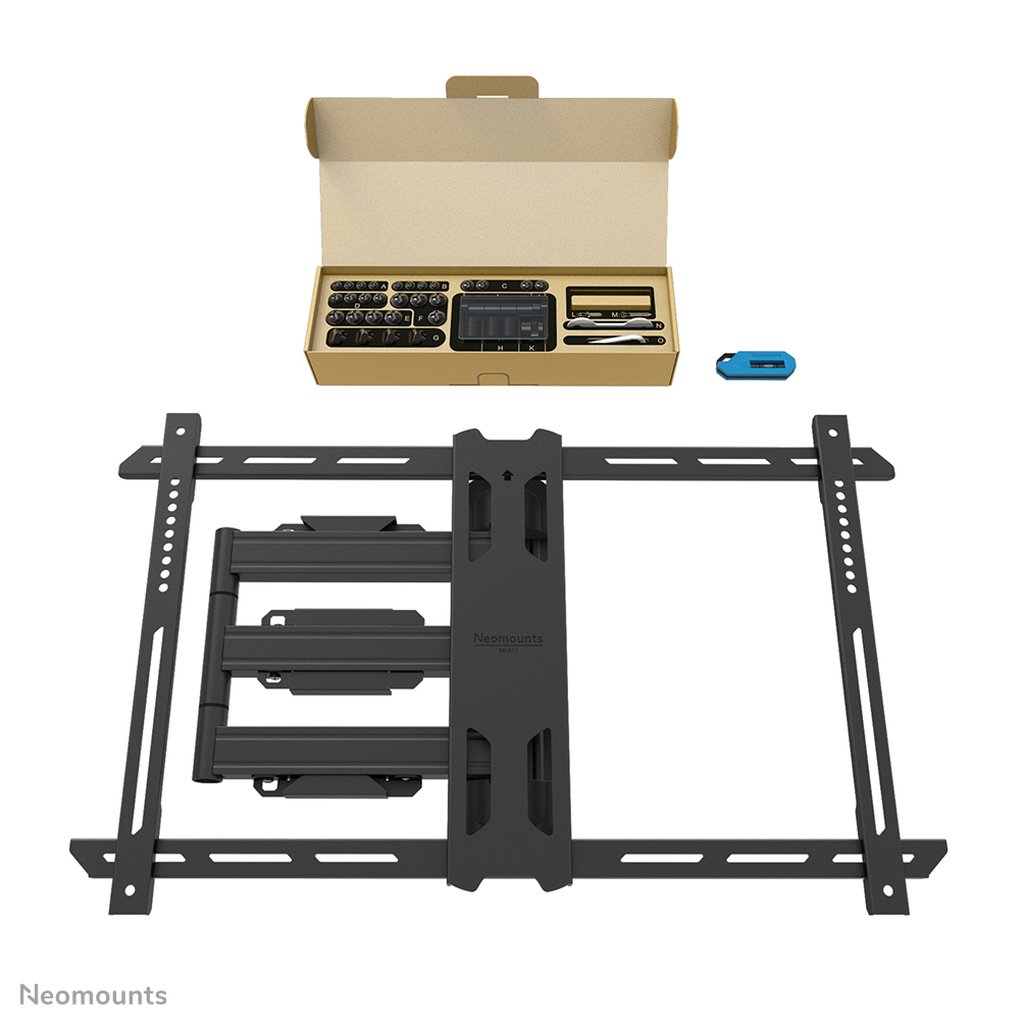

| Mounting kit | Yes |
| Pivot angle | -3 – 3° |
| Maximum weight capacity (per display) | 45 kg |
