Neomounts WL70-550BL14 Monitor/TV mount wall 32-55″ – gas spring – full motion
Neomounts WL70-550BL14 Monitor/TV mount wall – 32-55″ – 5-30 kg – VESA 75×75-400×400 – d 6,1-56,5 cm – gas spring – level adjustment – full motion – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

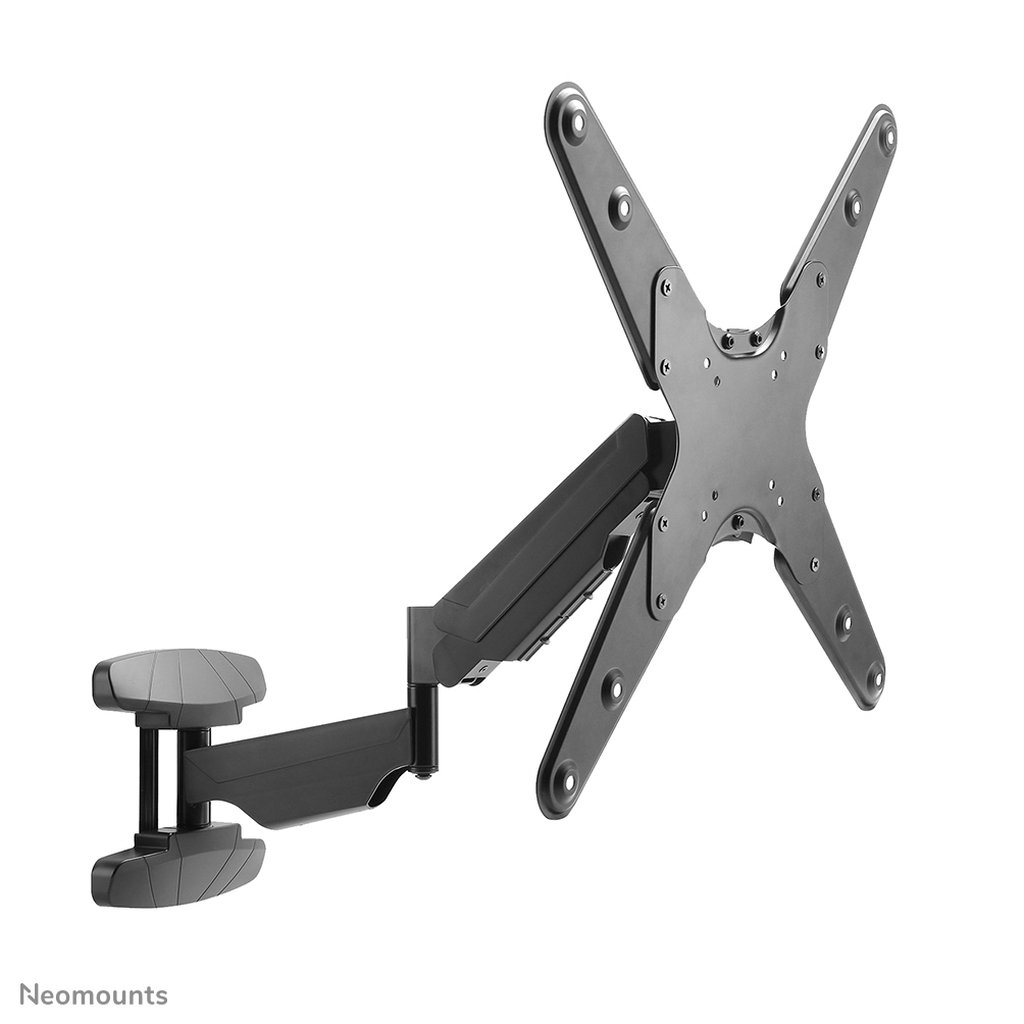

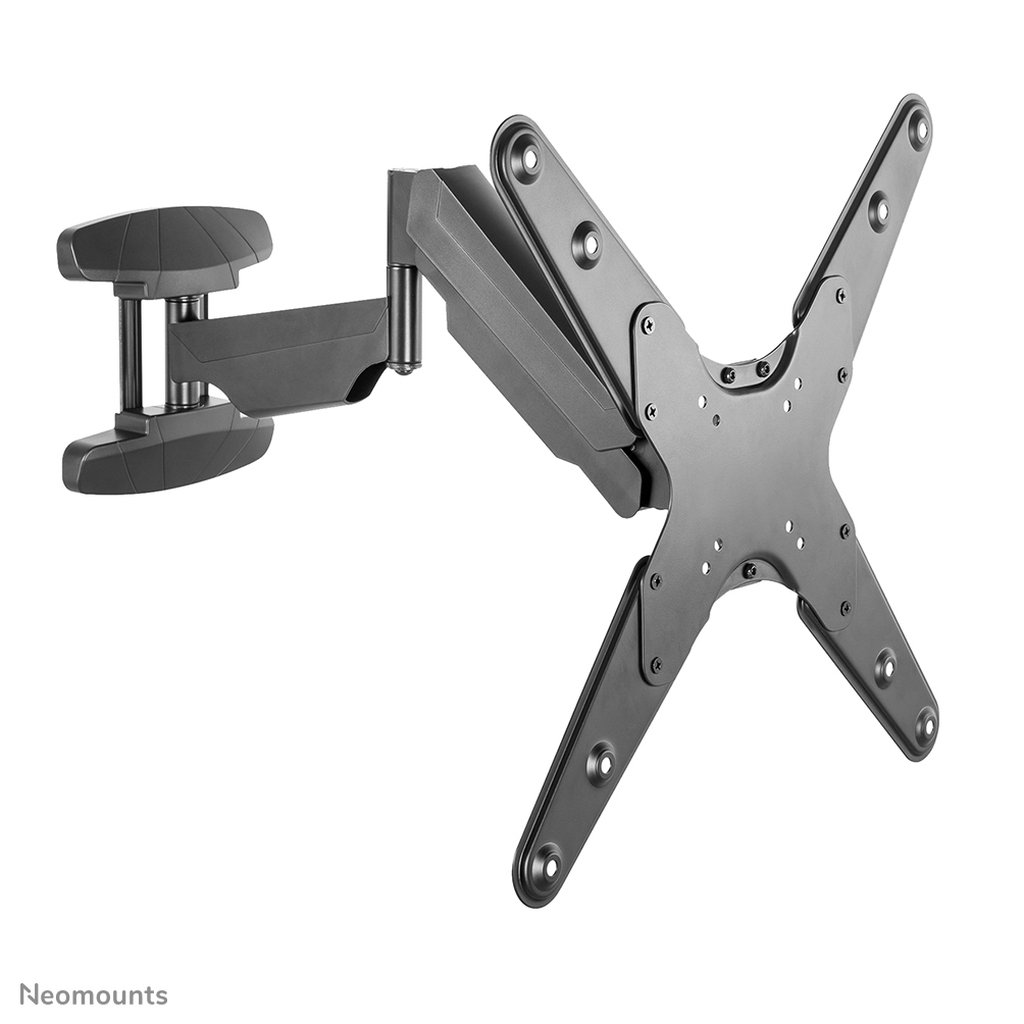

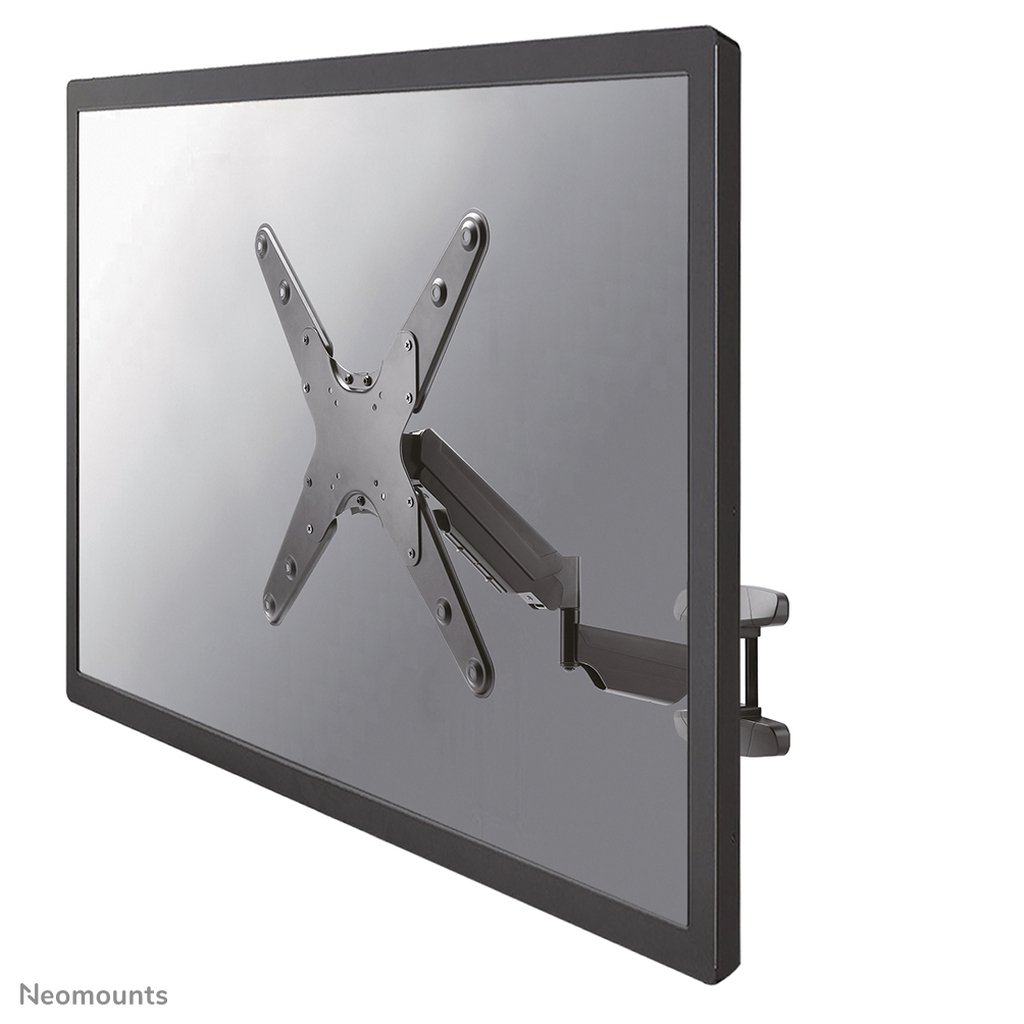

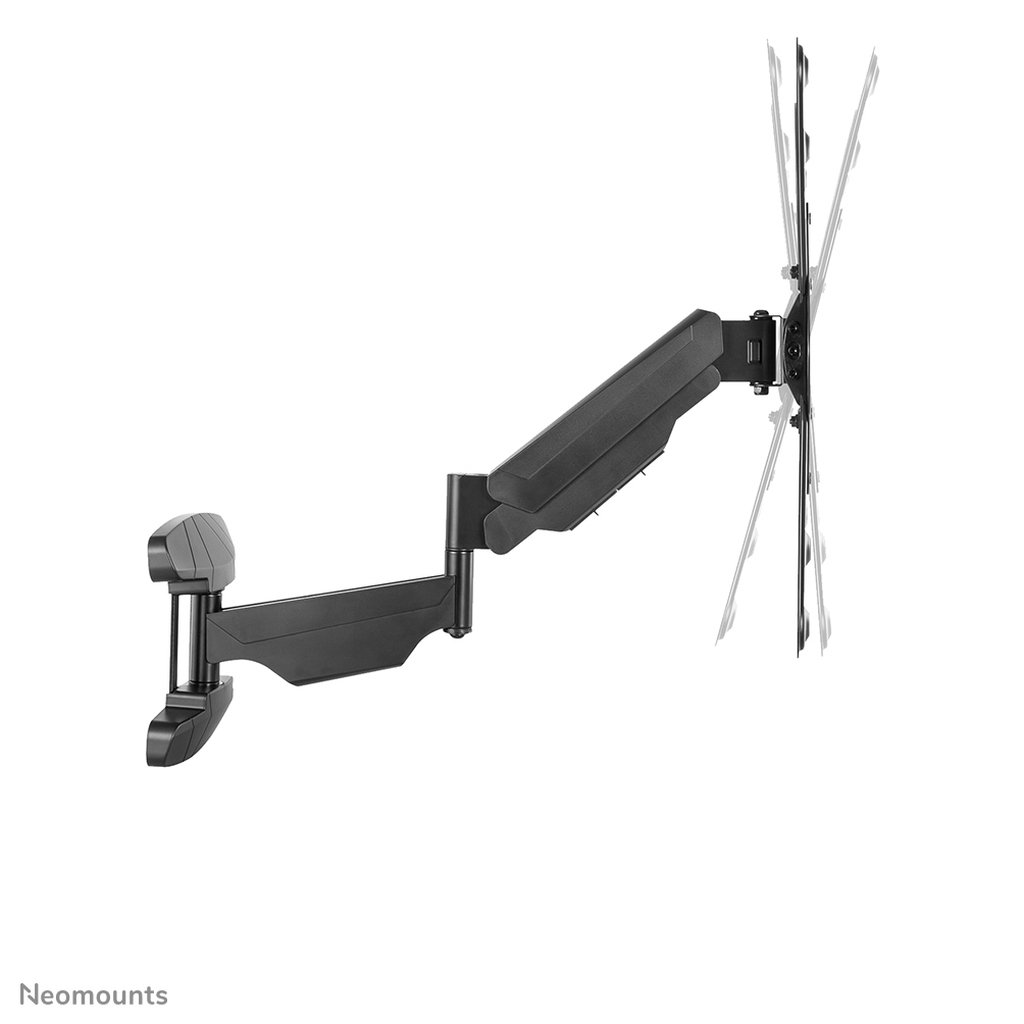

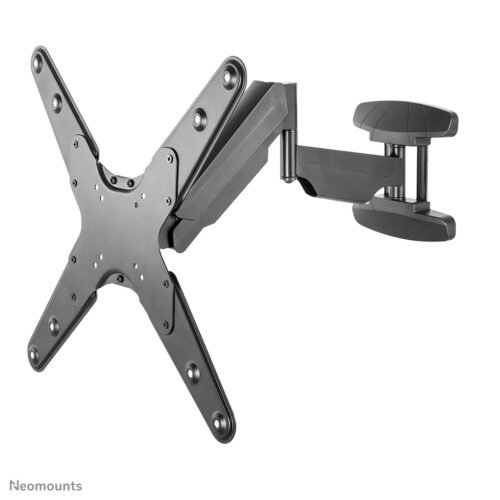

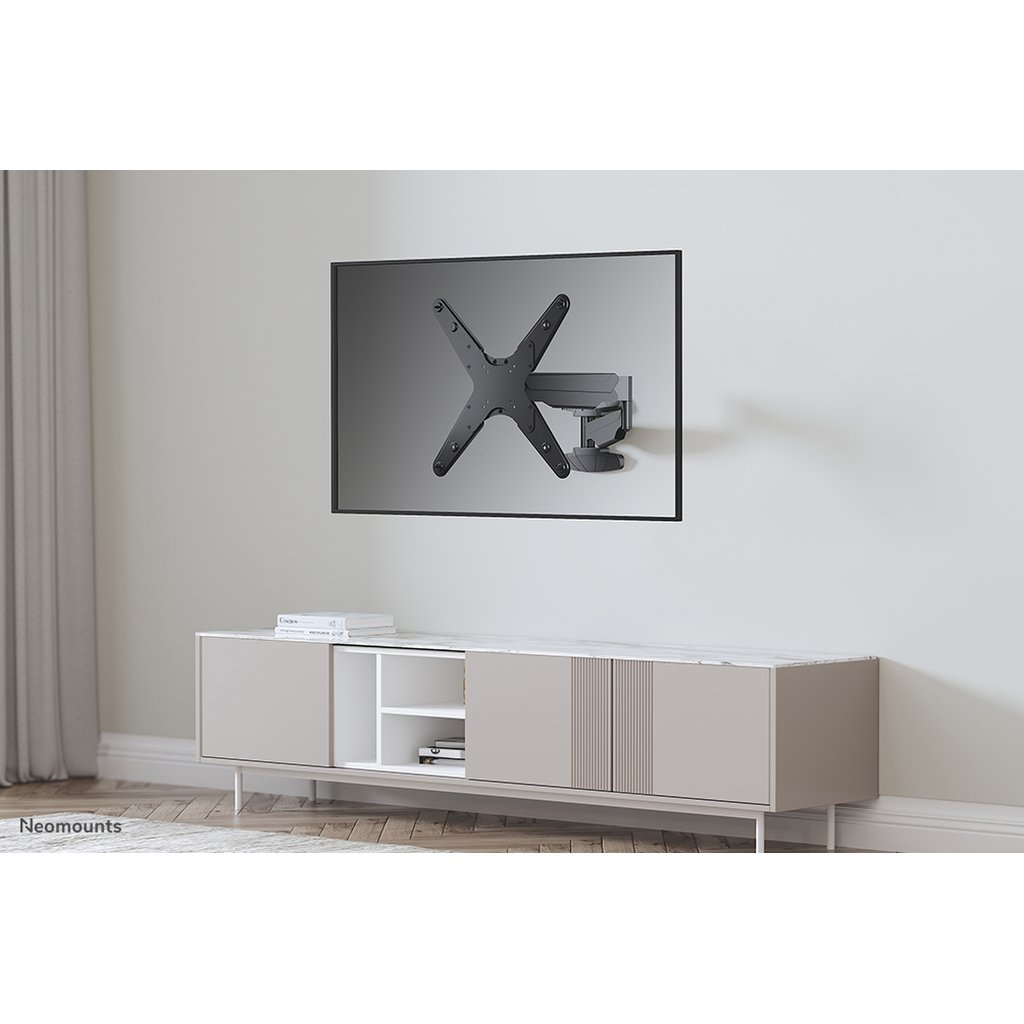

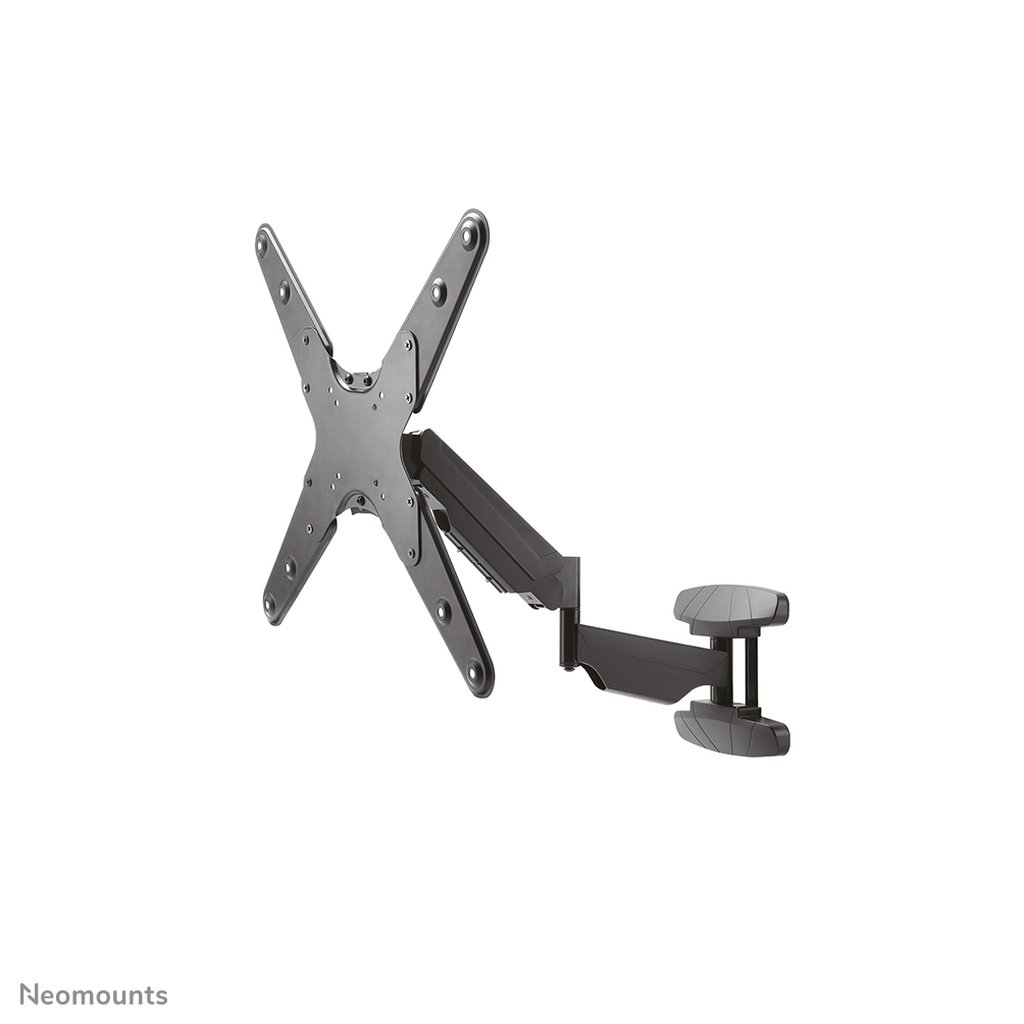

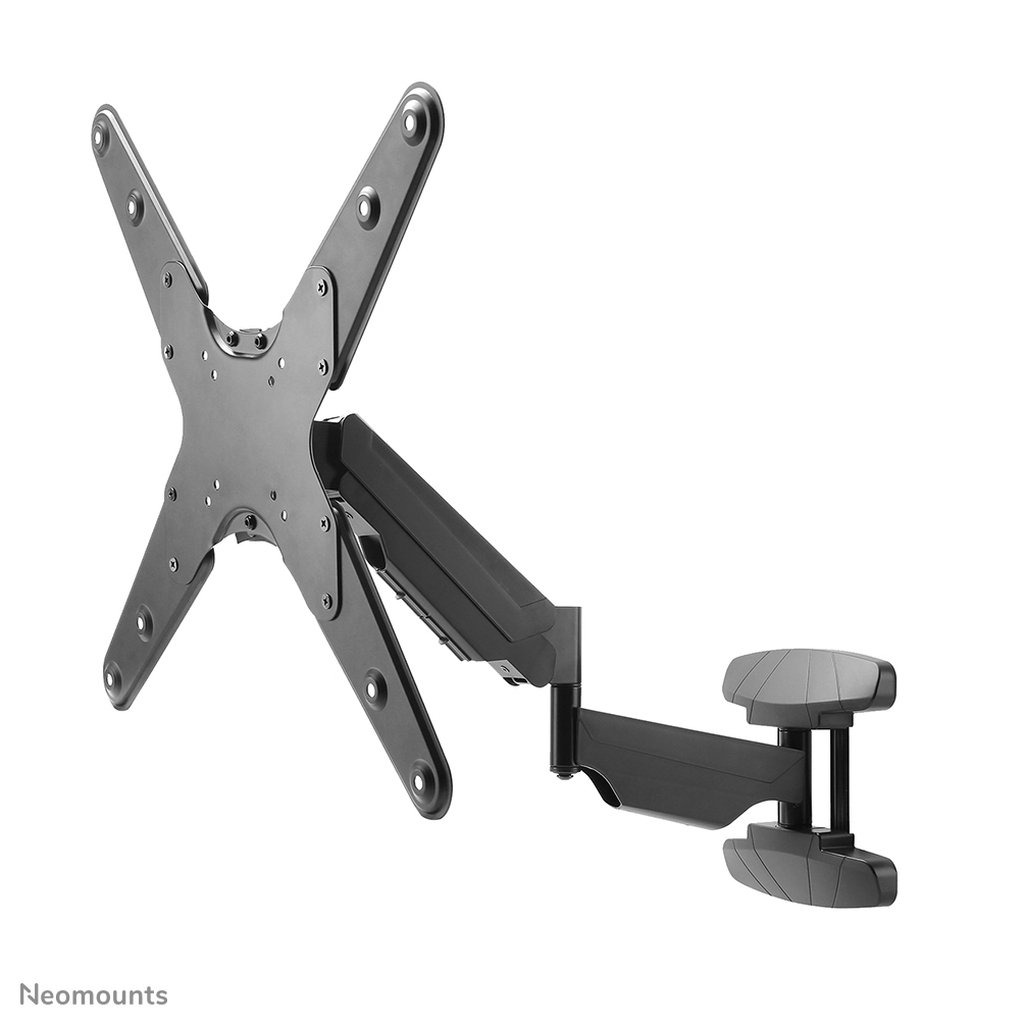

The Neomounts WL70-550BL14 is a full motion wall mount for flat screens up to 55″ with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

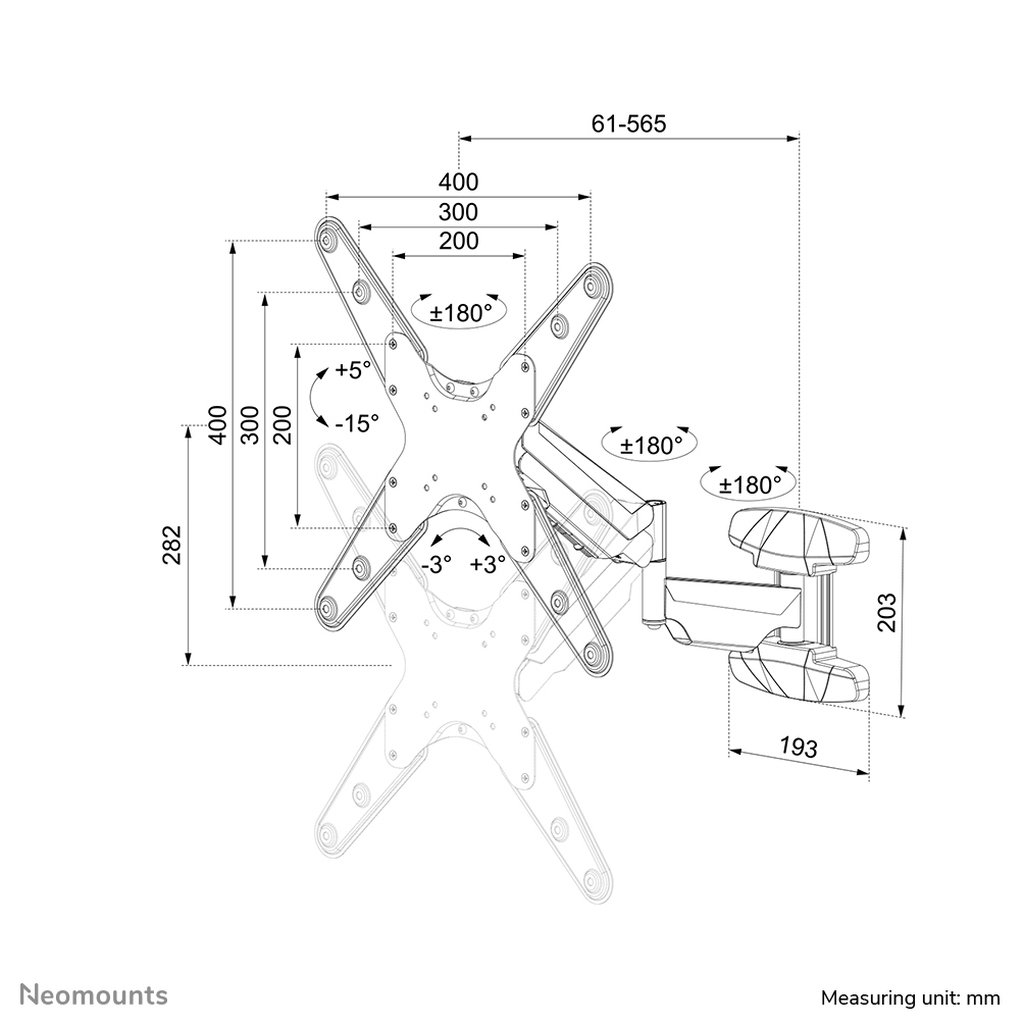

The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75×75 to 400×400 mm.

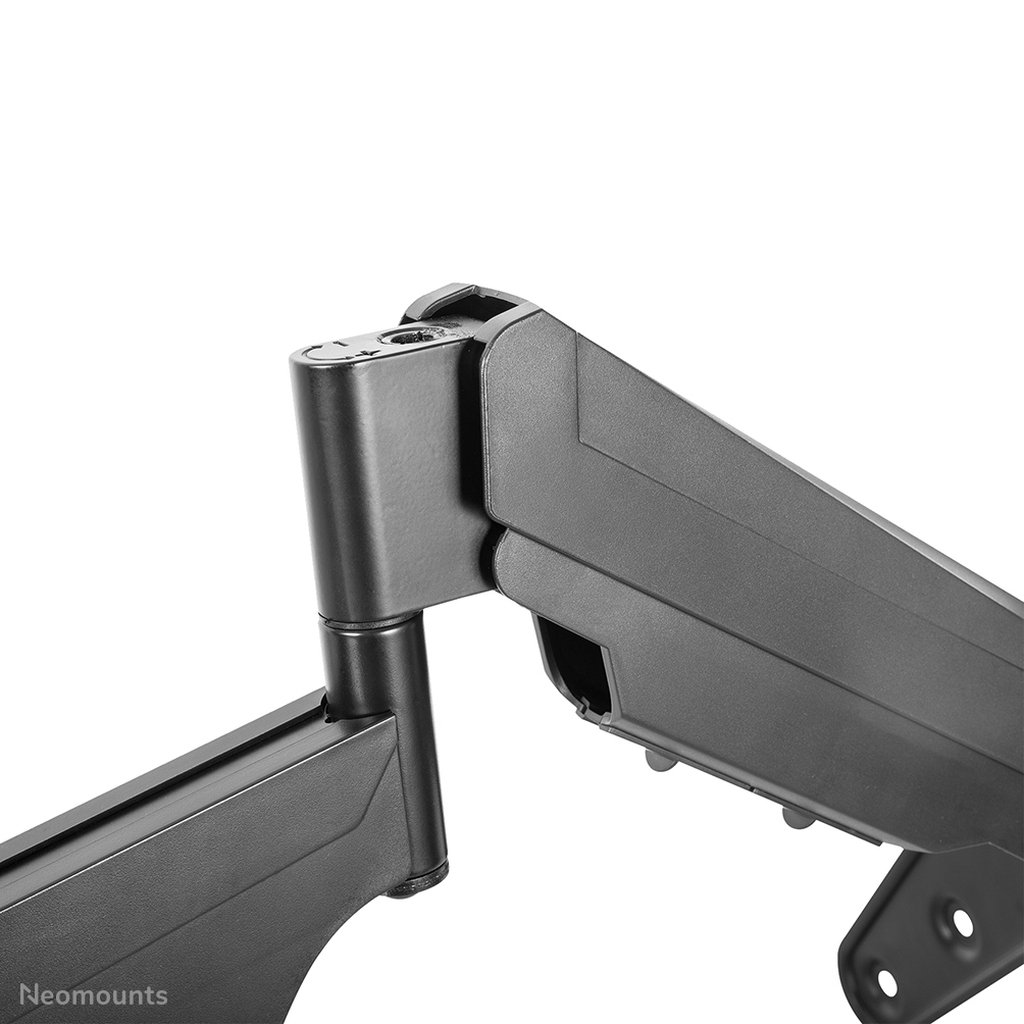

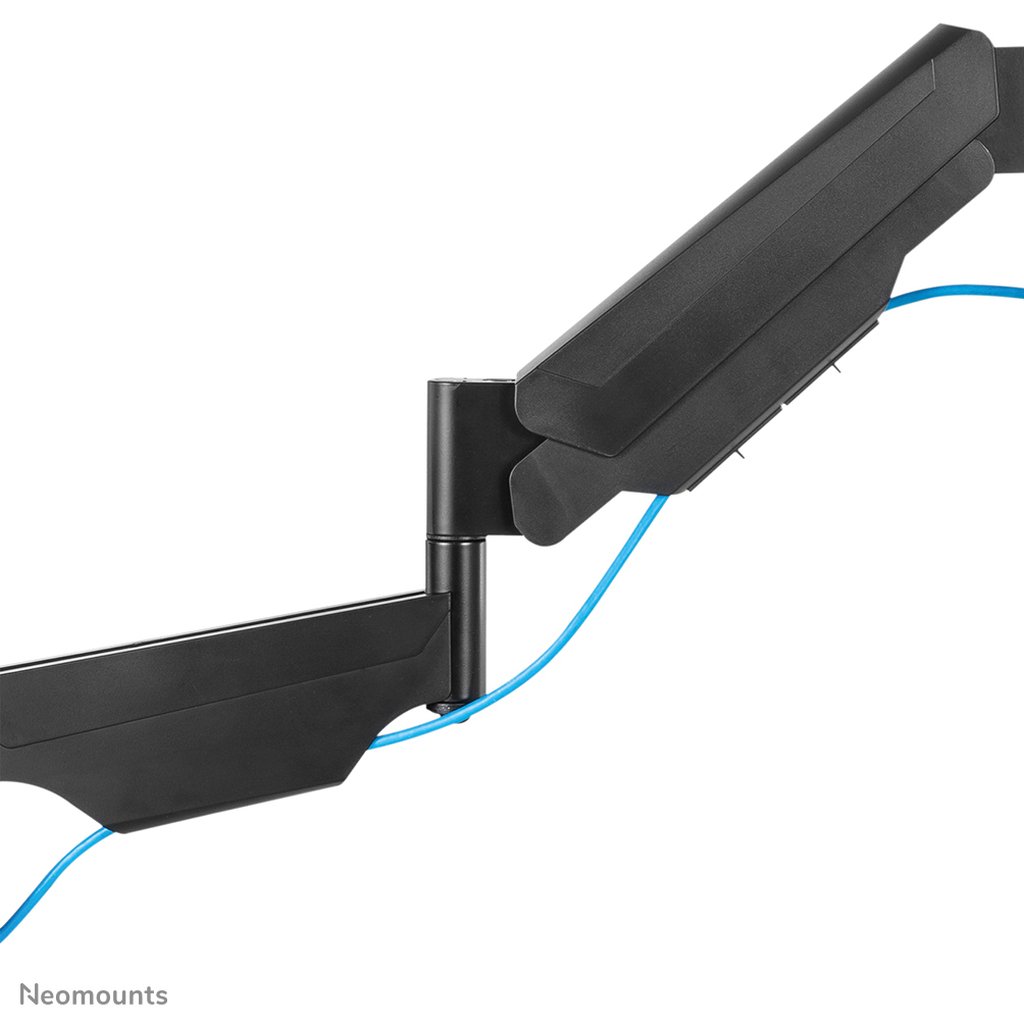

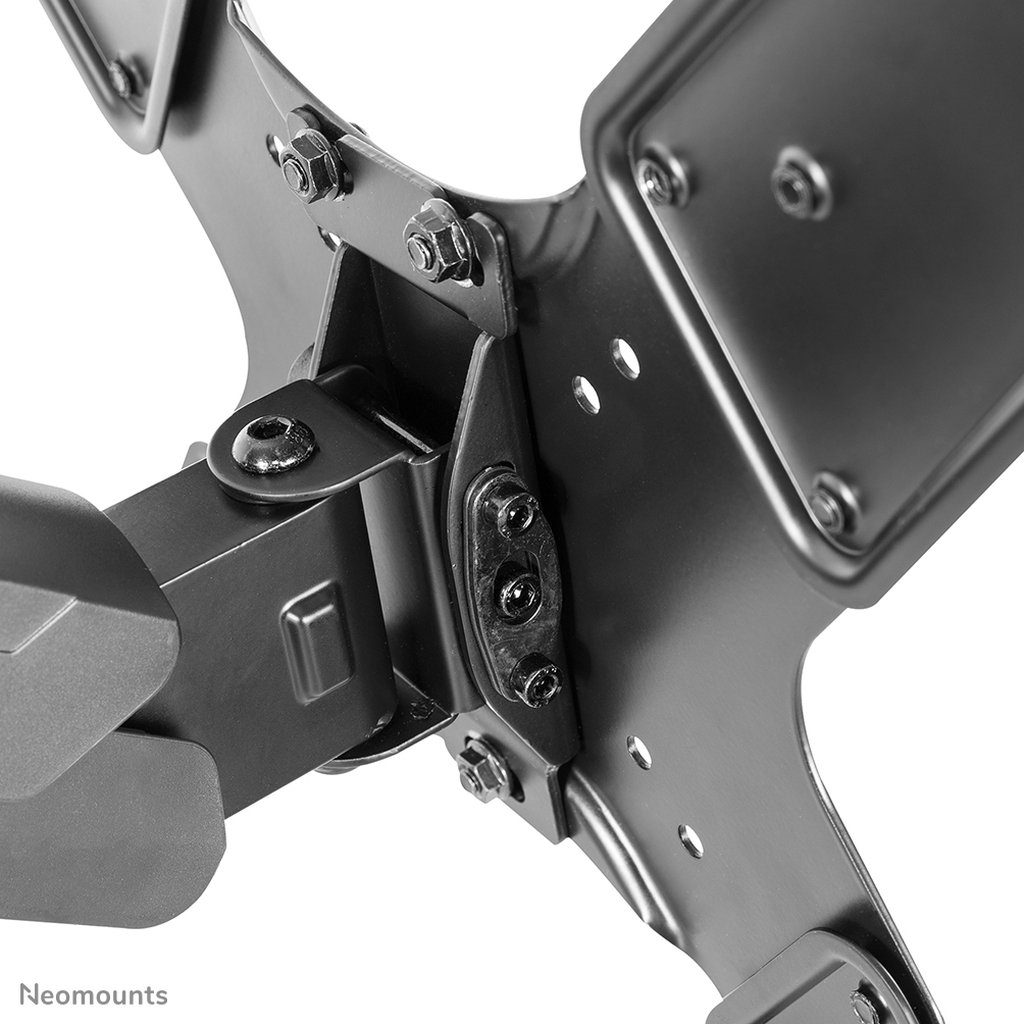

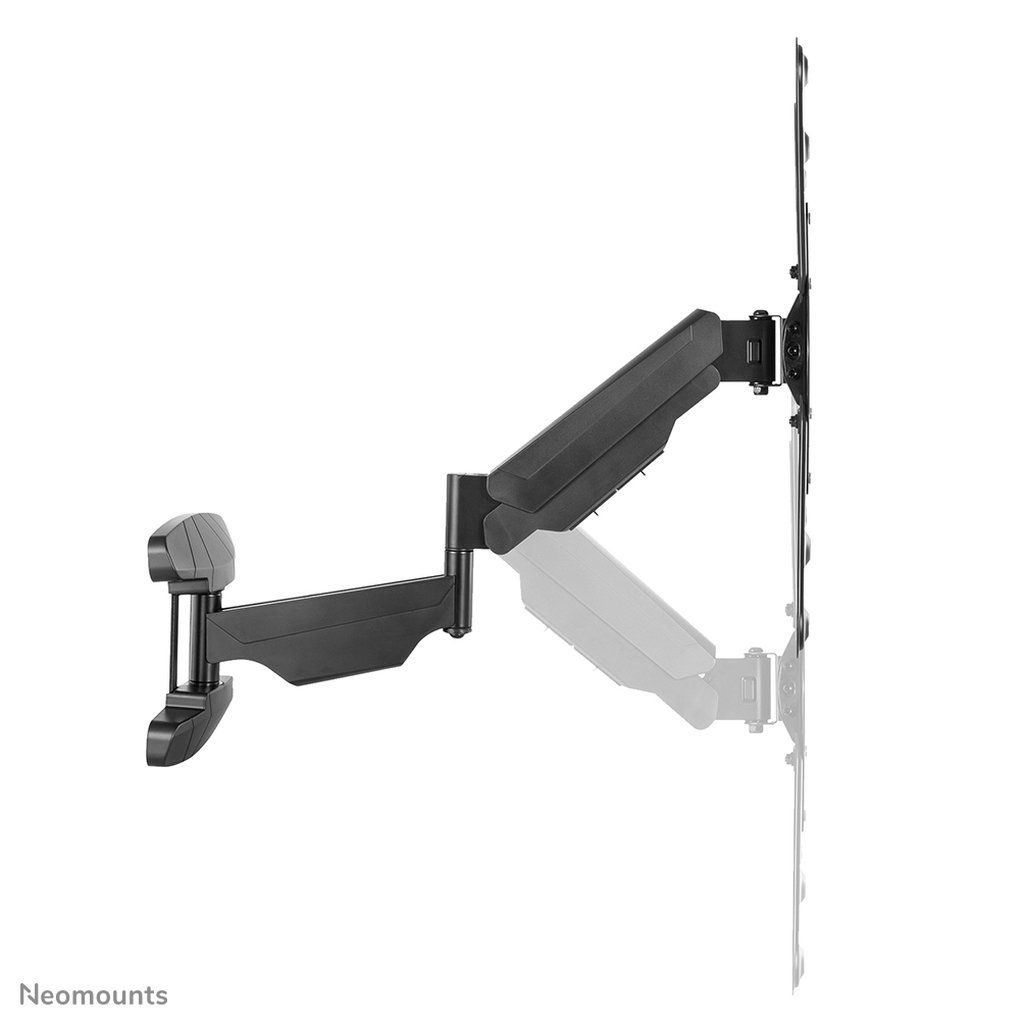

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Additional information
| Weight | 5.37 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Maximum weight capacity | 30 kg |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400,75 x 75 |
| Tilt adjustment | Yes |
| Tilt angle range | -15 – 5° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 – 180° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Distance to the wall (max) | 56.5 cm |
| Distance to the wall (min) | 6.1 cm |
| Product colour | Black |
| Housing material | Steel |
| Country of origin | China |
| Package net weight | 5.5 kg |
| Weight | 4.53 kg |
| Package width | 365 mm |
| Package depth | 505 mm |
| Package height | 75 mm |
| Package weight | 5.5 kg |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 345 mm |
| Master (outer) case gross weight | 17.5 kg |
| Master (outer) case net weight | 13.8 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 72 pc(s) |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 45 – 327 mm |
| Depth | 565 mm |
| Height | 450 mm |
| Width | 450 mm |
| Depth (max) | 56.5 cm |
| Mounting | Screws |
| Cable management | Yes |
| Quantity per pack | 1 pc(s) |
| Pivot angle | -3 – 3° |
| Maximum weight capacity (per display) | 30 kg |
| Minimum weight | 5 kg |
