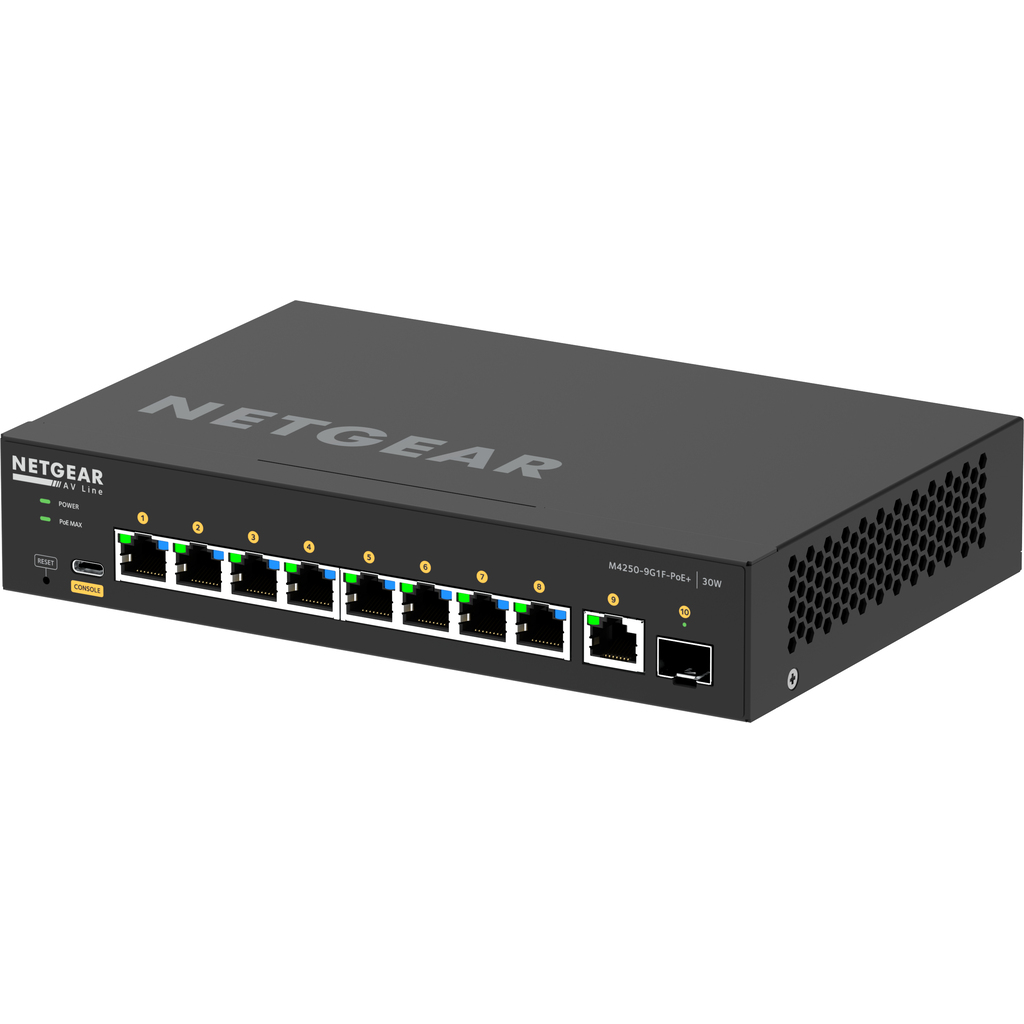

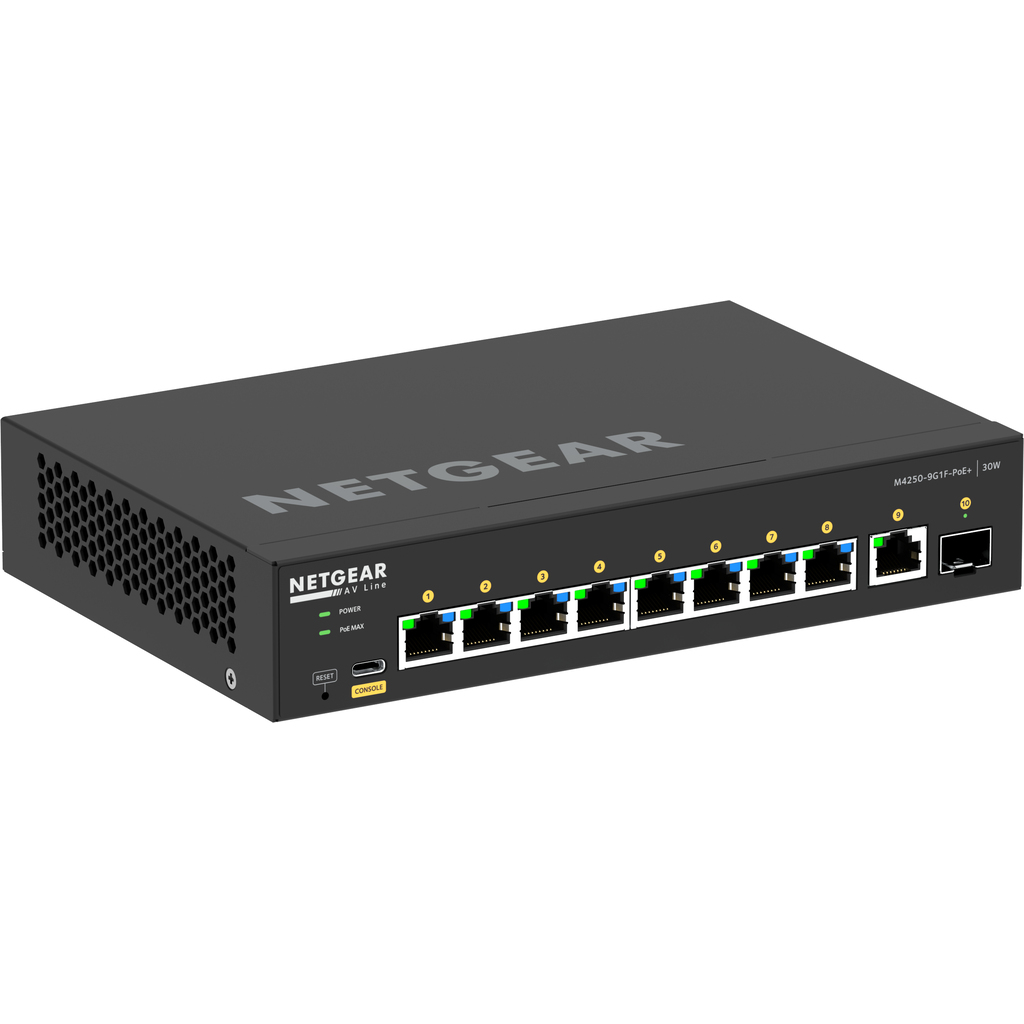

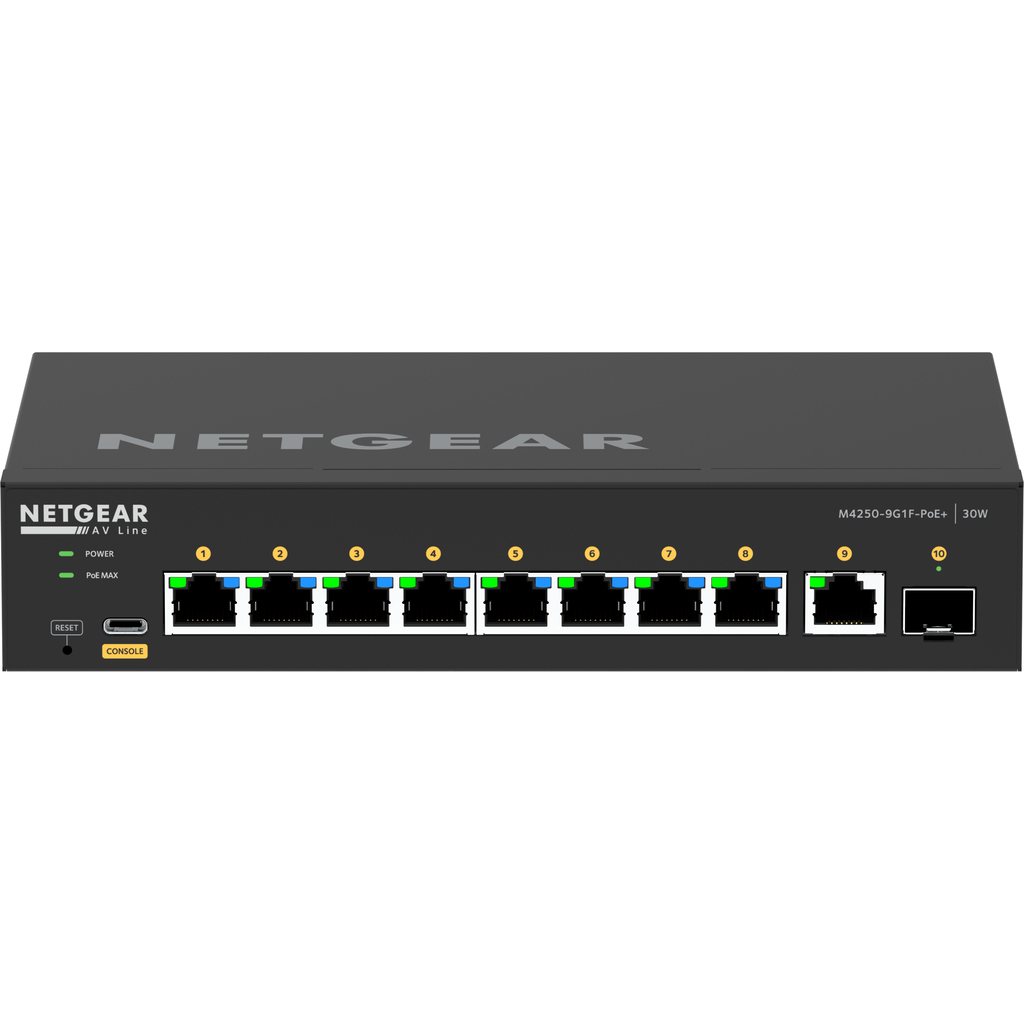

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

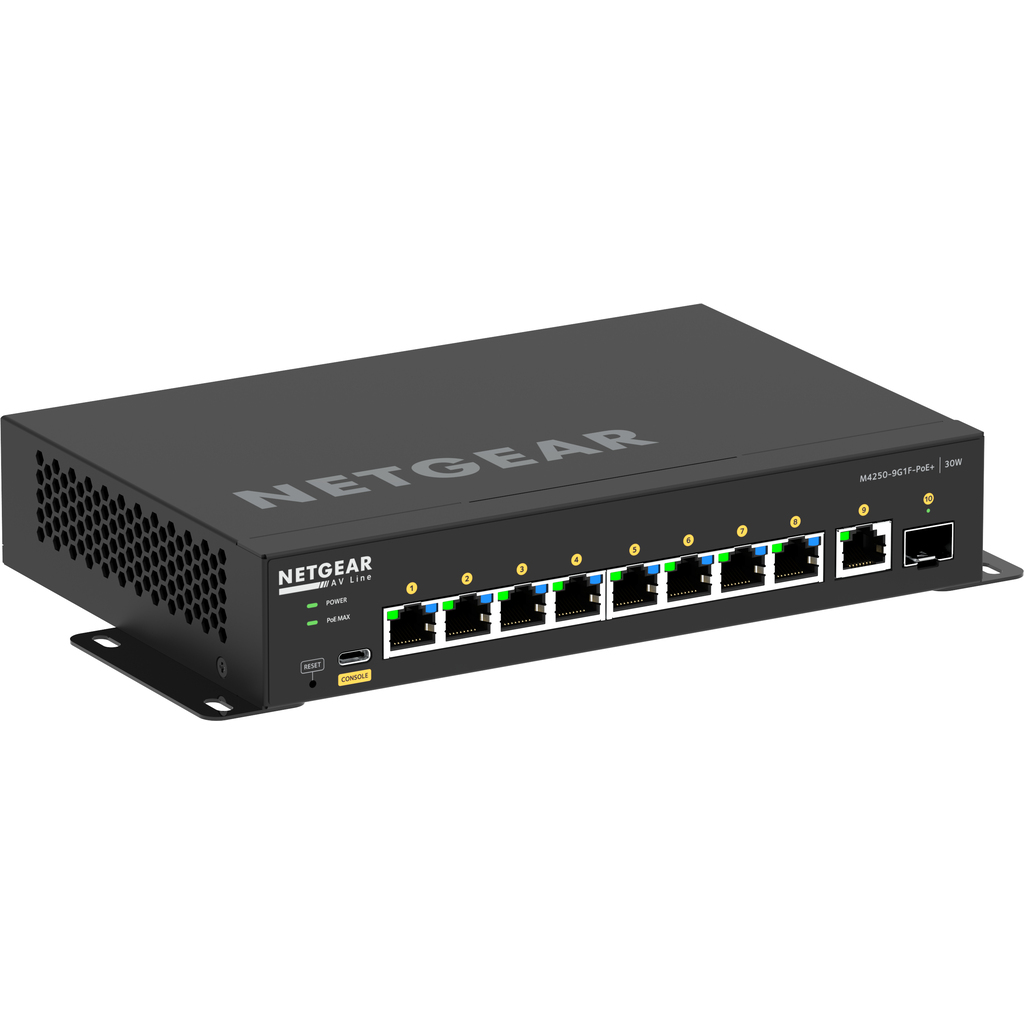

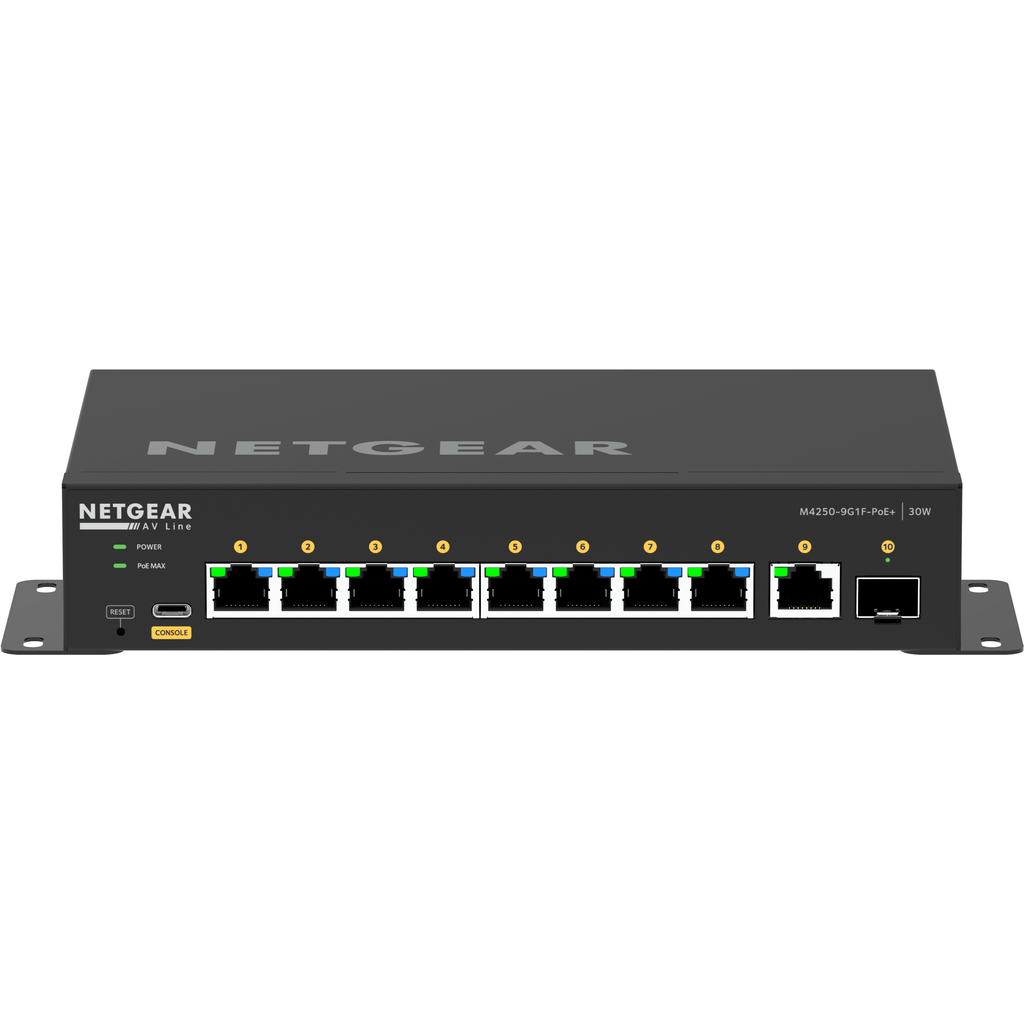

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Additional information
| Weight | 2.46 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 967 g |
| Manual | Yes |
| Switch layer | L2/L3 |
| Spanning tree protocol | Yes |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Loop protection | Yes |
| Total Power over Ethernet (PoE) budget | 110 W |
| Broadcast storm control | Yes |
| Authentication type | RADIUS |
| Internal memory | 2048 MB |
| Power over Ethernet (PoE) power per port | 30 W |
| Link aggregation | Yes |
| User guide | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Noise level | 30.06 dB |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 559.555 BTU/h |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Multicast support | Yes |
| Non-operating altitude | 0 – 3000 m |
| Built-in processor | Yes |
| Processor frequency | 1250 MHz |
| IPv4 multicast entries | 2000 |
| Processor model | ARM Cortex-A9 |
