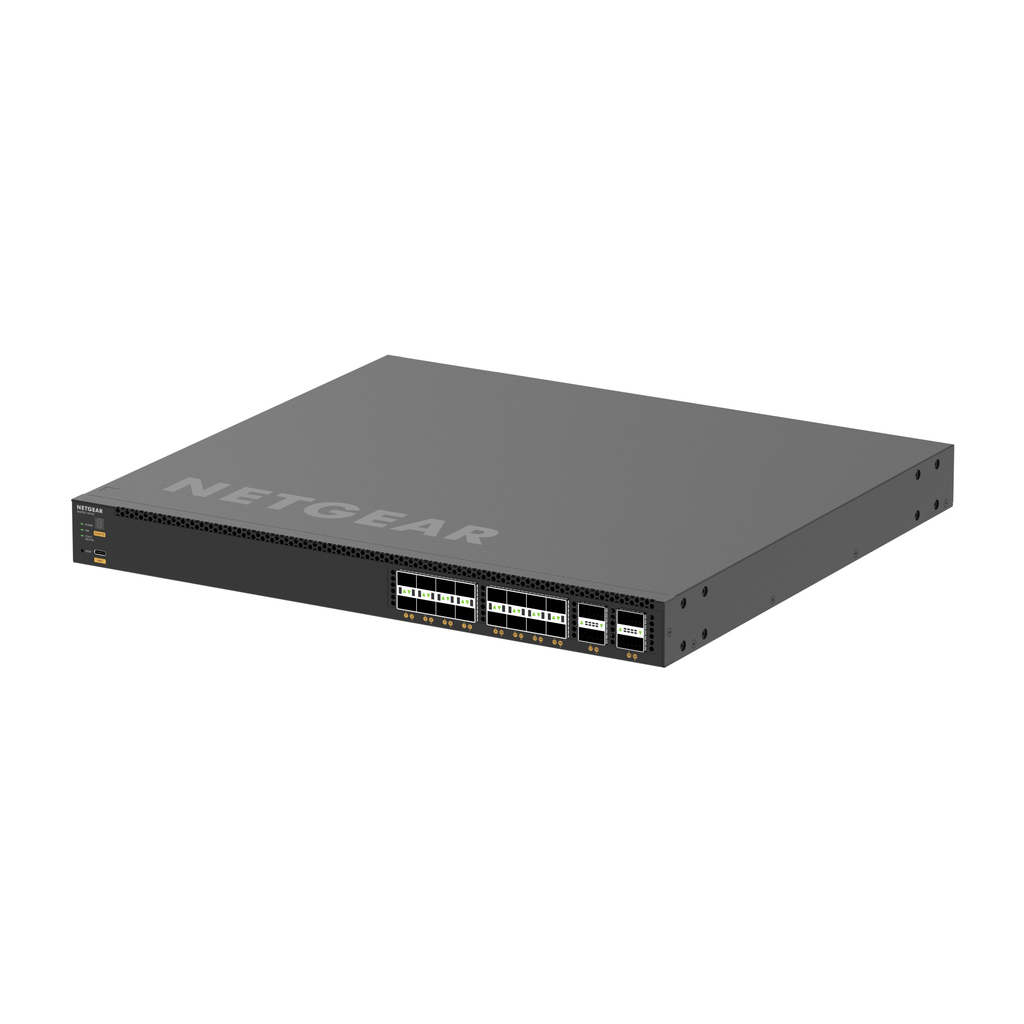

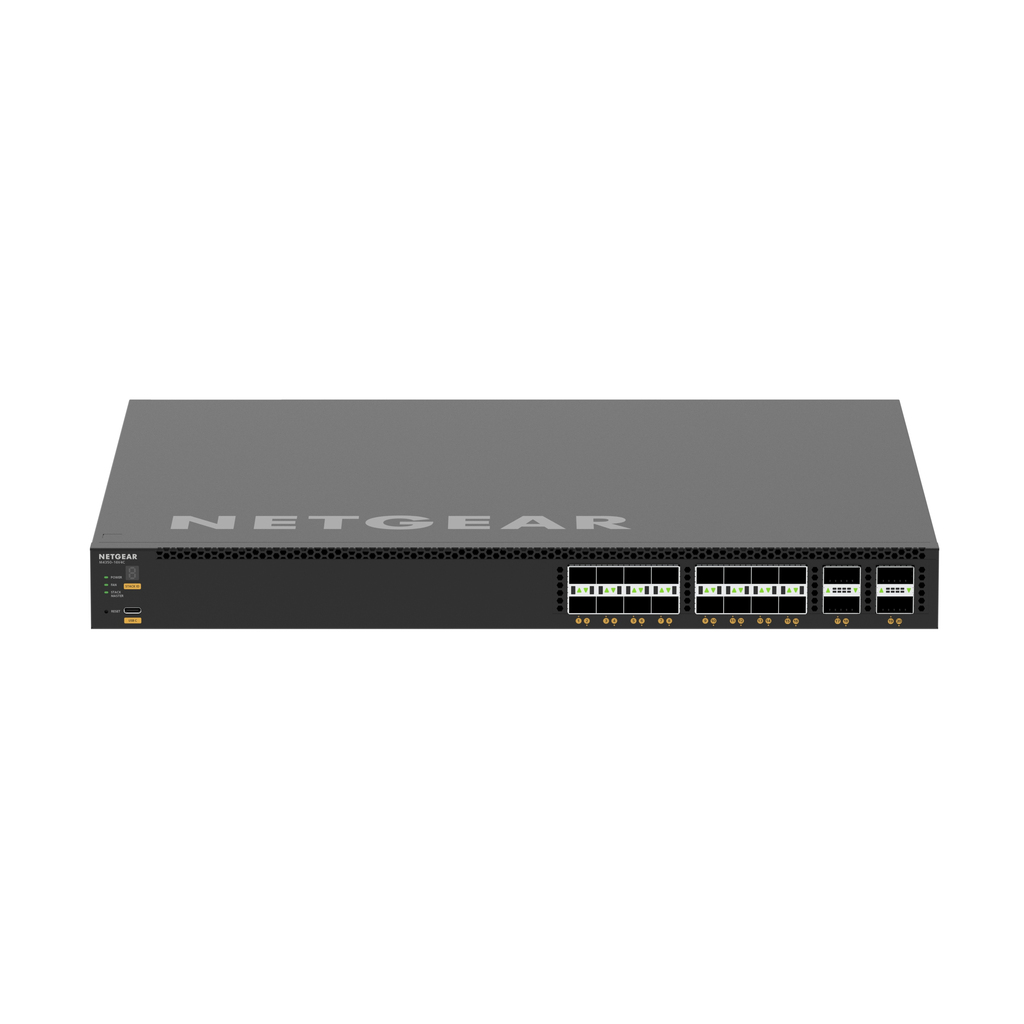

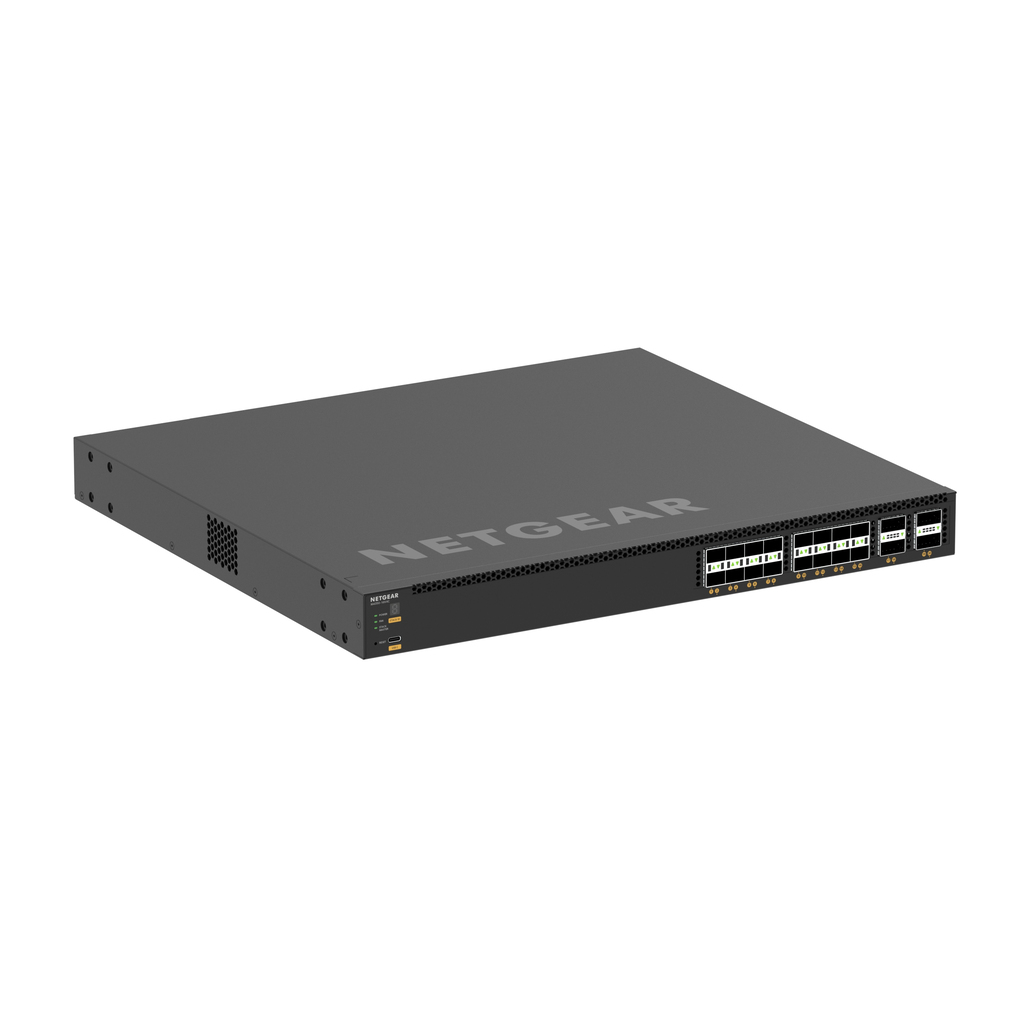

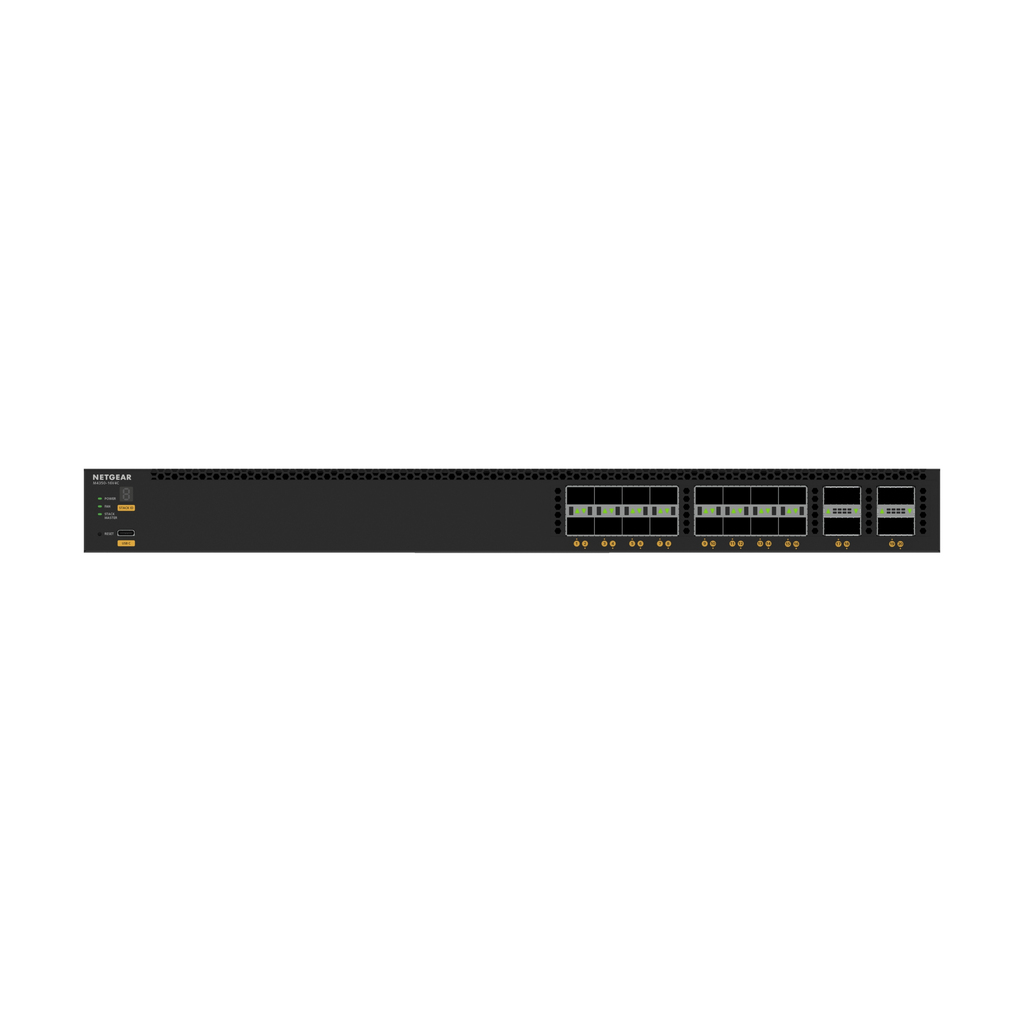

NETGEAR VSM4320C Managed L3 Black
16 x 25G SFP28, 4 x 100G QSFP28, 440 x 400 x 43.2 mm, 7.15 kg
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
POWER AND THROUGHPUT

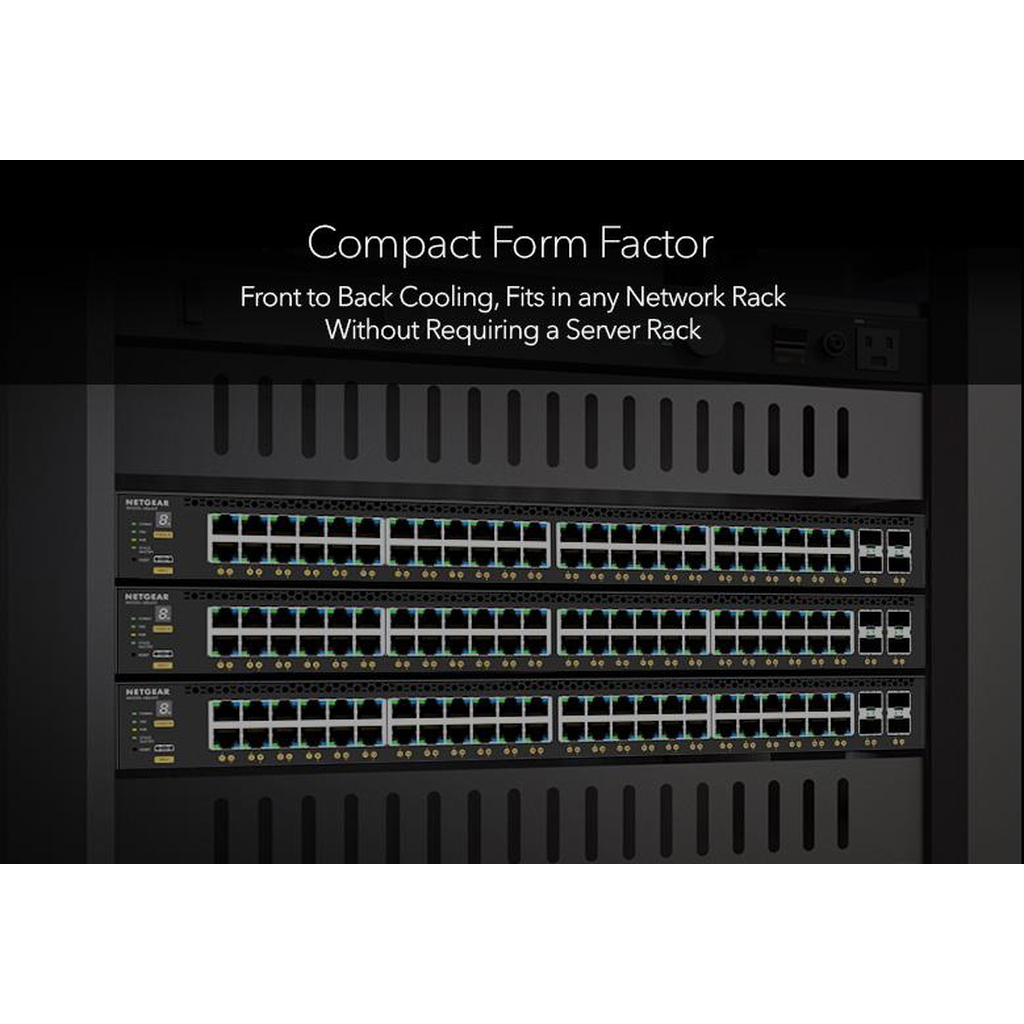

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Additional information
| Weight | 10.34 lbs |
|---|---|
| Brand compatibility | 1190.4 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 1600 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 256 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 7.15 kg |
| Power consumption (typical) | 143.4 W |
| Switch layer | L3 |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
| Stackable | Yes |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| Sustainability compliance | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| Power connector | AC-in jack |
| Broadcast storm control | Yes |
| Number of VLANs | 4093 |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| Memory type | DDR4-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Link aggregation | Yes |
| Operating altitude | 0 – 3000 m |
| Rate limiting | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Multicast support | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Multicast Listener Discovery (MLD) snooping | Y |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP V1, V2, V3 |
| Non-operating altitude | 0 – 3000 m |
| Latency (10 Gbps) | 2.71 µs |
| Built-in processor | Yes |
| Rack mount kit | Yes |
| Access Control List (ACL) ingress | 511 |
| Processor frequency | 1800 MHz |
| Policy-based routing | Yes |
| IGMP proxy | Yes |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 16 |
| Included power plug types | EU, UK, NA |
| Root protection | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| DoS attack prevention | Yes |
| sFlow | Yes |
| 6to4 tunnel | Yes |
| Access Control List (ACL) egress | 1023 |
| Airflow direction | Front-to-back airflow |
| Processor model | ARM Cortex-A57 |
| Power supply | 420 W |
