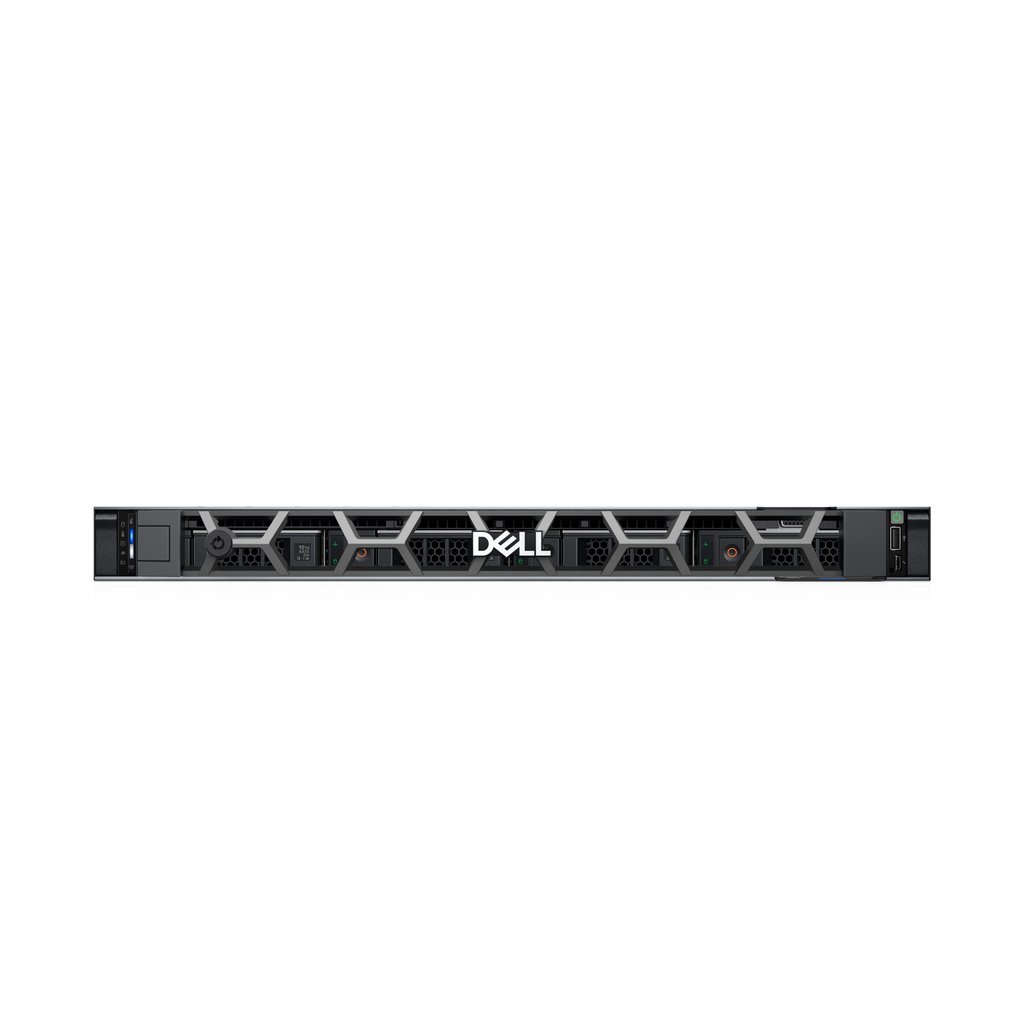

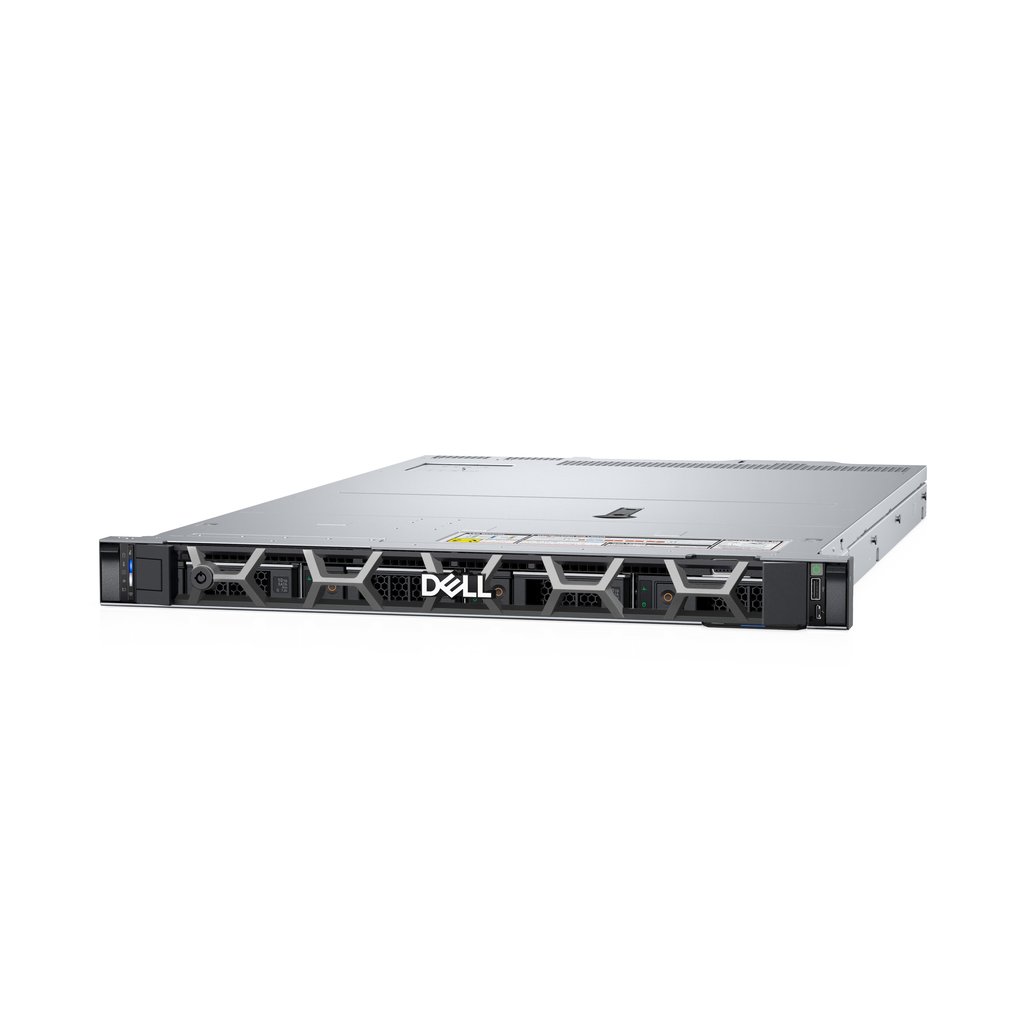

DELL PowerEdge R660XS server 960 GB Rack (1U) Intel® Xeon® Gold 5416S 2 GHz 32 GB DDR5-SDRAM 1100 W
Intel Xeon Gold 5416S (30MB Cache, 2GHz), 32GB DDR5-SDRAM, 960GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 16G, 2 x 1100W, No OS
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The perfect blend of performance and density
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.
Additional information
| Weight | 23 lbs |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Processor model | 5416S |
| Processor frequency | 2 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 1 TB |
| Memory slots | 16x DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 |
| Internal drive bays | 8 |
| On-board graphics card | No |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Chassis type | Rack (1U) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Compatible operating systems | Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 2 |
| Width | 434 mm |
| Height | 42.8 mm |
| Supported storage drive interfaces | SAS, Serial ATA |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Product colour | Black |
| Power supply input voltage | 100 – 240 V |
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Memory ranking | 2 |
| Operating system installed | No |
| Number of redundant power supplies installed | 2 |
| Thermal Design Power (TDP) | 150 W |
| Buffered memory type | Registered (buffered) |
| Memory data transfer rate | 5600 MT/s |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-Plug support | Yes |
| Rack rails | Yes |
| Bezel | Yes |
| Remote administration | iDRAC9, Enterprise 16G |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
| Non-operating altitude | 0 – 12000 m |
| Total carbon footprint (kg of CO2e) | 6561 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3677 |
| Carbon emissions, manufacturing (kg of CO2e) | 459.27 |
| Carbon emissions, logistics (kg of CO2e) | 131.22 |
| Carbon emissions, energy usage (kg of CO2e) | 5970.51 |
| PAIA version | 1.3.2, 2022 |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Maximum internal memory supported by processor | 512 GB |
