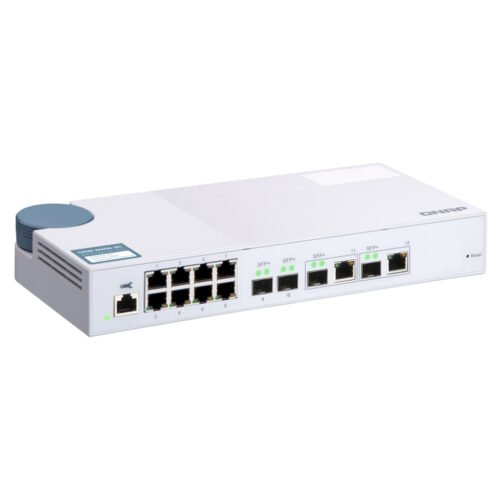

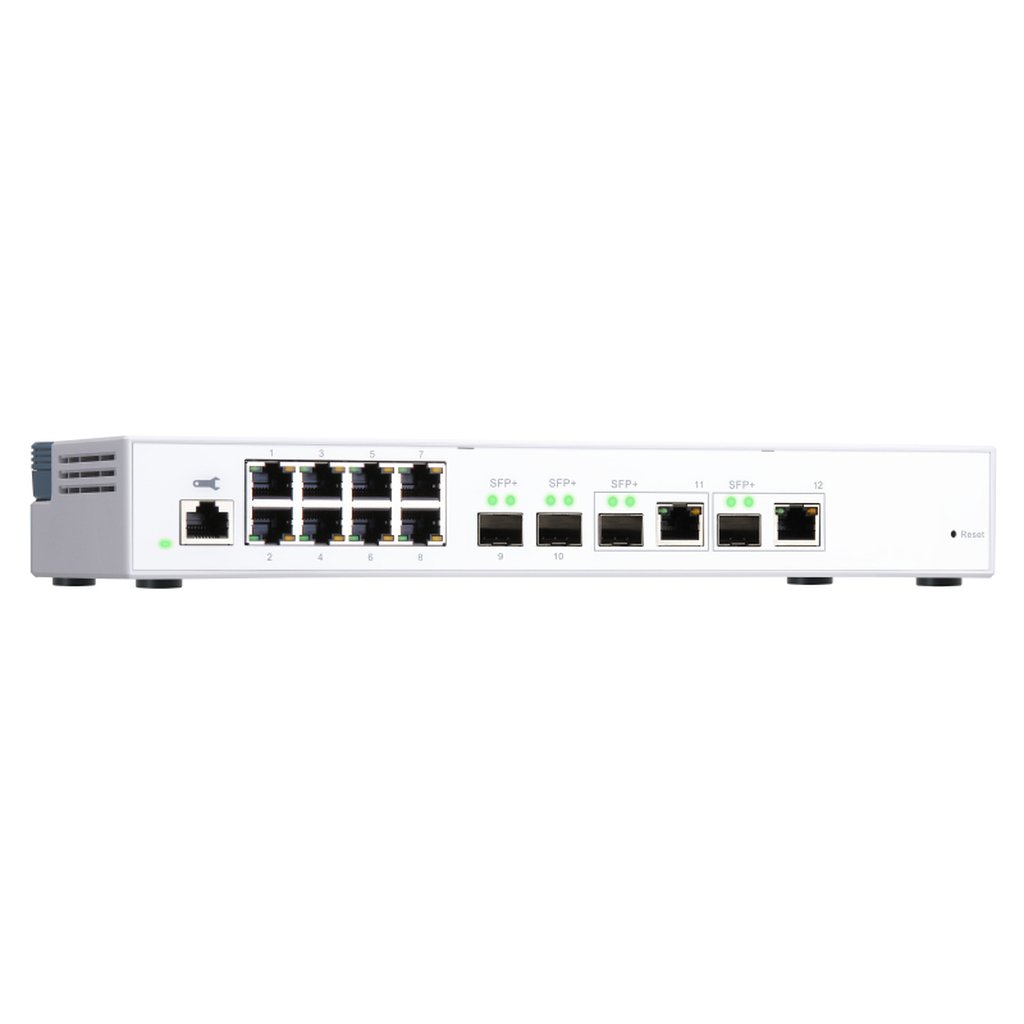

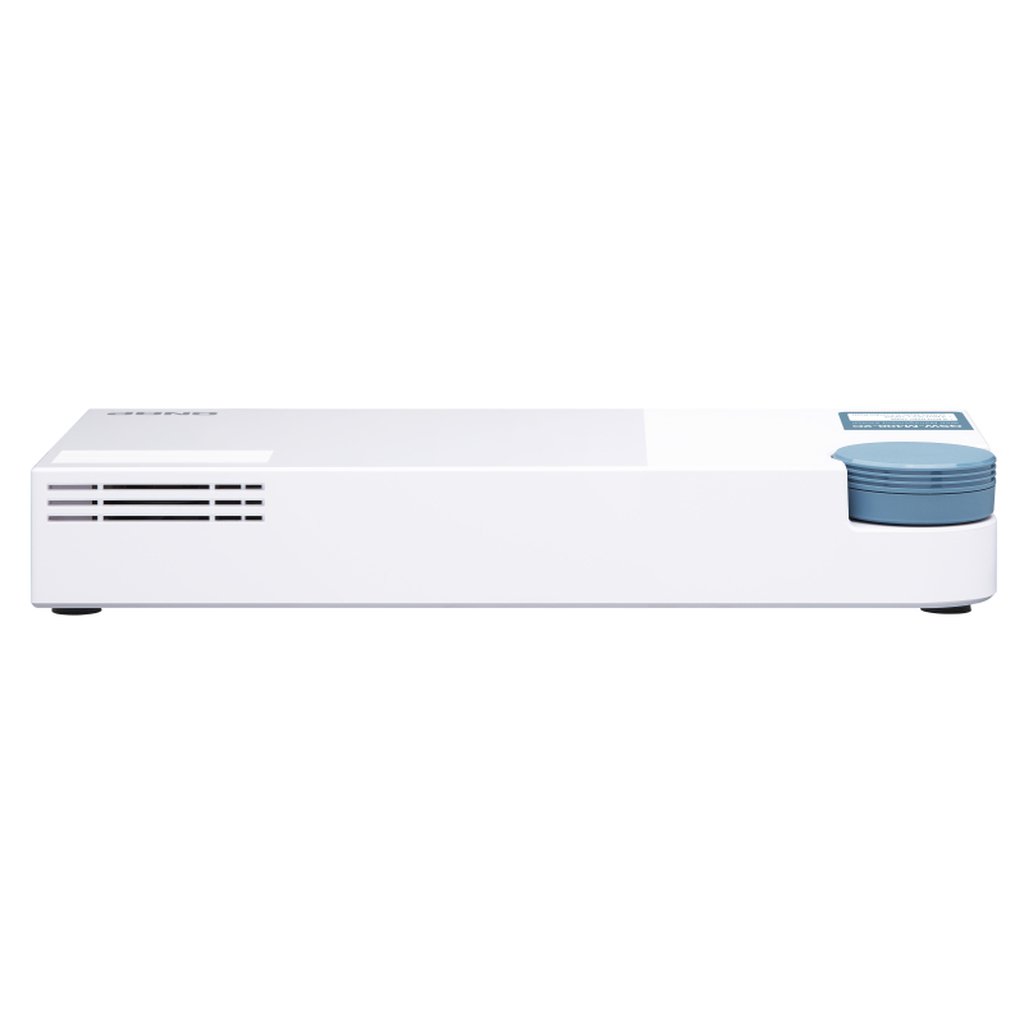

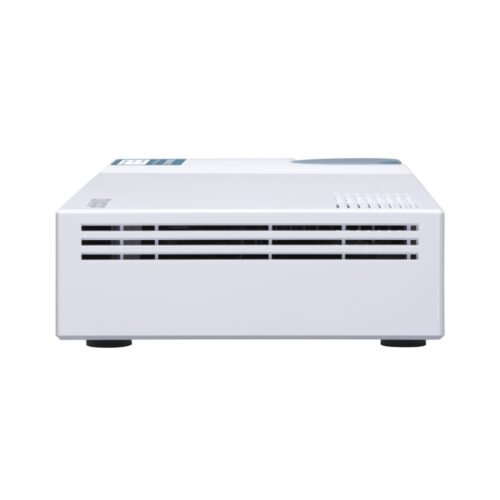

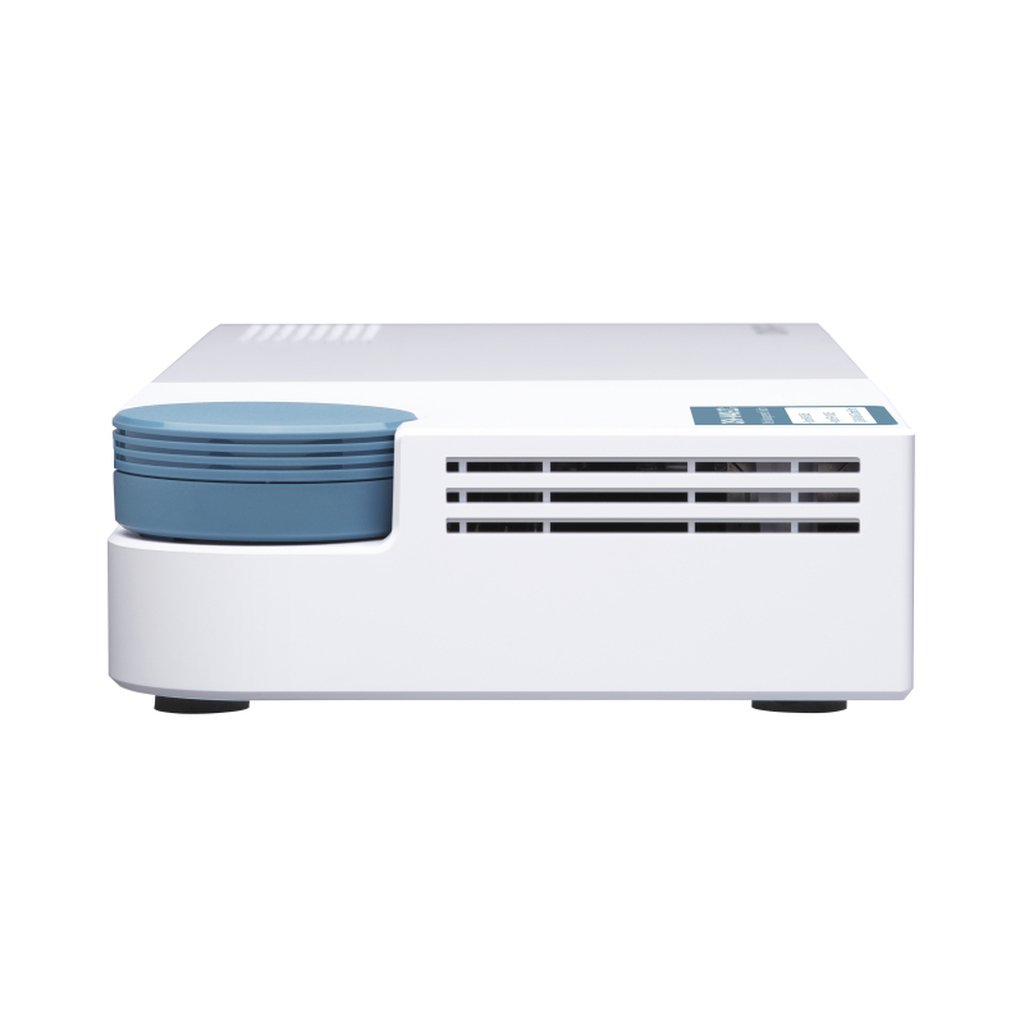

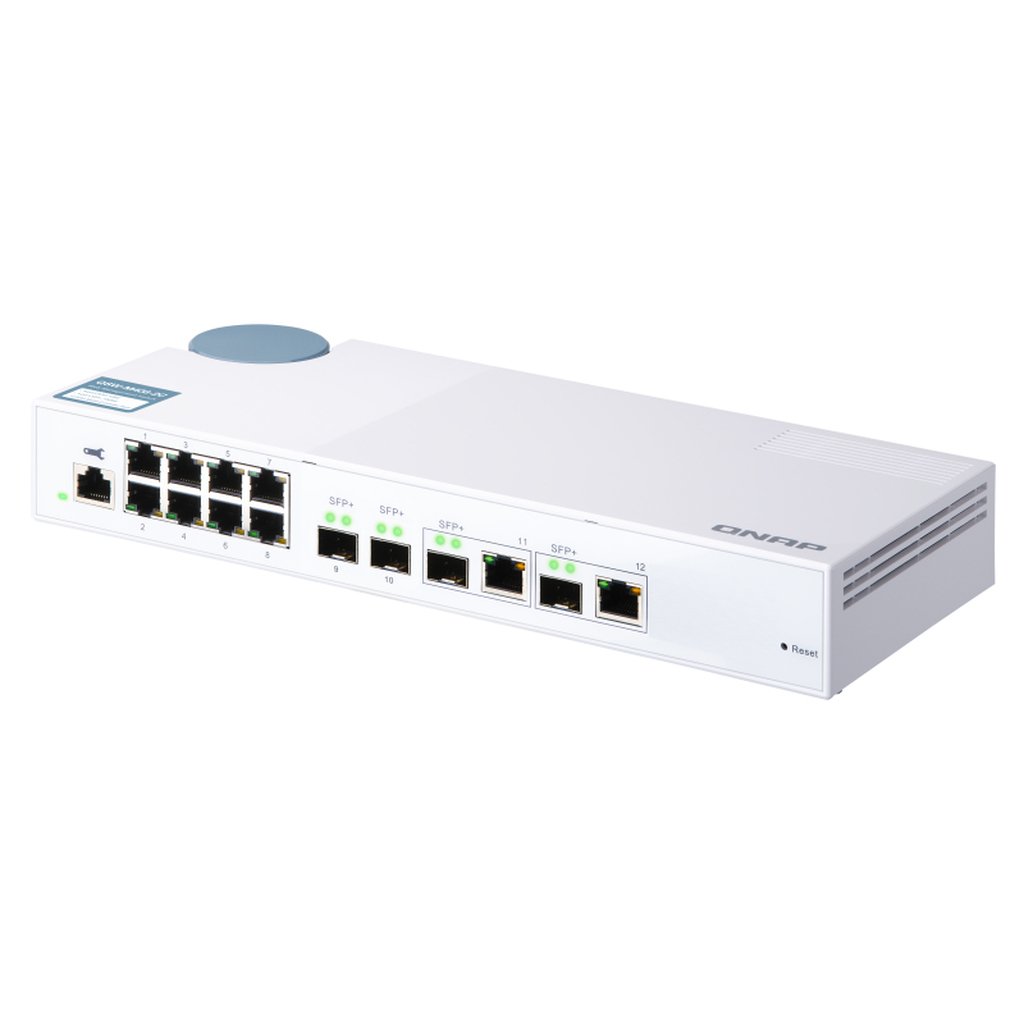

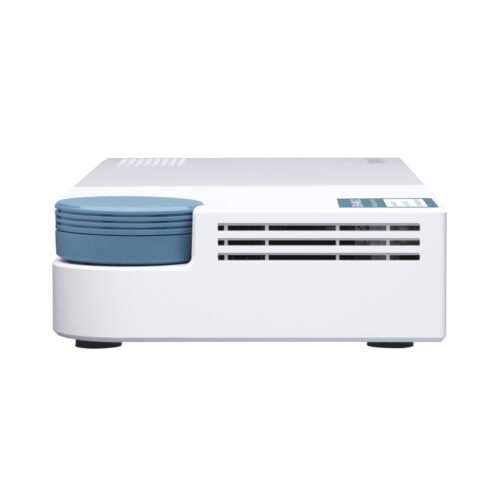

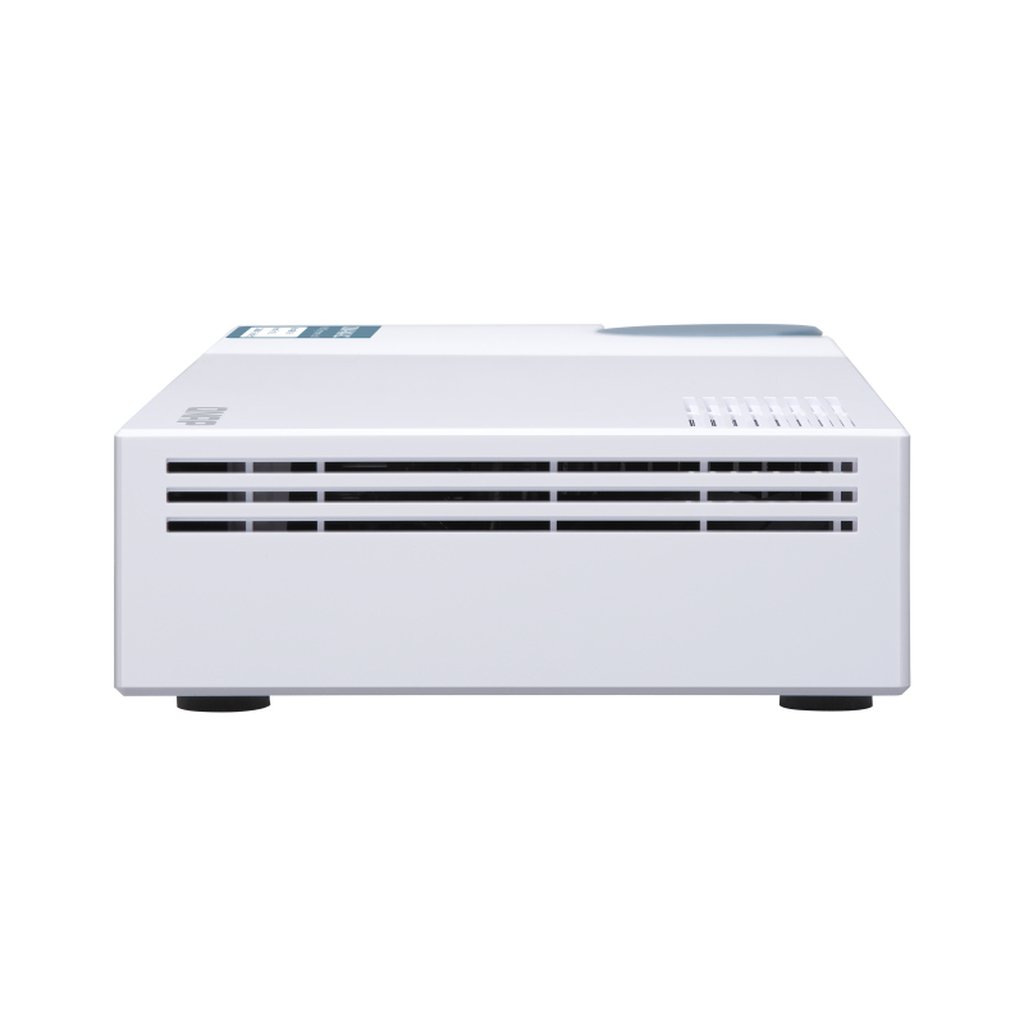

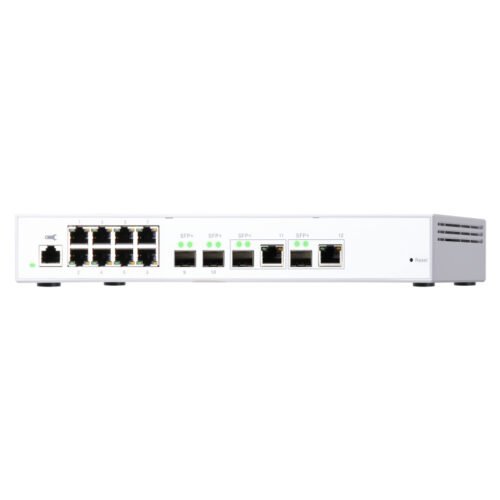

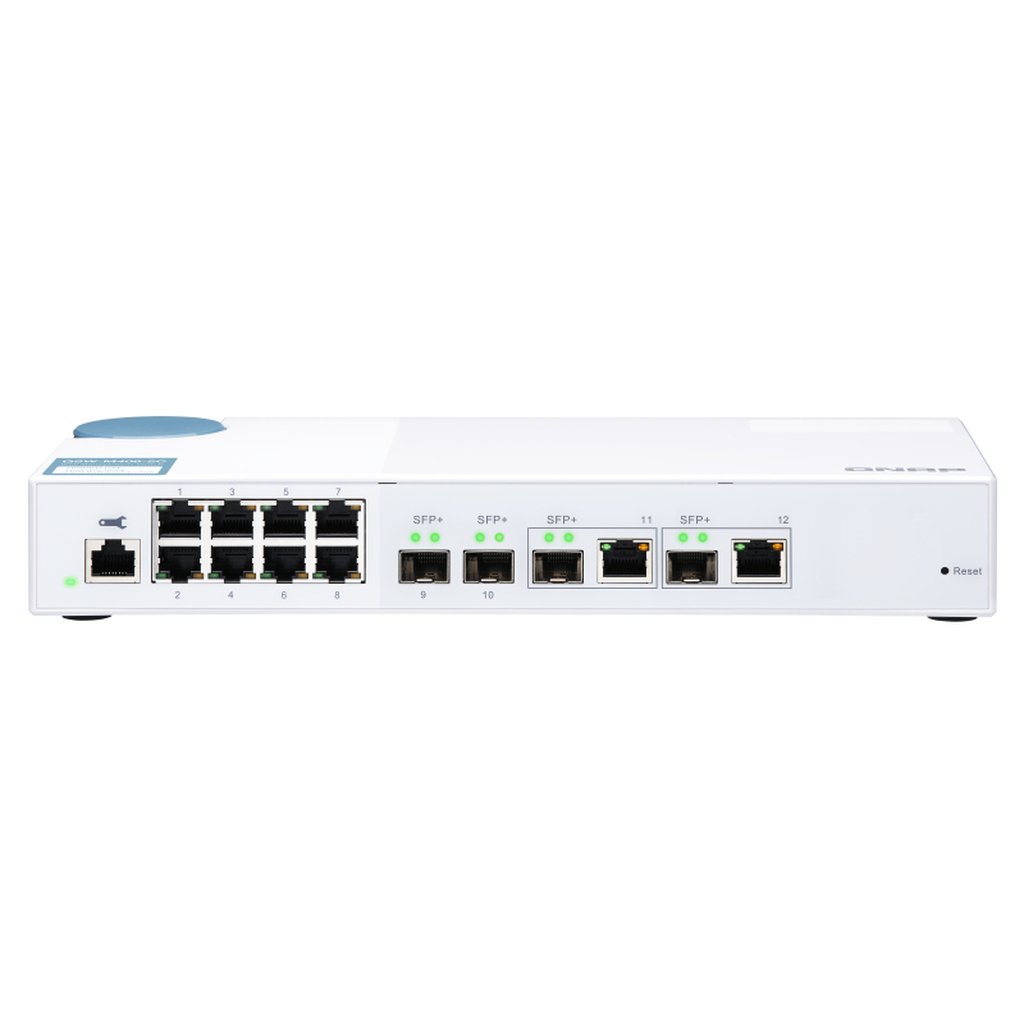

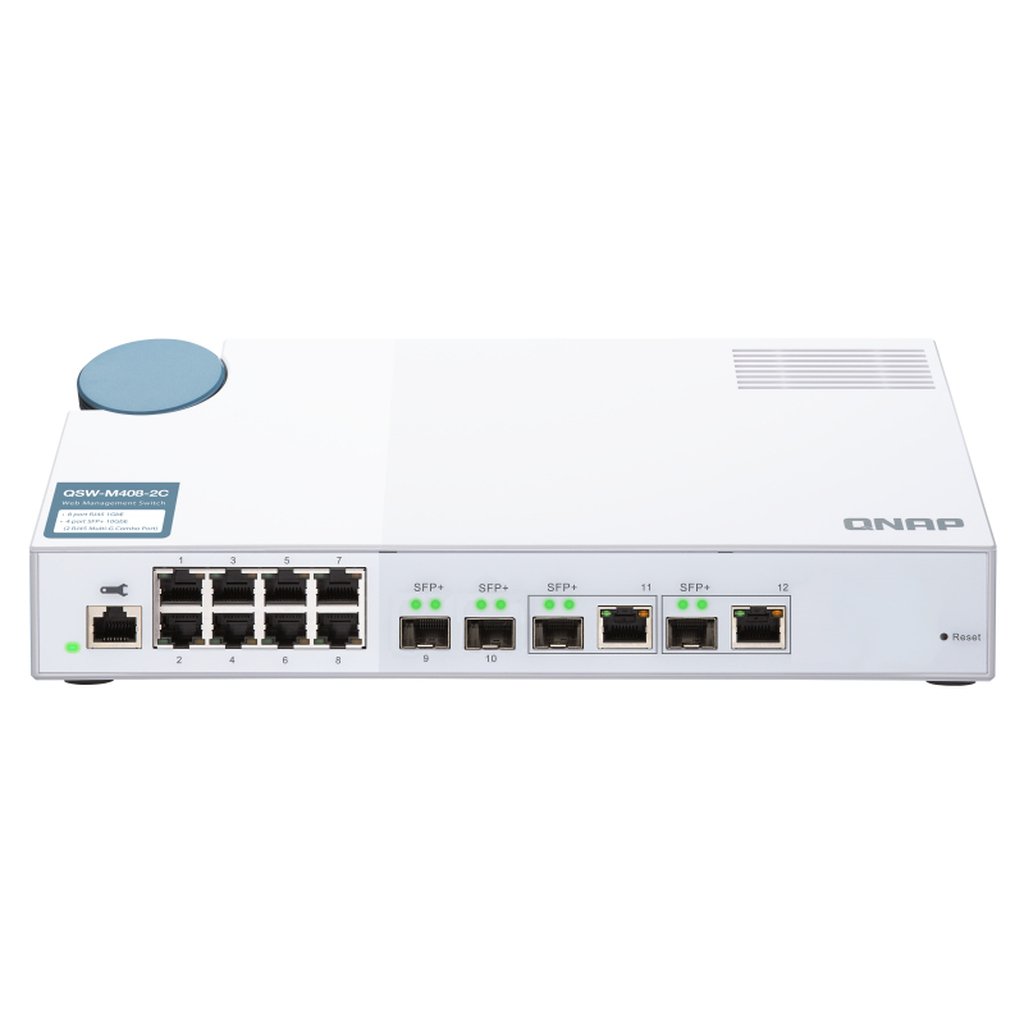

QNAP QSW-M408-2C network switch Managed L2 10G Ethernet (100/1000/10000) White

In Stock

8x RJ45 1GbE, 2x 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+, Web Managed, 100-240VAC, 50/60 Hz, 42.5 x 290 x 127 mm, 1.15 kg

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: QSW-M408-2C
Brand:

Description

The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.

Additional information

Weight 1.8 lbs
Switch type

Managed

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Networking standards

IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Full duplex

Yes

MAC address table

16000 entries

Switching capacity

96 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9000

Rack mounting

No

Product colour

White

LED indicators

Activity, Link, Power, Speed, Status

Power consumption (max)

22.04 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

5 – 95%

Width

290 mm

Depth

127 mm

Height

42.5 mm

Weight

1.15 kg

Harmonized System (HS) code

85176990

Switch layer

L2

Web-based management

Yes

Combo SFP ports quantity

2

Console port

RJ-45

Copper ethernet cabling technology

10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T

Flow control support

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Port-based VLAN, Private VLAN

Throughput

48 Gbit/s

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Reset button

Yes

Number of fans

1 fan(s)

Electromagnetic compatibility

CLASS A

Power source

AC

Power supply included

Yes

Cables included

AC

Quick start guide

Yes

Package weight

1.57 kg

Certification

CE, FCC, VCCI, BSMI, CCC

Stackable

No

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Noise level

21 dB

Gigabit Ethernet (copper) ports quantity

8

SFP+ module slots quantity

2

Cable types supported

Cat5, Cat5e, Cat6

Fiber optic connector

SFP+
