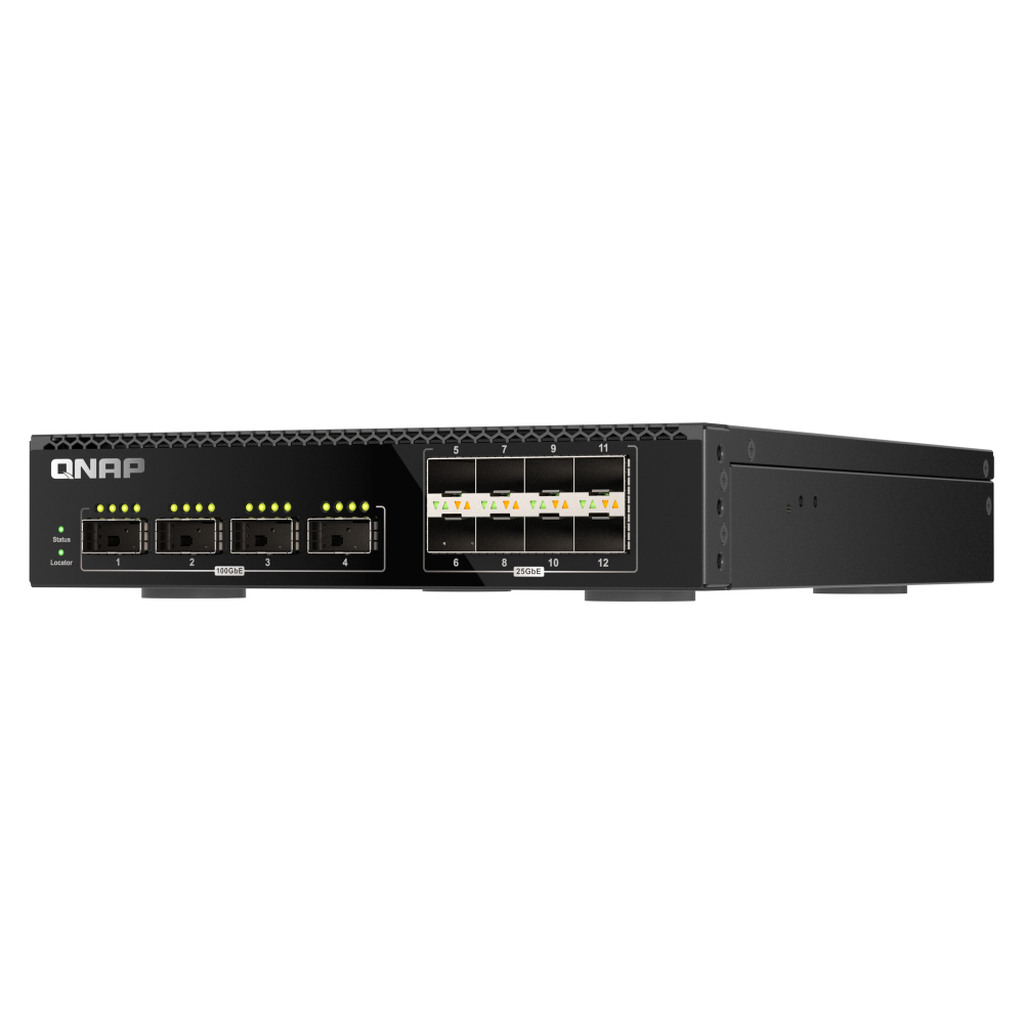

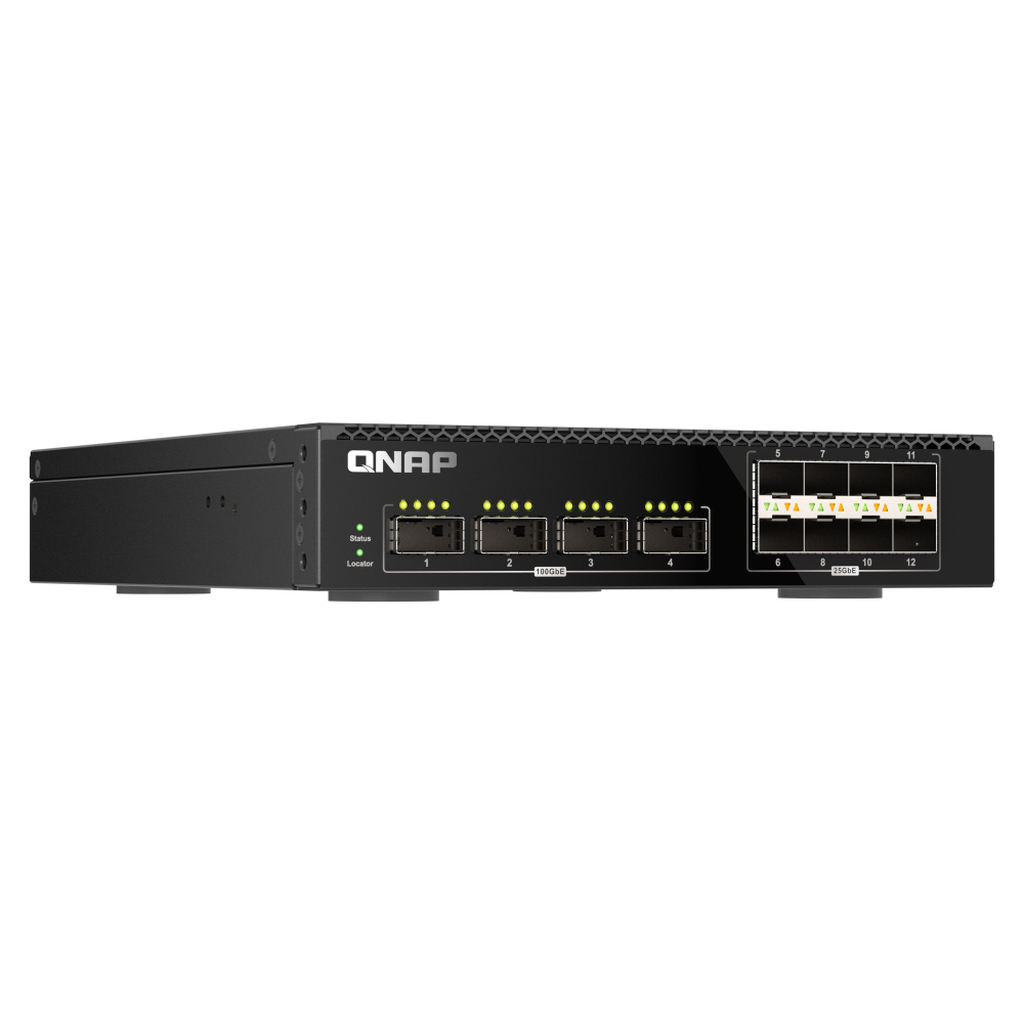

QNAP QSW-M7308R-4X network switch Managed L3 1U Black
4 100GbE QSFP28, 8 25GbE SFP28, 100W, 100-240VAC, 1200Gbps, 43.3 x 207 x 248.8 mm, 1.78 kg
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
QSW-M7308R-4X
Half-width Rackmount 100GbE L3 Lite Managed Switch, cost-optimized for enterprise IT
The QSW-M7308R-4X is a 100GbE L3 Lite Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing, space-saving features and MC-LAG switch redundancy ensuring continuous network, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building secure and reliable high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Embrace the ultra-high-speed 100GbE network generation!
According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.
Additional information
| Weight | 2.96 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| MAC address table | 32000 entries |
| Switching capacity | 1200 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Rack mounting | Yes |
| Product colour | Black |
| Power consumption (max) | 100 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Width | 207 mm |
| Depth | 248.8 mm |
| Height | 43.3 mm |
| Weight | 1.78 kg |
| Switch layer | L3 |
| Web-based management | Yes |
| Console port | RJ-45 |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Throughput | 600 Gbit/s |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Reset button | Yes |
| Number of fans | 2 fan(s) |
| Firmware upgradeable | Yes |
| Power source | AC |
| Power supply included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Package weight | 2.63 kg |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), VCCI |
| System event log | Yes |
| Number of management ports | 1 pc(s) |
| Static route | Yes |
| Loop protection | Yes |
| Port mirroring | Yes |
| Package type | Box |
| Warranty period | 2 year(s) |
| Package width | 324 mm |
| Package depth | 282 mm |
| Package height | 88 mm |
| Products per master (outer) case | 8 pc(s) |
| Rack mount kit | Yes |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 8 |
| Country of origin | Taiwan |
