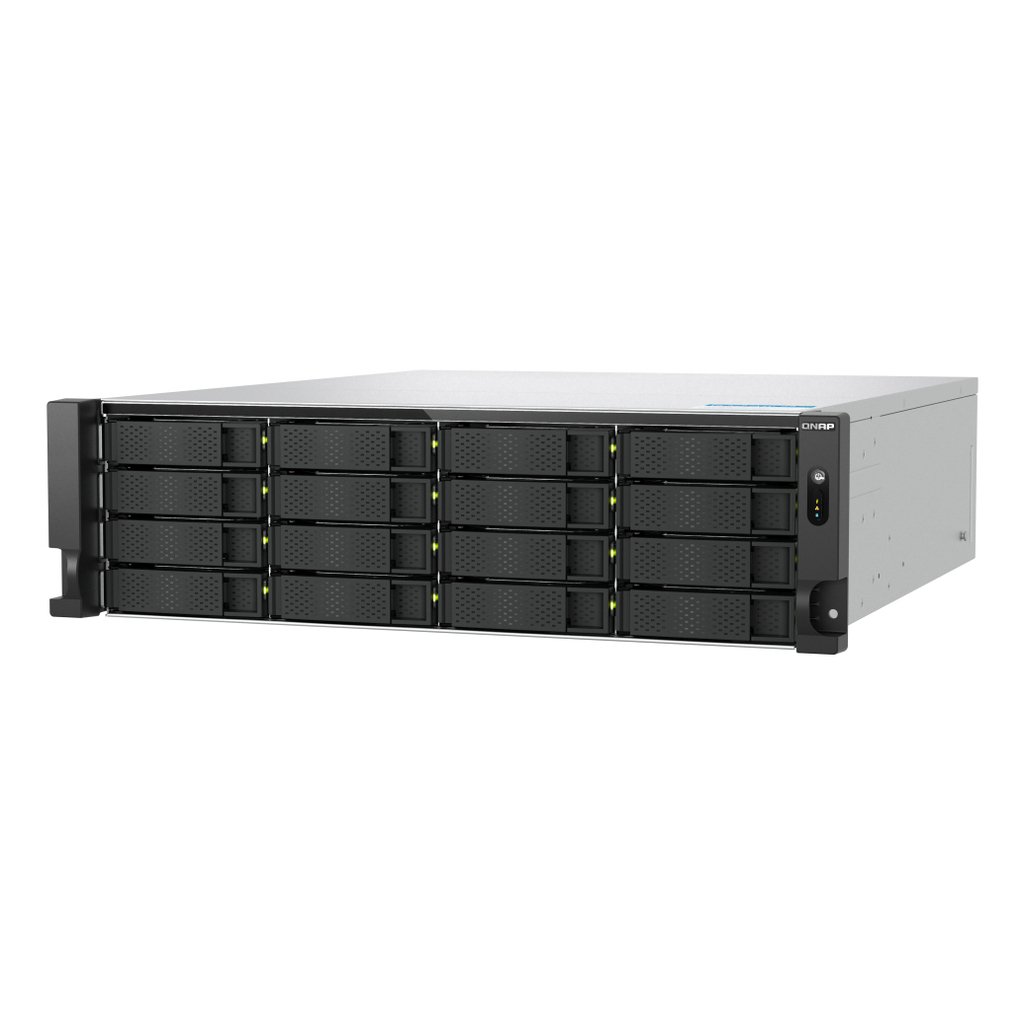

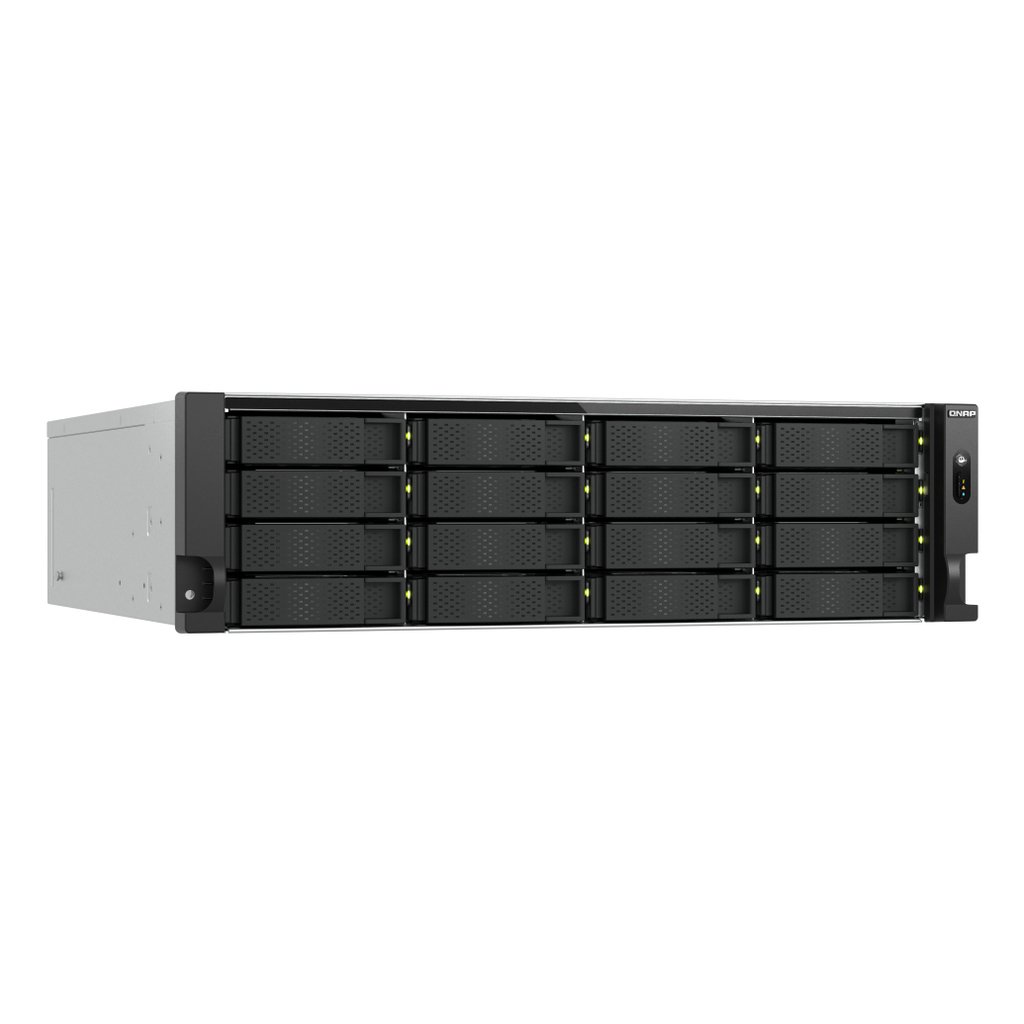

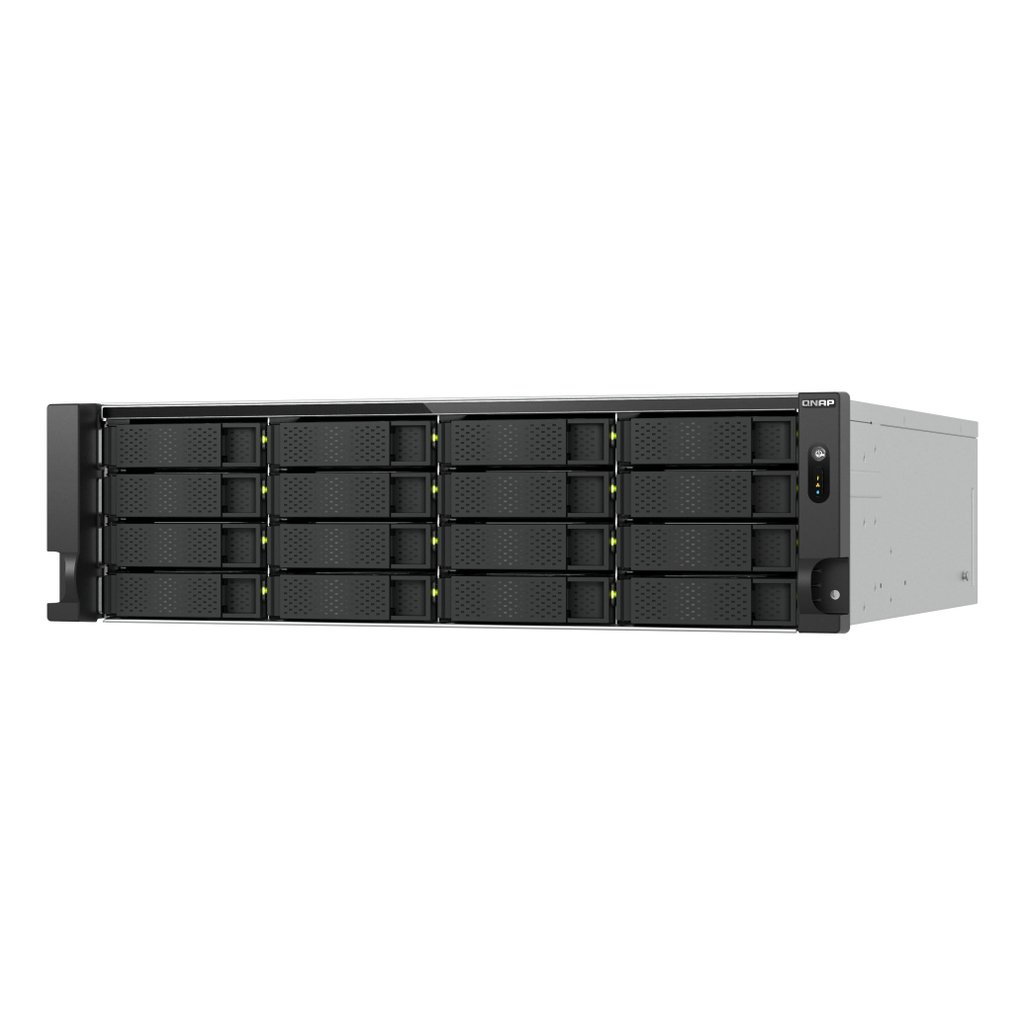

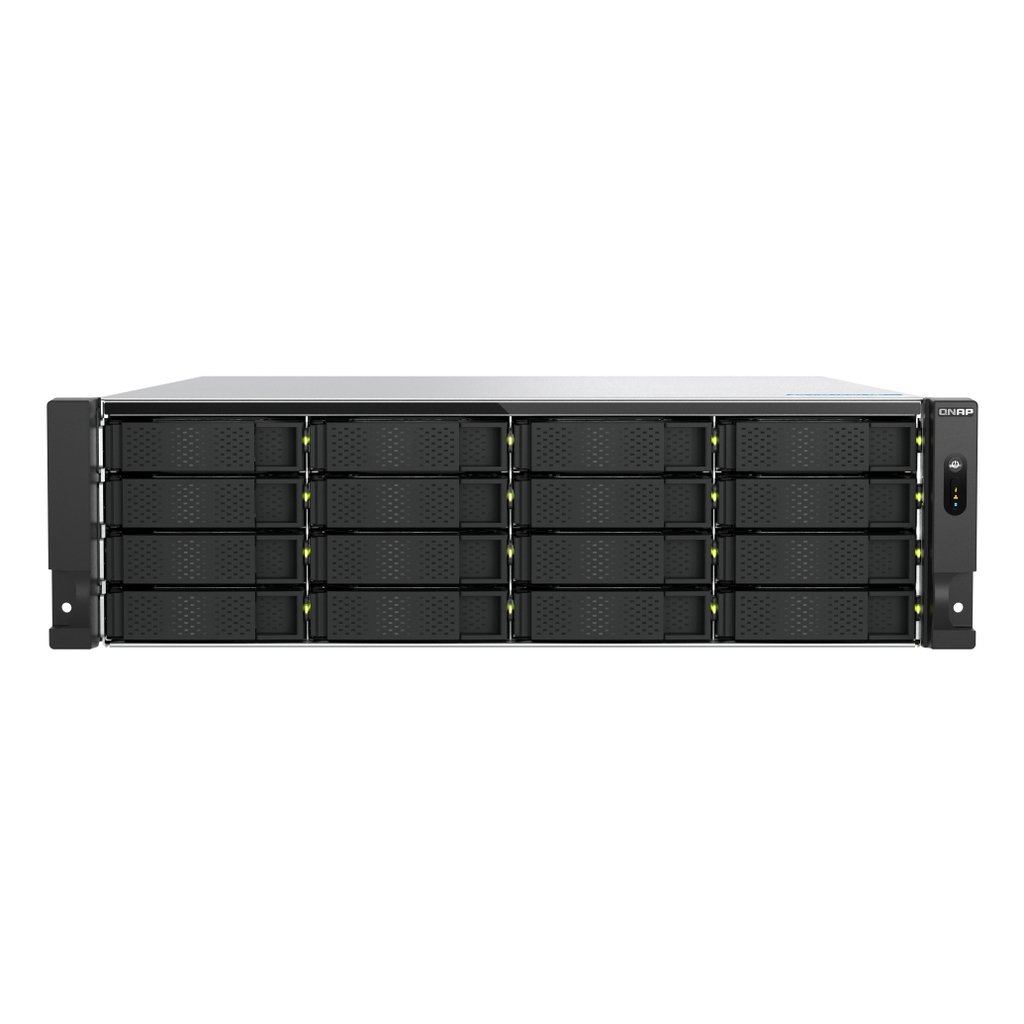

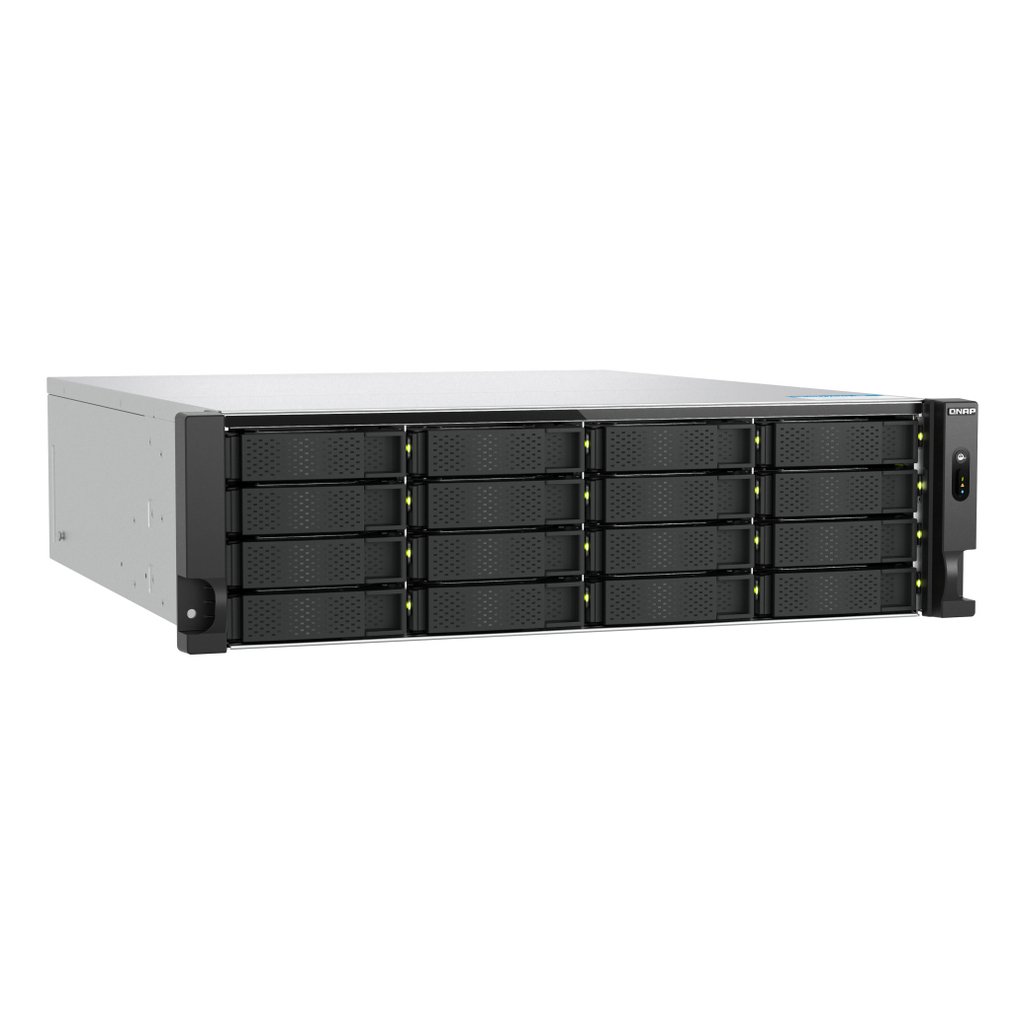

QNAP TS-H1677AXU-RP-R7-32G

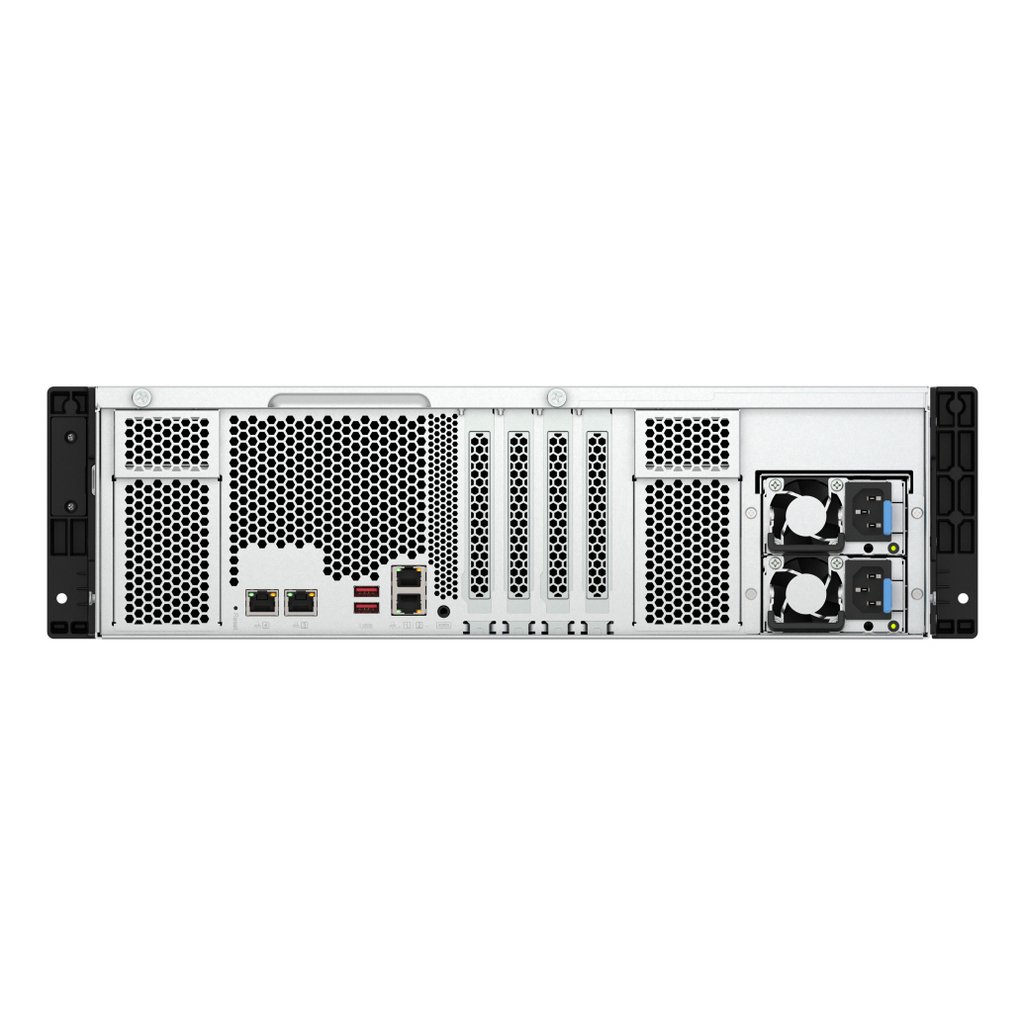

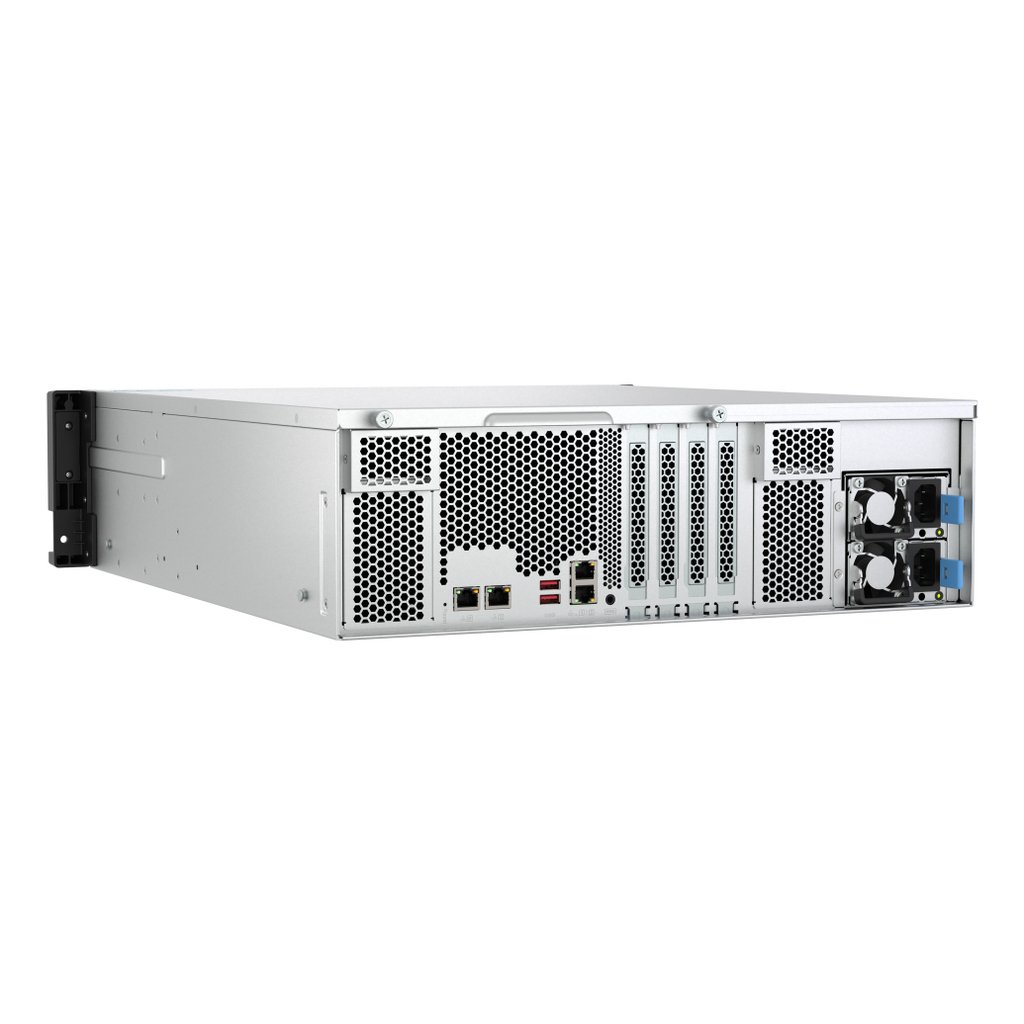

3U 16-bay 3.5″ SATA HDD NAS, AMD Ryzen 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 non-ECC RAM (max. 192GB total), 2x M.2 2280 PCIe Gen5 x2 slots for SSD cache, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 3 x PCIe Gen 4 expansion slots, 2 x 550W redundant pwoer supply, without rail kit. Support rail kit RAIL-B02.
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
TS-h1677AXU-RP
Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1677AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1677AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
Additional information
| Weight | 21.34 lbs |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 16 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, Serial ATA III, Serial ATA II |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Bad block scan | Yes |
| Processor family | AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Processor model | 7745 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Supported network protocols | IPv4, IPv6 |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD, LAN, SSD, Status, USB |
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| S.M.A.R.T. support | Yes |
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.6 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| AC input voltage | 100 – 240 V |
| Width | 482.2 mm |
| Depth | 550.8 mm |
| Height | 131.3 mm |
| Weight | 15.6 kg |
| Package weight | 19.6 kg |
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 128 |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -20 – 70 °C |
| ECC | No |
| Number of M.2 (M & B) slots | 2 |
| Disk roaming | Yes |
| On-board graphics card model | AMD Radeon Graphics |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Disk scan | Yes |
| Share folder | Y |
| Drive tray key included | Yes |
| Number of users | 4096 user(s) |
| Package type | Box |
| Number of processors supported | 1 |
| Password authentication | Yes |
| Redundant power supply (RPS) support | Yes |
| Processor generation | AMD Ryzen PRO 7000 Series |
| Remote administration | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt |
| Package height | 313 mm |
| Package width | 567 mm |
| Warranty period | 5 year(s) |
| Package depth | 724 mm |
| Number of system drives supported | 2 |
