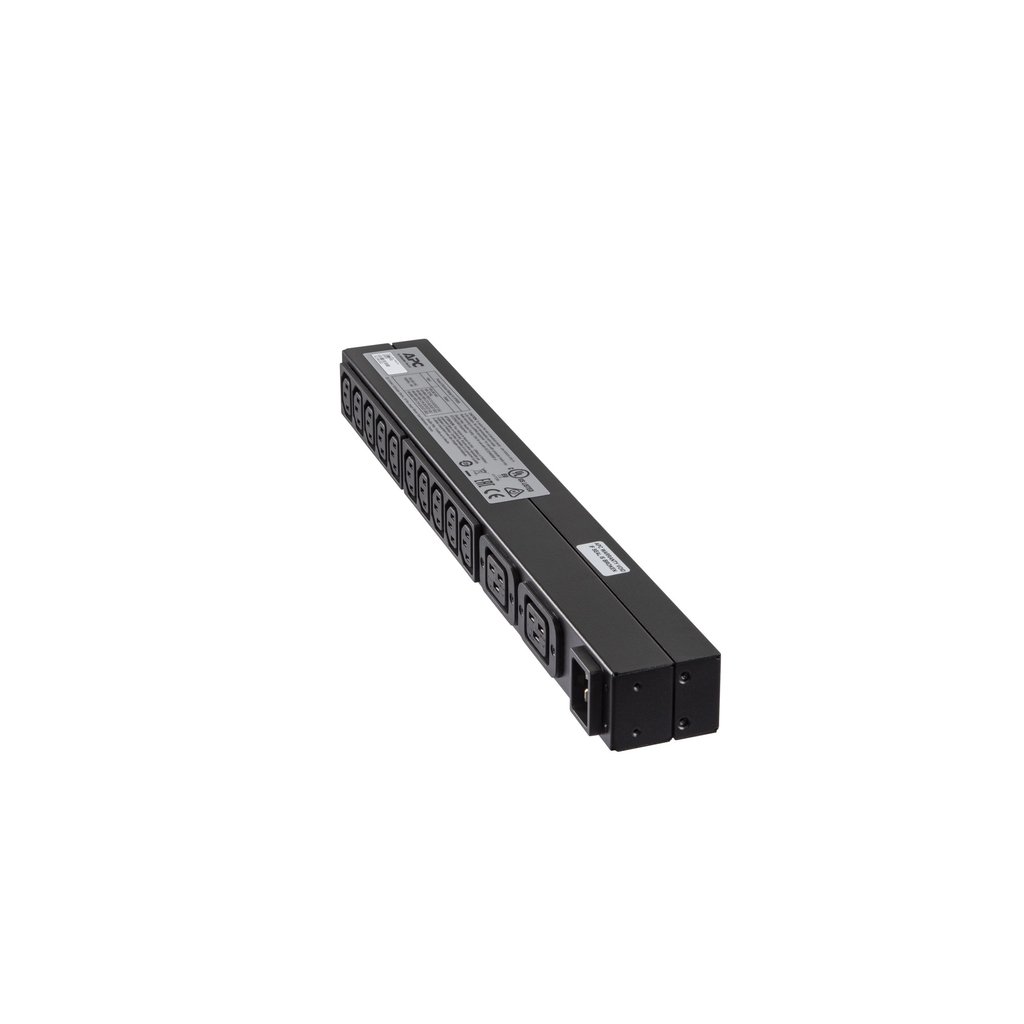

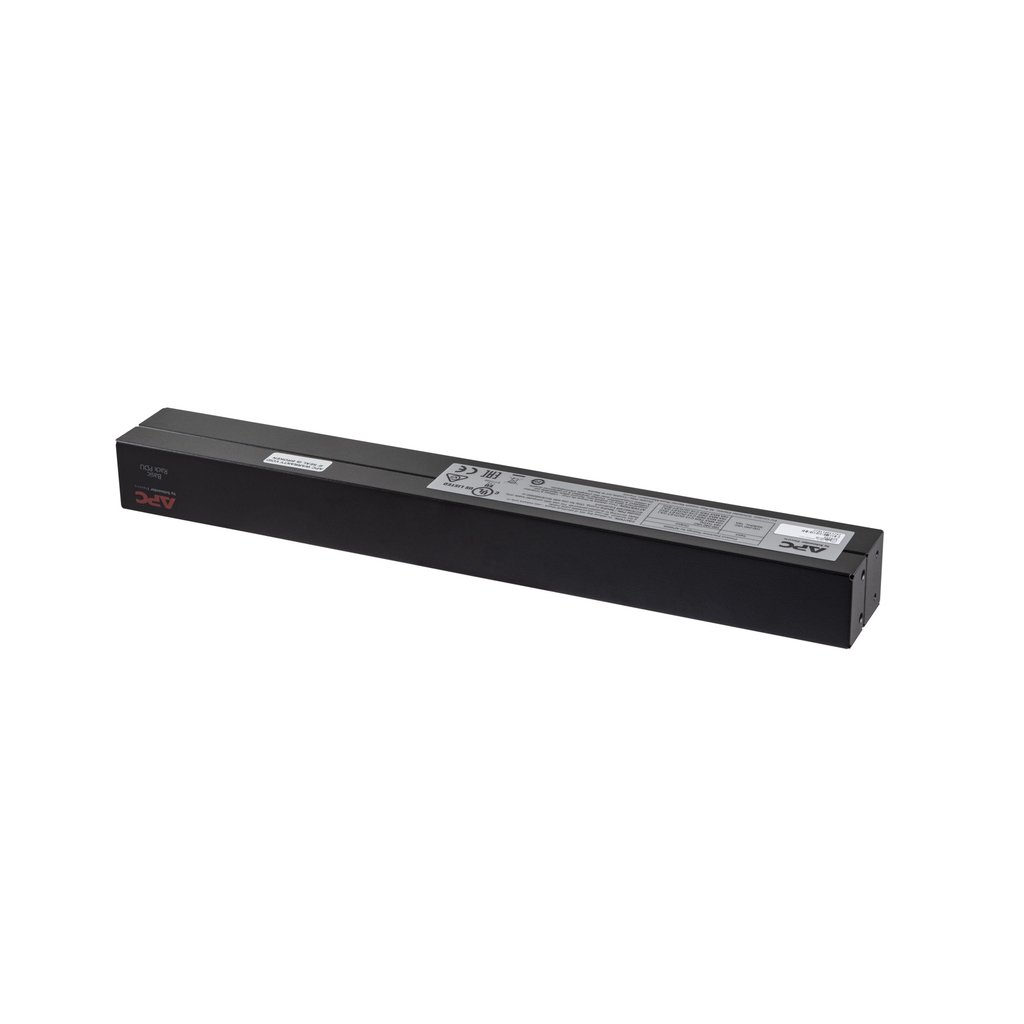

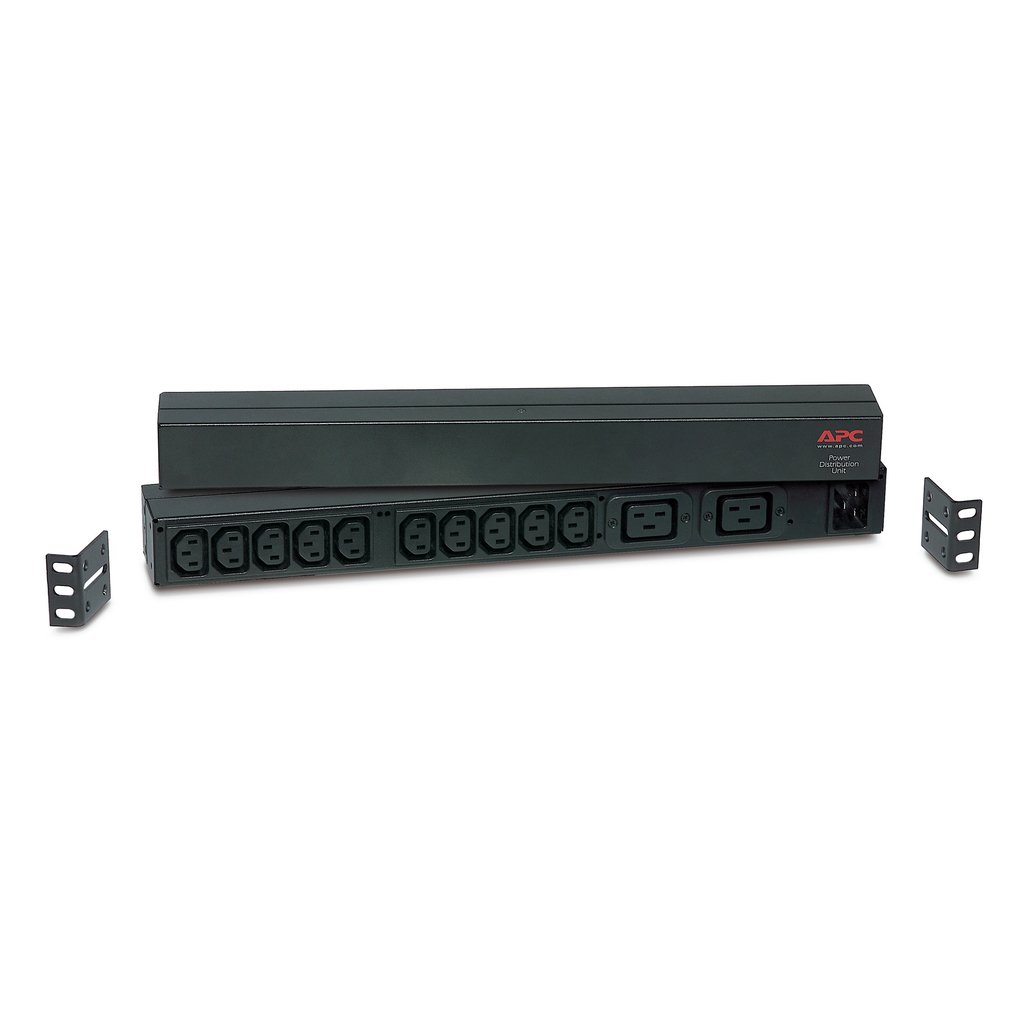

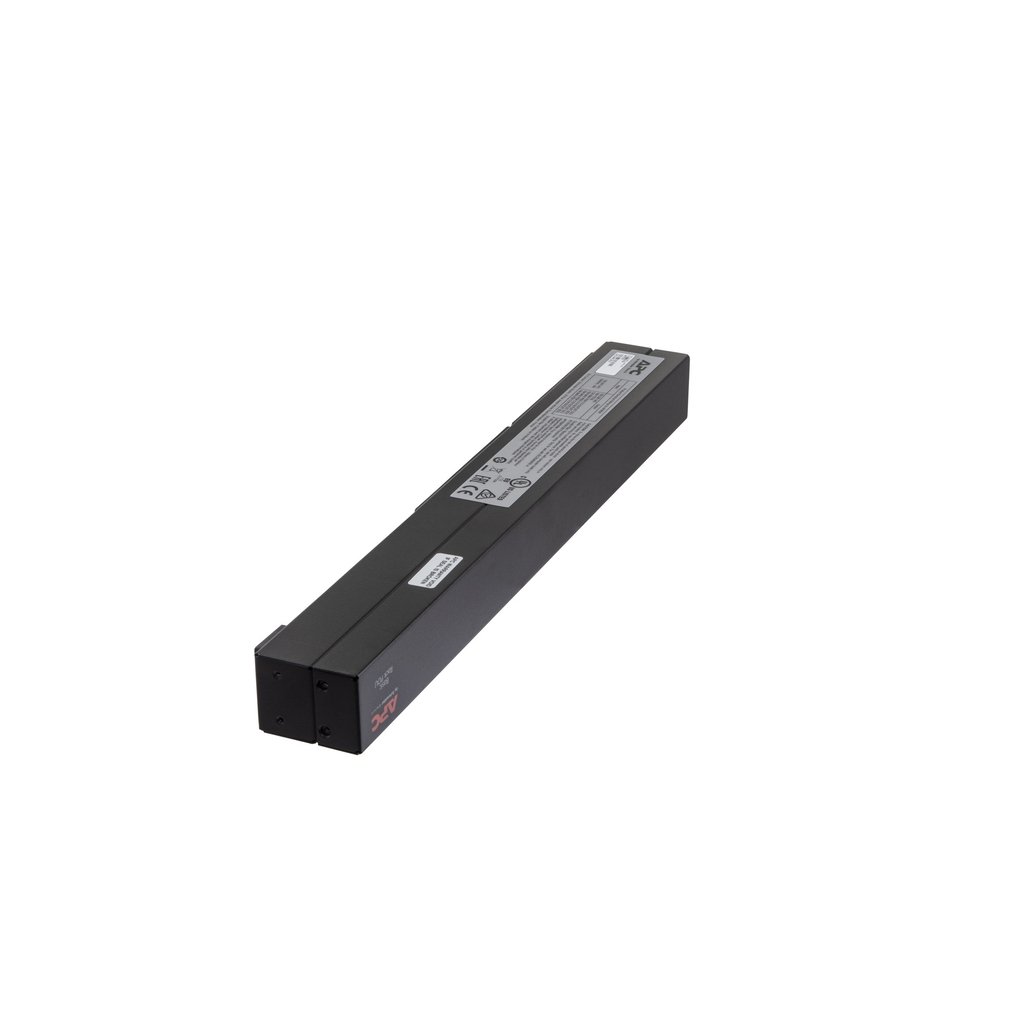

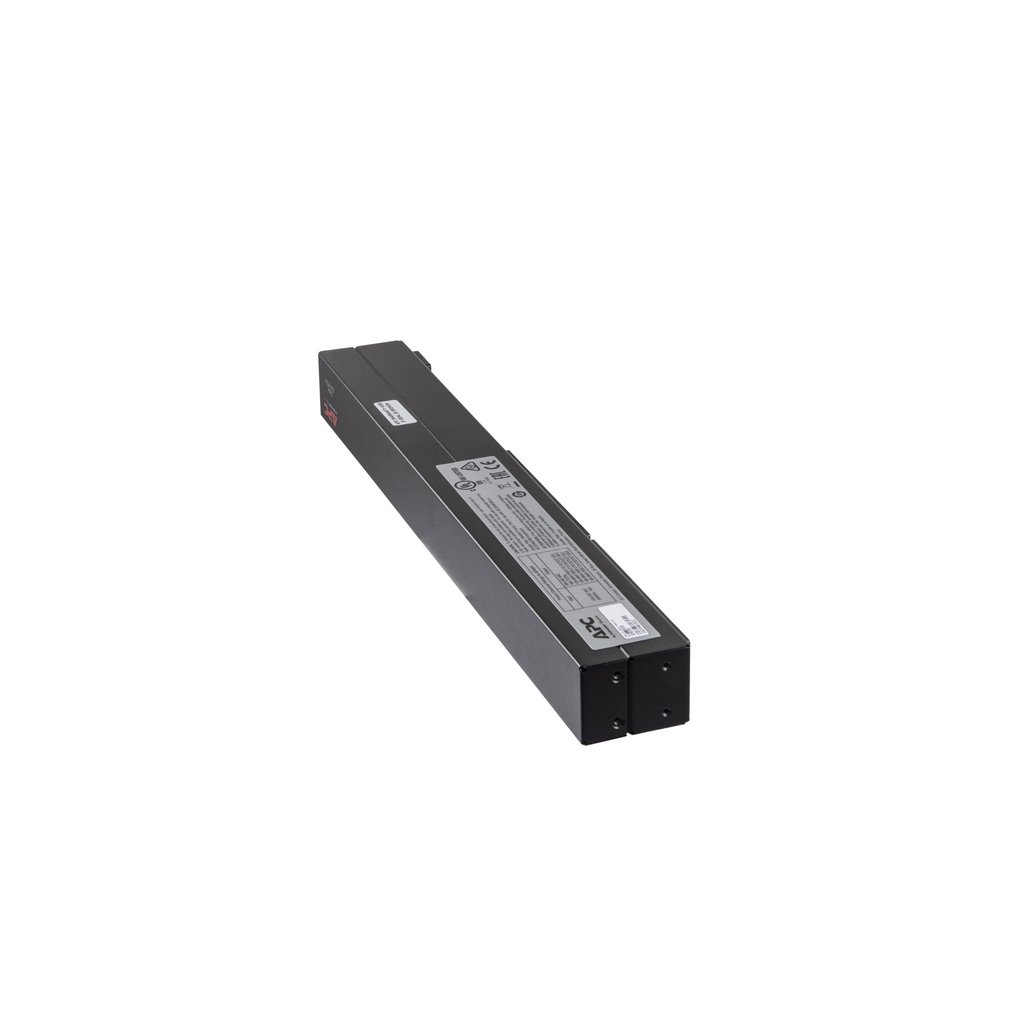

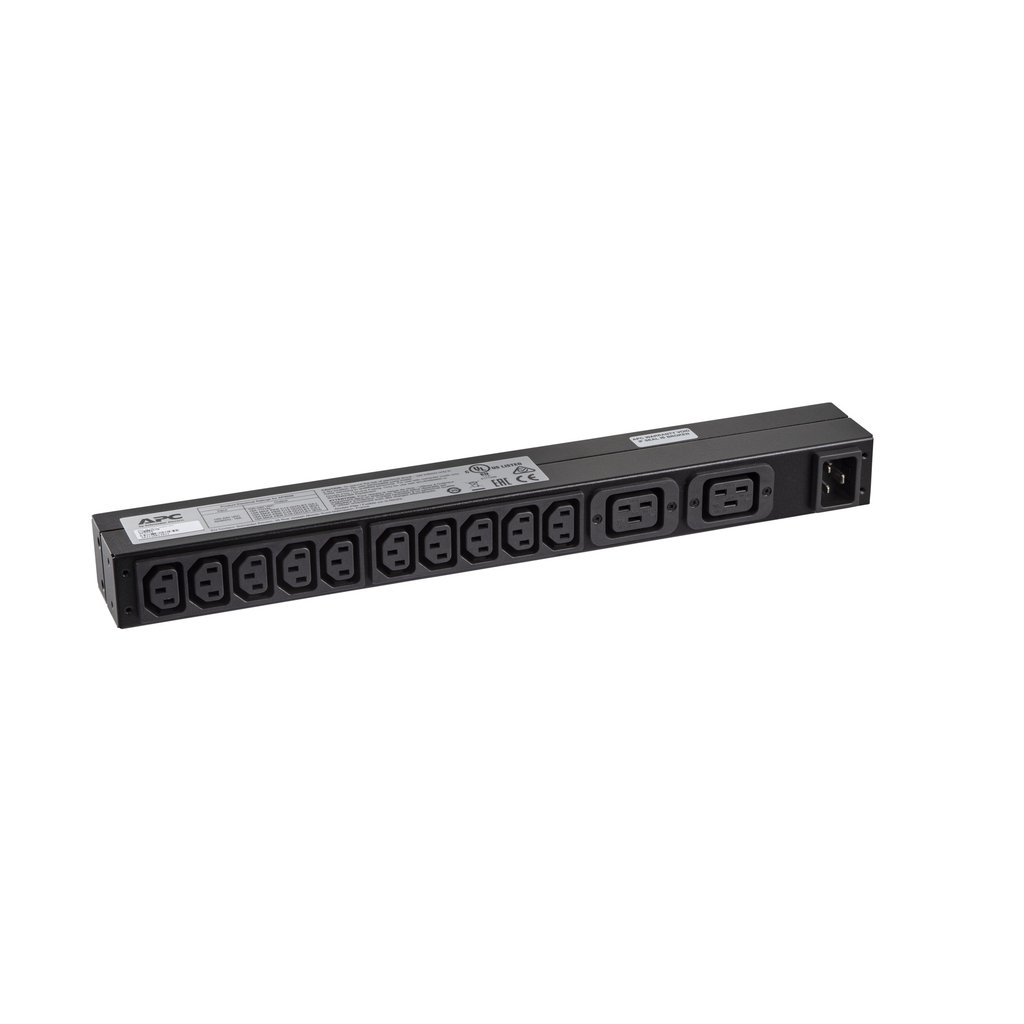

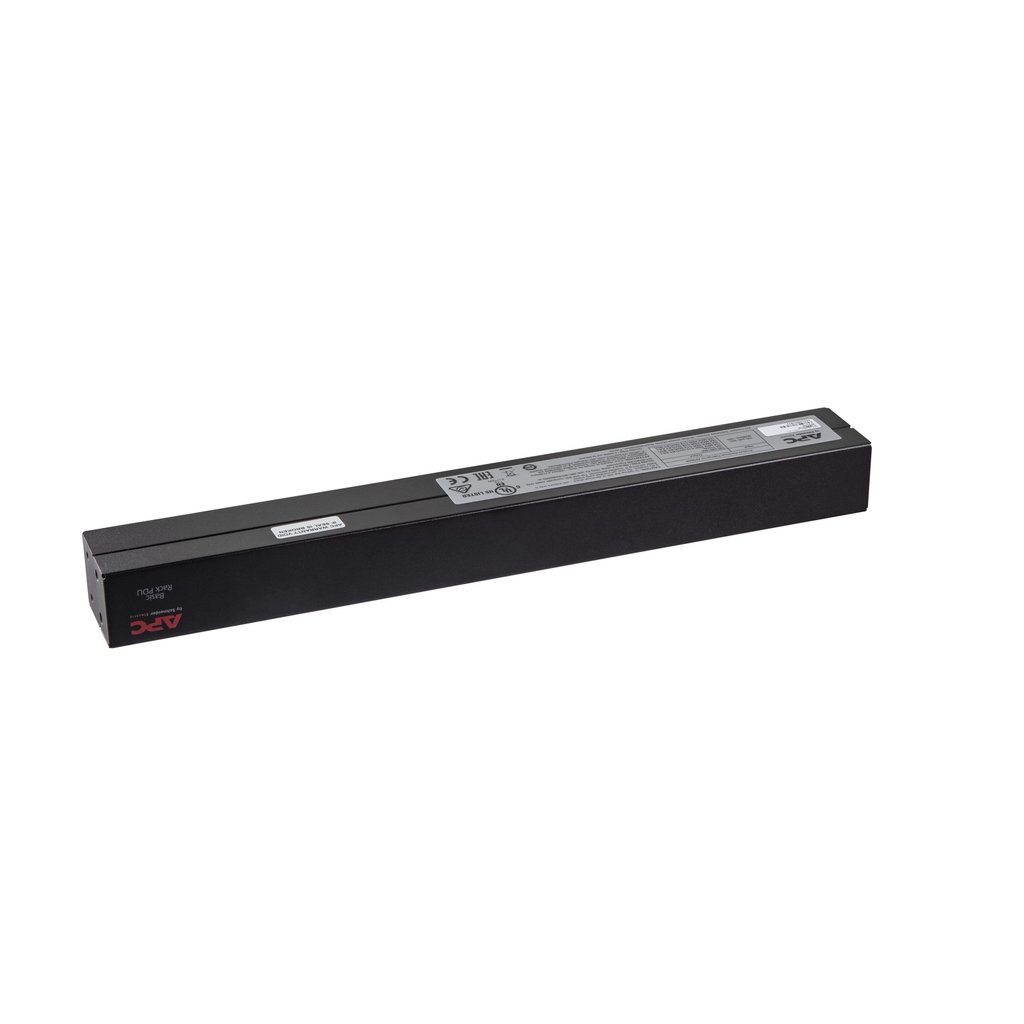

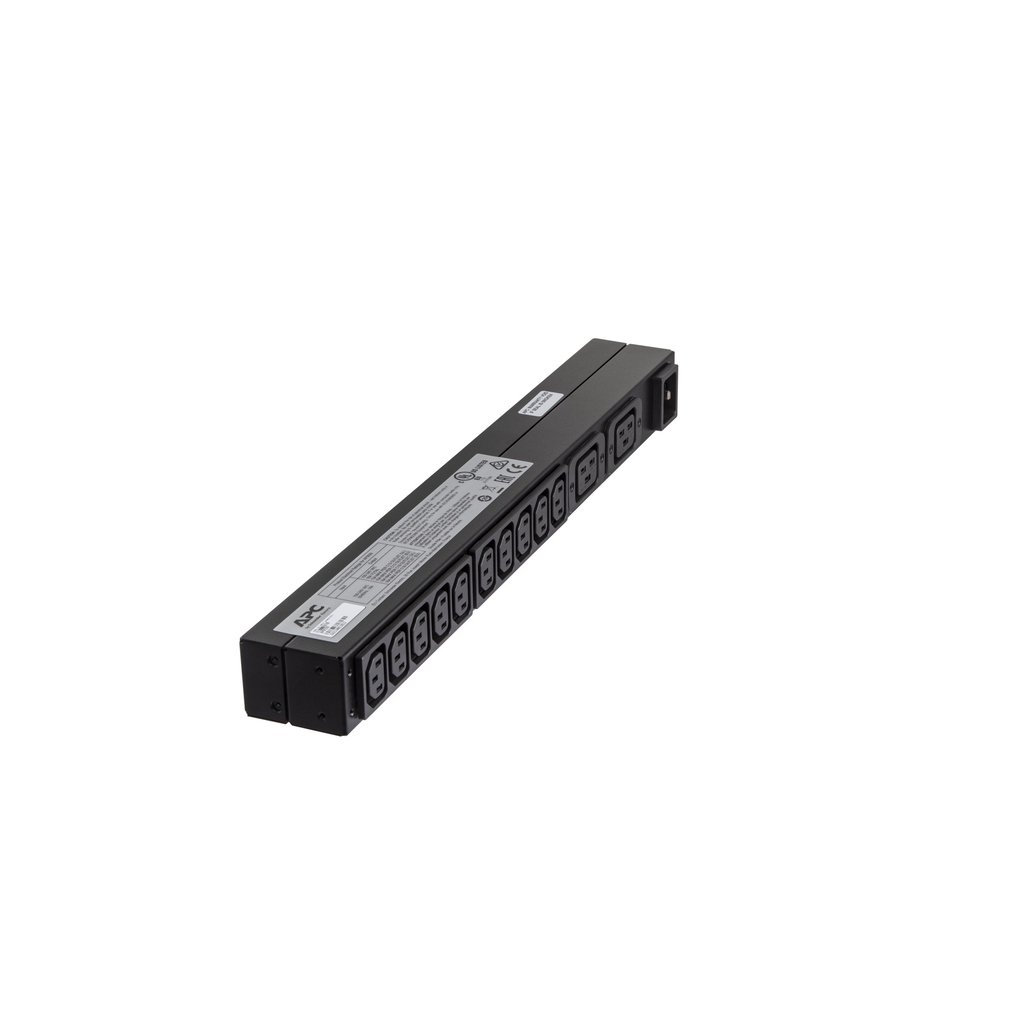

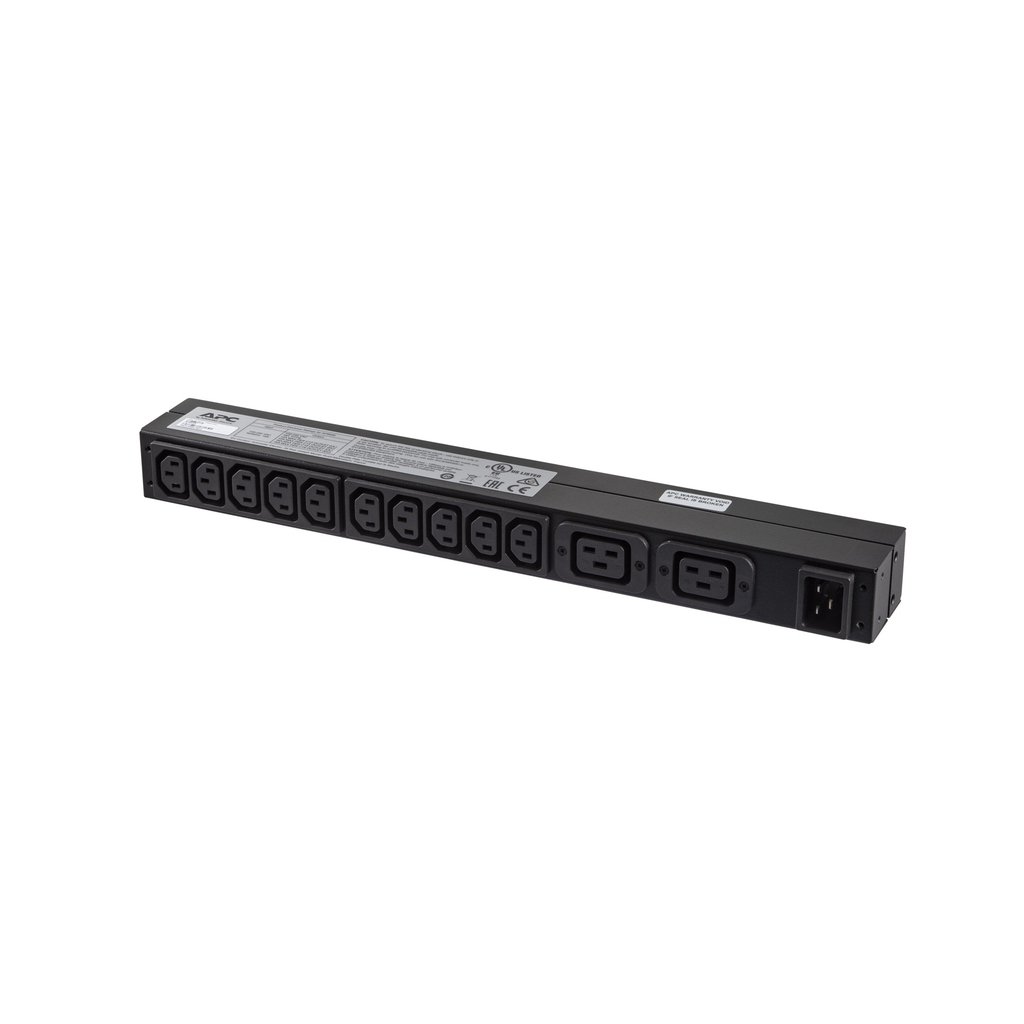

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black
Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Description:
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) – 120, 208, 230 V
Maximum Total Current Draw per Phase – 16 A
Output Connections – (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets – 12
Overload Protection
Input:
Nominal input voltage – 120, 208, 230
Input frequency (Hz) – 50/60 Hz
Input Connection Type – IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage – 90-250 VAC
Maximum Line Current per phase – 16.0 A
Maximum Input Current per phase – 16.0 A
Load Capacity – 3680
Additional information
| Weight | 2.633 lbs |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 447 mm |
| Depth | 57.2 mm |
| Height | 44.5 mm |
| Weight | 980 g |
| Type | Single-phase |
| Power plug | C20 coupler |
| I/O ports | Output Connections – (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type – IEC-320 C20 |
| Cable length | 2.5 m |
