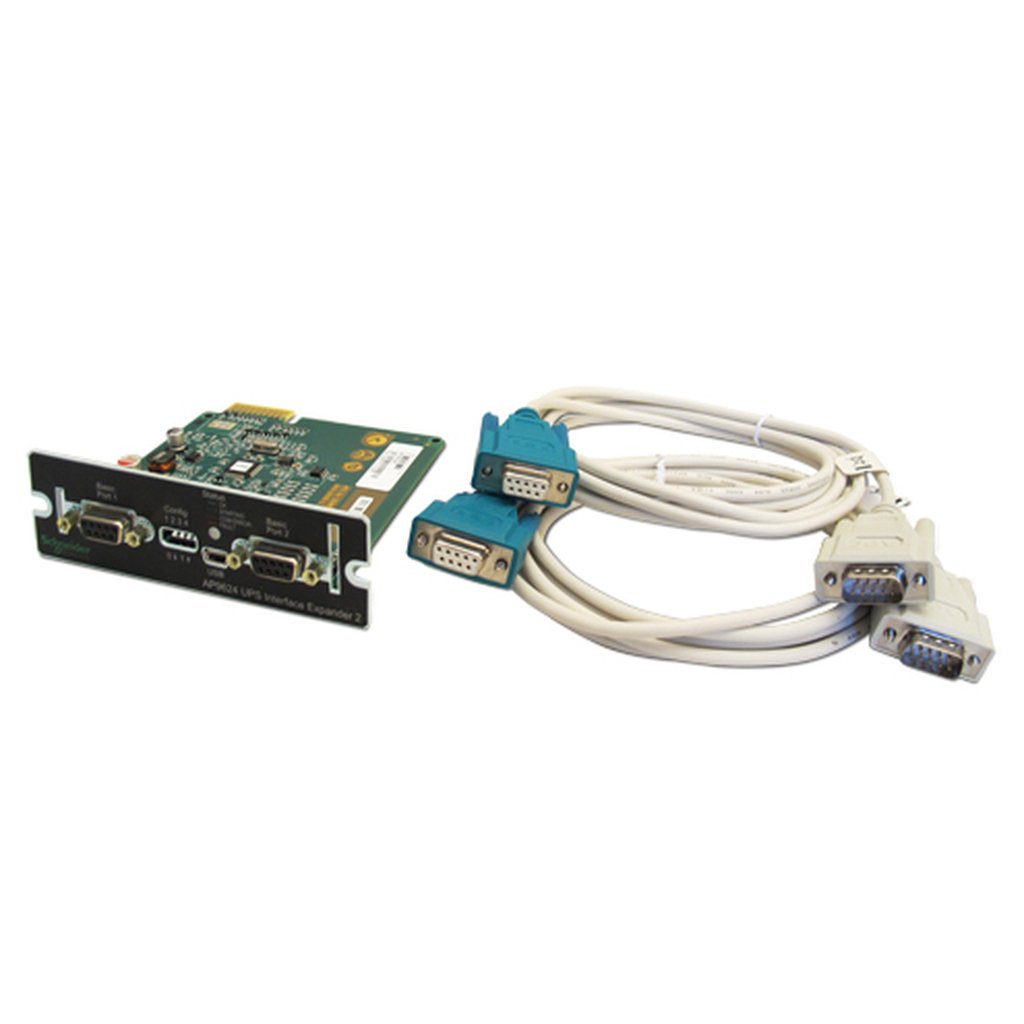

APC AP9624 interface cards/adapter Internal Serial
Additional Management Cards and Options
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
UPS Management SmartSlot offer with serial shutdown support of up to two additional devices such as Servers and Network Storage Devices.
Includes: RS-232 configuration cable, User Manual, Warranty card
– Compatible with all Smart-UPS as well as the Symmetra Power Array, LX and RM UPS ranges.
– Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially.
– Supports graceful shutdown of additional devices connected to the two simple signaling ports using PowerChute Business Edition.
– The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port
– This software supports numerous operating systems and processors. For further information, please
Additional information
| Weight | 0.5 lbs |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Weight | 70 g |
| Host interface | Serial |
| Output interface | Serial |
| Certification | C-tick, CE, EN 55022, EN 55024, FCC, IEC 62040-2 |
| Depth | 114 mm |
| Internal | Yes |
| Width | 121 mm |
| Height | 38 mm |
| Harmonized System (HS) code | 84733020 |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Package width | 235 mm |
| Package depth | 165 mm |
| Package height | 51 mm |
| Package weight | 410 g |
| Total carbon footprint (kg of CO2e) | 2.94 |
