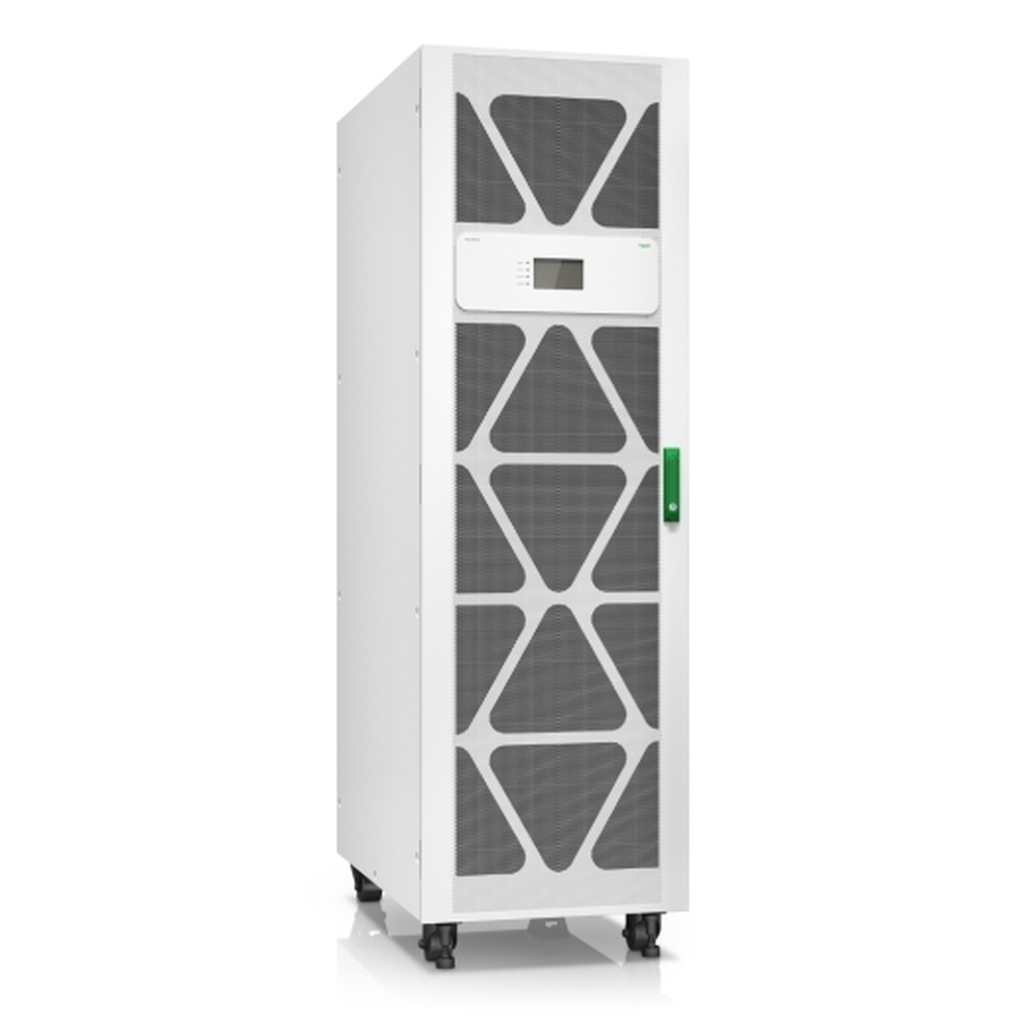

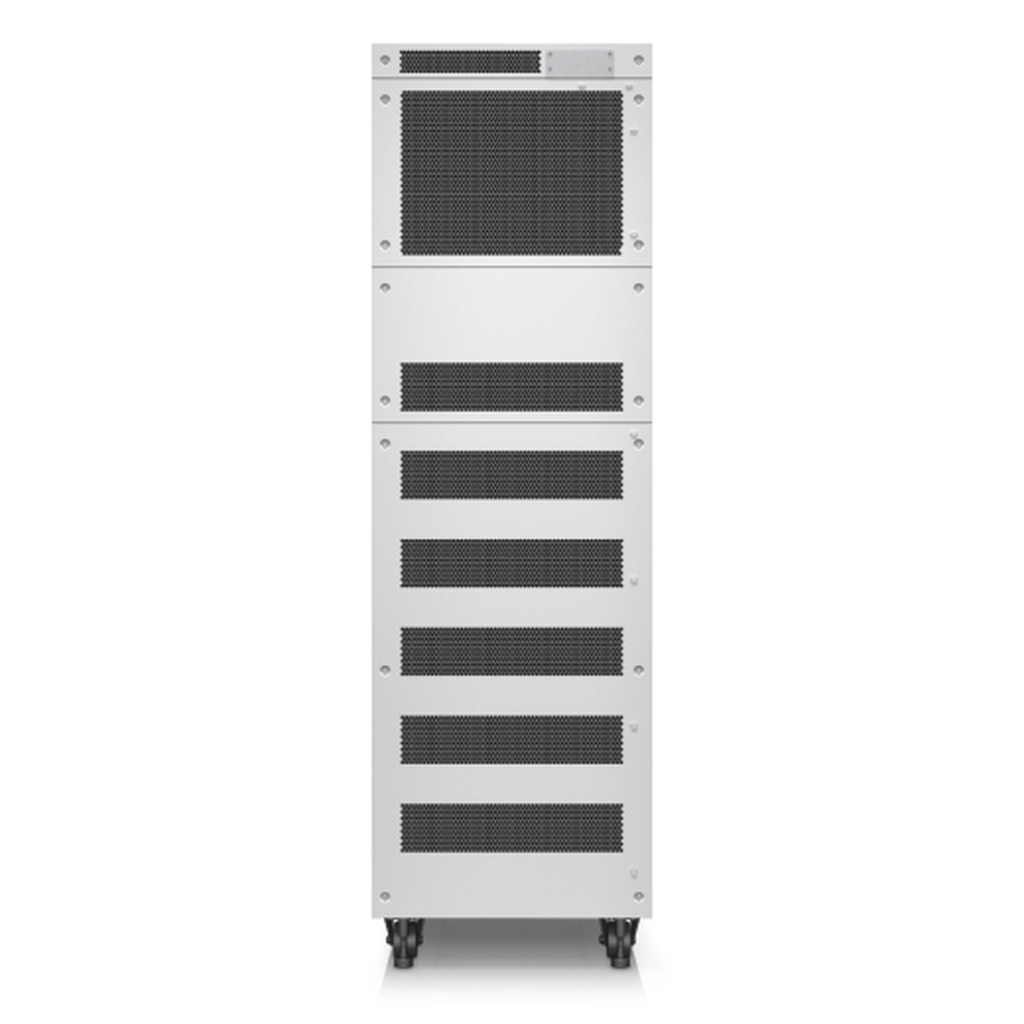

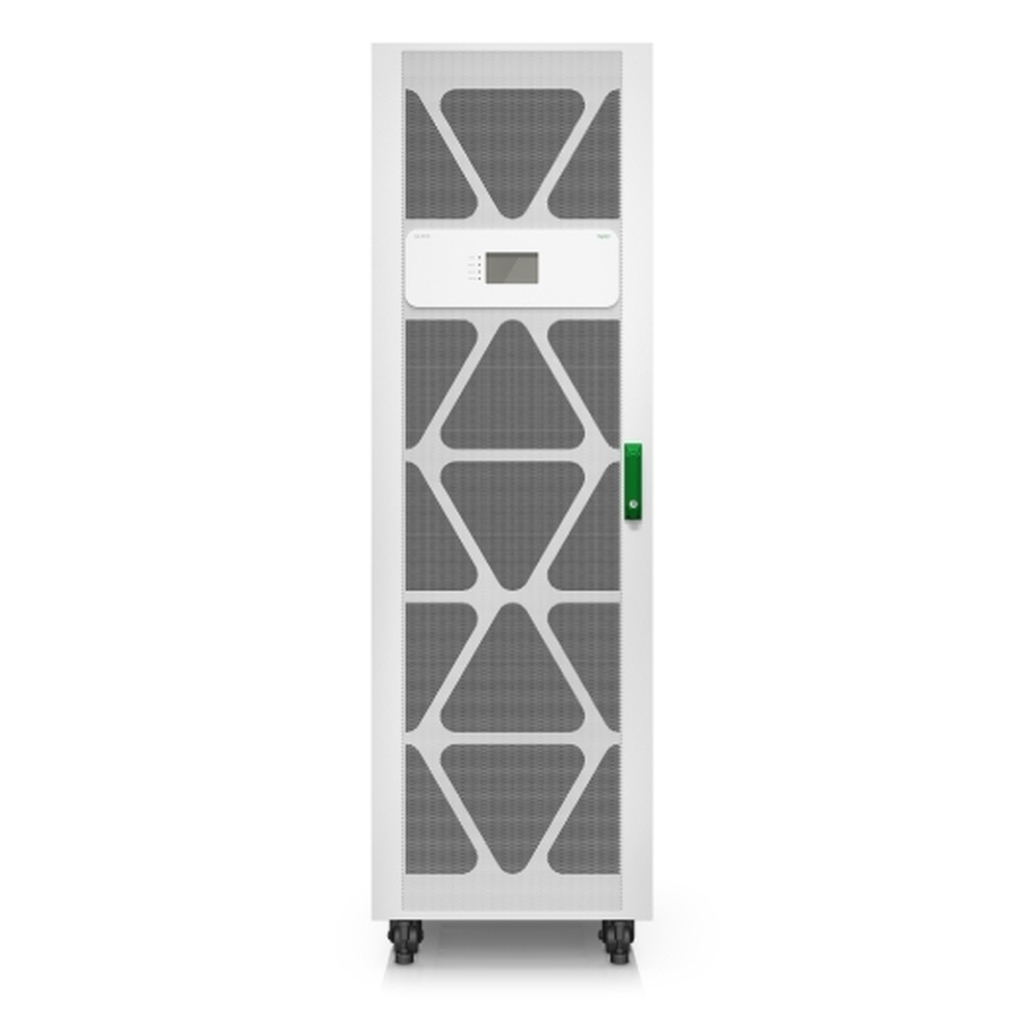

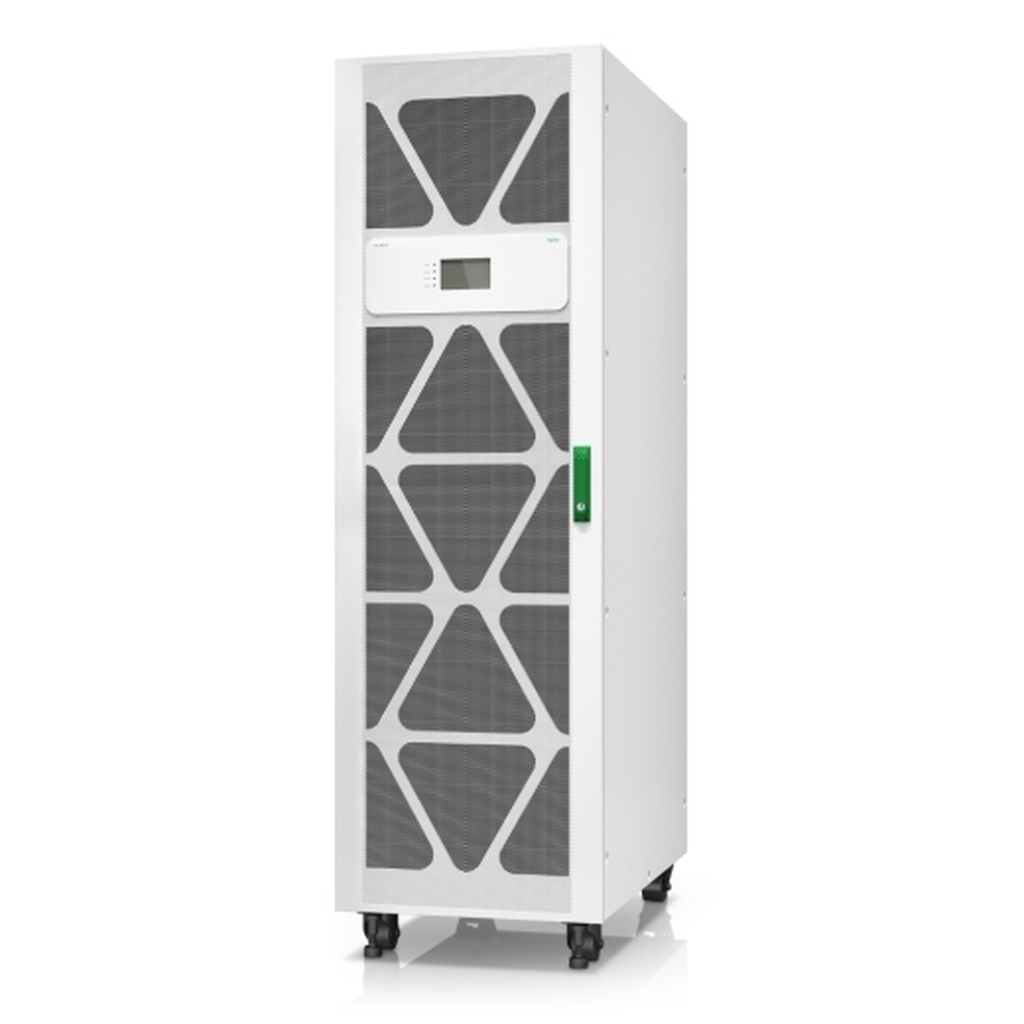

APC E3MUPS80KHB1S uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W
Easy UPS 3M 80kVA 400V 3:3 UPS with internal batteries – 9.3 minutes runtime, Start-up 5×8
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with internal batteries providing a runtime of 9.3 minutes. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5×8 start-up service.
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT’s cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Wide Input Voltage Window
Saves your battery power for when you really need it – during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Additional information
| Weight | 387 lbs |
|---|---|
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Input frequency | 40/70 Hz |
| Audible alarm(s) | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 1000 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight | 339 kg |
| Harmonized System (HS) code | 85078000 |
| Package weight | 387 kg |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Maximum current | 146 A |
| Compliance certificates | RoHS |
| Width | 600 mm |
| Depth | 1000 mm |
| Height | 1970 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Noise level | 65 dB |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 9.3 min |
| Display type | LCD |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Battery voltage | 240 V |
| Charging current | 222 A |
| International Protection (IP) code | IP20 |
| Quick installation guide | Yes |
