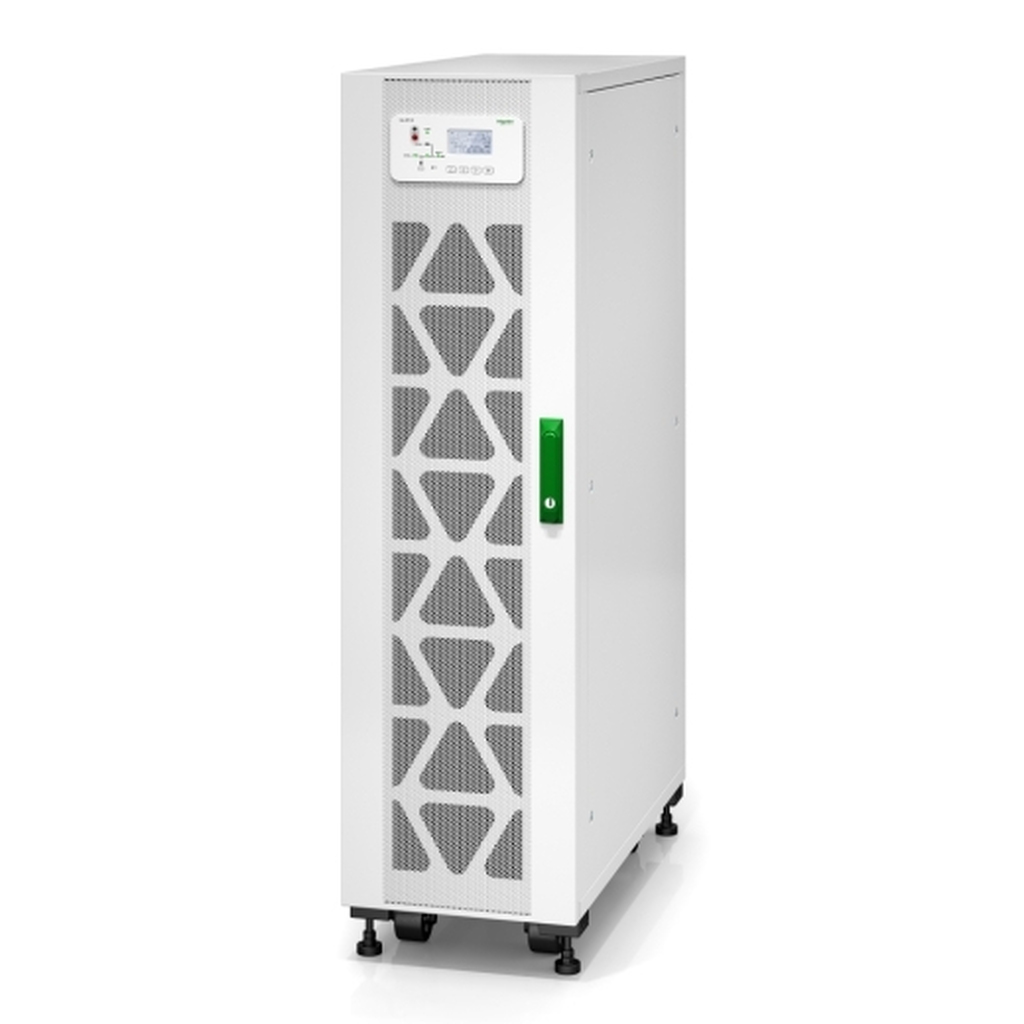

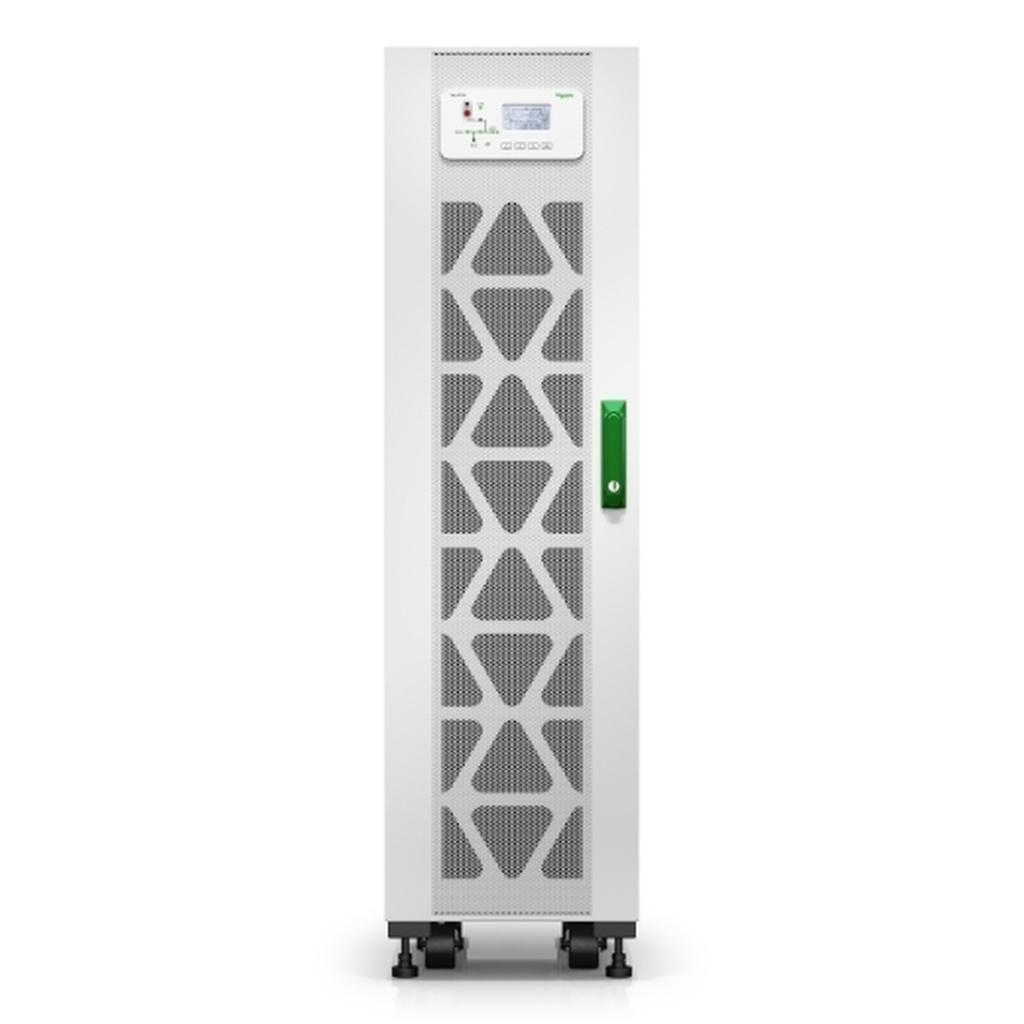

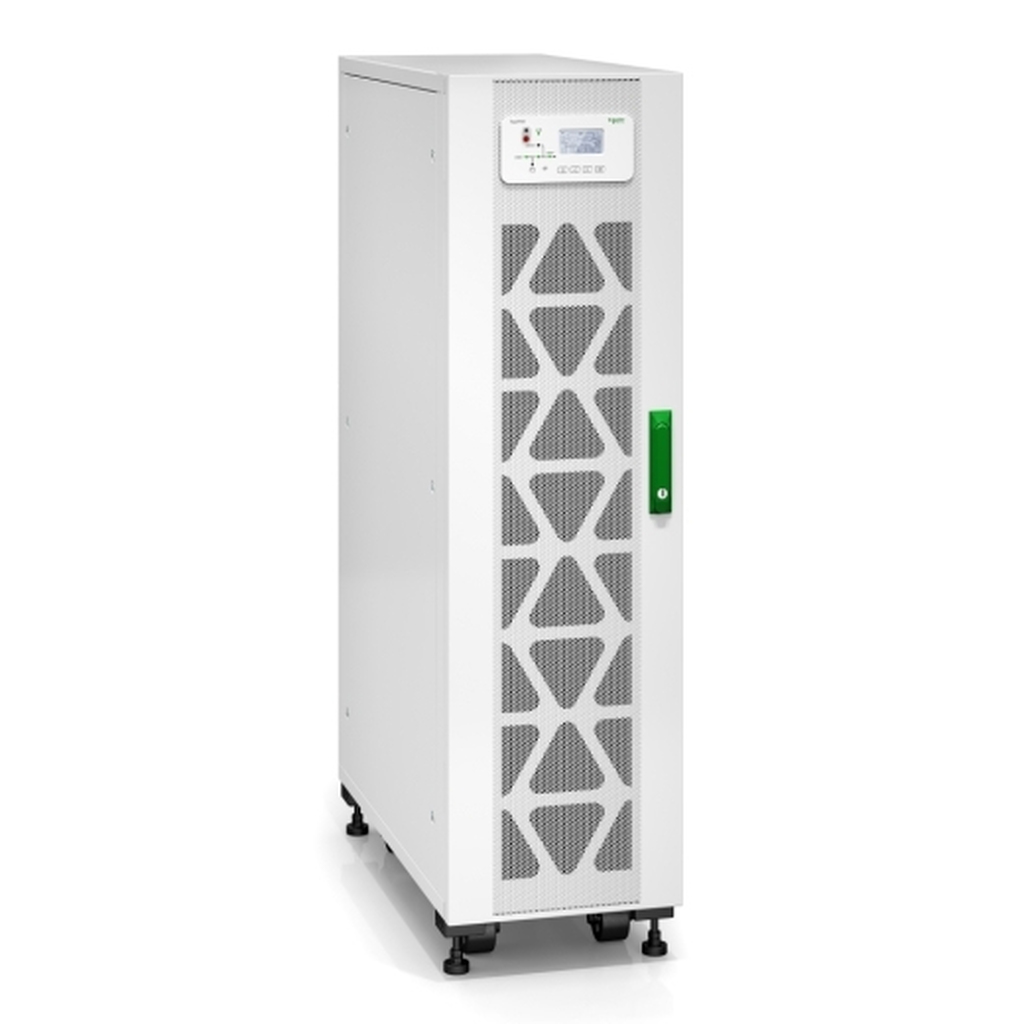

APC Easy UPS 3S 20 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3
Easy UPS 3S 20 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA 3:1 UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7 Ah modular battery strings, expandable to 3 strings for extended runtime.
Additional information
| Weight | 186 lbs |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input frequency | 45/65 Hz |
| Emergency Power Off (EPO) | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 1000 m |
| Non-operating altitude | 0 – 15240 m |
| Certification | EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM |
| Weight | 177 kg |
| Harmonized System (HS) code | 85078000 |
| Package weight | 186 kg |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Maximum current | 37 A |
| Form factor | Tower |
| Compliance certificates | CE, RoHS |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| UPS topology | Double-conversion (Online) |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| AC outlet types | Hardwire |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 15 min |
| Display type | LCD |
| LED indicators | Yes |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Battery voltage | 240 V |
| International Protection (IP) code | IP20 |
| Number of input phases | 3 |
| Number of batteries supported | 2 |
| Sustainability compliance | Yes |
| Output power factor | 1 |
