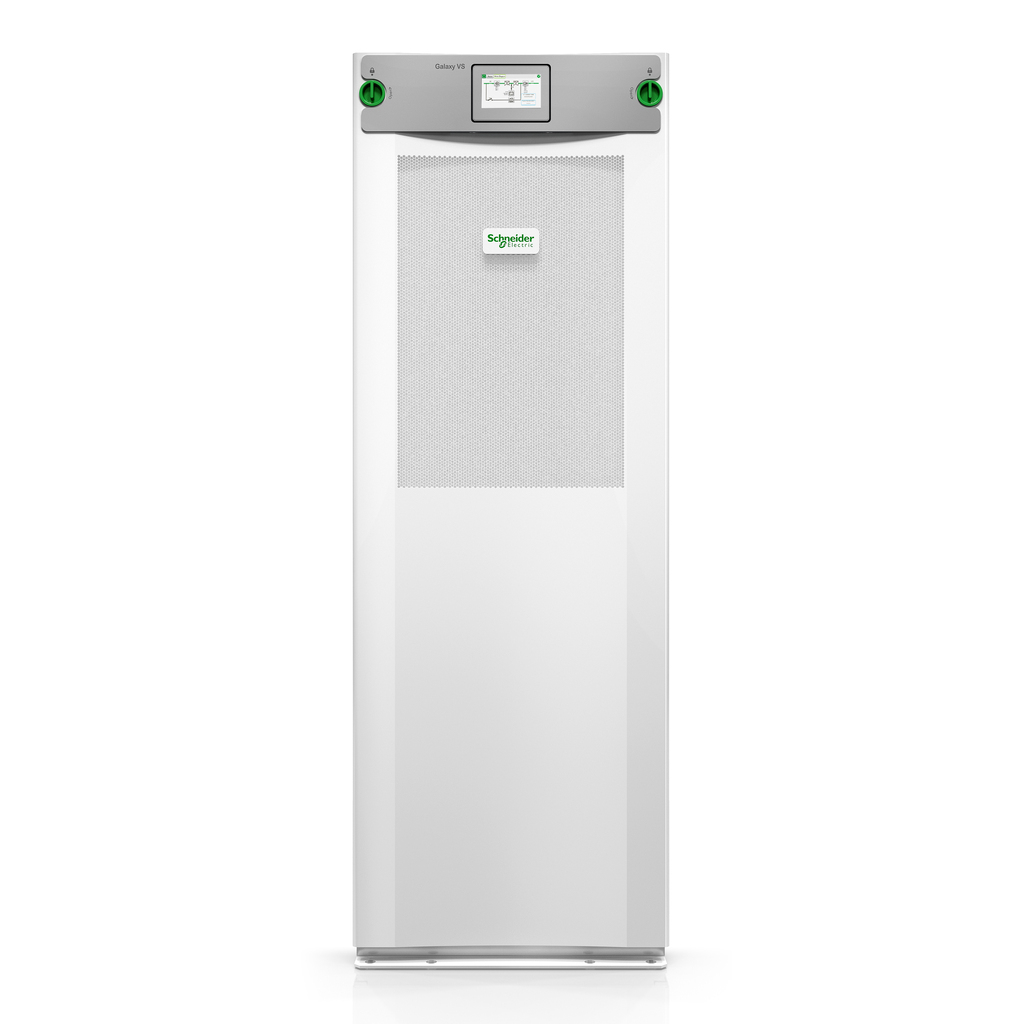

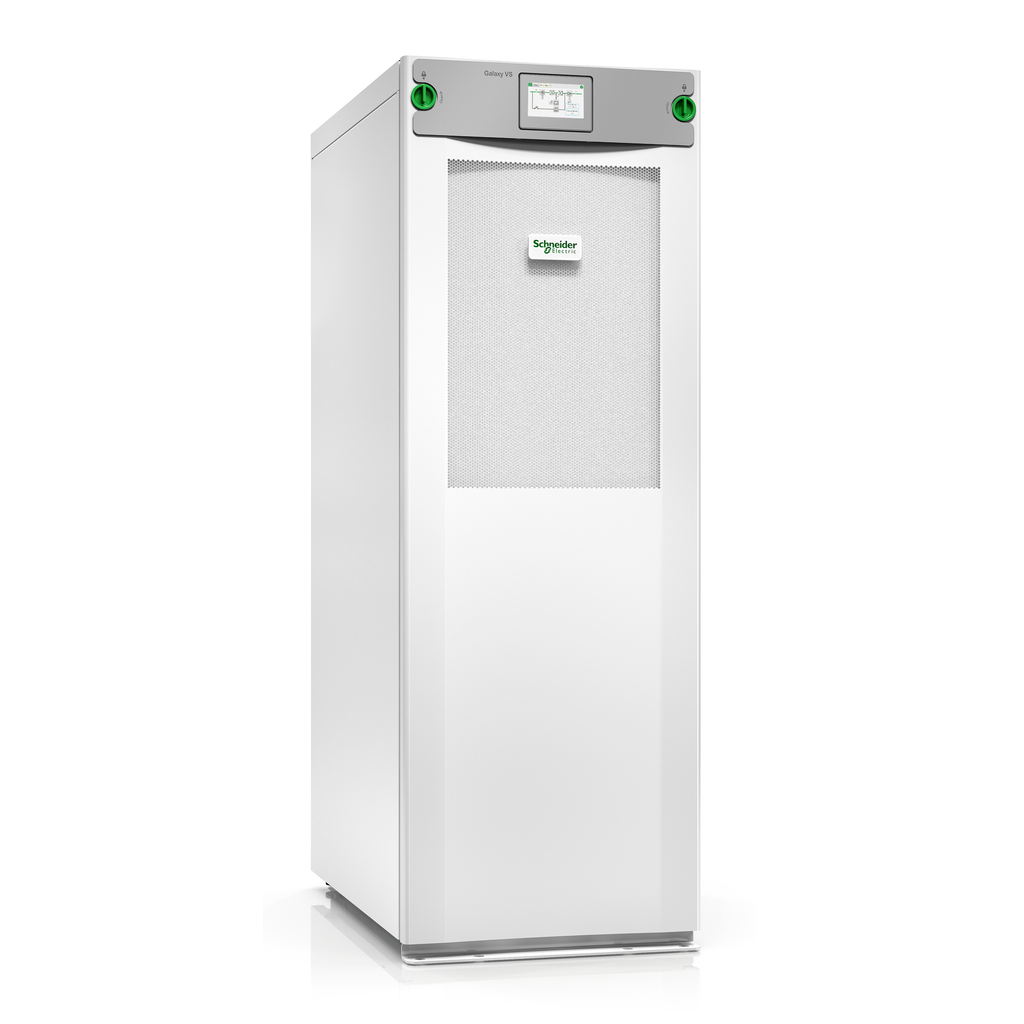

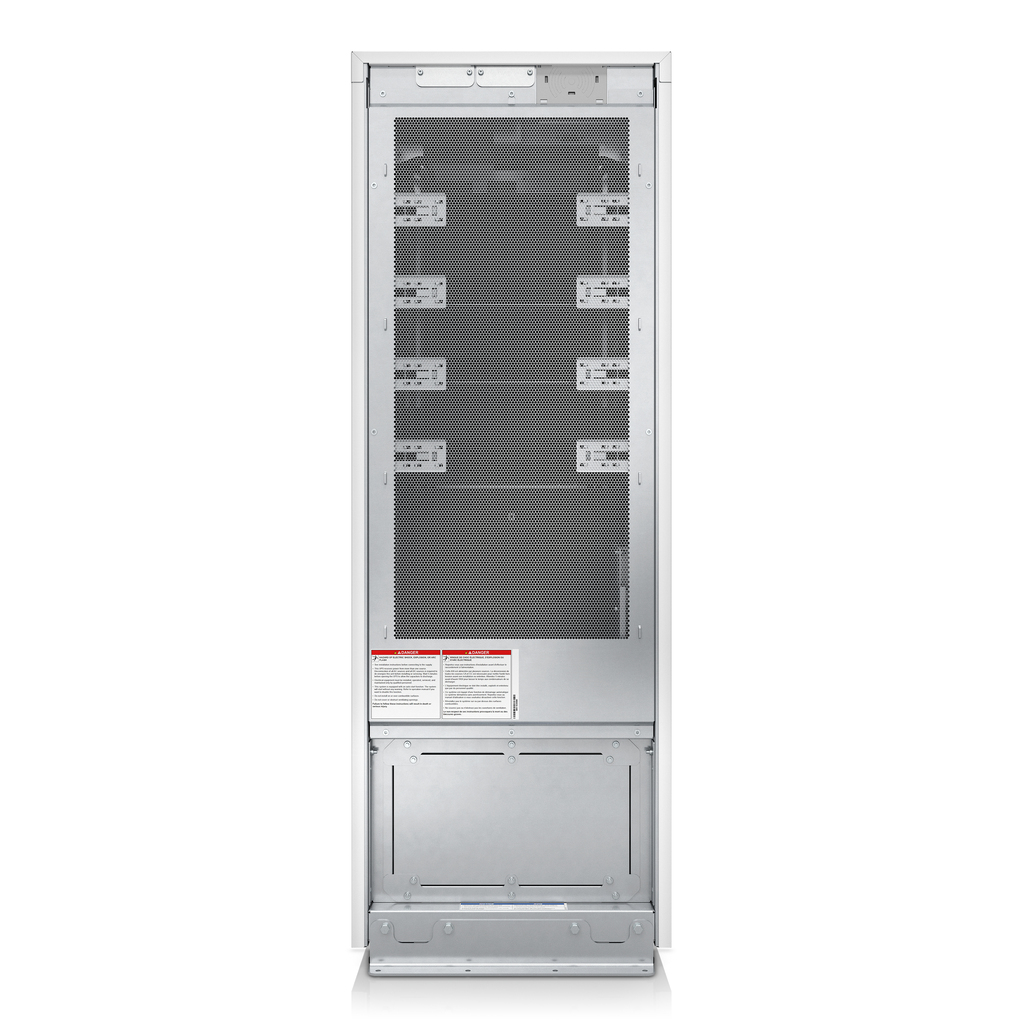

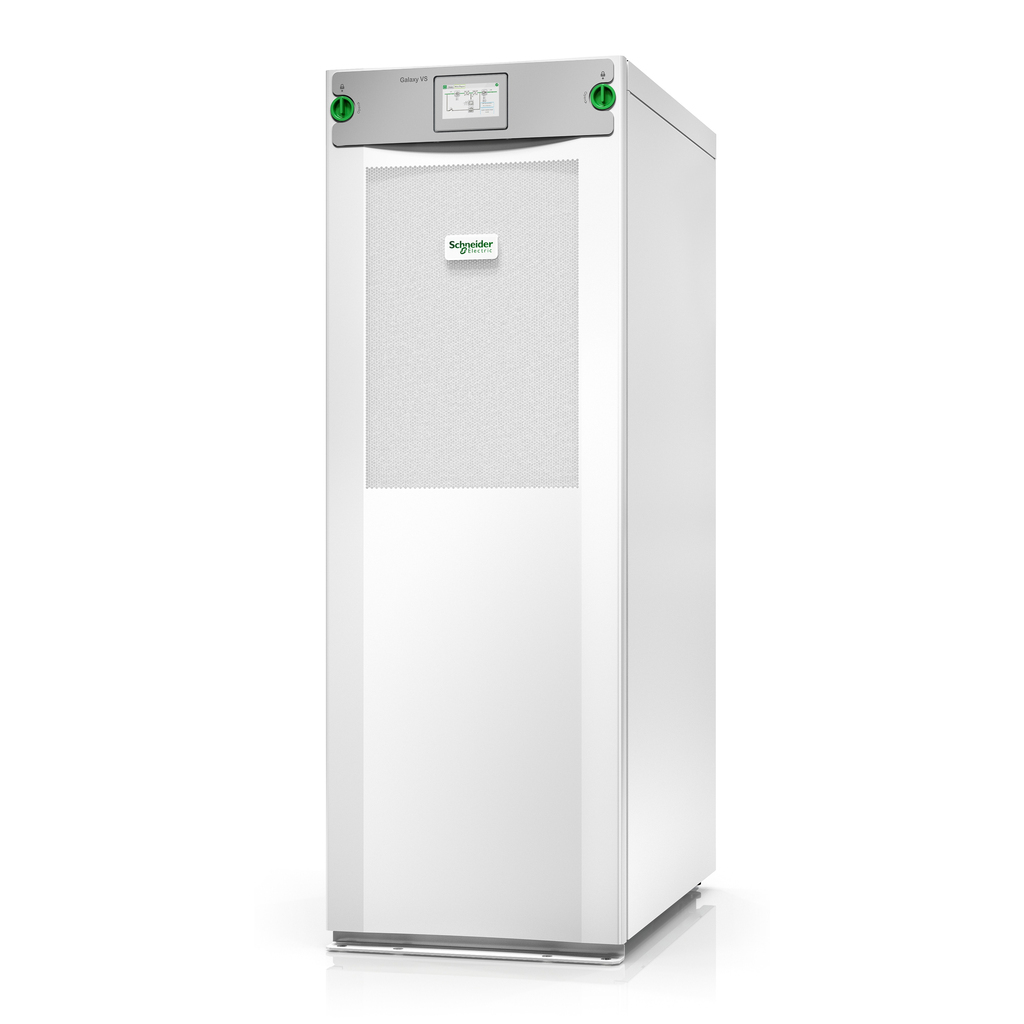

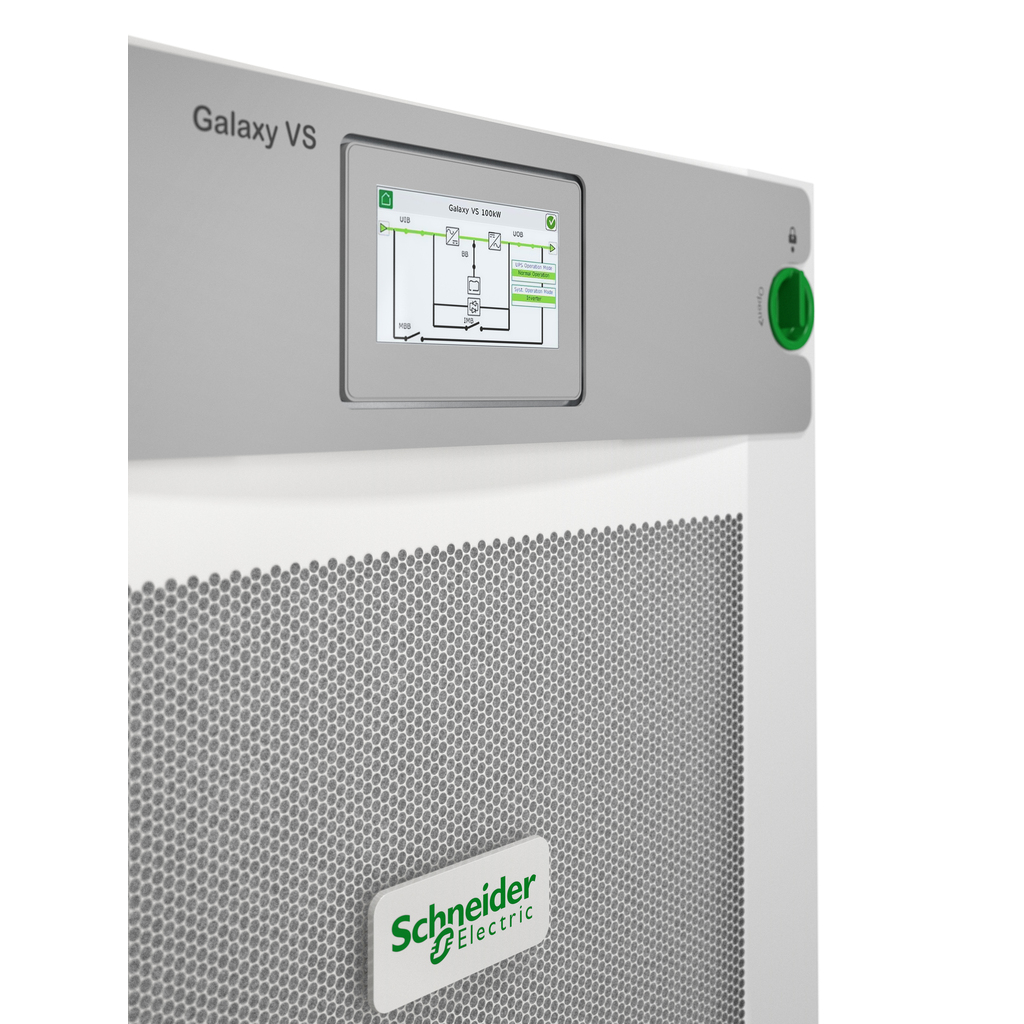

APC GVSUPS60KHS uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 60000 W
Galaxy VS UPS 60kW 400V for External Batteries, Start-up 5×8
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Highly efficient, easy-to-deploy 60kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5×8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
Additional information
| Weight | 275 lbs |
|---|---|
| Output power capacity | 60 kVA |
| Output power | 60000 W |
| Input frequency | 40/70 Hz |
| Audible alarm(s) | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -25 – 55 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 10 – 80% |
| Operating altitude | 0 – 984.3 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Weight | 250 kg |
| Harmonized System (HS) code | 85078000 |
| Package weight | 275 kg |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Maximum current | 111 A |
| Form factor | Tower |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Efficiency | 97.1% |
| Crest factor | 2.5:1 |
| Noise level | 65 dB |
| SmartSlot | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
| Display type | LCD |
| LED indicators | Yes |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| International Protection (IP) code | IP21 |
| Warranty period | 1 year(s) |
| Heat dissipation | 5576.1 BTU/h |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
