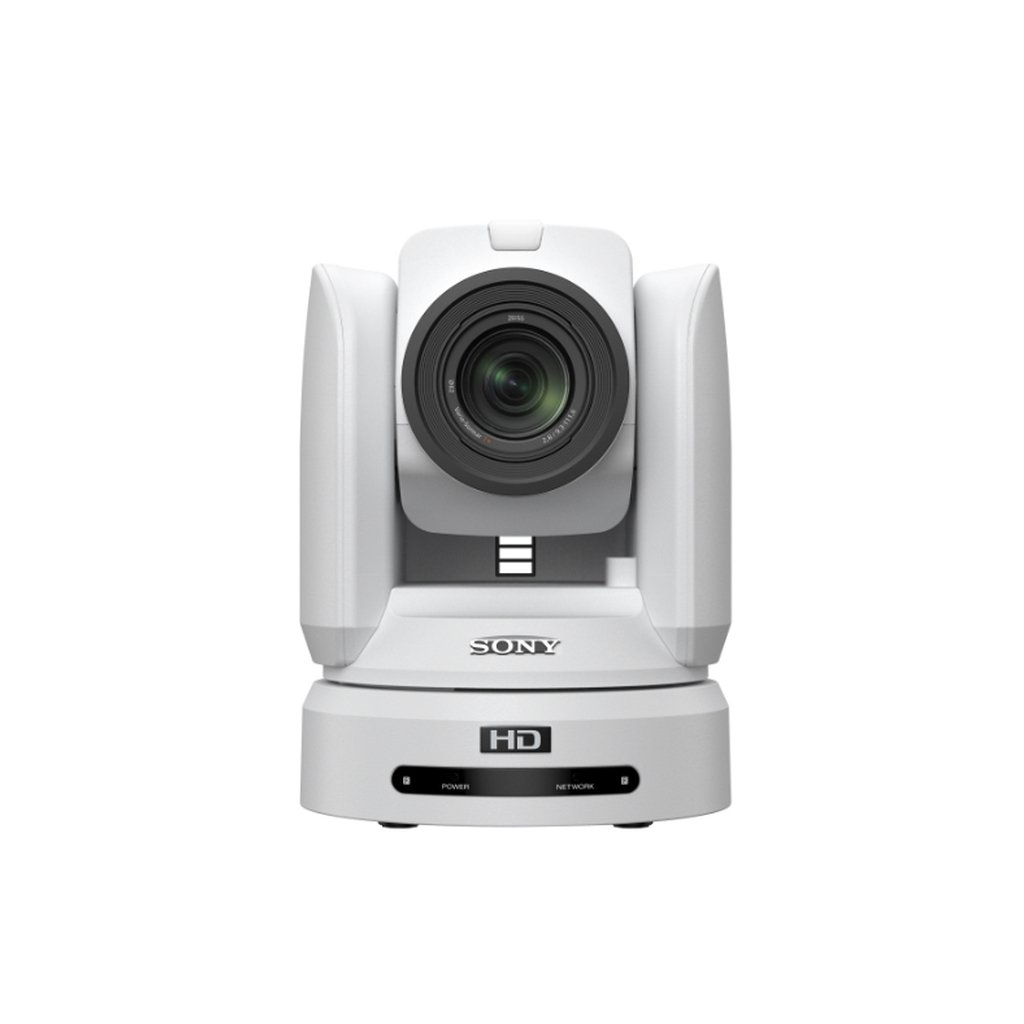

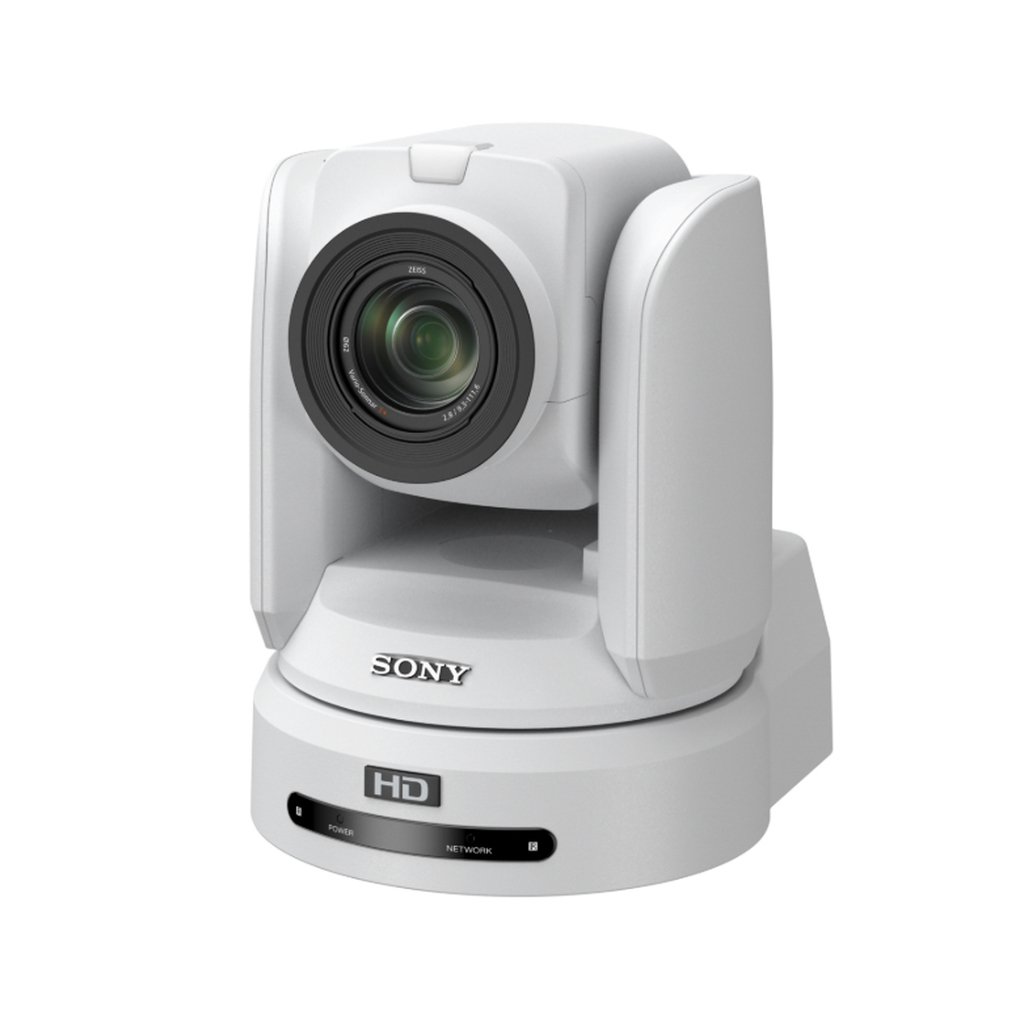

Sony BRC-H800 Dome IP security camera Indoor Ceiling
BRC-H800, 1″ Exmor R CMOS, 14.2 MP, 1080p, f 9.3-111.6 mm, F 2.8, F 4.5, 2x 3G-SDI, HDMI, RS-422, 198 x 260 x 238 mm, 4300 g, white, AC adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It’s equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It’s also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful ‘bokeh’ effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities – plus support for PoE+ and genlock – for smooth integration into any broadcast, professional or corporate AV environment.
Additional information
| Weight | 4.3 lbs |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| PTZ control | Yes |
| Preset points | Yes |
| Day/night mode | Yes |
| Light exposure modes | Auto, Manual, Shutter priority AE |
| Mounting type | Ceiling |
| Product colour | White |
| Form factor | Dome |
| Minimum illumination | 1.7 lx |
| Lens viewing angle, horizontal | 64.6° |
| Tilt angle range | -30 – 90° |
| Tilt speed | 60 °/sec |
| Pan range | -170 – 170° |
| Pan speed | 60 °/sec |
| White balance | Auto, Manual |
| Camera shutter speed | 1/10000s – 1/8 (59.94/29.97); 1/10000s – 1/6 (50/25/23.98) |
| Sensor type | CMOS |
| Optical zoom | 12x |
| Focal length range | 9.3 – 111.6 mm |
| Focus | Motorized/Manual |
| Total megapixels | 20.4 MP |
| Gain control type | Auto/Manual |
| Ethernet LAN | Yes |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 23 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 198 mm |
| Depth | 238 mm |
| Height | 260 mm |
| Weight | 4.3 kg |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Connectivity technology | Wired |
| Number of sensors | 1 |
| Zoom capability | Yes |
| Auto focus | Yes |
| Maximum aperture number | 4.5 |
| Supported video modes | 720p, 1080i, 1080p |
| Wi-Fi | No |
| Built-in HDD | No |
| DC-in jack | Yes |
| Optical sensor size | 25.4 / 0 mm (1 / 0") |
| Number of lenses | 1 |
| Bluetooth | No |
| DC output voltage | 12 |
| Power consumption (max) | 19 W |
| Minimum aperture number | 2.8 |
| Harmonized System (HS) code | 85258900 |
| Closest focusing distance | 0.08 m |
| Interface | RJ-45/BNC |
| Number of TV lines (horizontal) | 850 |
| AC adapter included | Yes |
