StarTech.com 10-Port Industrial USB 3.0 Hub – ESD and Surge Protection~10-Port USB 3.0 Hub – 5Gbps – Metal Industrial USB-A Hub
StarTech.com 10-Port USB 3.0 Hub – Metal Industrial USB-A Hub with ESD & Surge Protection – Din Rail, Wall or Desk Mountable – TAA Compliant USB Expander Hub (ST1030USBM)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need it Most

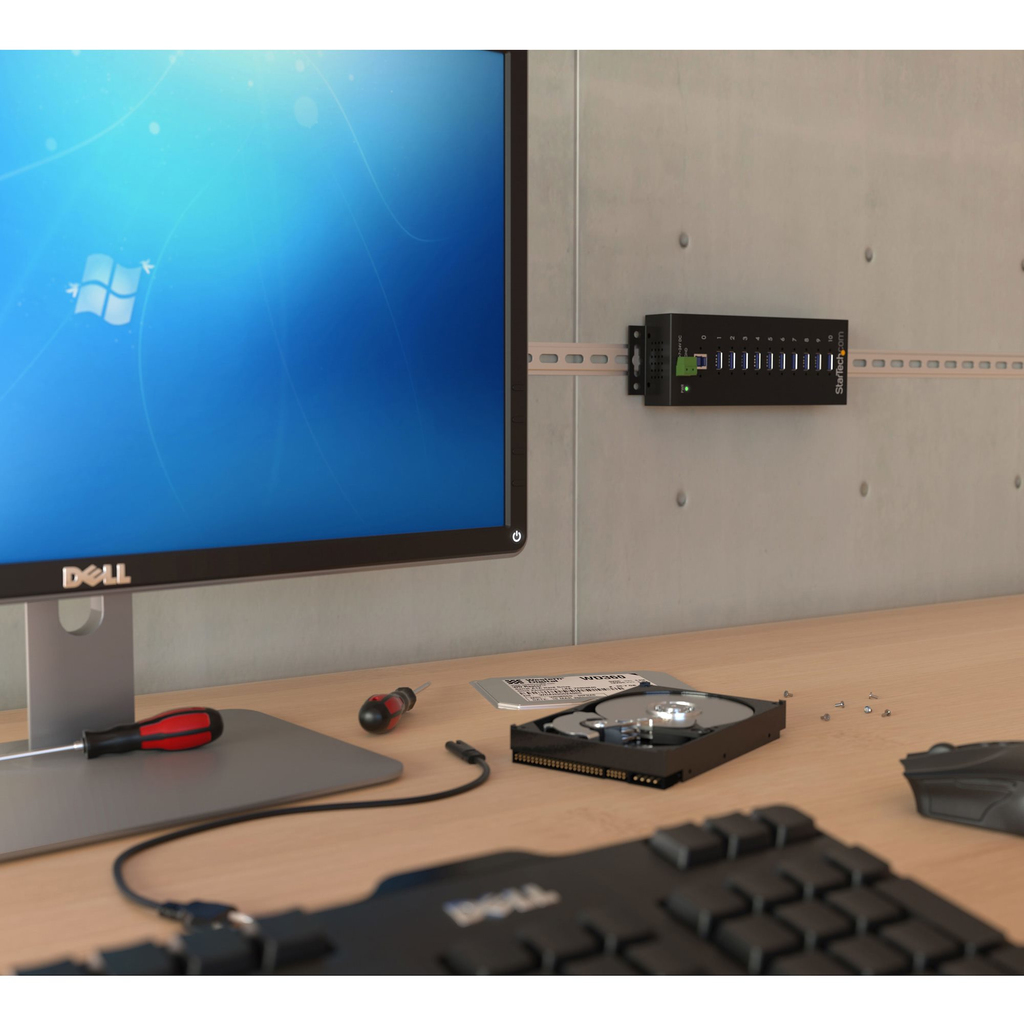

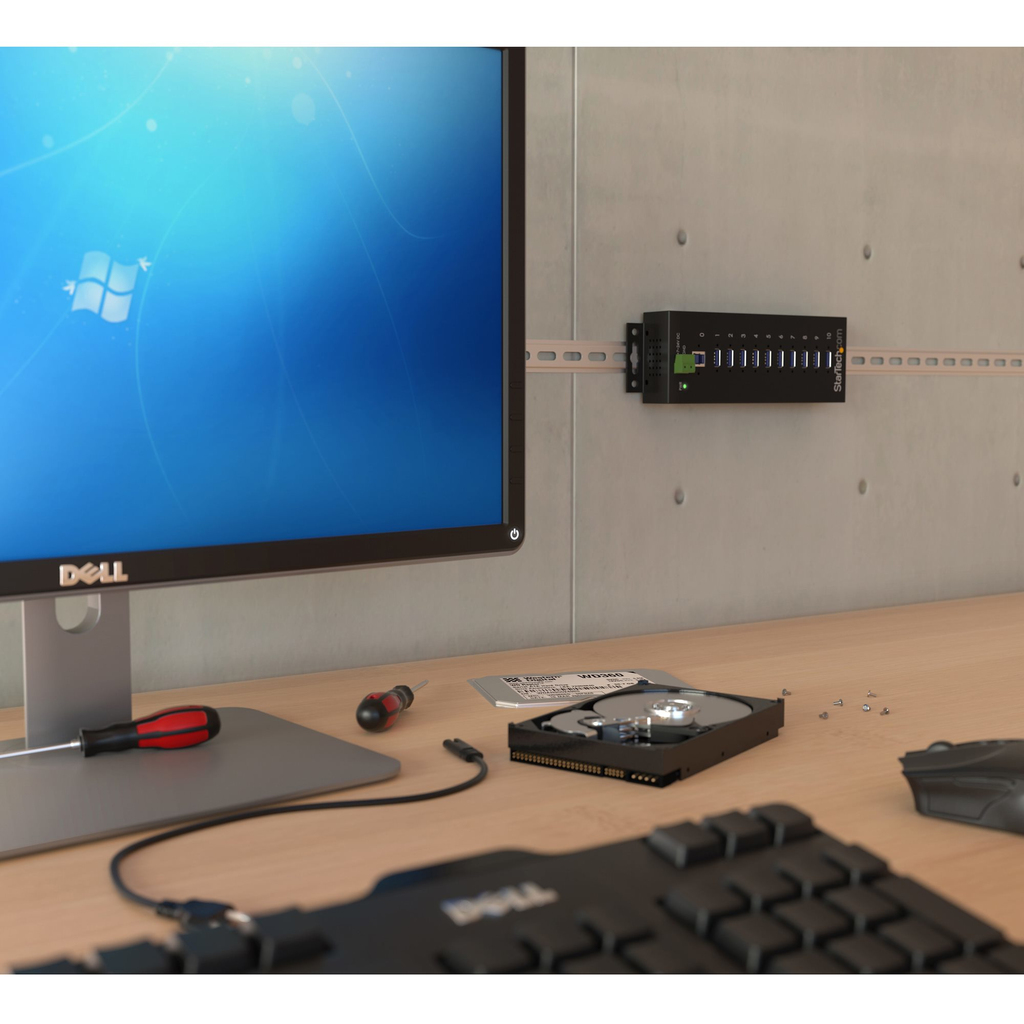

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.5 lbs |
|---|---|
| Ports quantity | 10 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Housing material | Steel |
| Cable length | 2.032 m |
| Width | 56 mm |
| Depth | 198 mm |
| Height | 31 mm |
| Weight | 357 g |
| Package width | 169 mm |
| Package depth | 246 mm |
| Package height | 57 mm |
| Package weight | 600 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Chipset | Genesys Logic – GL3520 |
| Input voltage | 7 – 24 V |
| Harmonized System (HS) code | 84719000 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Terminal block port | Yes |
| Surge protection | Yes |
| LED indicators | Power |
| Cables included | USB |
| Manual | Yes |
| Terminal block included | Yes |
| Master (outer) case width | 444 mm |
| Master (outer) case length | 526 mm |
| Master (outer) case height | 338 mm |
| Products per master (outer) case | 25 pc(s) |
| DIN rail kit included | Yes |
| Mean time between failures (MTBF) | 119388 h |
