StarTech.com 10ft (3m) White VESA Certified DisplayPort 1.2 Cable, 4K 60Hz, 21.6Gbps, Latching DP Connectors, DP 1.2 DisplayPor
StarTech.com 10ft (3m) White VESA Certified DisplayPort 1.2 Cable, 4K 60Hz, 21.6Gbps, Latching DP Connectors, DP 1.2 Cable
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable

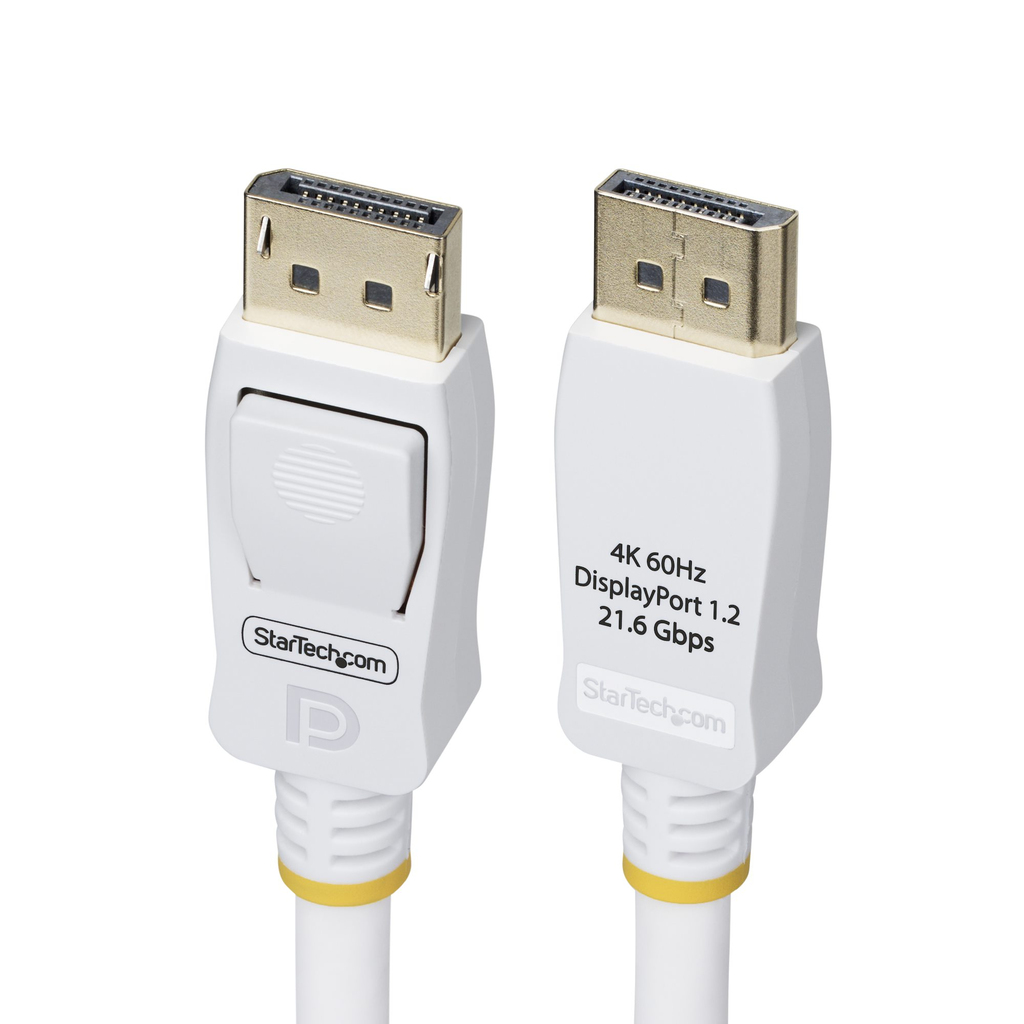

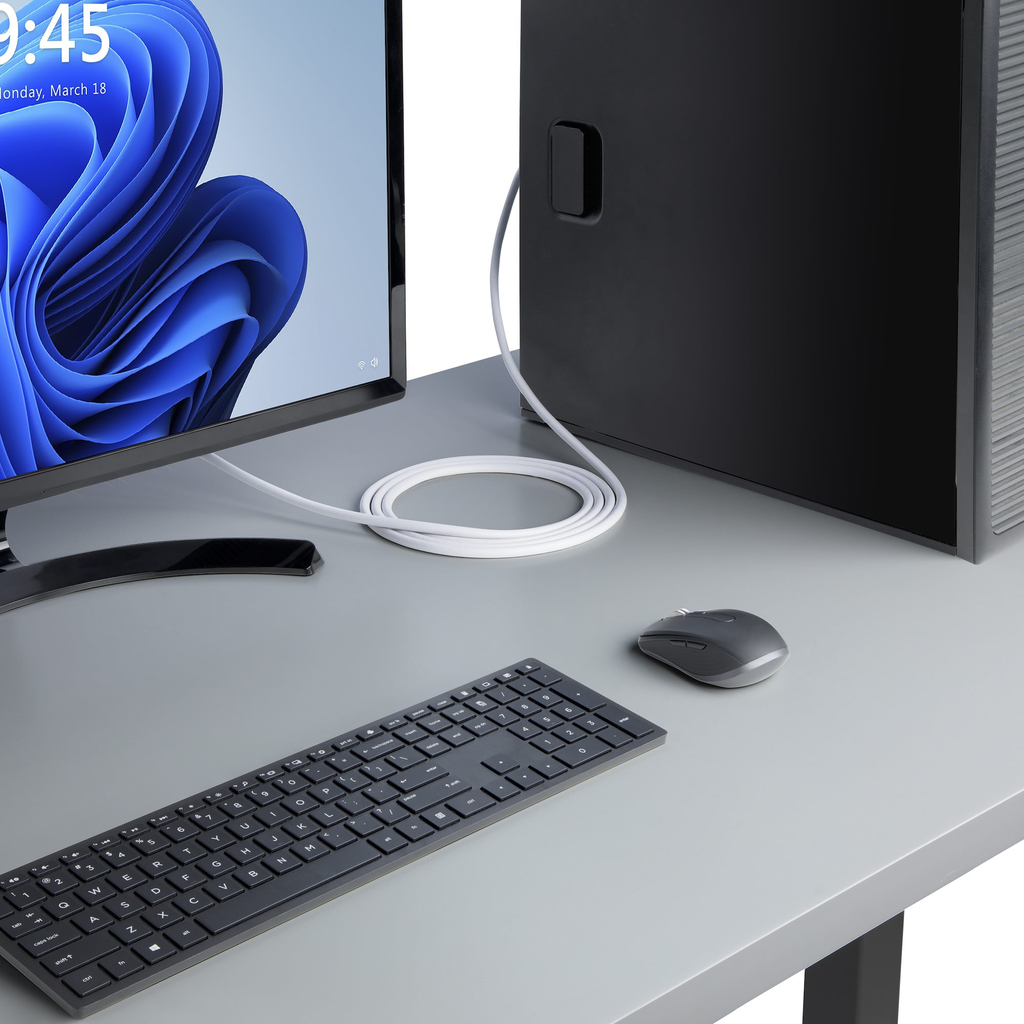

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.
Durable Design

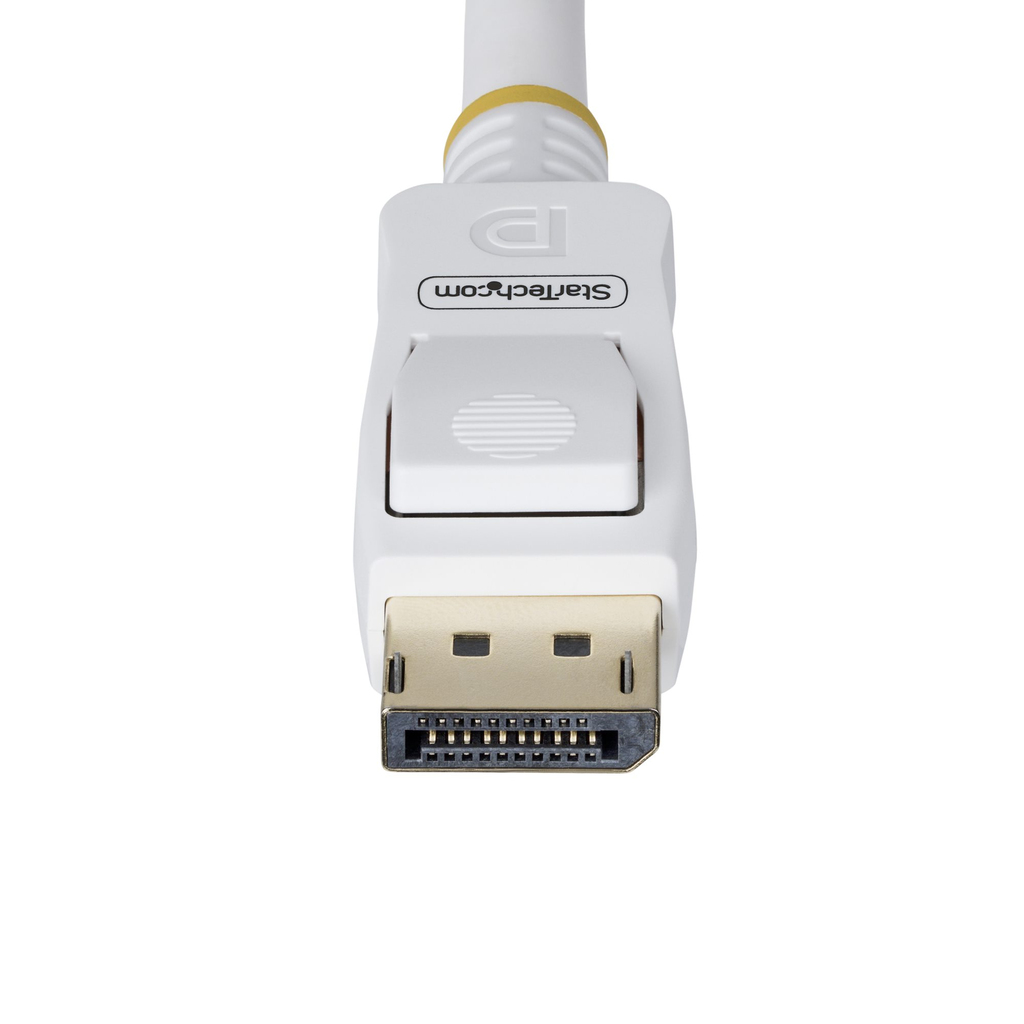

This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.
Supported DisplayPort 1.2 Features:
This DisplayPort cable supports full DP 1.2 features:
• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions
This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Additional information
| Weight | 0.2 lbs |
|---|---|
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | White |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Cable type | Round cable |
| Weight | 192 g |
| Products per master (outer) case | 40 pc(s) |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Supported graphics resolutions | 2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p, 1440p, 2160p |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 1.3 |
| Latching connectors | Yes |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Data transfer rate | 21.6 Gbit/s |
| Channels quantity | 7.1 channels |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Fire-resistance rating | VW-1 |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Cable diameter | 7.5 mm |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 20 mm |
| Package weight | 200 g |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
