StarTech.com HDMI Signal Booster – 115 ft – 1080p
StarTech.com HDMI Signal Booster – HDMI Video Signal Amplifier – 115 ft – 1080p
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation

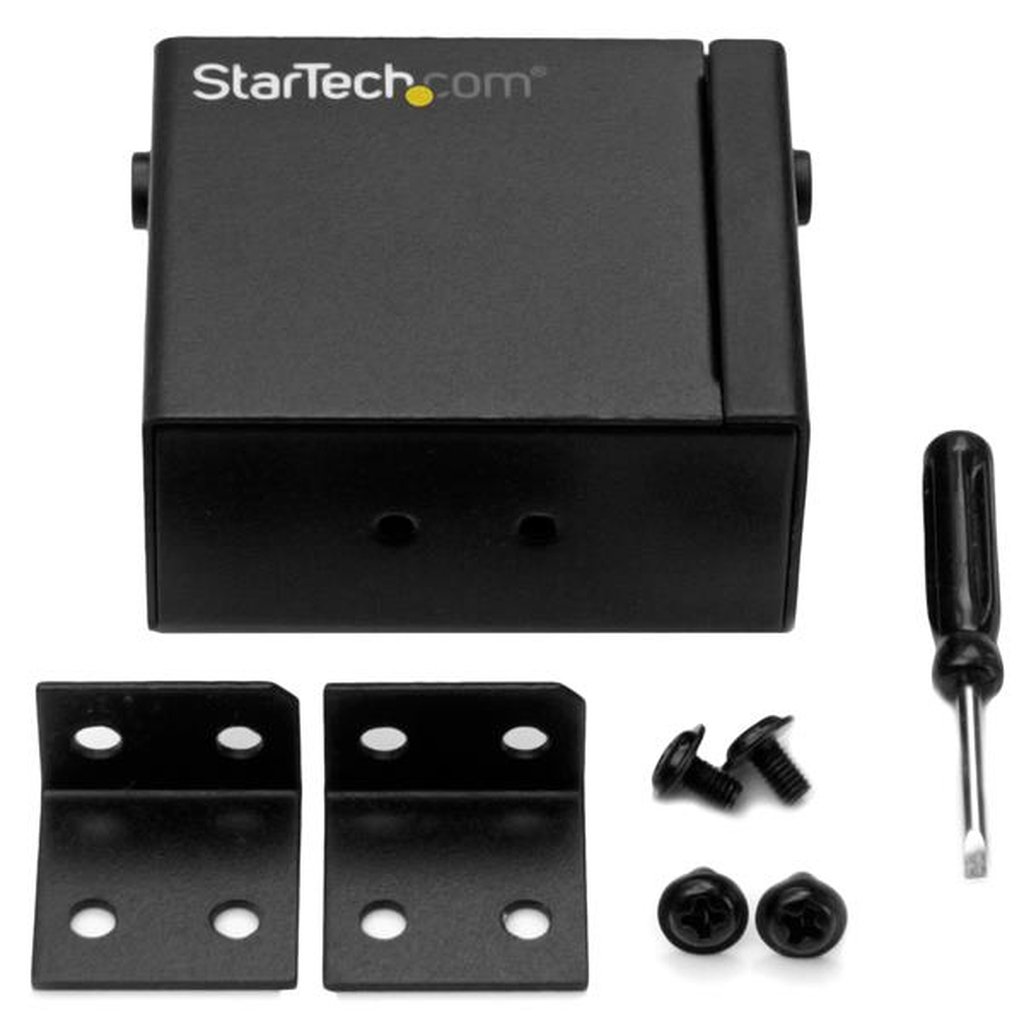

With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances

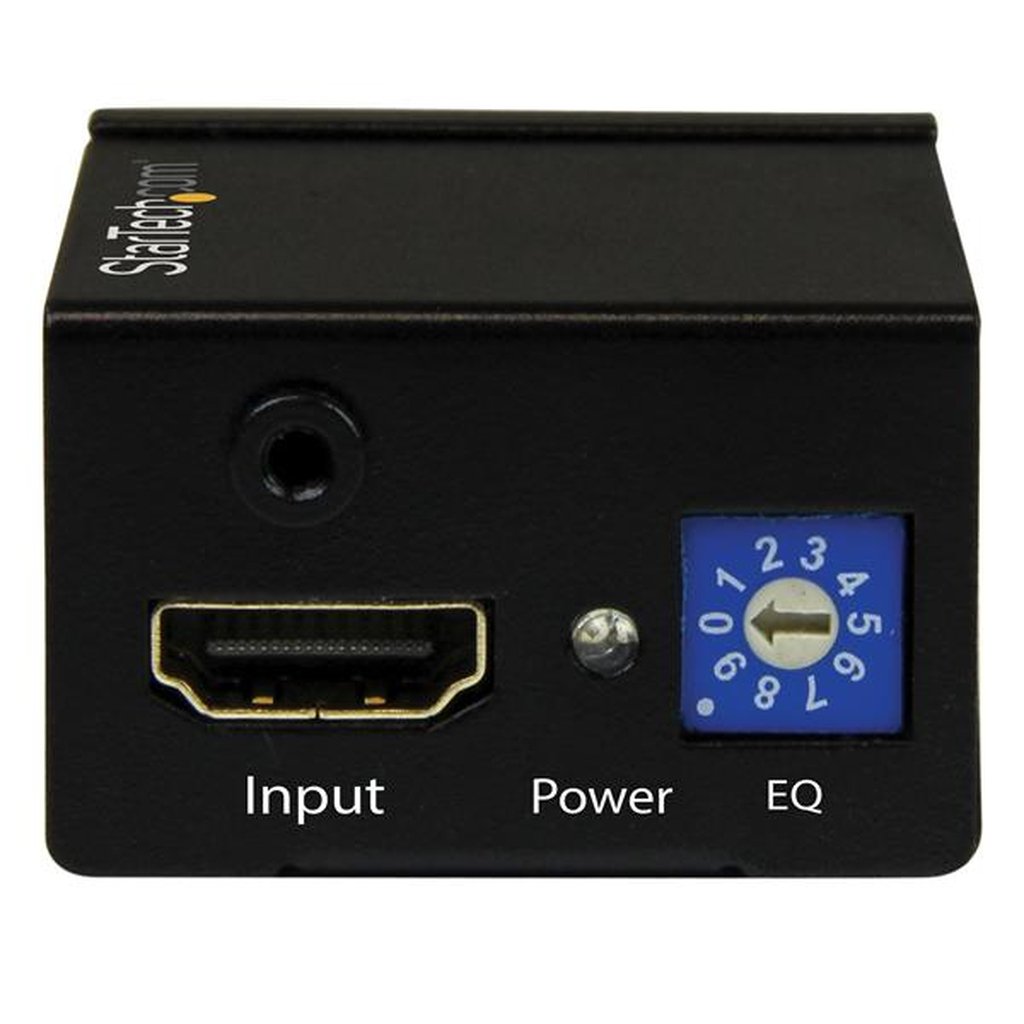

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Additional information
| Weight | 0.14 lbs |
|---|---|
| Type | AV repeater |
| Maximum transfer distance | 35 m |
| LED indicators | Power |
| Product colour | Black |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Compliance certificates | RoHS |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+) |
| Mounting brackets included | Yes |
| AC input voltage | 100-240 V |
| Operating voltage | 5 V |
| Dimensions (WxDxH) | 42.2 x 54.2 x 26.2 mm |
| Weight | 72 g |
| Package width | 173 mm |
| Package depth | 144 mm |
| Package height | 33 mm |
| Package weight | 163 g |
| Audio system | Multichannel |
| Supported video modes | 720p, 1080p |
| Certification | CE, FCC |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Output current | 1 A |
| Audio output channels | 7.1 channels |
| Rack mounting | Yes |
| Power plug type | Type N |
| Harmonized System (HS) code | 85176200 |
| Audio support | Yes |
| Package dimensions (WxDxH) | 143 x 168 x 63 mm |
