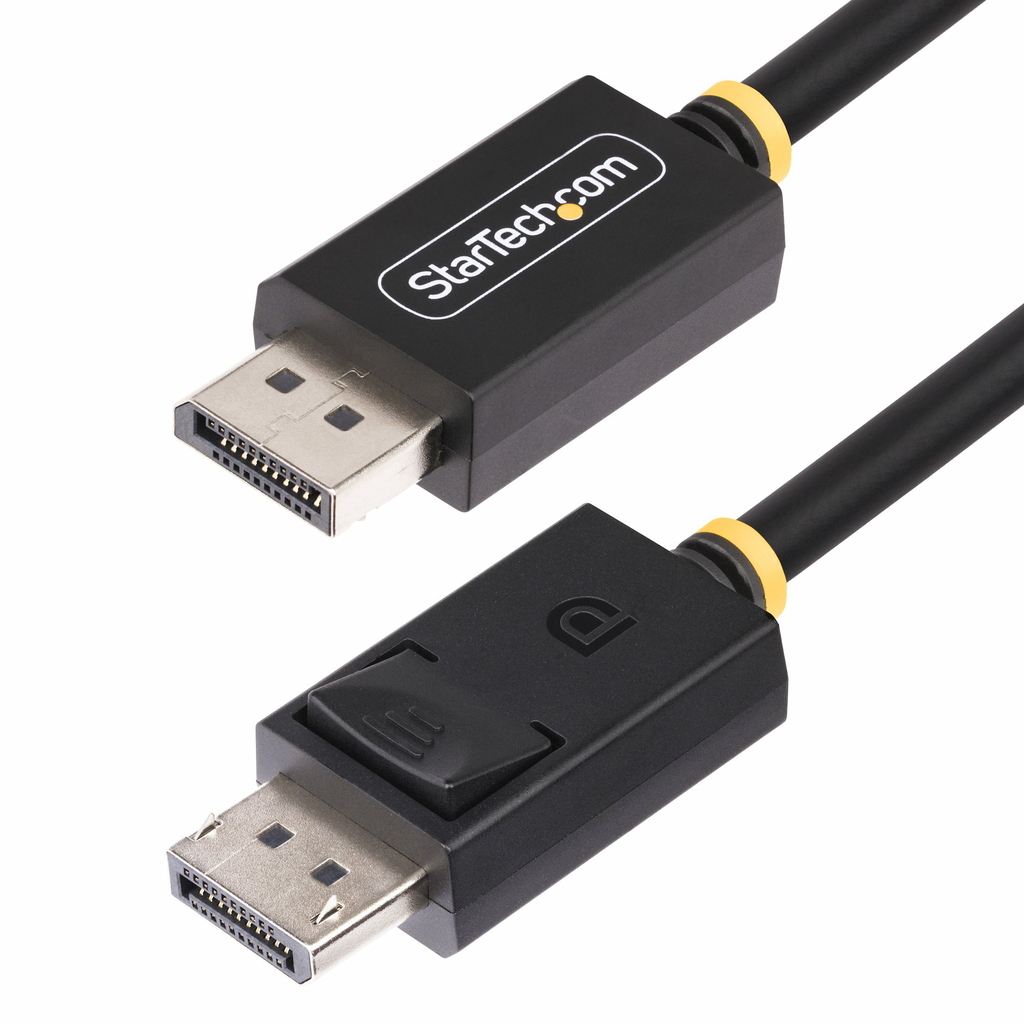

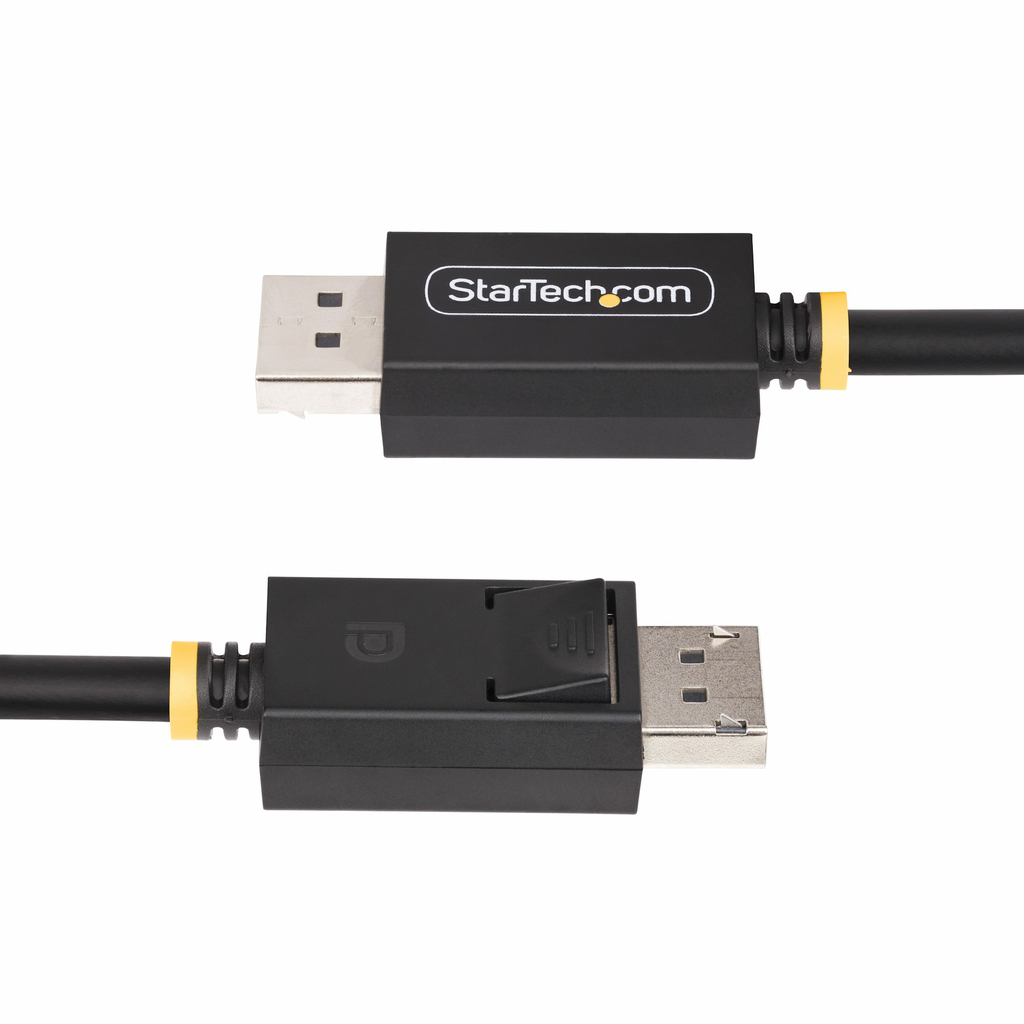

StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP80 DisplayPort Cable w/UHBR20/HDR/DSC 1.2a/HDCP 2.2, 16K/8K 60Hz, 4K 24
StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP80 DisplayPort Cable w/UHBR20/HDR/DSC 1.2a/HDCP 2.2, 16K/8K 60Hz
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

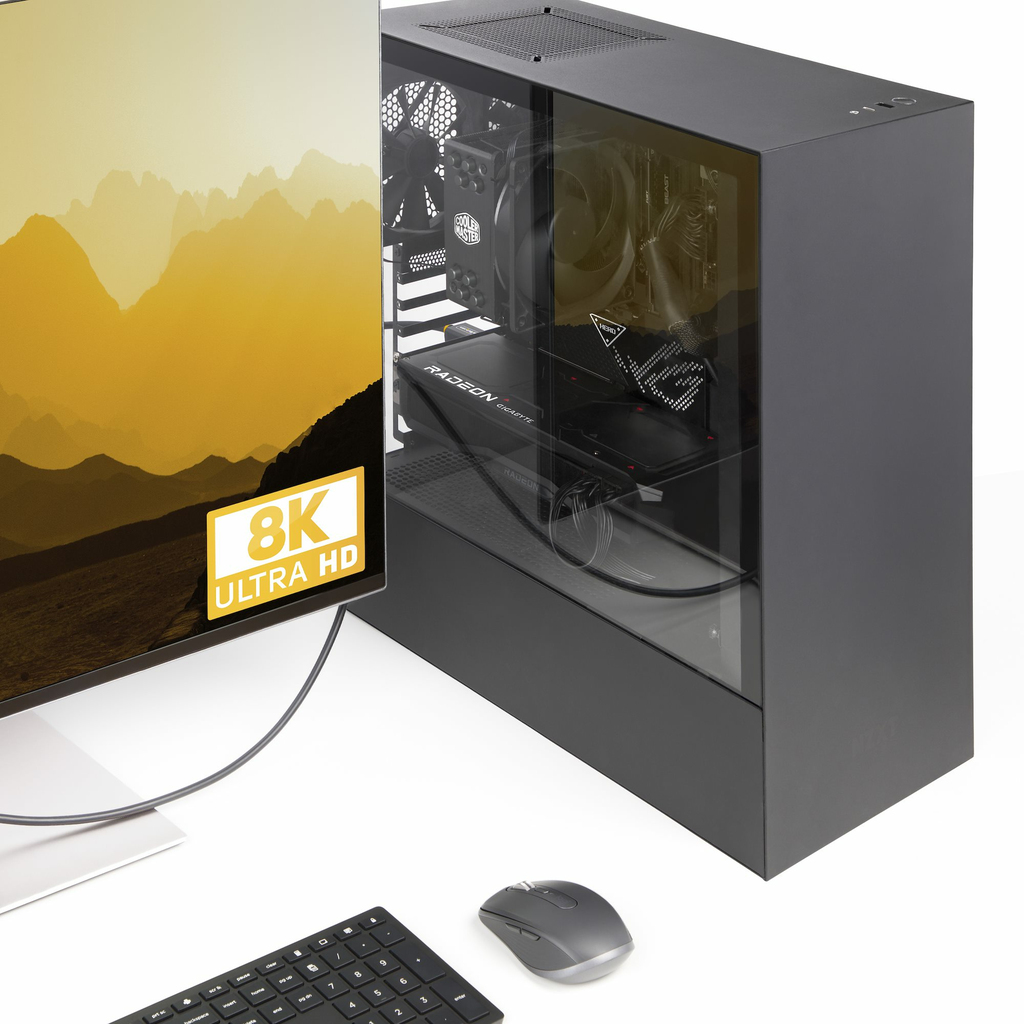

Facilitate higher refresh rates and 8K 60Hz video on UHBR20-enabled DisplayPort devices

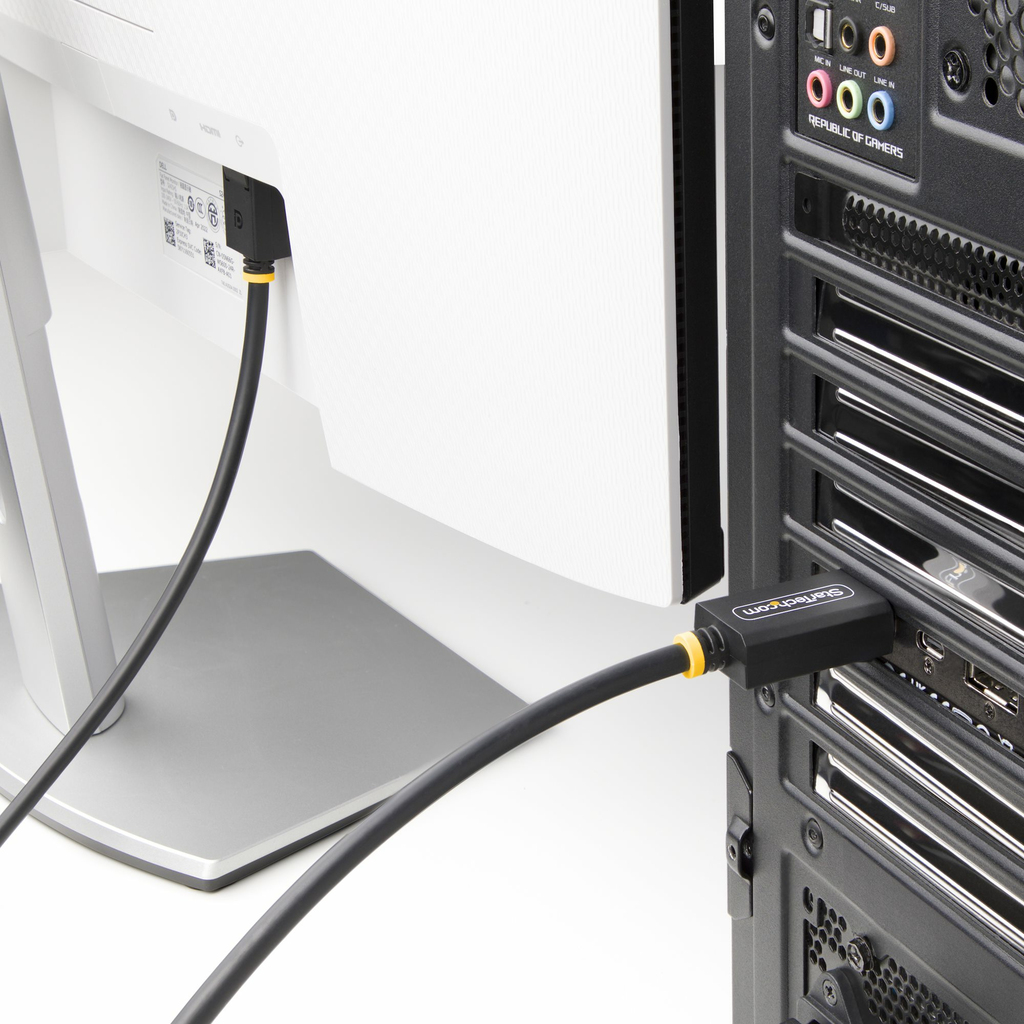

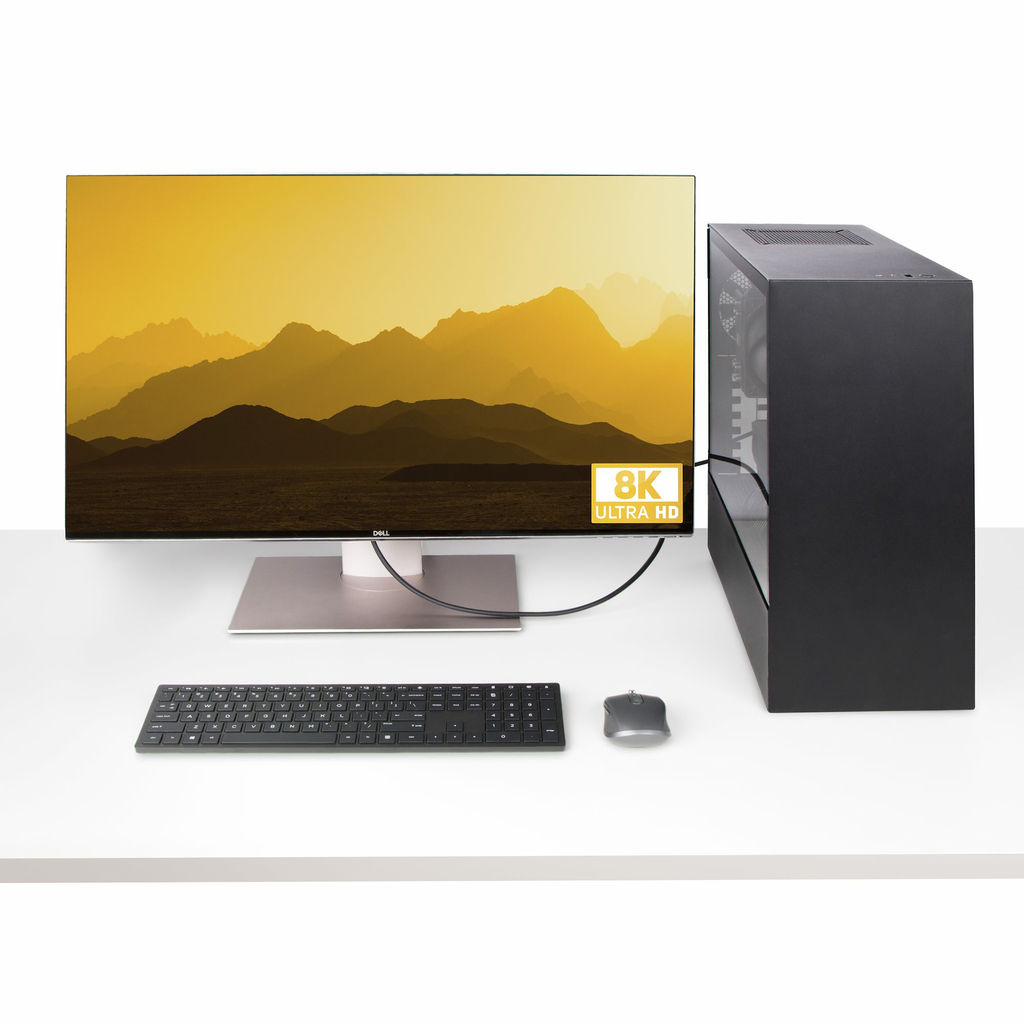

Connect a 16K/8K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 16K/8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility

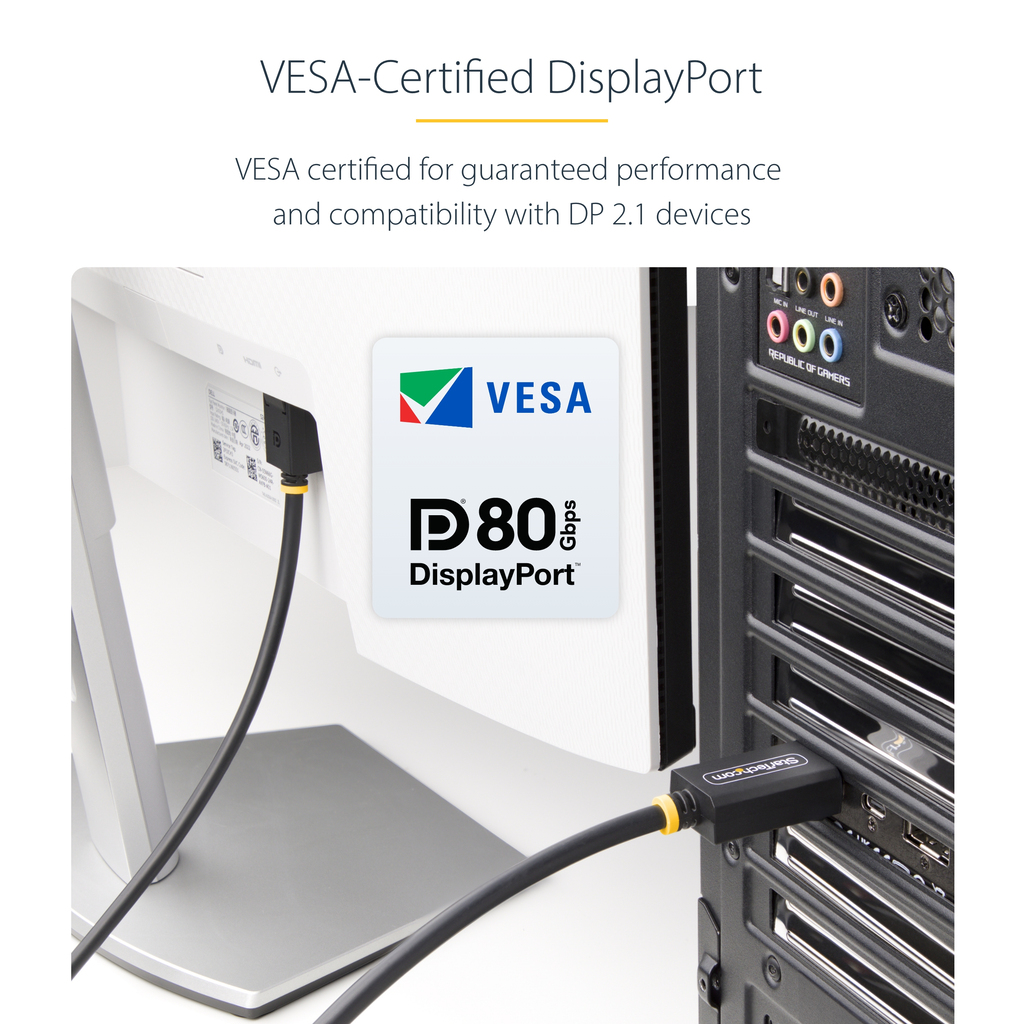

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design

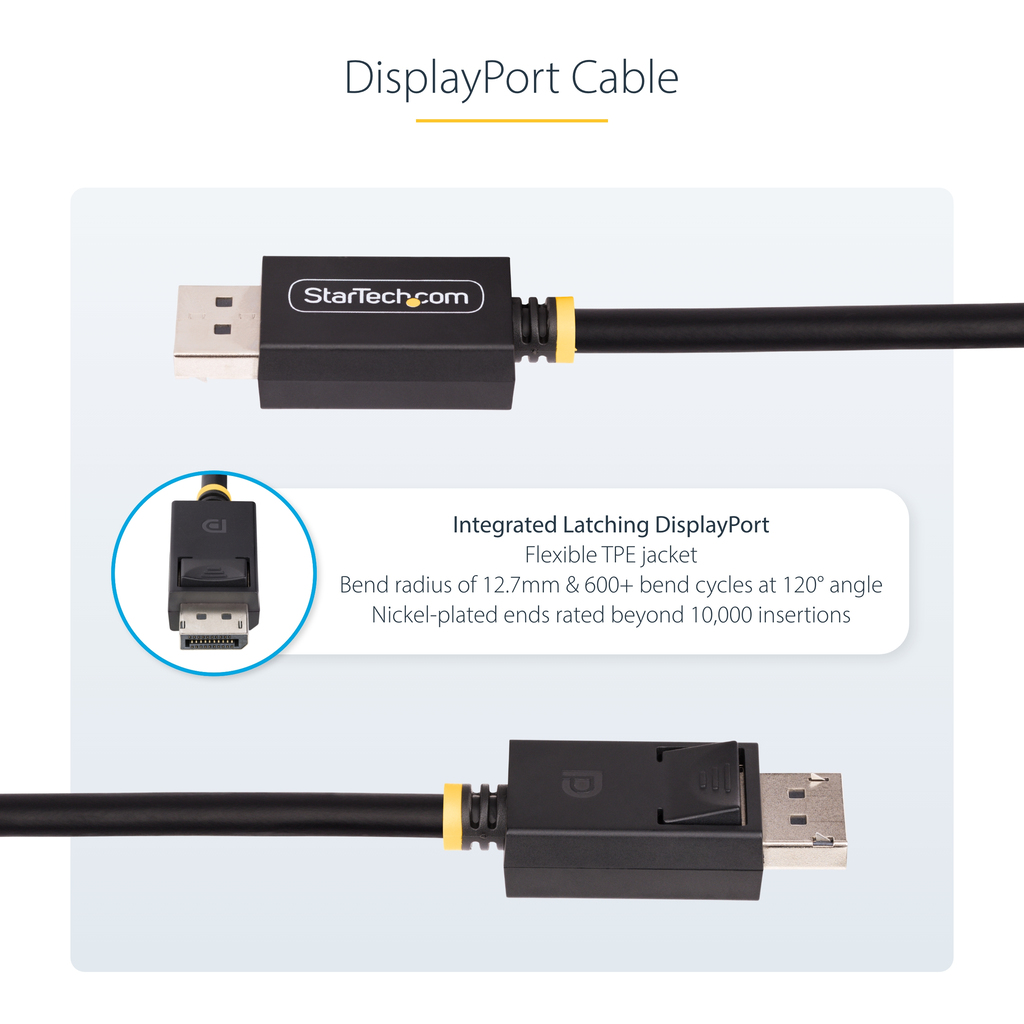

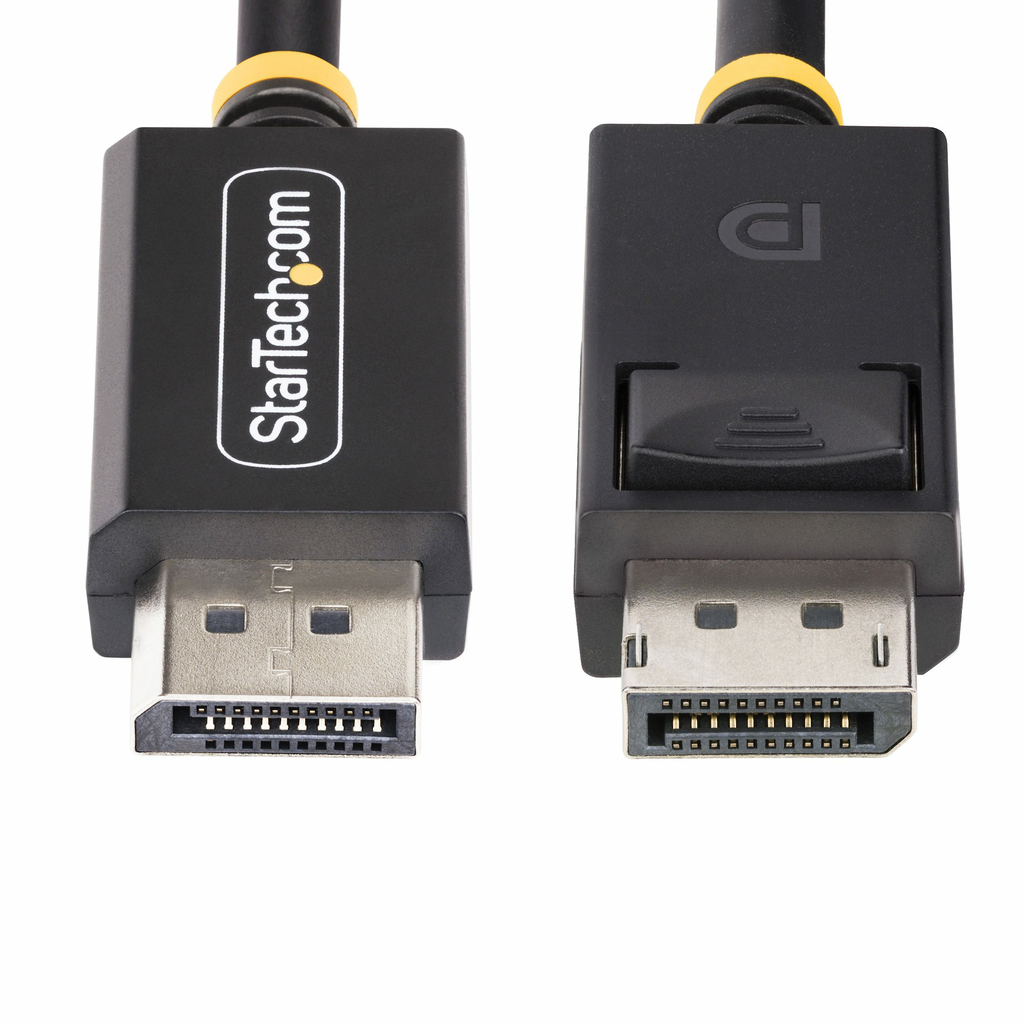

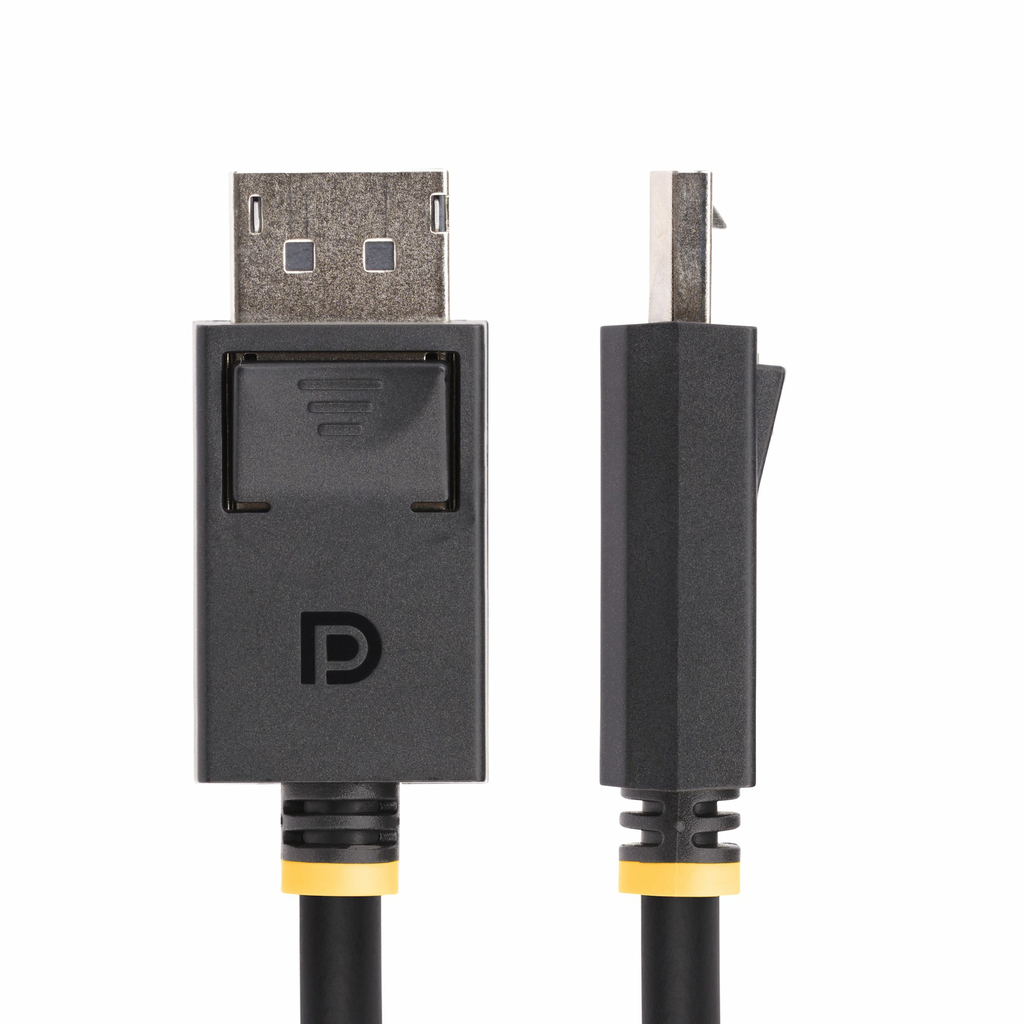

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP80 DisplayPort cable supports the following DP 2.1 features:

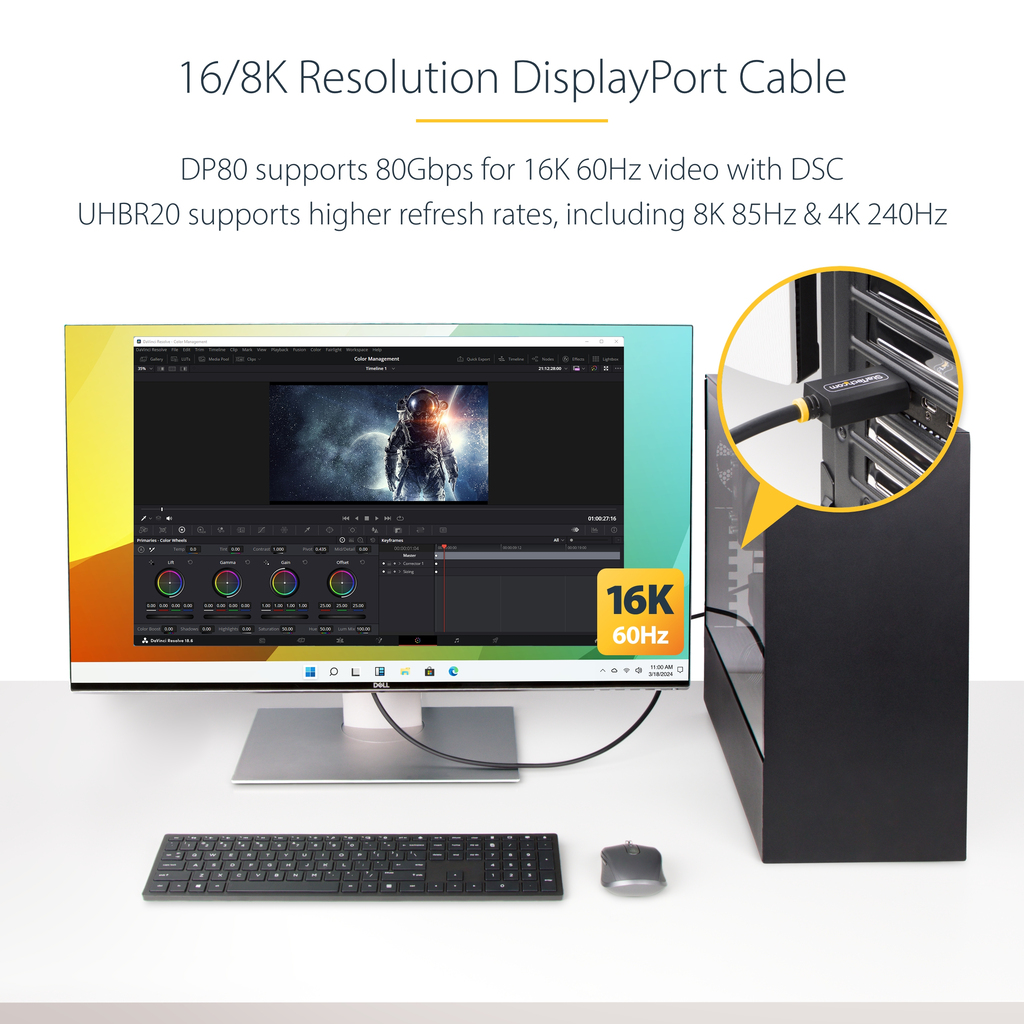

• Resolutions up to 16K 60Hz w/DSC, using a compatible DP source and display
• UHBR20 supports high refresh rates including 8K 85Hz, 4K 240Hz, and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Additional information
| Weight | 0.09 lbs |
|---|---|
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Cable type | Round cable |
| Weight | 80 g |
| Quantity per pack | 1 pc(s) |
| Products per master (outer) case | 100 pc(s) |
| Maximum resolution | 15360 x 8640 pixels |
| DisplayPort version | 2.1 |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Latching connectors | Yes |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 30 |
| Data transfer rate | 80 Gbit/s |
| Channels quantity | 32 channels |
| Multi-Stream Transport (MST) | Yes |
| Fire-resistance rating | VW-1 |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 85% |

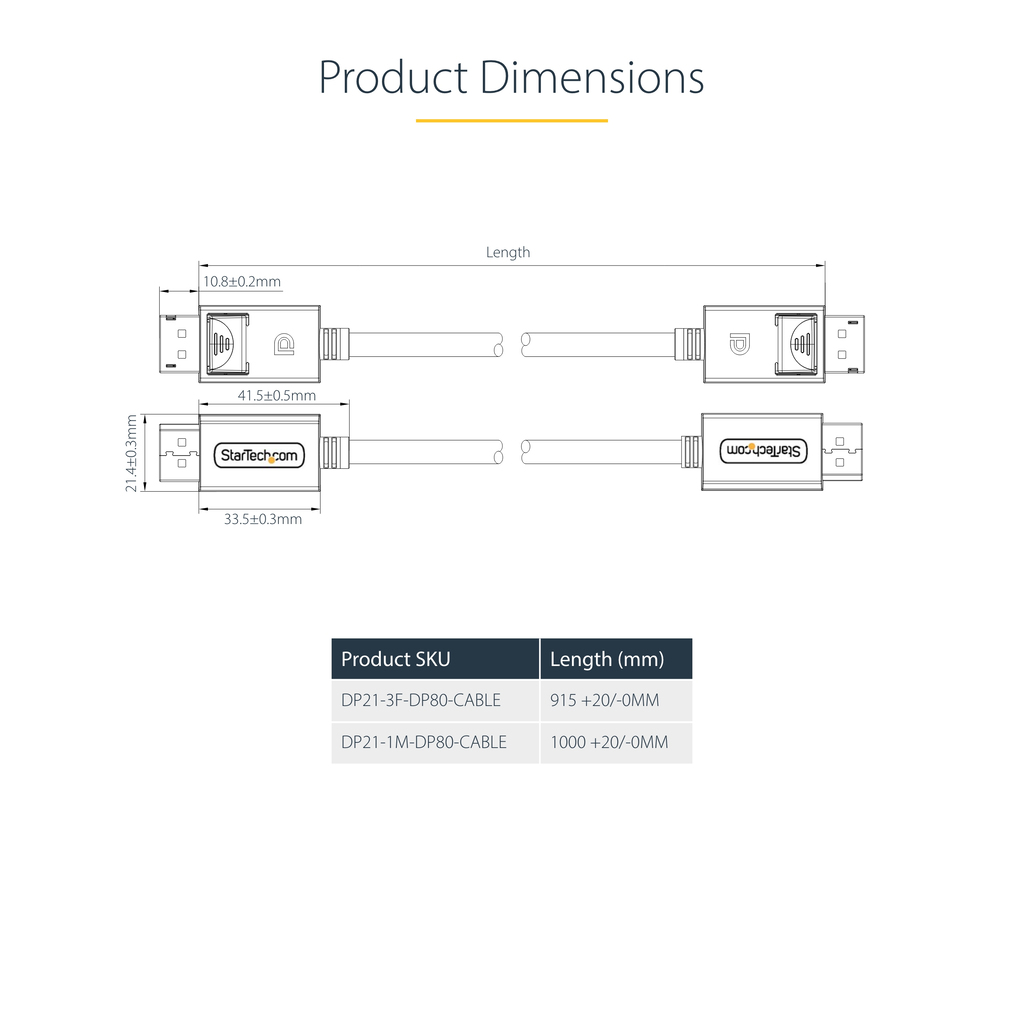

| Cable diameter | 5.8 mm |
| Package width | 125 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 86 g |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 215 mm |
| Jacket material | Thermoplastic elastomer (TPE) |
| Compliance certificates | RoHS |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2a |
| Cable material | Copper |
| High Dynamic Range (HDR) supported | Yes |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
