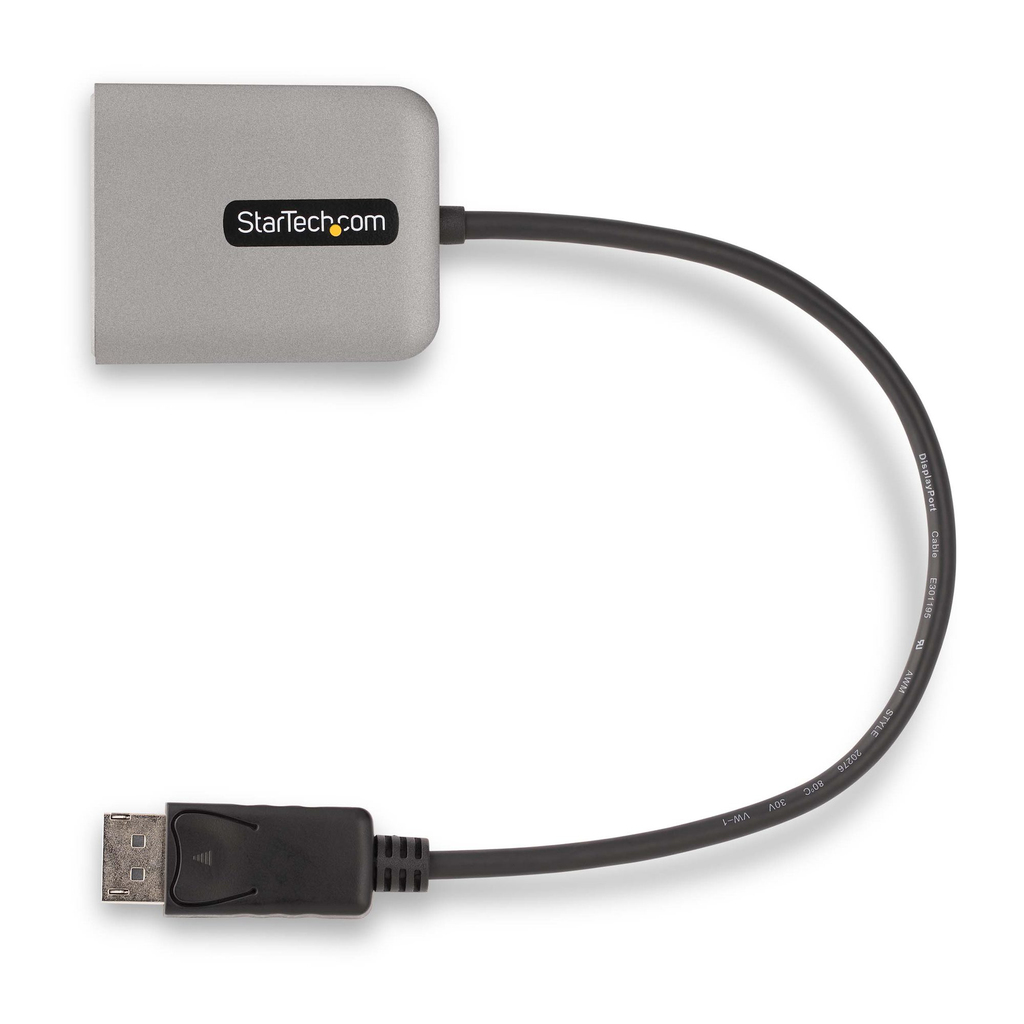

StarTech.com 2-Port DisplayPort MST Hub, Dual 4K 60Hz, DP to 2x DisplayPort Monitor Adapter, DP 1.4 Multi-Monitor Video Adapter
StarTech.com 2-Port DisplayPort MST Hub, Dual 4K 60Hz, DP to 2x DisplayPort Monitor Adapter, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only (MST14DP122DP)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

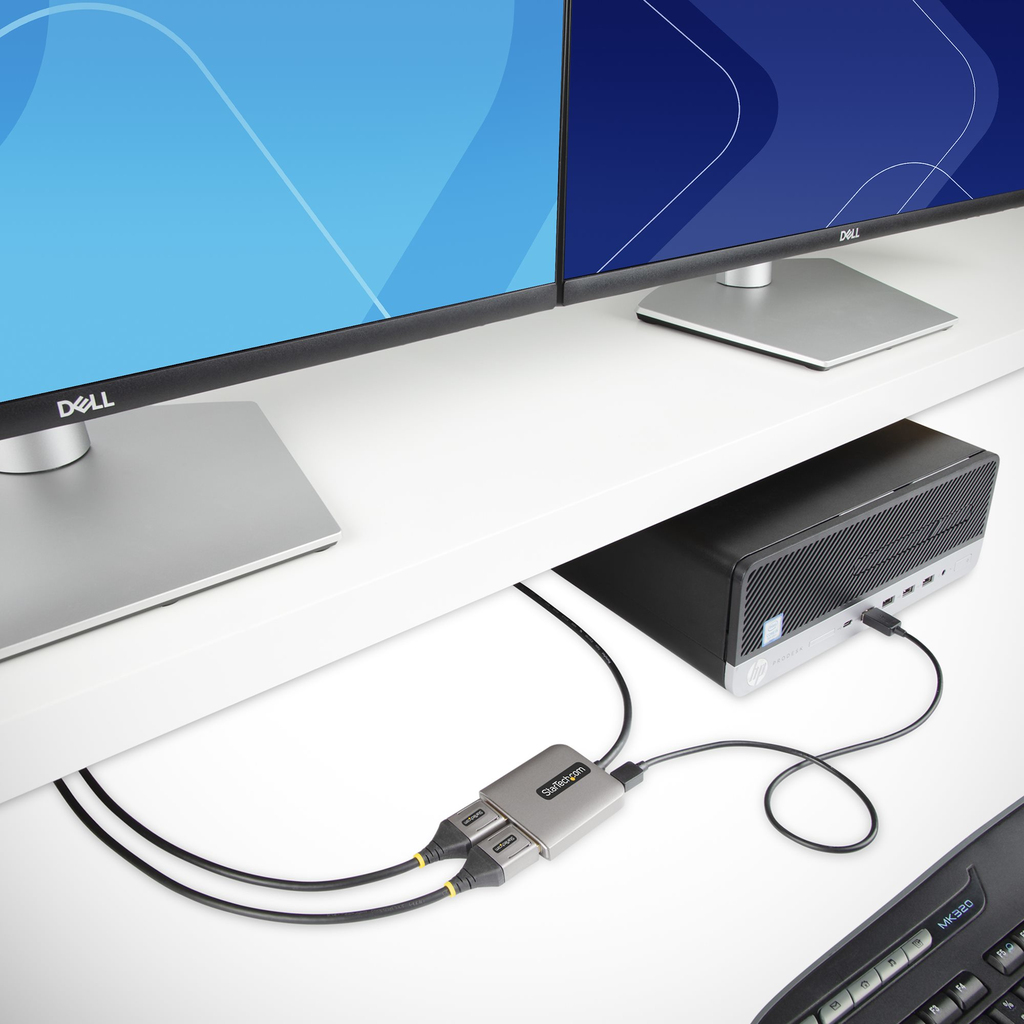

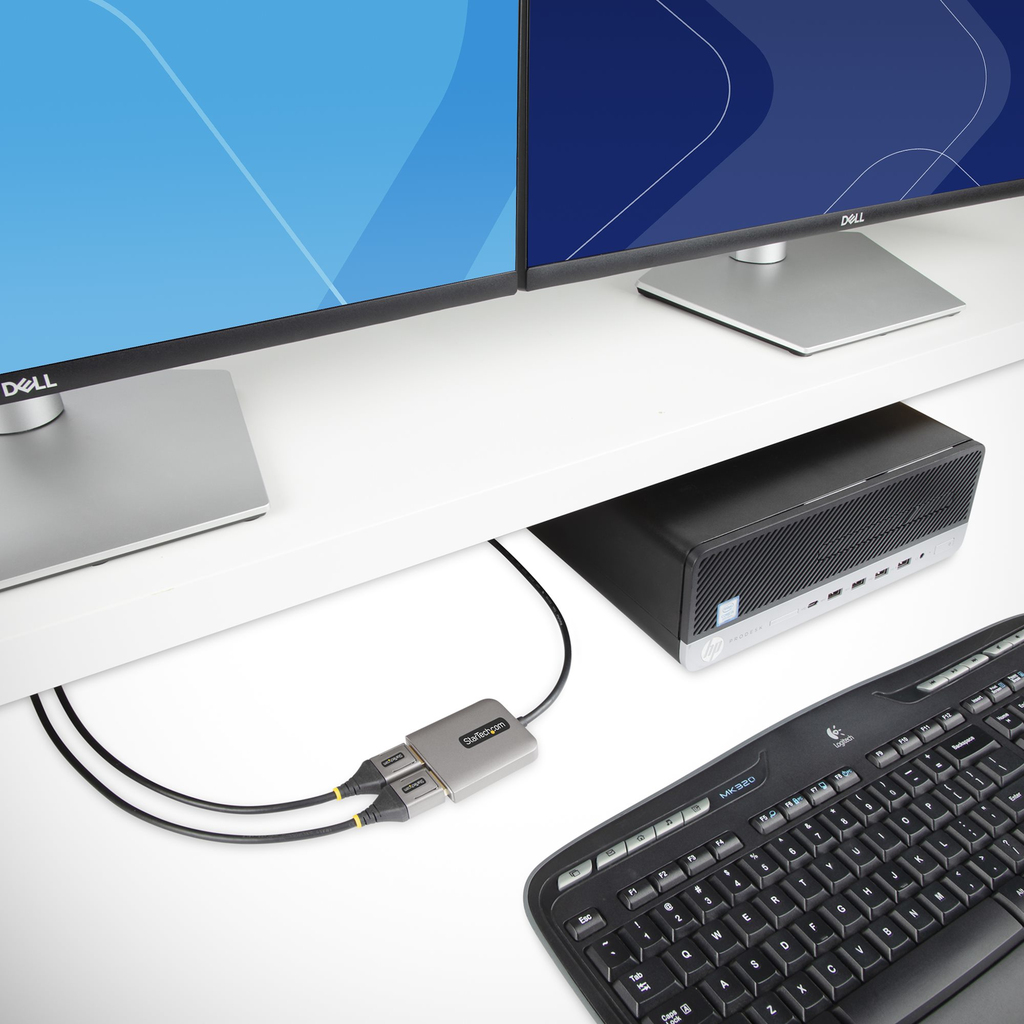

Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitors

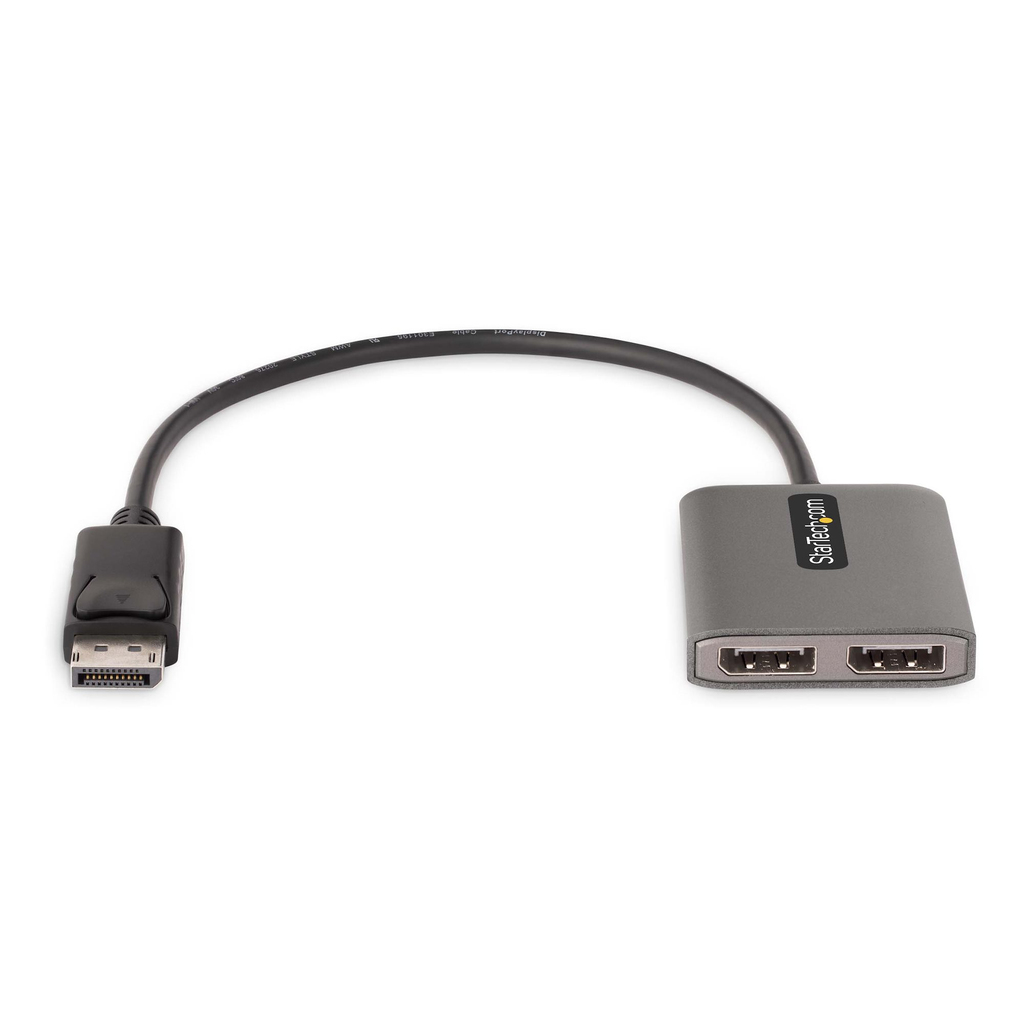

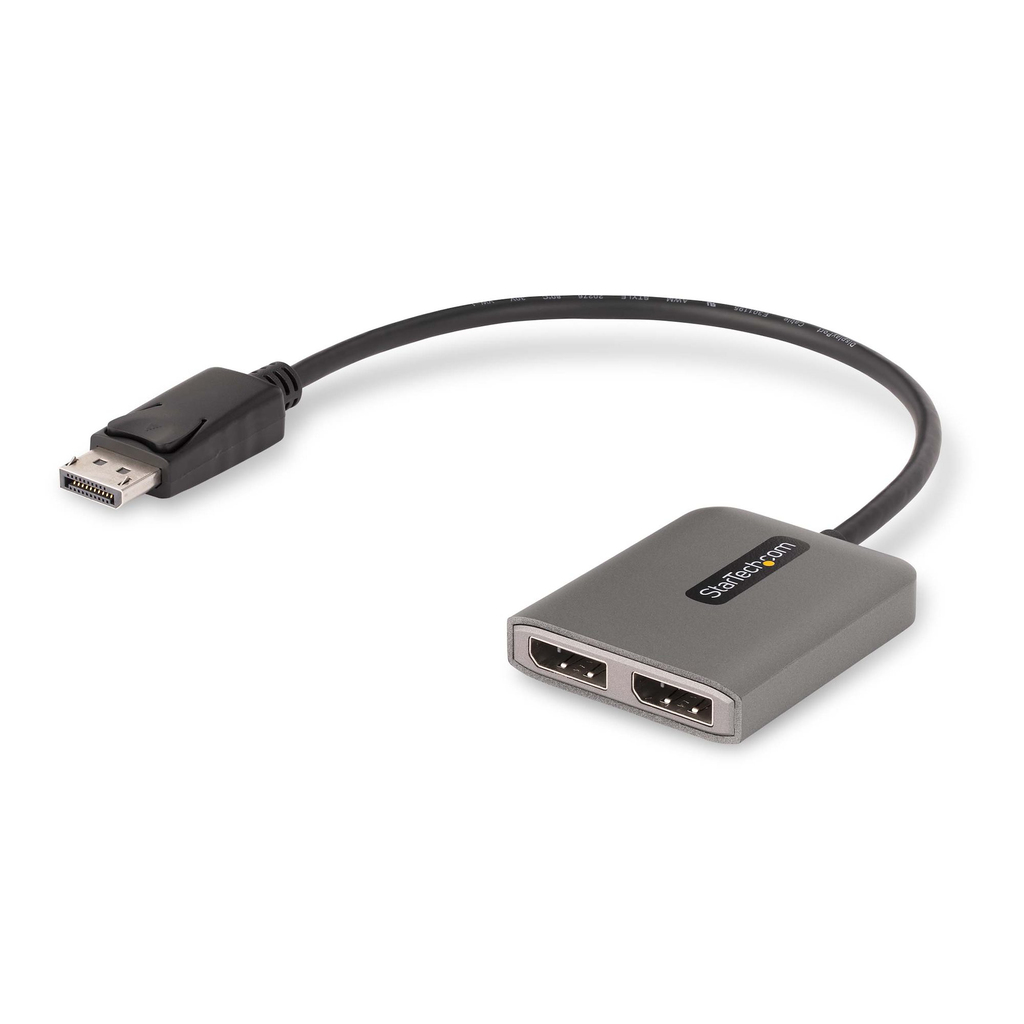

This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution Output 1
Maximum Resolution Output 2
Example Host Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Dedicated AMD & Nvidia GPU’s that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10 th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Dedicated AMD and Nvidia GPU’s that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8 th – 10th Gen Processors & Later
*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup

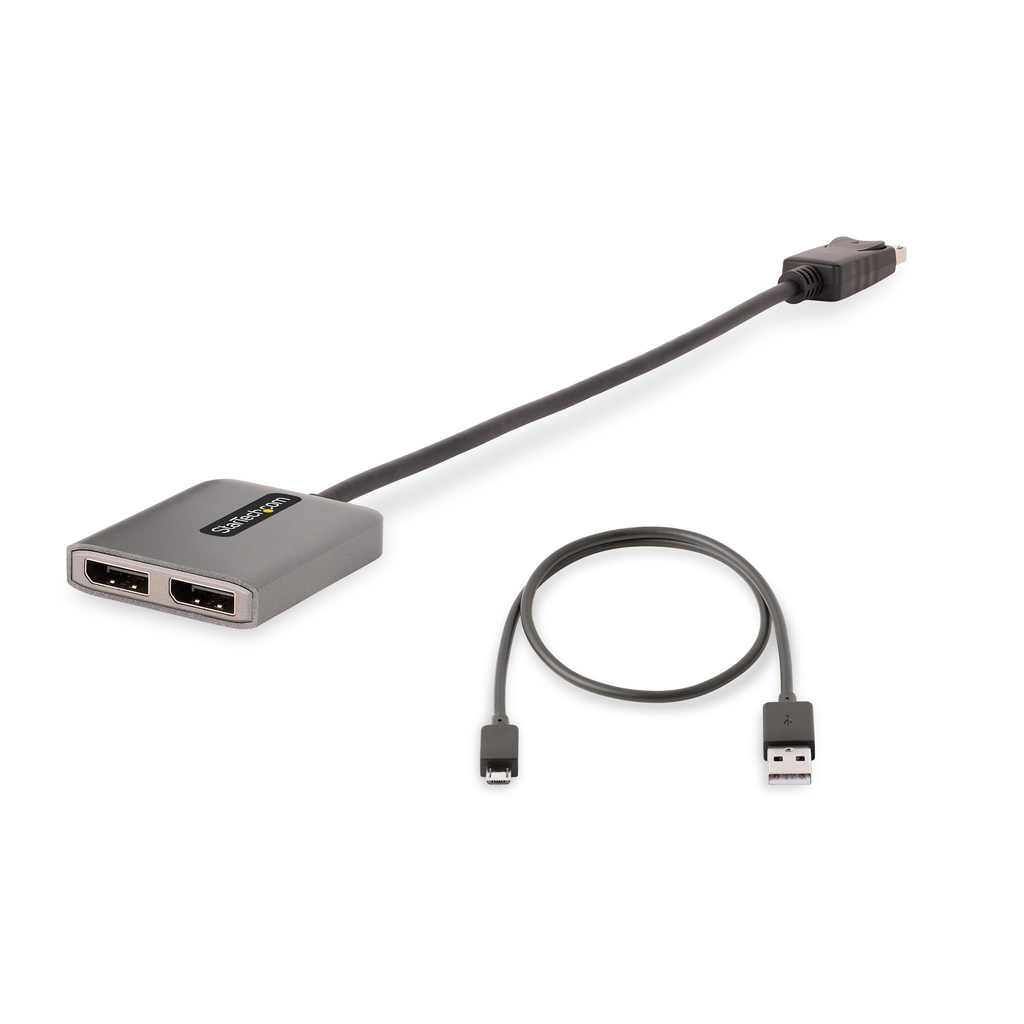

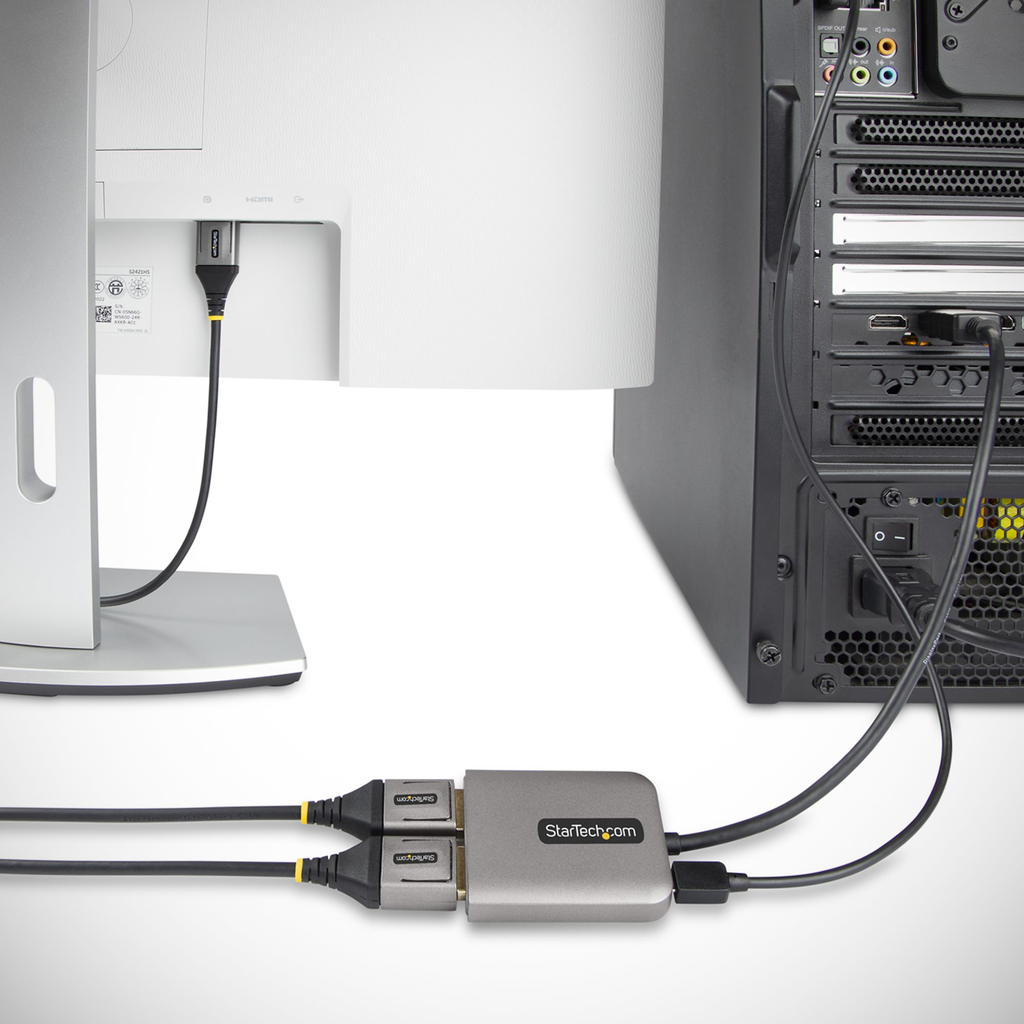

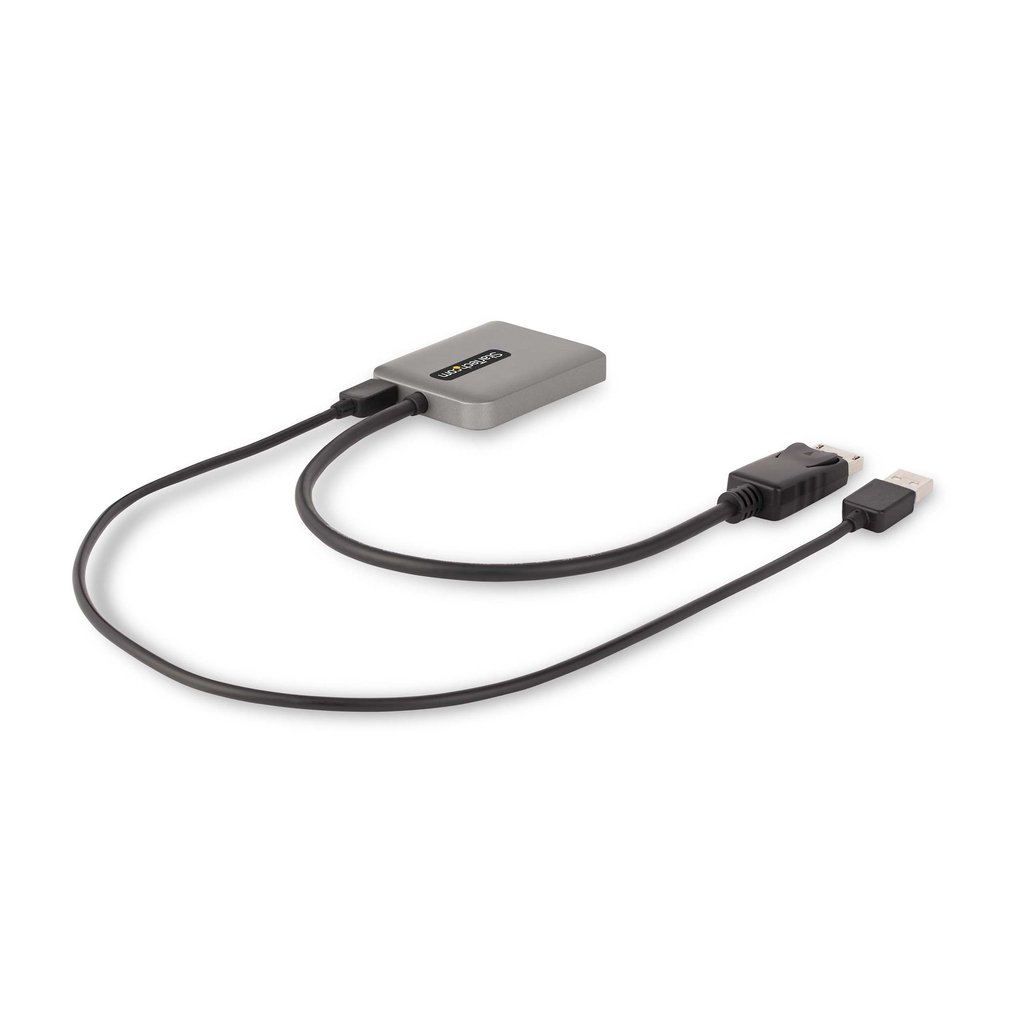

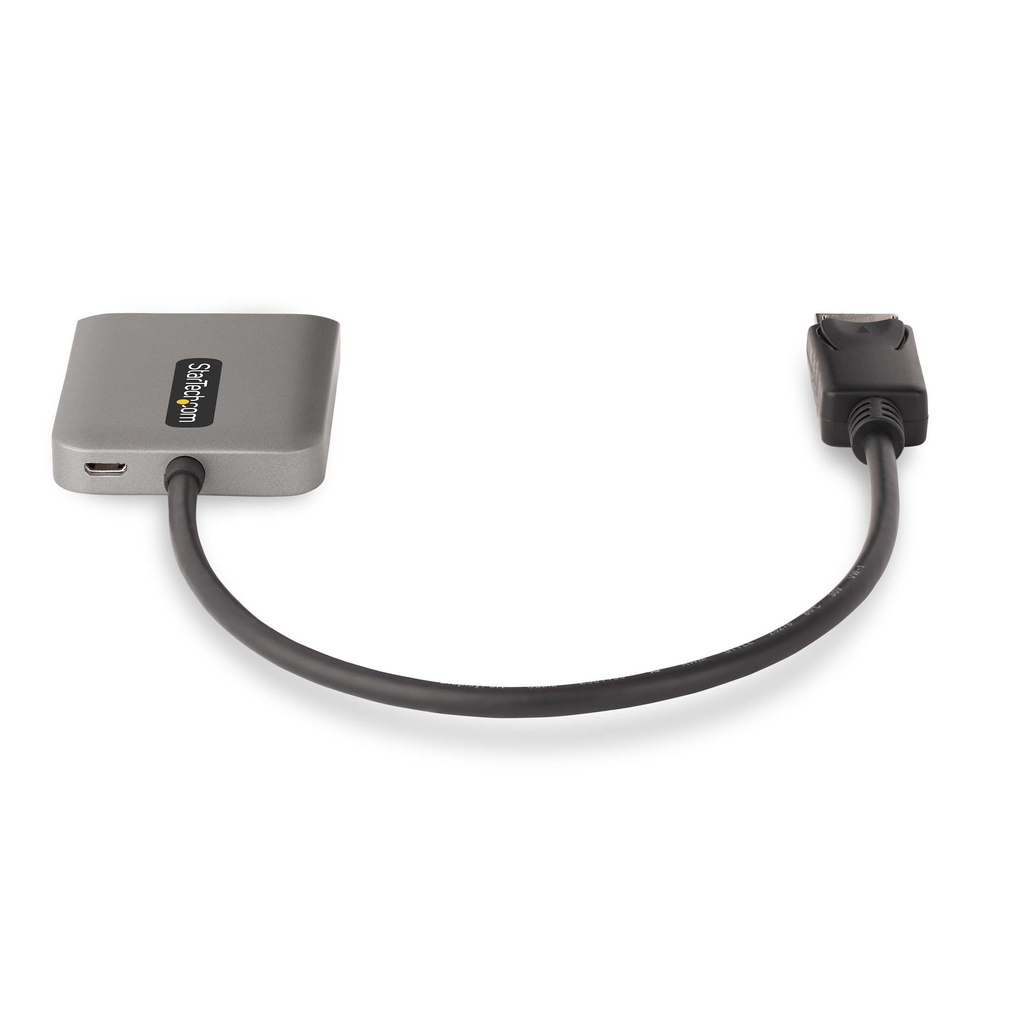

This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.12 lbs |
|---|---|
| Cable length | 0.3 m |
| Connector 1 | DisplayPort |
| Connector 2 | 2 x DVI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Grey |
| Compliance certificates | CE, RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Weight | 53 g |
| Power source | USB |
| HDCP | Yes |
| HDCP version | 2.2 |
| Refresh rate at maximum resolution | 60 Hz |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 110 g |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Products per master (outer) case | 70 pc(s) |
| Chipset | Synaptic VMM5220 |
| Width | 105 mm |
| Depth | 43 mm |
| Height | 14 mm |
| Sustainability compliance | Yes |
| Packaging content | Micro-USB Power Cable |
