StarTech.com 2 Port PCI Express / PCI-e Parallel Adapter Card – IEEE 1284 with Low Profile Bracket
StarTech.com 2 Port PCI Express / PCI-e Parallel Adapter Card – IEEE 1284 with LP Bracket – 2x DB25 (F) PCIE Parallel Port Card
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 2 high-speed IEEE 1284 parallel ports (EPP/ECP/SPP/PS2) to your desktop computer through a PCI Express expansion slot

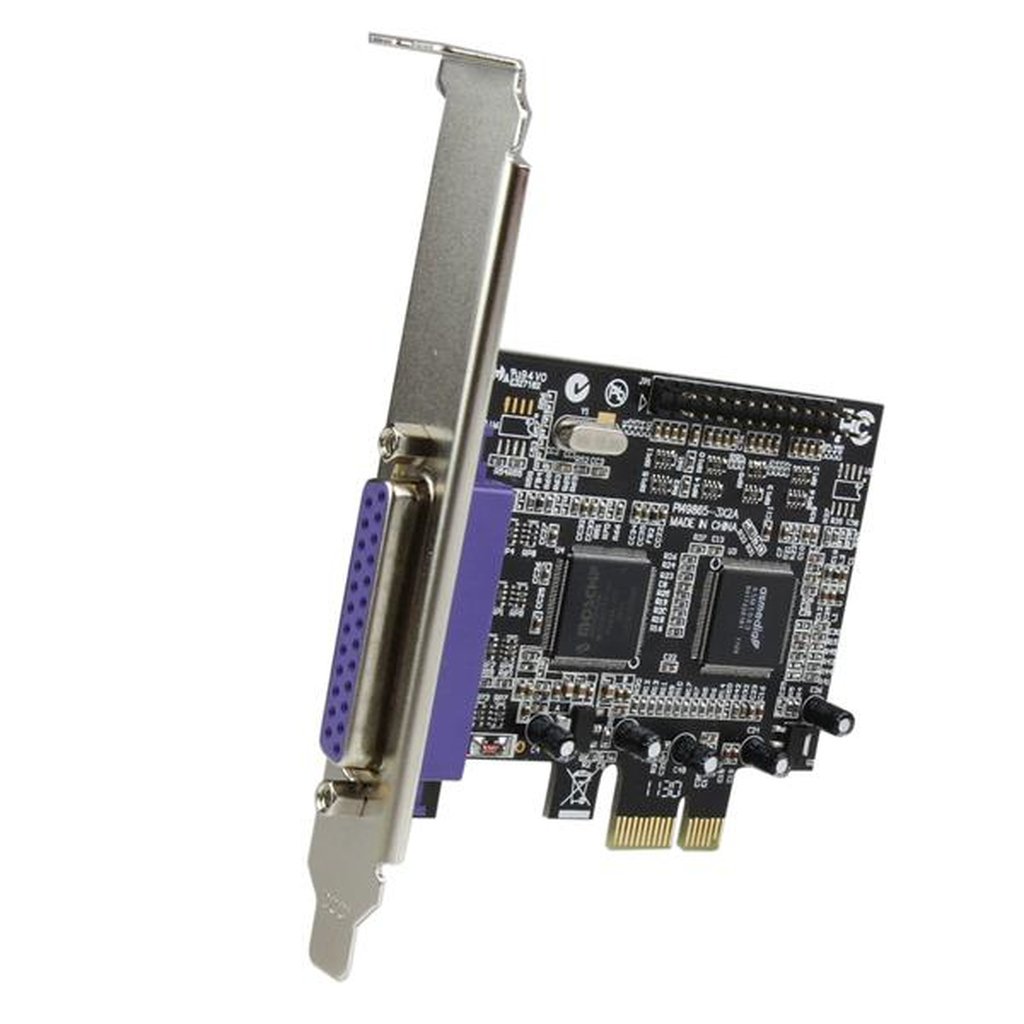

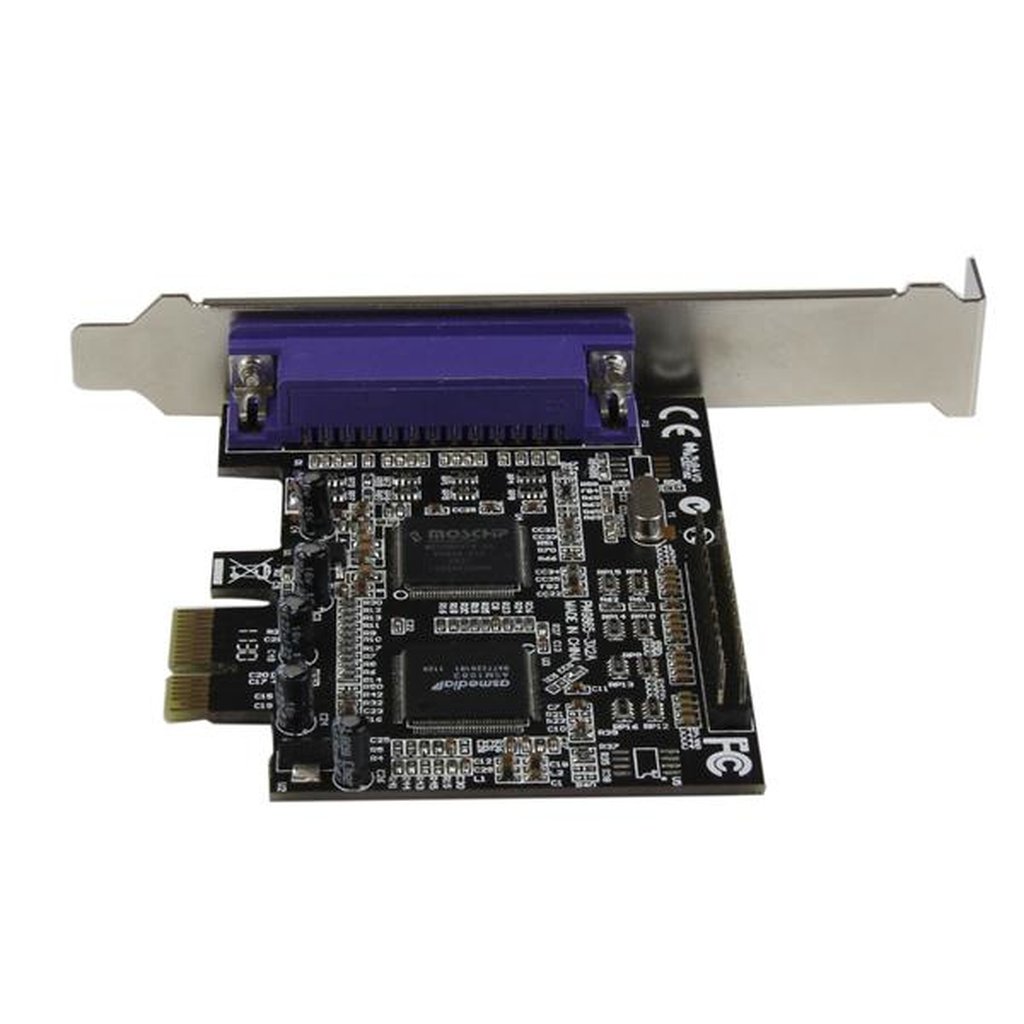

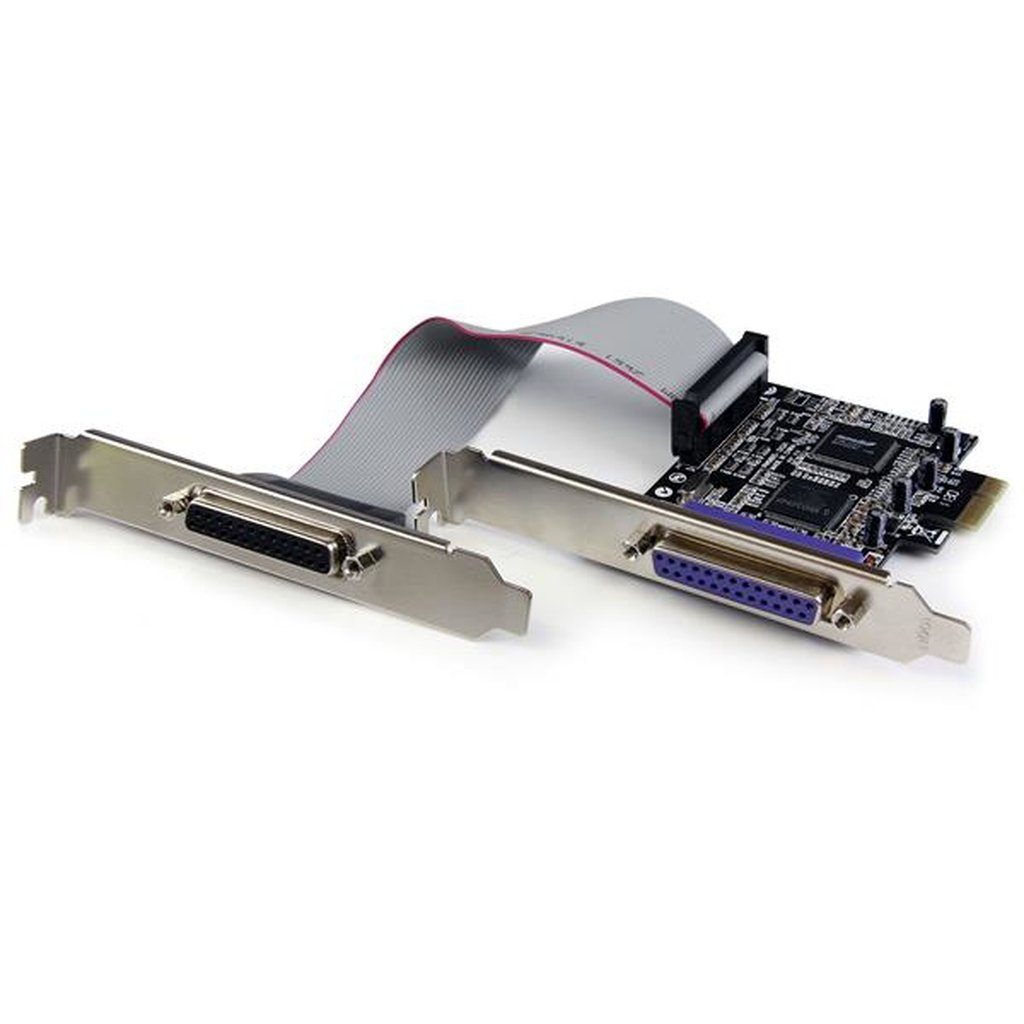

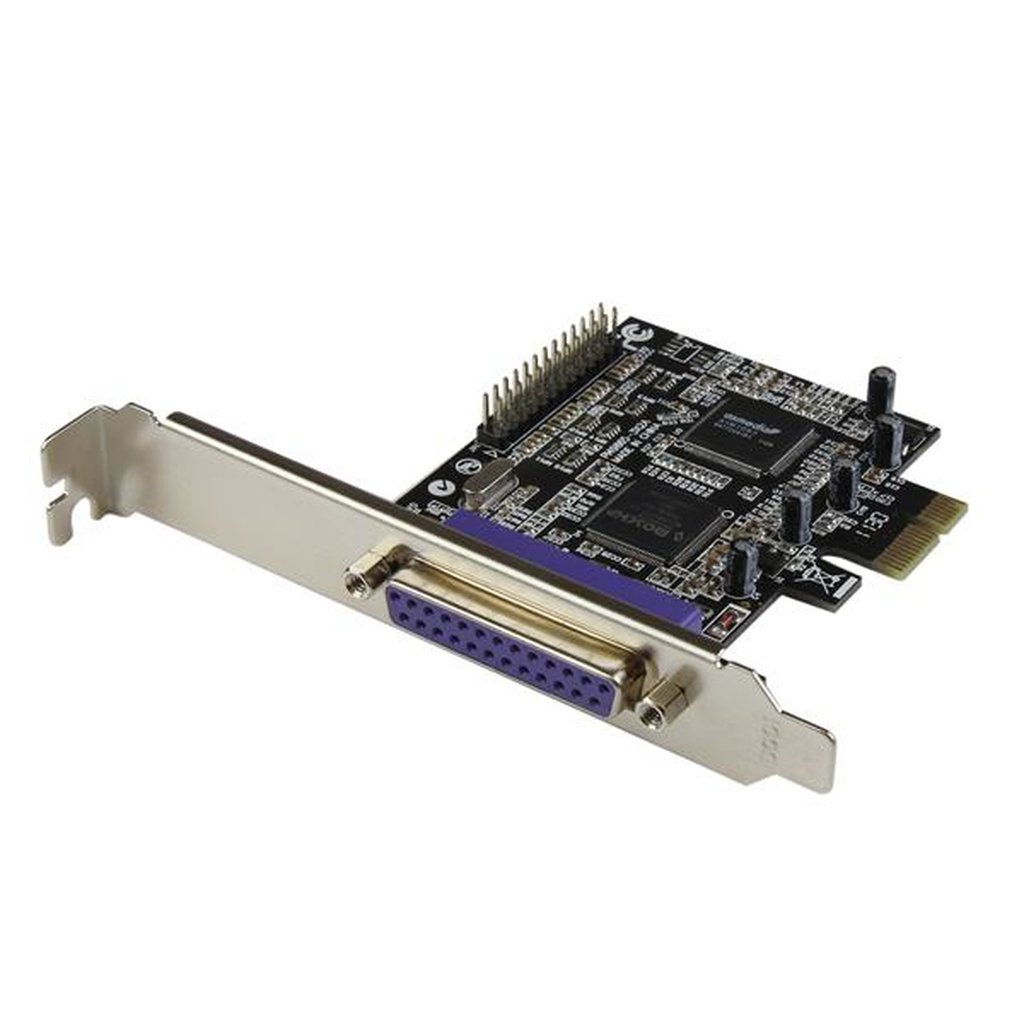

The PEX2PECP2 2 Port PCI Express Parallel Adapter Card – EPP/ECP/SPP/PS2 parallel card adds two IEEE 1284 parallel ports to your PC, with support for parallel data communication at speeds of up to 1.5 Mbps.
This high performance 2 Port PCI Express parallel card adds 2 DB25 parallel ports, perfect for connecting printers, scanners, memory card readers, bar code scanners and more. With the added convenience of plug-and-play capability, installing the parallel adapter card is hassle-free. The PCIe Parallel card also includes both standard and half-height/low profile mounting brackets for compatibility with almost any system form factor.
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage

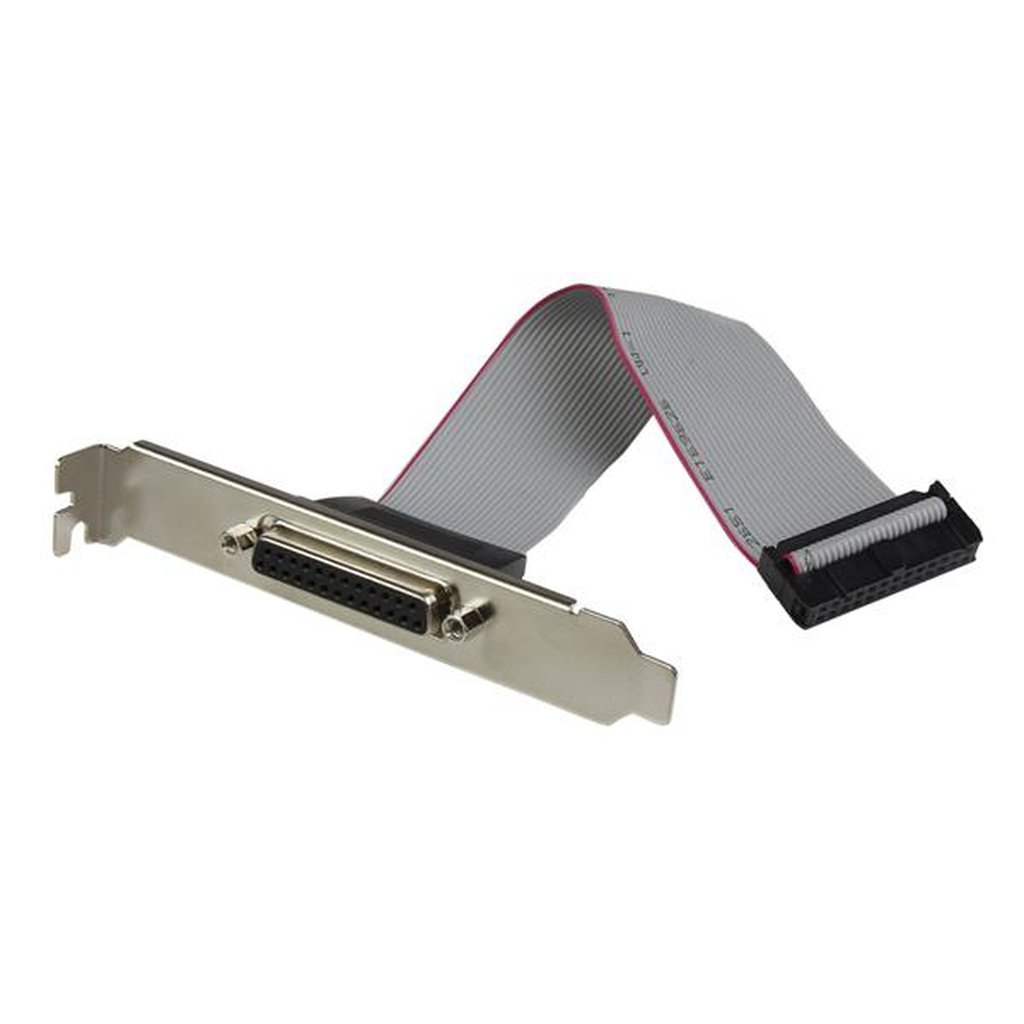

– Standard and low profile bracket included allowing install into almost any system
– Use existing parallel devices with PCI Express systems saving the cost and hassle of upgrading peripherals to work with newer systems
– Supports SPP, EPP, ECP and PS/2 communication modes for maximum compatibility with your parallel peripherals
Additional information
| Weight | 0.19 lbs |
|---|---|
| Product colour | Multicolour |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Weight | 51 g |
| Chipset | ASIX/MosChip MCS9865 |
| Host interface | PCIe |
| Output interface | Parallel |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 P |
| Compliance certificates | RoHS |
| Depth | 121 mm |
| Internal | Yes |
| Width | 19 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
| Operating relative humidity (H-H) | 5 – 85% |
| Connectivity technology | Wired |
| Package width | 144 mm |
| Package depth | 169 mm |
| Package height | 30 mm |
| Package weight | 188 g |
| User guide | Yes |
| Data transfer rate | 1.5 Mbit/s |
| Compatible operating systems | Windows 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows Sever 2008 R2, 2003 (32/64), Linux |
| Parallel ports quantity | 2 |
| Mac compatibility | No |
| CardBus PCMCIA slot type | No |
