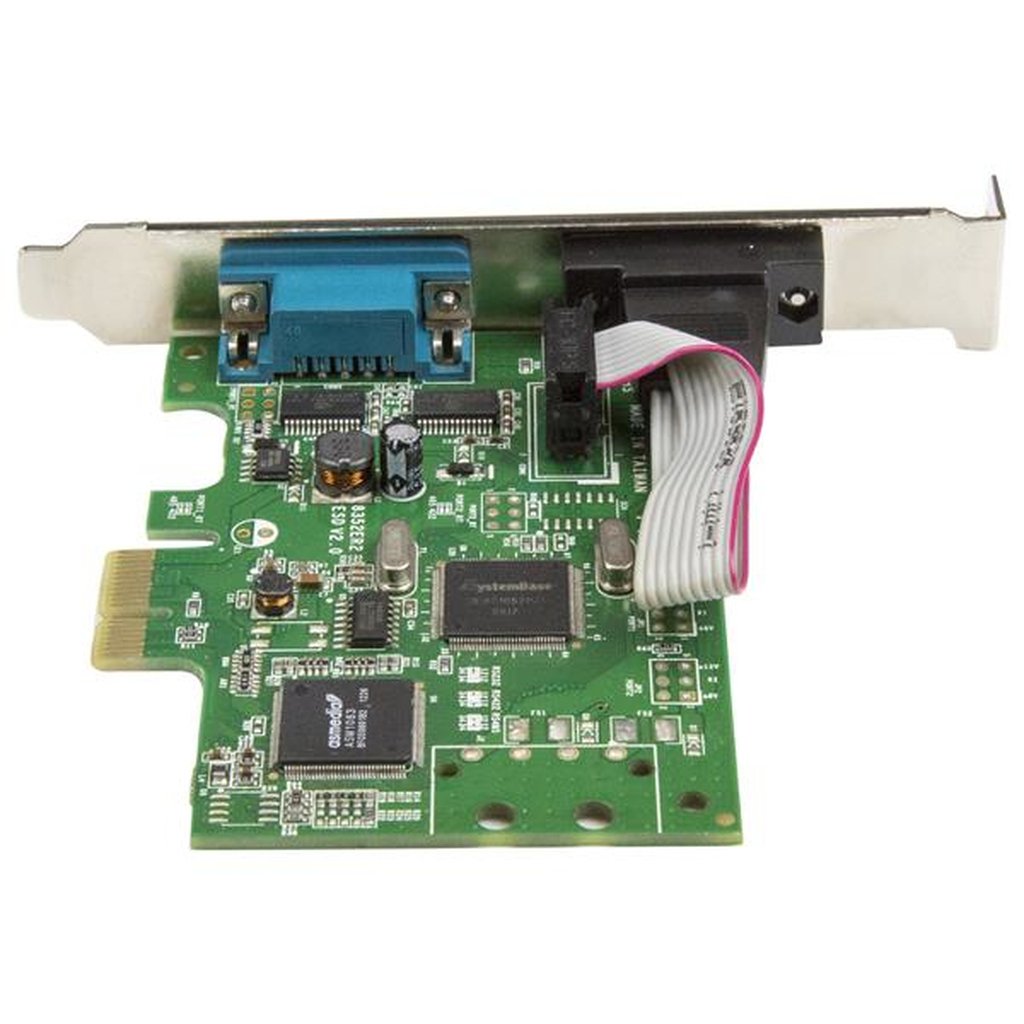

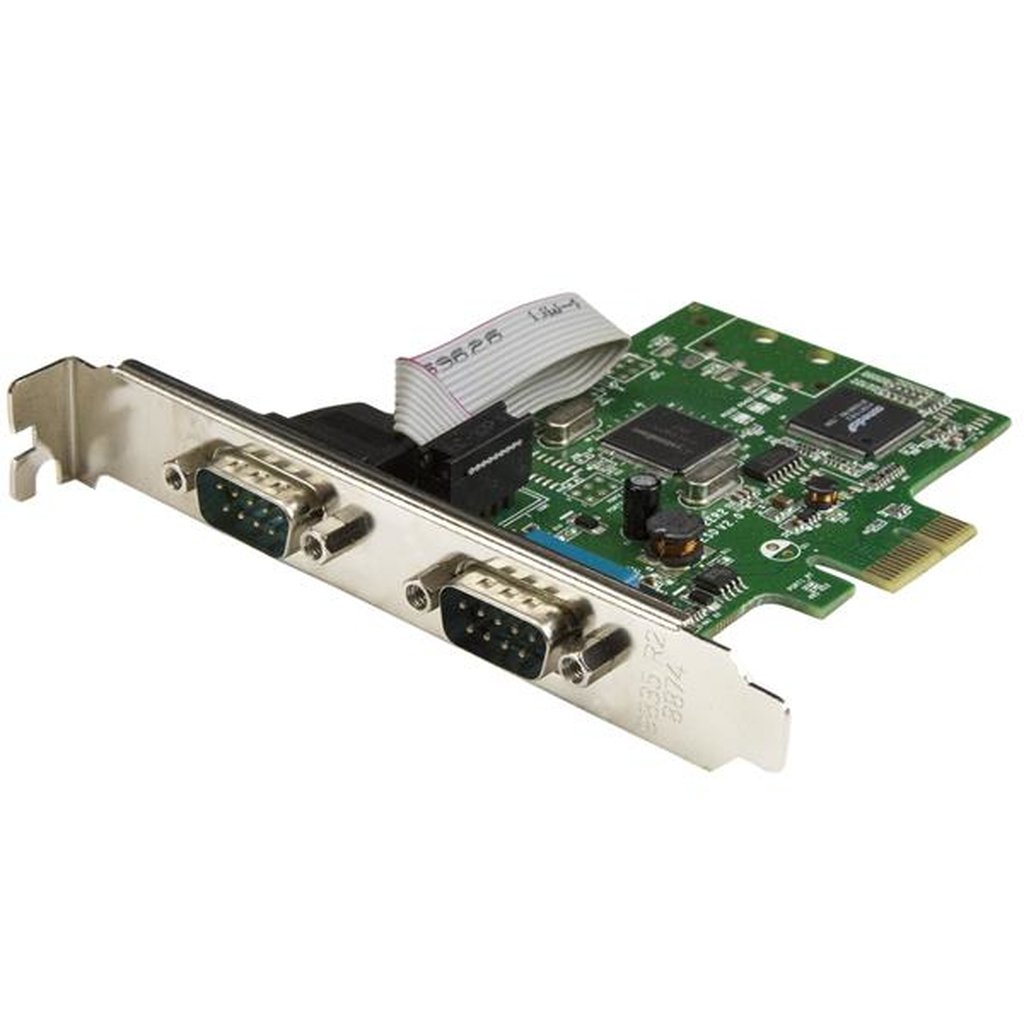

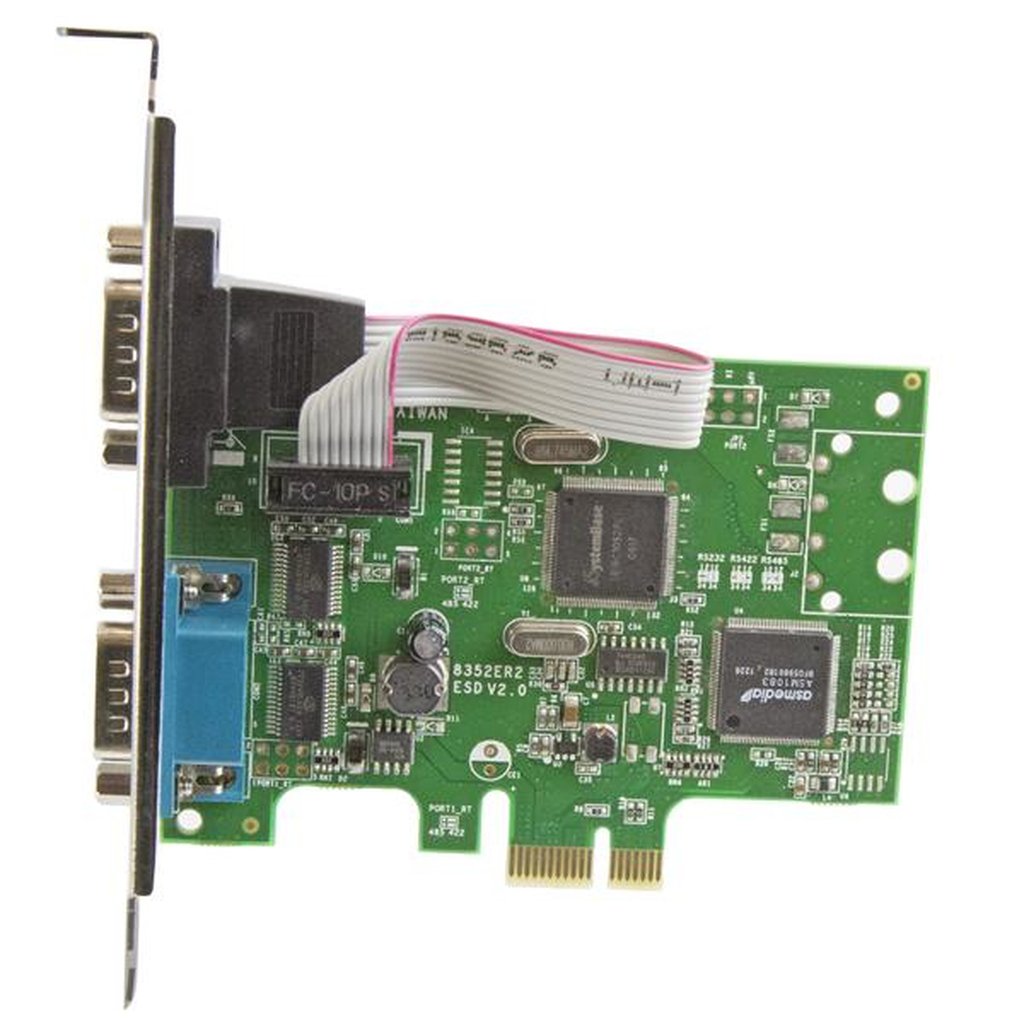

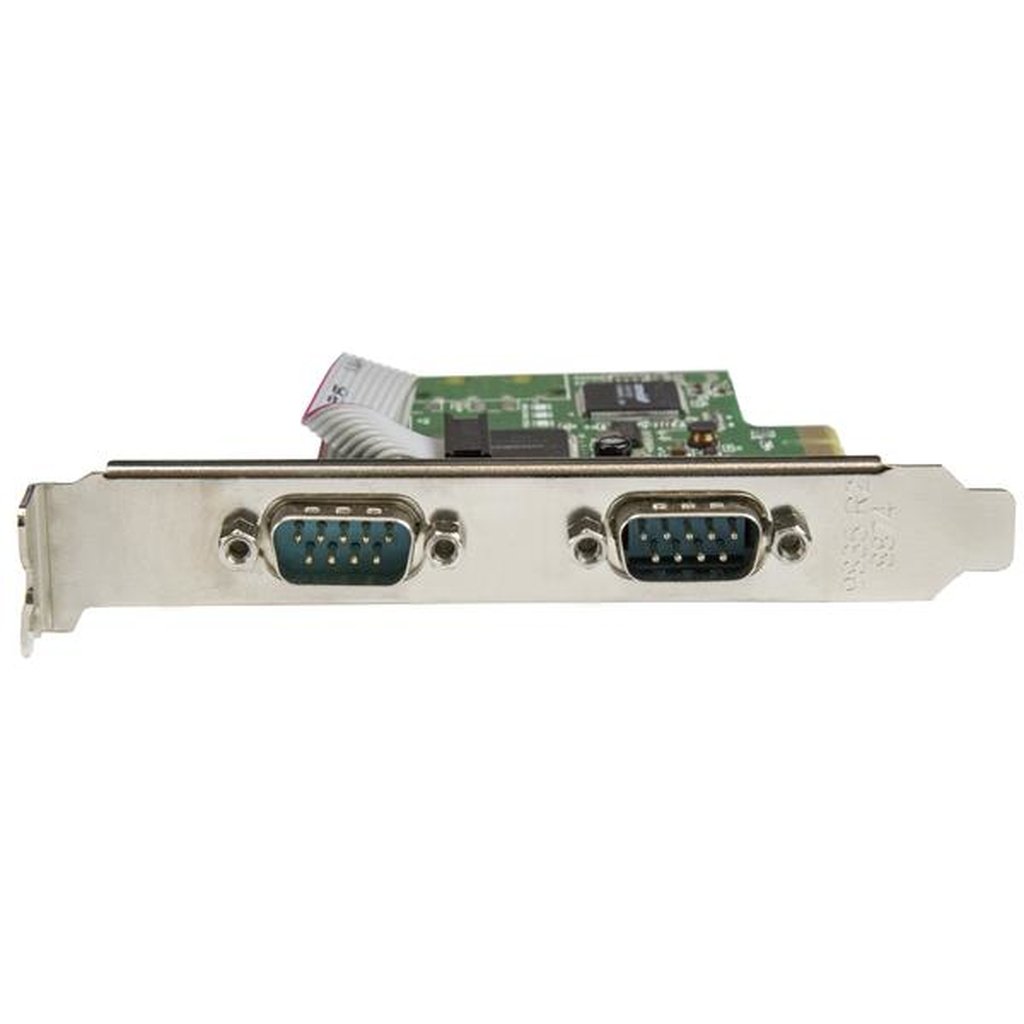

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART – RS232
StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART – RS232 Low Profile Serial Card – PCI Serial Card (PEX2S1050)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.
Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don’t have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it’s compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.
High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Easy installation
The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.
The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| Operating temperature (T-T) | -10 – 80 °C |
| Storage temperature (T-T) | -20 – 100 °C |
| Weight | 61 g |
| Chipset | SystemBase – SB16C1052PCI |
| Host interface | PCIe |
| Output interface | Serial |
| Certification | CE, FCC, Microsoft WHQL |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterp |
| Compliance certificates | RoHS |
| Depth | 103 mm |
| Expansion card form factor | Full-height / Low-profile |
| Internal | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 120 mm |
| Height | 20 mm |
| Harmonized System (HS) code | 84733020 |
| Mounting brackets included | Yes |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 5 – 85% |

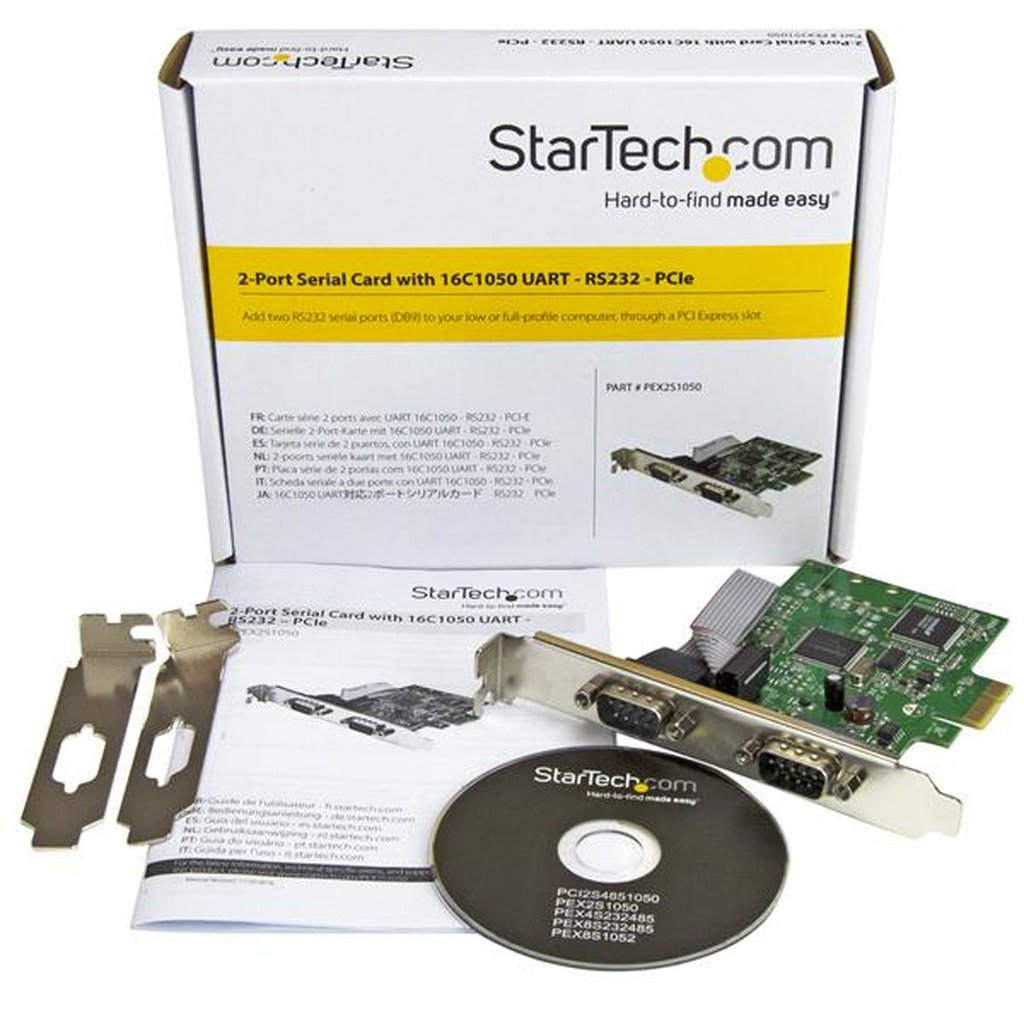

| Quick installation guide | Yes |
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 149 g |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 356 mm |
| Master (outer) case length | 691 mm |
| Master (outer) case height | 319 mm |
| Serial ports quantity | 2 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 460.8 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Flow control support | Yes |
| Drivers included | Yes |
| Full duplex | Yes |
