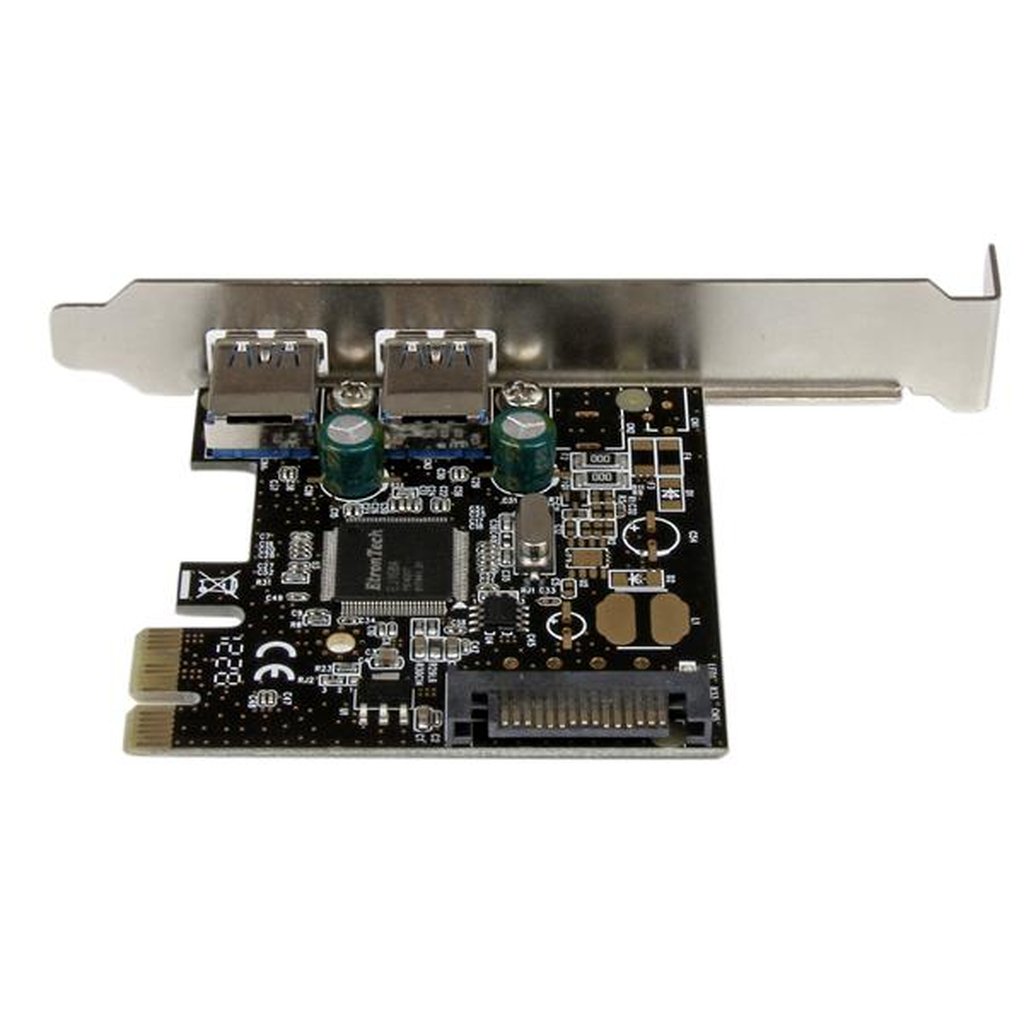

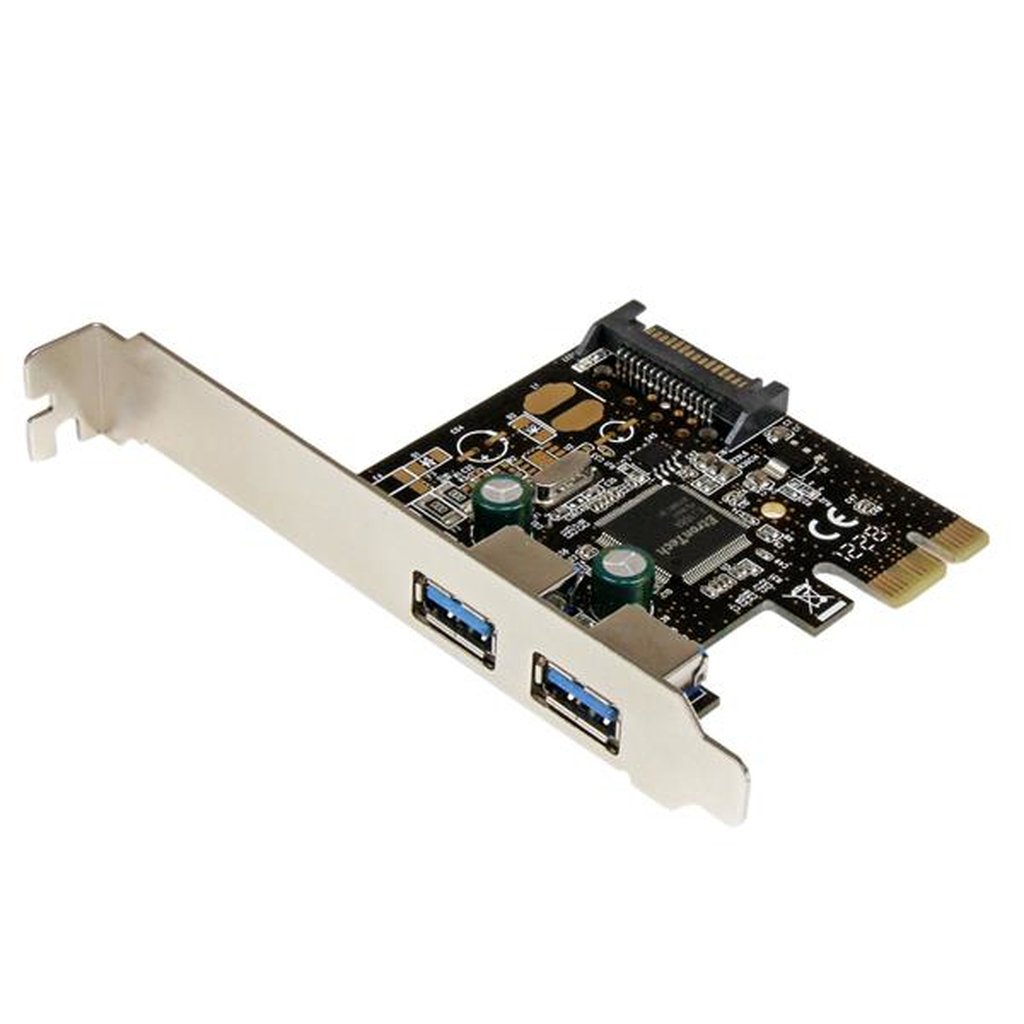

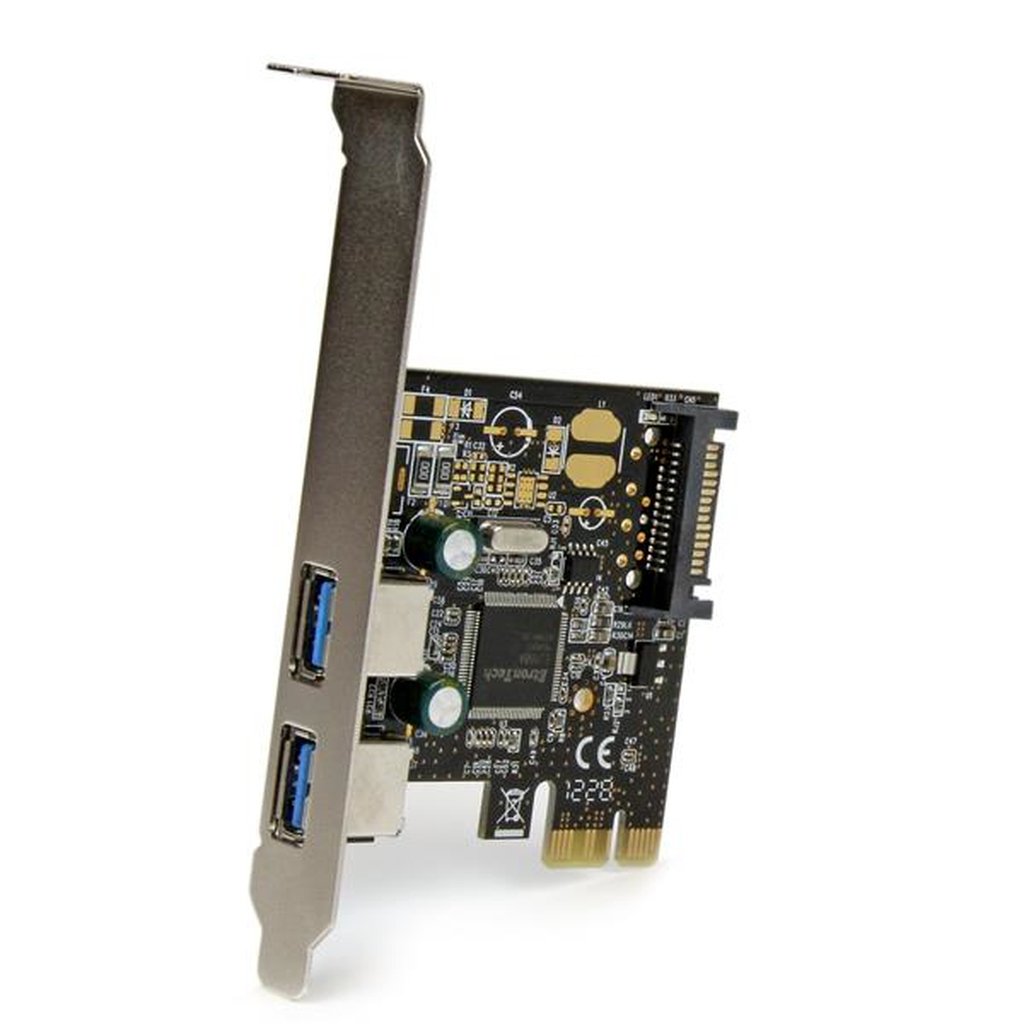

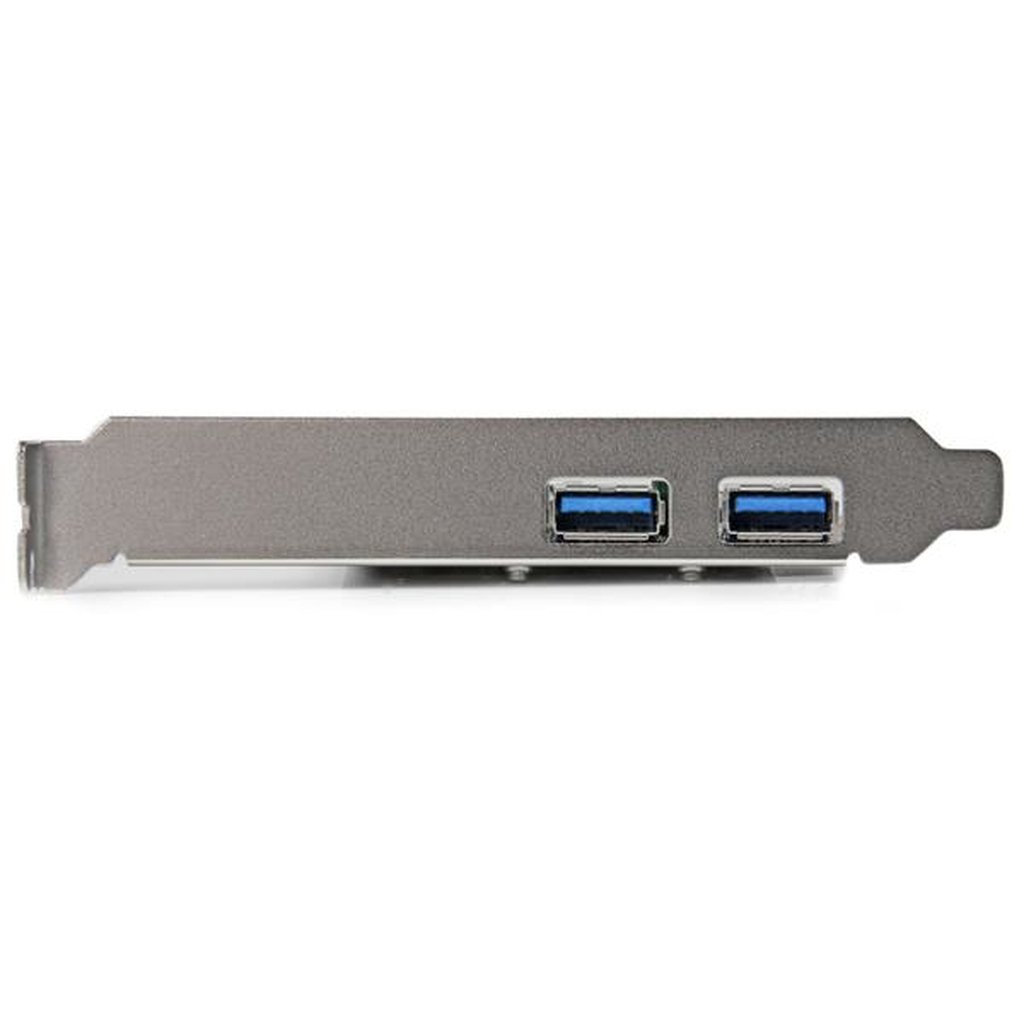

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power – Dual Port PCI Express USB 3 Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add two USB 3.0 ports to your desktop computer through a PCI Express slot
The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
– Fits into full or low profile/small form factor (SFF) systems, with a dual profile design
Additional information
| Weight | 0.13 lbs |
|---|---|
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | 0 – 80 °C |
| Weight | 60 g |
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Data transfer rate (max) | 5 Gbit/s |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Window |
| Compliance certificates | RoHS |
| Depth | 80 mm |
| Internal | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2 |
| Width | 21 mm |
| Height | 120 mm |
| Harmonized System (HS) code | 84733020 |
| Operating relative humidity (H-H) | 10 – 90% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Package width | 145 mm |
| Package depth | 170 mm |
| Package height | 32 mm |
| Package weight | 130 g |
| User guide | Yes |
