StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART – PCIe 2x Serial 1x Parallel RS232 Adapter Card (PEX2S5531P)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot

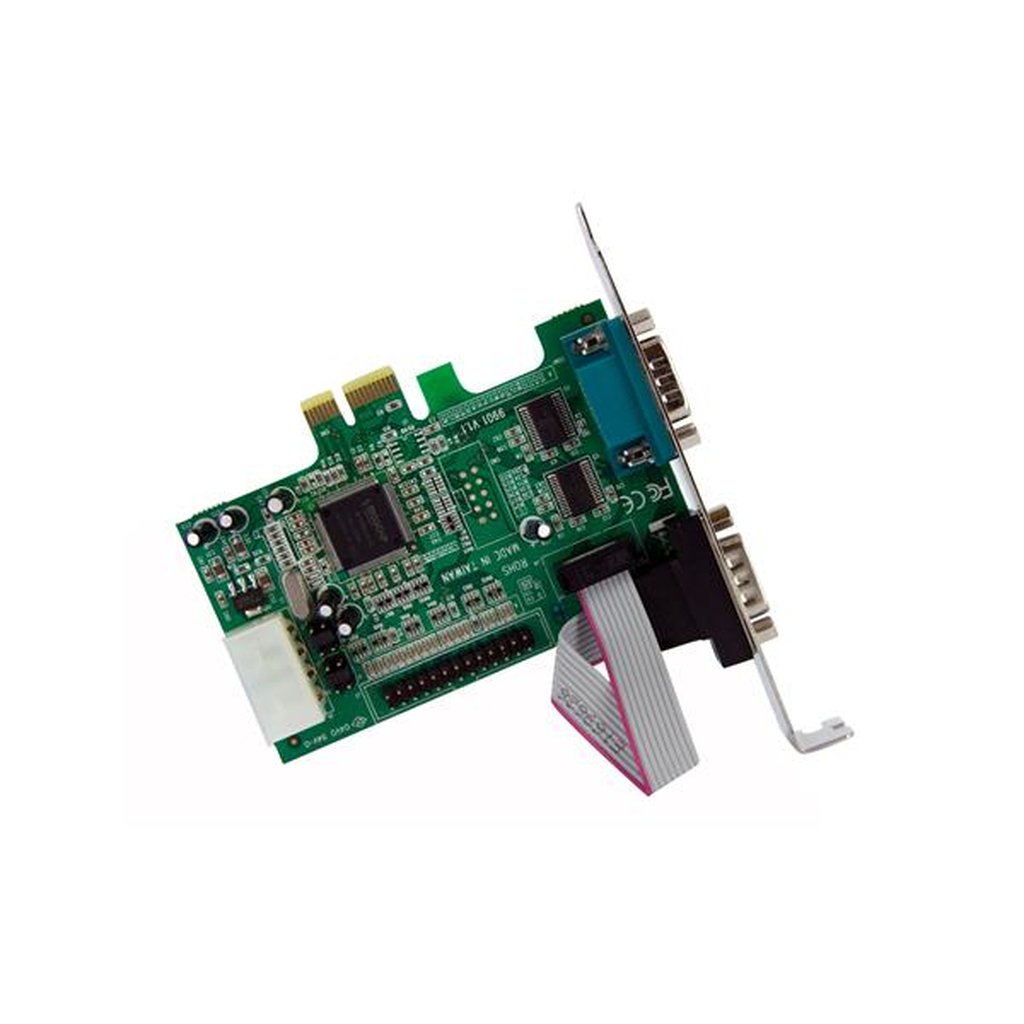

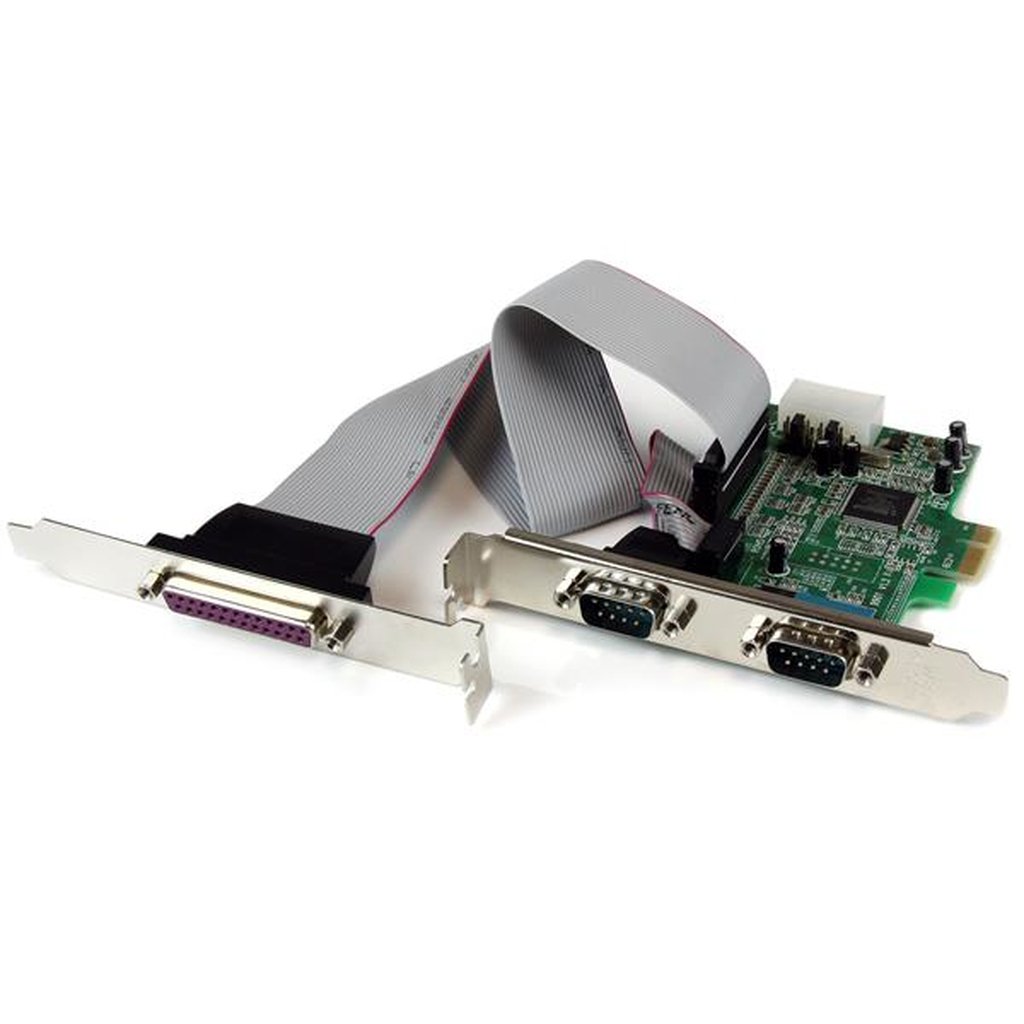

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.16 lbs |
|---|---|
| Product colour | Green, Stainless steel |
| Operating temperature (T-T) | -10 – 80 °C |
| Storage temperature (T-T) | -20 – 100 °C |
| Weight | 112 g |
| Chipset | ASIX – MCS9901CV-CC |
| Host interface | PCIe |
| Output interface | Serial |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 P |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Compliance certificates | CE, RoHS |
| Depth | 105 mm |
| Expansion card standard | PCIe 1.0a |
| Internal | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 120 mm |
| Height | 20 mm |
| Harmonized System (HS) code | 84733020 |
| Serial interface type | RS-232 |
| Operating relative humidity (H-H) | 5 – 85% |
| Package width | 145 mm |
| Package depth | 174 mm |
| Package height | 31 mm |
| Package weight | 208 g |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 679 mm |
| Master (outer) case height | 320 mm |
| Serial ports quantity | 2 |
| FIFO (First In, First Out) | 128 B |
| Baud rate | 460.8 Kbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Drivers included | Yes |
| Manual | Yes |
| Parallel ports quantity | 1 |
| Supported protocols | EPP, ECP, SPP, PS/2 |
| Other operating systems supported | Windows Embedded POSReady 2009, Windows Embedded Standard 2009 |
