StarTech.com 3ft (1m) Panel Mount DisplayPort Cable – 4K x 2K – DisplayPort 1.2 Extension Cable Male to Female – DP Video Exten
StarTech.com 3ft (1m) Panel Mount DisplayPort Cable – 4K x 2K – DisplayPort 1.2 Extension Cable Male to Female – DP Video Extender Cord with Panel Mount DP Connector – DP Monitor Cable (DPPNLFM3PW)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Allows a DisplayPort connection to be mounted on a secure easily accessible panel

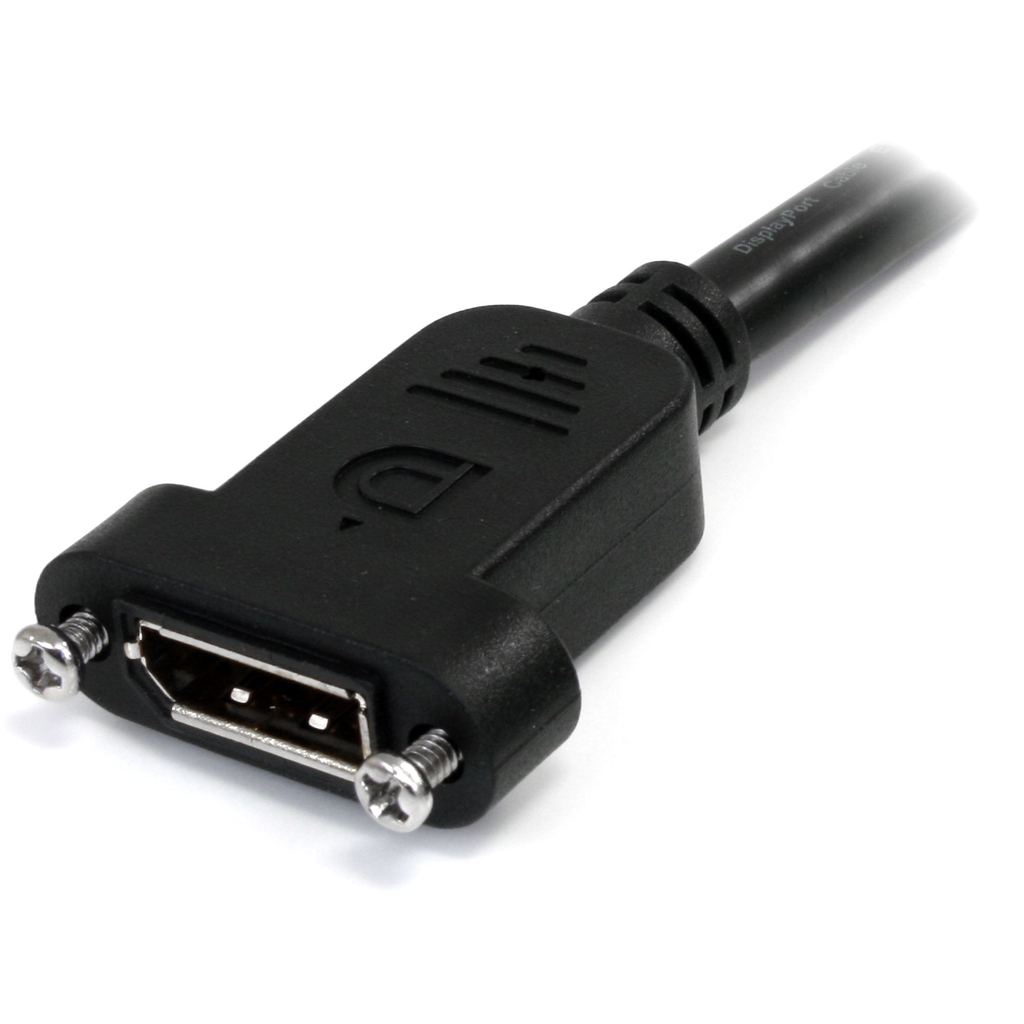

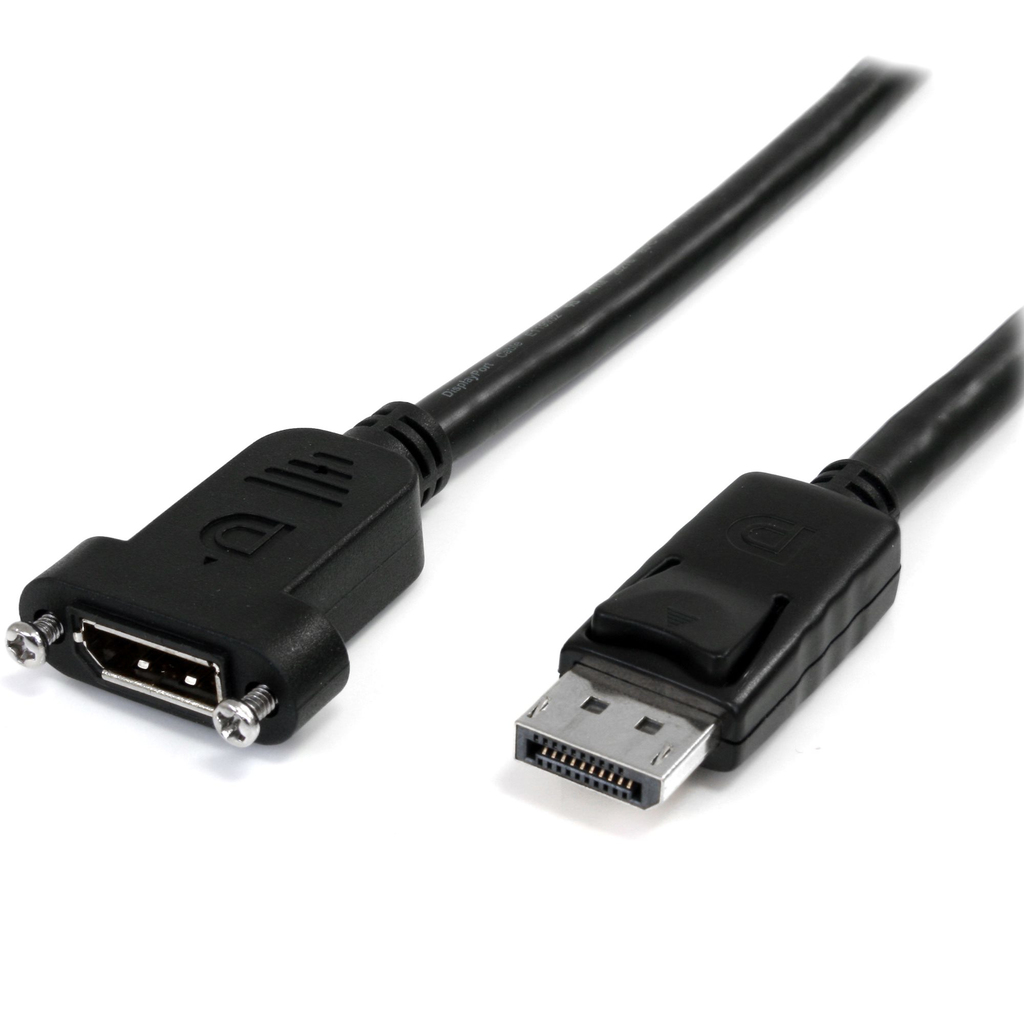

The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.
The DPPNLFM3PW is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
Additional information
| Weight | 0.1 lbs |
|---|---|
| Cable length | 0.9 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Weight | 83 g |
| Harmonized System (HS) code | 84733080 |
| Products per master (outer) case | 120 pc(s) |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Maximum refresh rate | 60 Hz |
| Latching connectors | Yes |
| AWG wire size | 28 |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 20 |
| Operating temperature (T-T) | -10 – 40 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 0 – 85% |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 25 mm |
| Package weight | 88 g |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 250 mm |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| Compliance certificates | CE, RoHS |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
