Description

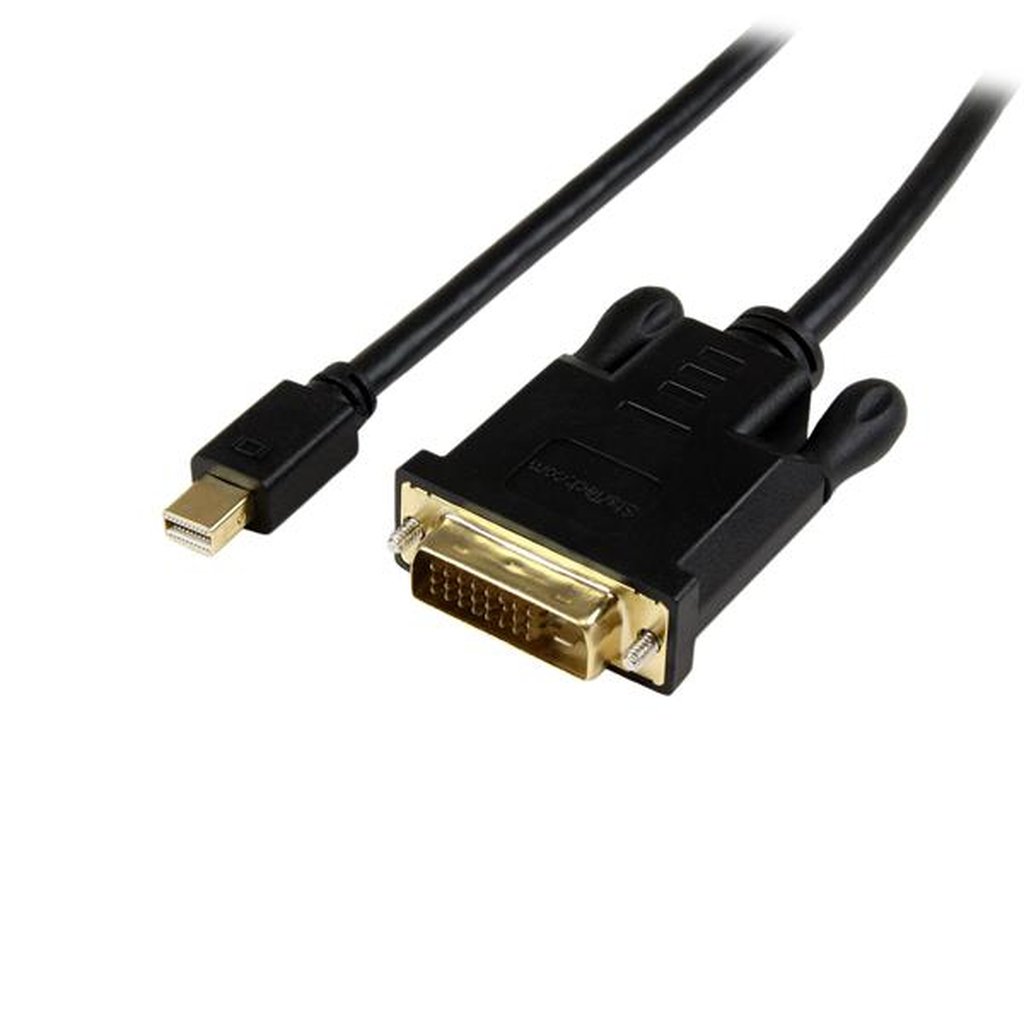

Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter
The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
Additional information
| Weight | 0.09 lbs |
|---|---|
| Cable length | 0.9 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Plug and Play | Yes |
| Compliance certificates | RoHS, CE |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 40 – 85% |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Supported video modes | 1080p |
| Weight | 82 g |
| Converter type | Active |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 82.2 g |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 180 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Chipset | Parade – PS171 |
| Width | 40 mm |
| Depth | 920 mm |
| Height | 15 mm |
| Dual Link DVI | No |
