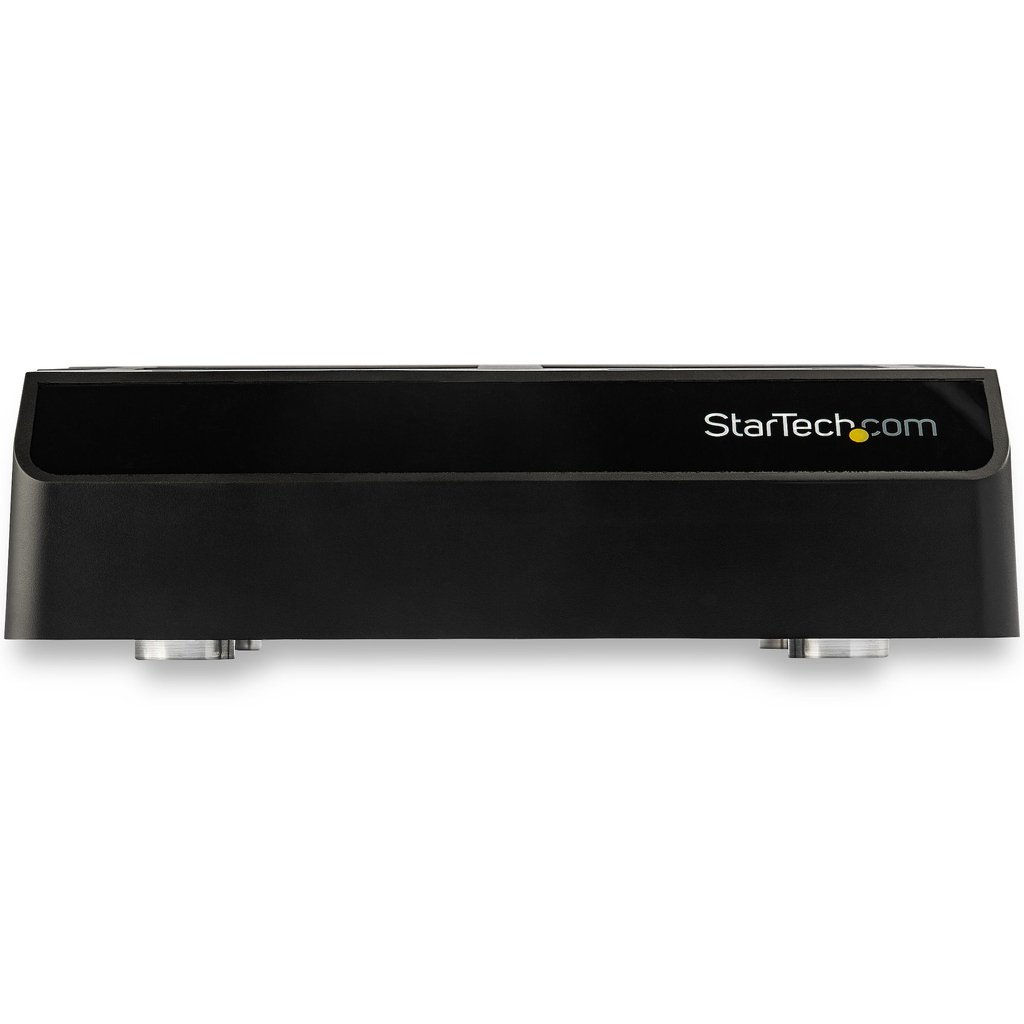

StarTech.com 4-Bay USB 3.1 to SATA Hard Drive Docking Station, 10Gbps USB Hard Drive Dock, External 2.5/3.5″ SSD/HDD, SATA I/II
StarTech.com 4-Bay USB 3.1 to SATA Hard Drive Docking Station, 10Gbps USB Hard Drive Dock, External 2.5/3.5″ SATA III SSD/HDD Docking Station, Hot-Swap, Top-Loading (SDOCK4U313)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.
Save time accessing and managing your data
When you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.
The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.
Fast data transfers
With USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Convenient compatibility
The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.
The docking station also works with 2.5″ and 3.5″ IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:
IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter
M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter
The SDOCK4U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 2.42 lbs |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 4 |
| Maximum storage capacity | 10 TB |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 10 Gbit/s |
| Hot-swap | Yes |
| Plug and Play | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Number of connectivity cycles | 10000 |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Built-in fan | Yes |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| Bearing type | Sleeve bearing |
| Power consumption (standby) | 78 W |
| AC input voltage | 100 – 240 V |
| Input current | 2 A |
| Output voltage | 12 V |
| Output current | 6.5 A |
| Width | 171 mm |
| Depth | 291 mm |
| Height | 87 mm |
| Weight | 1 kg |
| Package width | 170 mm |
| Package depth | 340 mm |
| Package height | 210 mm |
| Package weight | 2.4 kg |
| AC adapter included | Yes |
| Cables included | USB, USB Type-C |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 5 – 35 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Noise level | 19.04 dB |
| Chipset | VIA Labs – VL820, VIA Labs – VL715 |
| Mean time between failures (MTBF) | 30000 h |
| Compliance certificates | CE, RoHS |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 354 mm |
| Master (outer) case length | 356 mm |
| Master (outer) case height | 470 mm |
| Products per master (outer) case | 4 pc(s) |
