StarTech.com 4 Port USB C Hub 10Gbps – Metal Industrial USB-C Hub – 2x USB-C & 2x USB-A – ESD Surge Protection – USB-C or USB-A
StarTech.com 4 Port USB C Hub 10Gbps – Metal Industrial USB-C Hub – 2x USB-C & 2x USB-A – ESD Surge Protection – USB-C or USB-A Host – Self-Powered Mountable USB 3.2 Gen 2 Type-C Hub (HB31C2A2CME)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

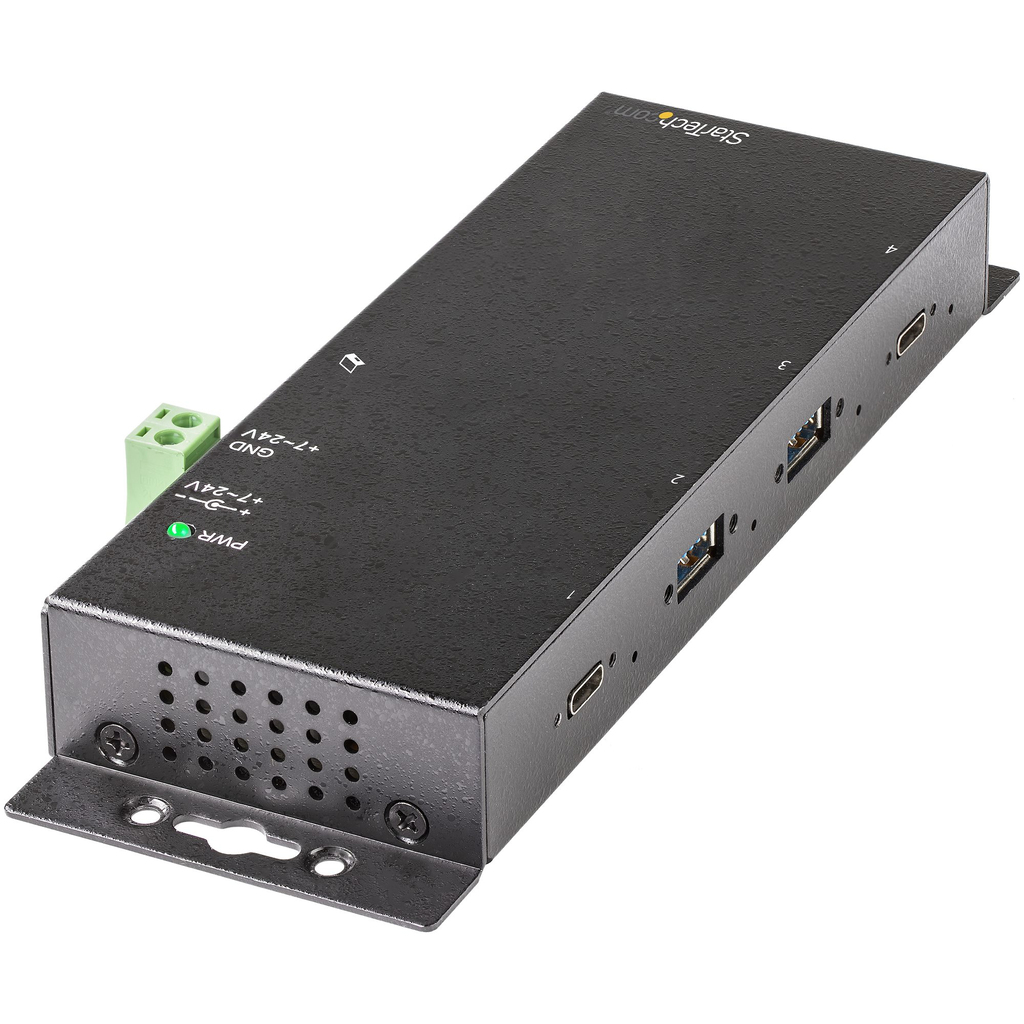

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

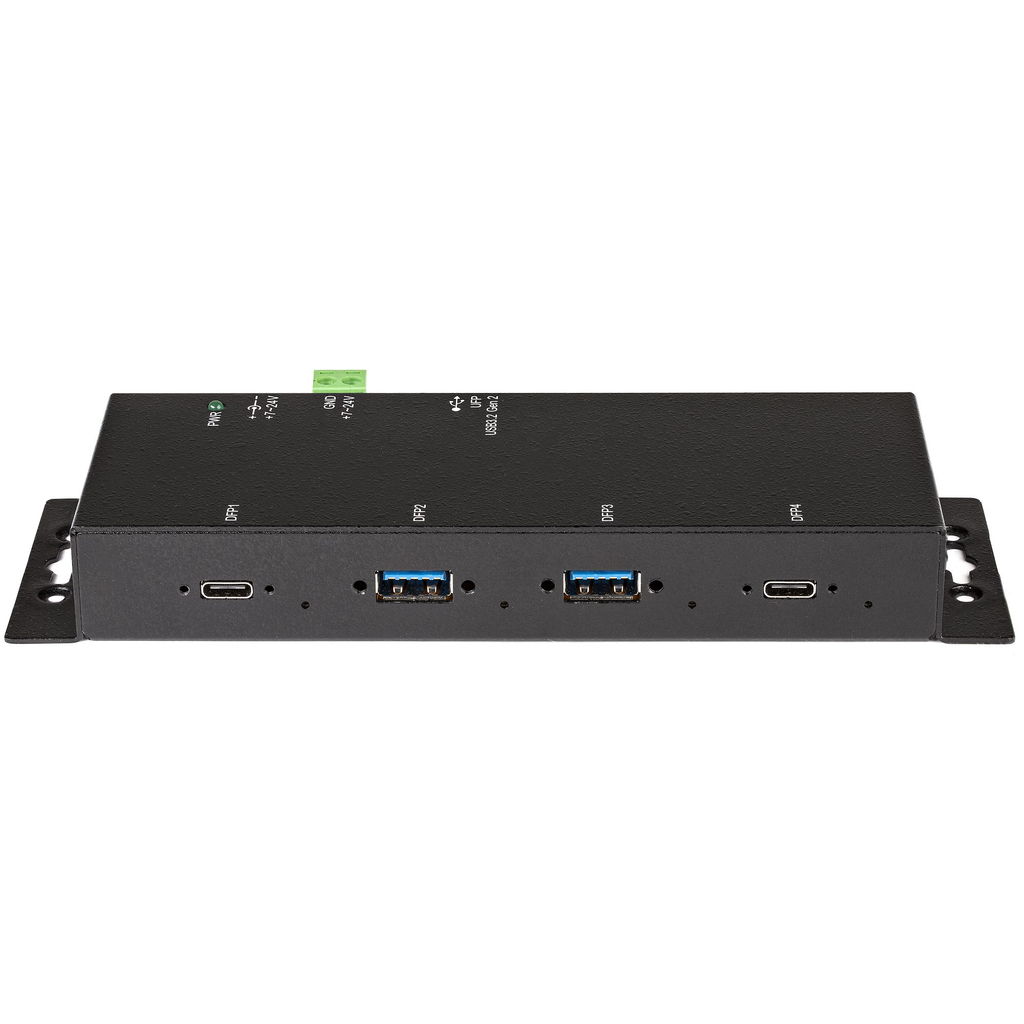

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features two USB-A and two USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for harsh, industrial environments.
Expands the Connectivity of Your Computer for Industrial Applications
With this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).
Powers and Charges Your Connected Devices

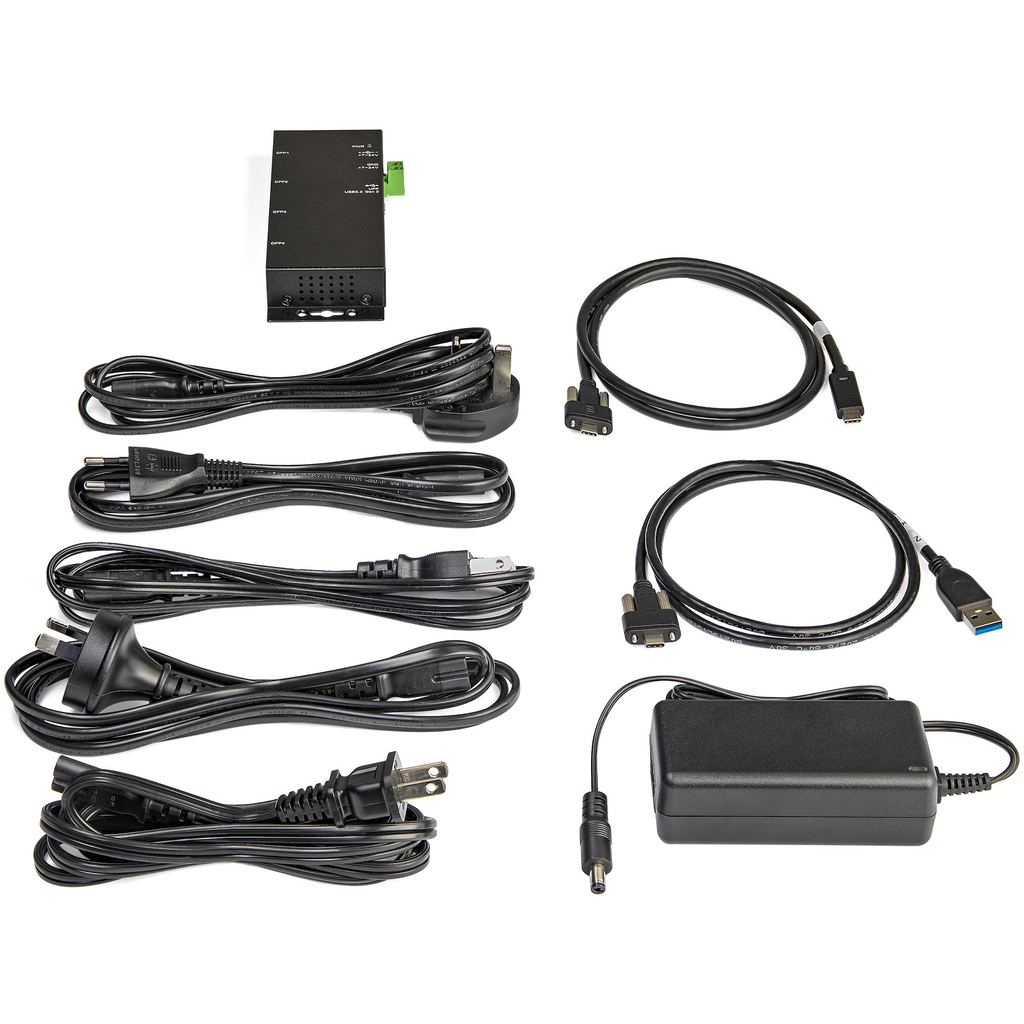

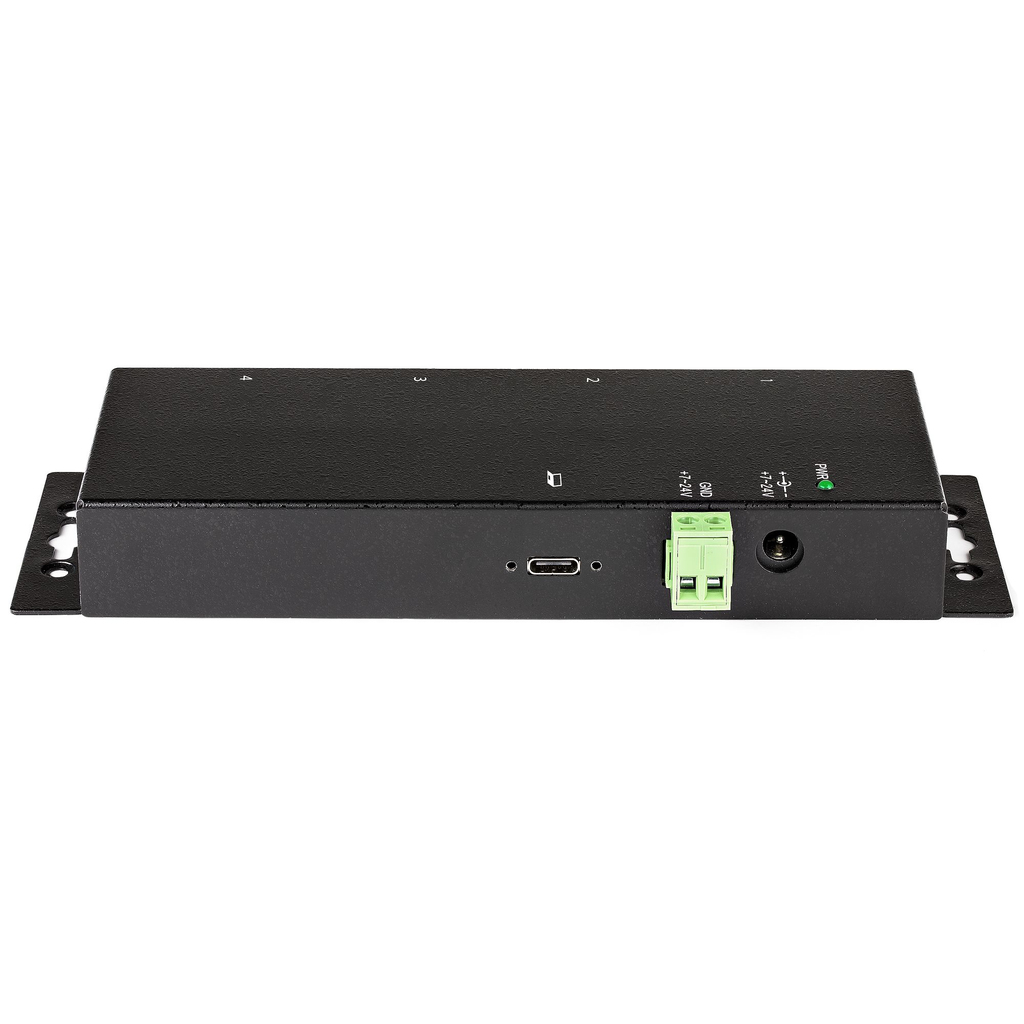

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
Ideal for Use in Industrial Environments

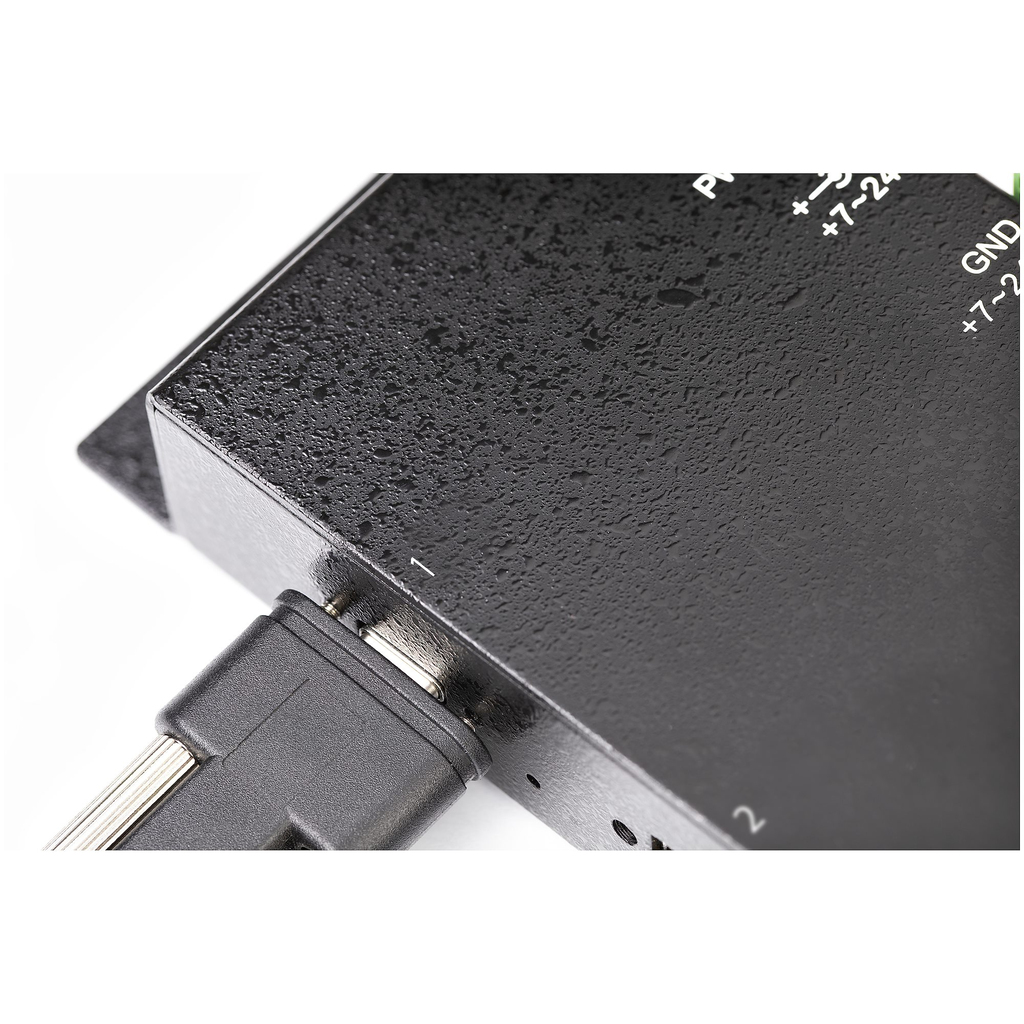

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge (ESD) protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection, and a 3.3 ft. (1m) USB-C host cable, and a 3.3 ft. (1 m) USB-A host cable is included that features a locking screw.
Wide Device Compatibility
The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.
HB31C2A2CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals’ choice for over 30 years.
The StarTech.com Advantage
Additional information
| Weight | 1.02 lbs |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Housing material | Metal |
| Width | 59.6 mm |
| Depth | 152 mm |
| Height | 23.5 mm |
| Weight | 280 g |
| Package width | 290 mm |
| Package depth | 190 mm |
| Package height | 67 mm |
| Package weight | 1.3 kg |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Compliance certificates | CE, RoHS |
| Chipset | VIA/VLI – VL822 |
| DC-in jack | Yes |
| Input voltage | 100 – 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Harmonized System (HS) code | 84719000 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Terminal block port | Yes |
| LED indicators | Power, USB |
| UASP support | Yes |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| Terminal block included | Yes |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 14 pc(s) |
| AC adapter included | Yes |
