StarTech.com 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable
StarTech.com 4 Port USB to Serial RS232 Adapter – Wall Mount – Din Rail – COM Port Retention – FTDI USB to DB9 RS232 Hub (ICUSB2324I)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB

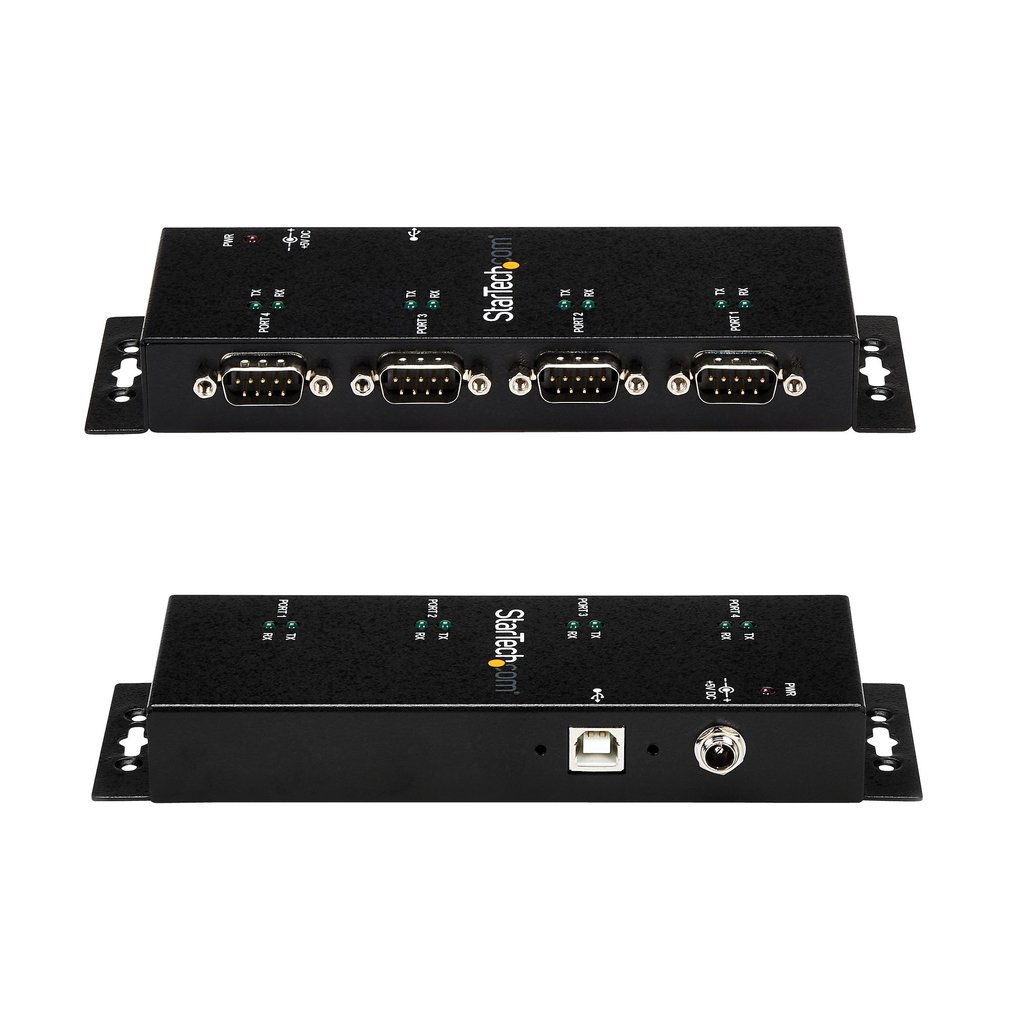

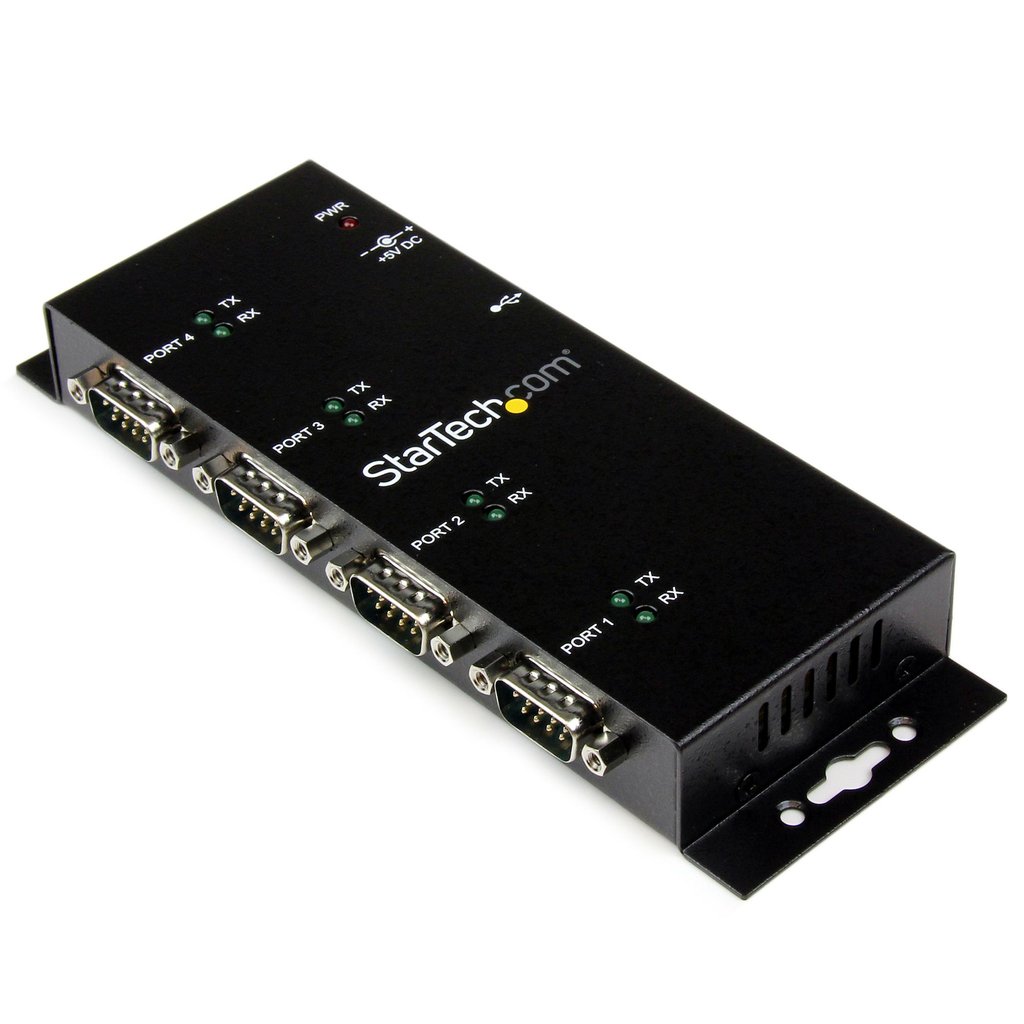

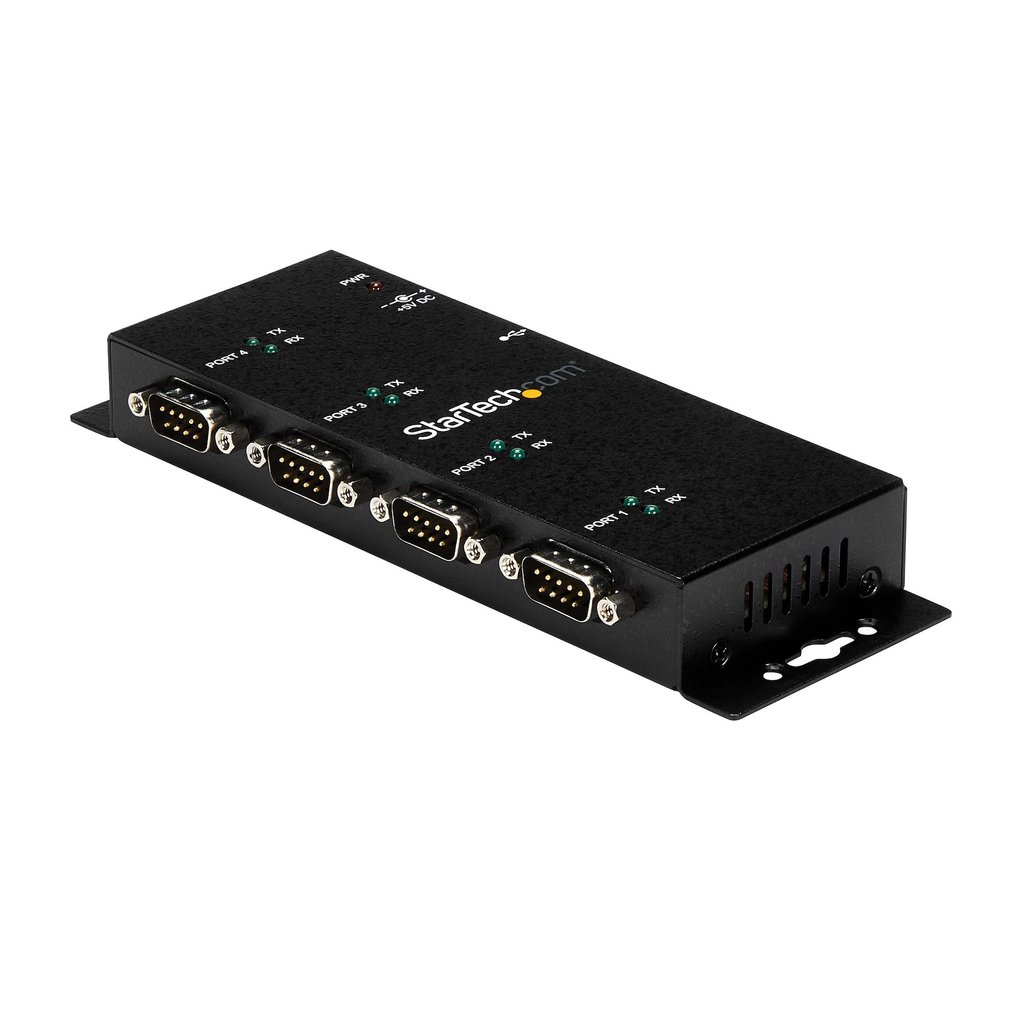

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

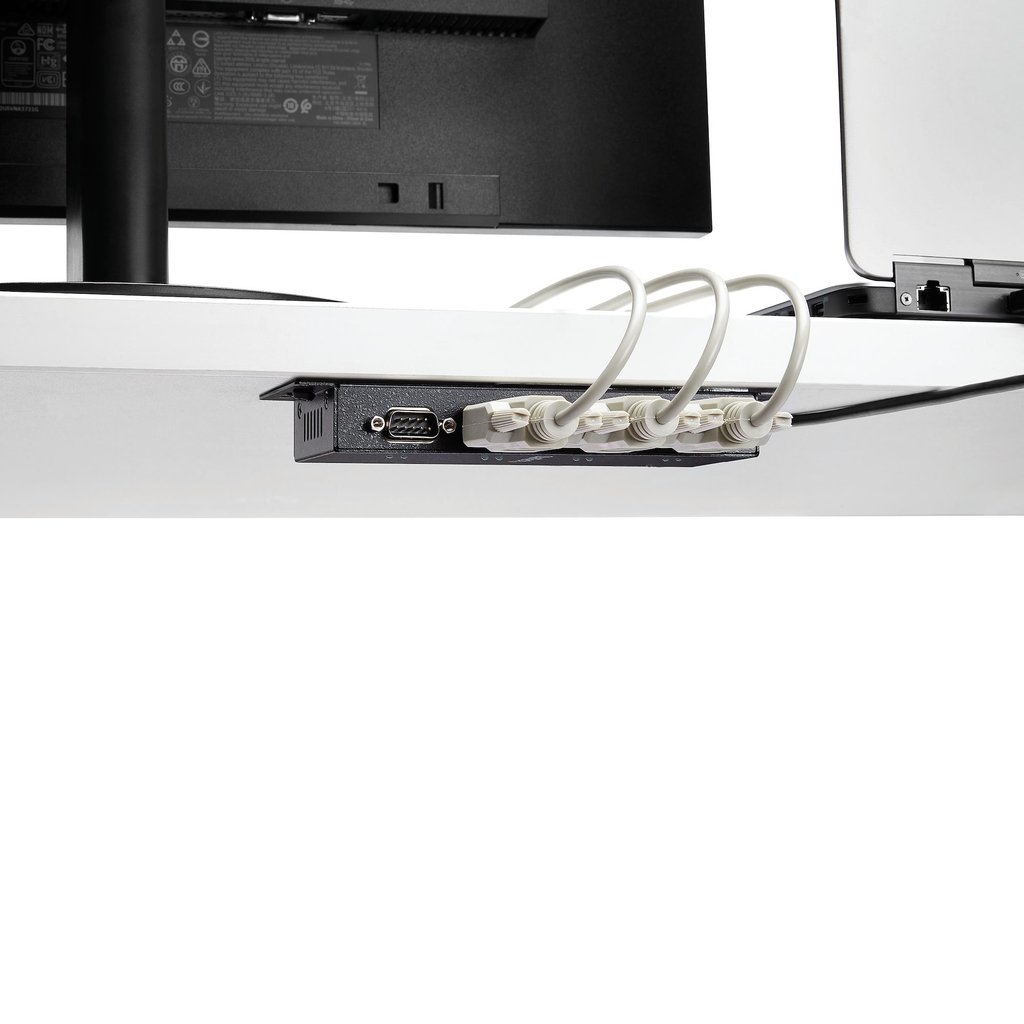

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.5 lbs |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Product colour | Black |
| Housing material | Steel |
| Width | 59 mm |
| Depth | 1788 mm |
| Height | 23 mm |
| Weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Package width | 216 mm |
| Package depth | 152 mm |
| Package height | 50 mm |
| Package weight | 518 g |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Compliance certificates | CE, RoHS |
| Chipset | FTDI – FT4232HL |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, M |
| Harmonized System (HS) code | 84719000 |
| Linux operating systems supported | Yes |
| Other operating systems supported | Windows XP Embedded |
| LED indicators | Activity |
| Power plug type | Type M |
| Cables included | USB |
| Manual | Yes |
| Master (outer) case width | 432 mm |
| Master (outer) case length | 518 mm |
| Master (outer) case height | 264 mm |
| Products per master (outer) case | 25 pc(s) |
| DIN rail kit included | Yes |
| Mean time between failures (MTBF) | 282713.5 h |
| Sustainability compliance | Yes |
| Power source type | USB |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| RS-232 ports | 4 |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Drivers included | Yes |
