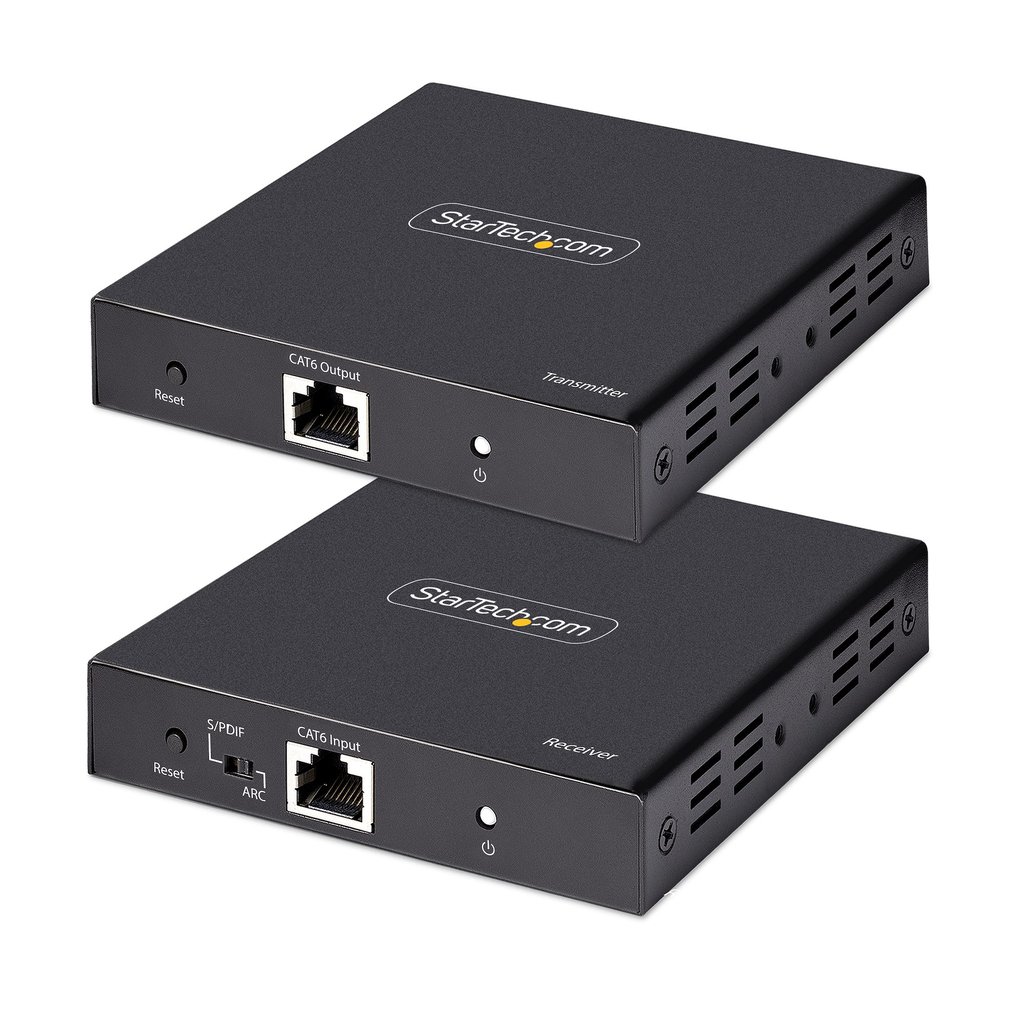

StarTech.com 4K70IC-EXTEND-HDMI AV extender AV transmitter & receiver Black
StarTech.com 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz

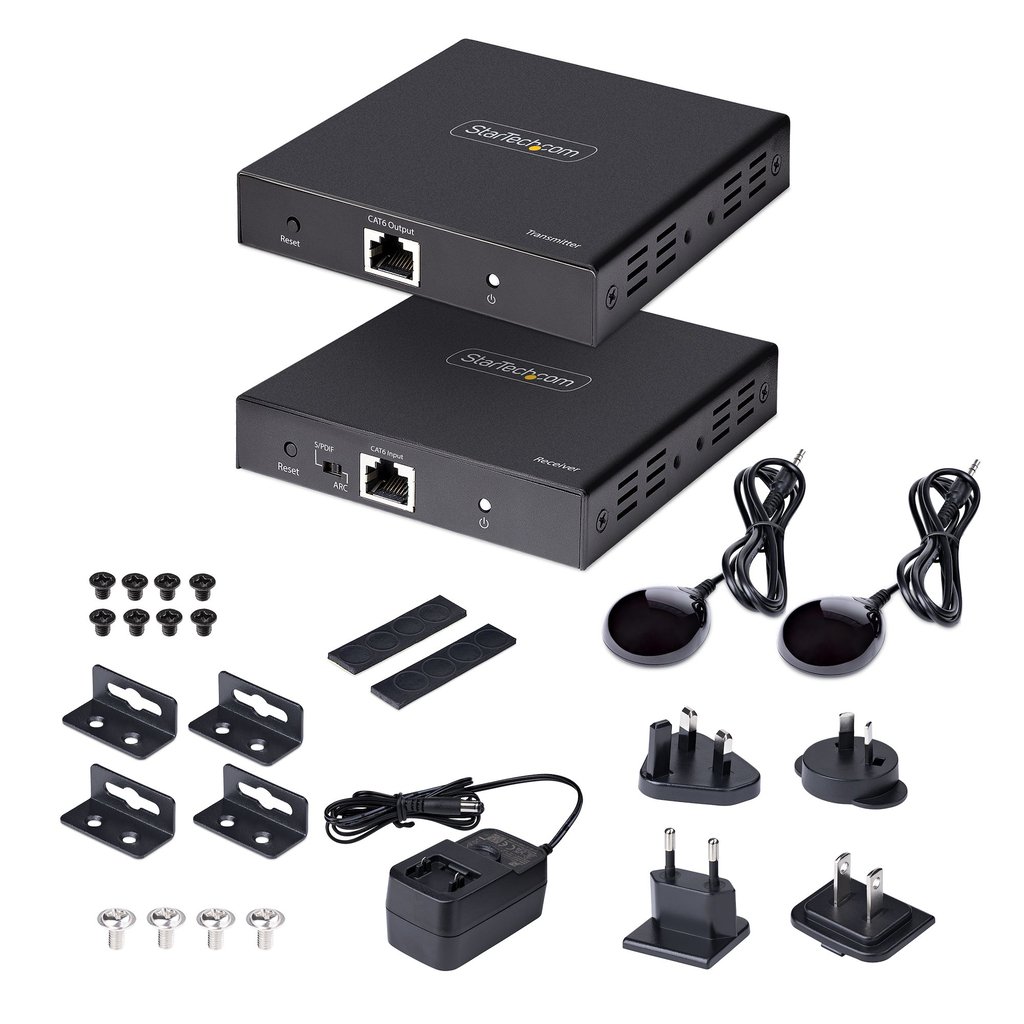

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.

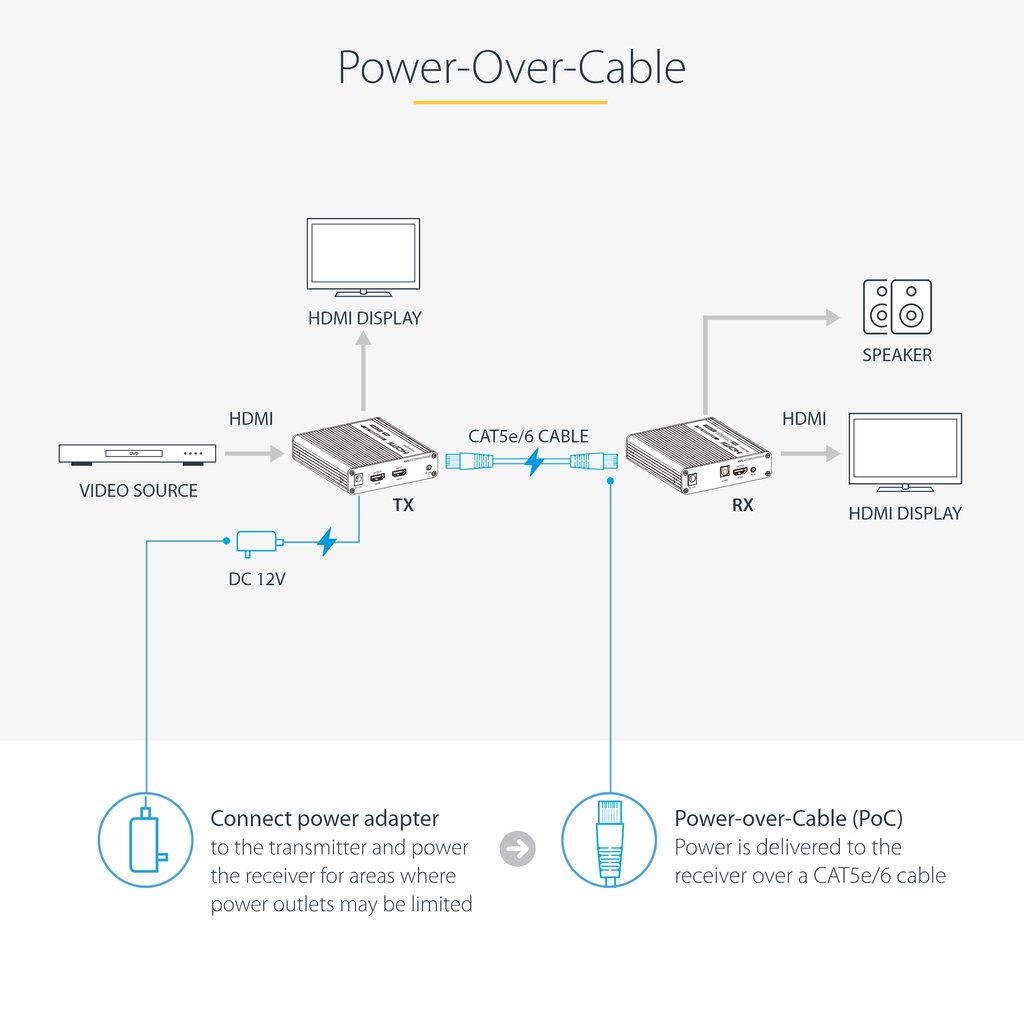

Power-Over-Cable

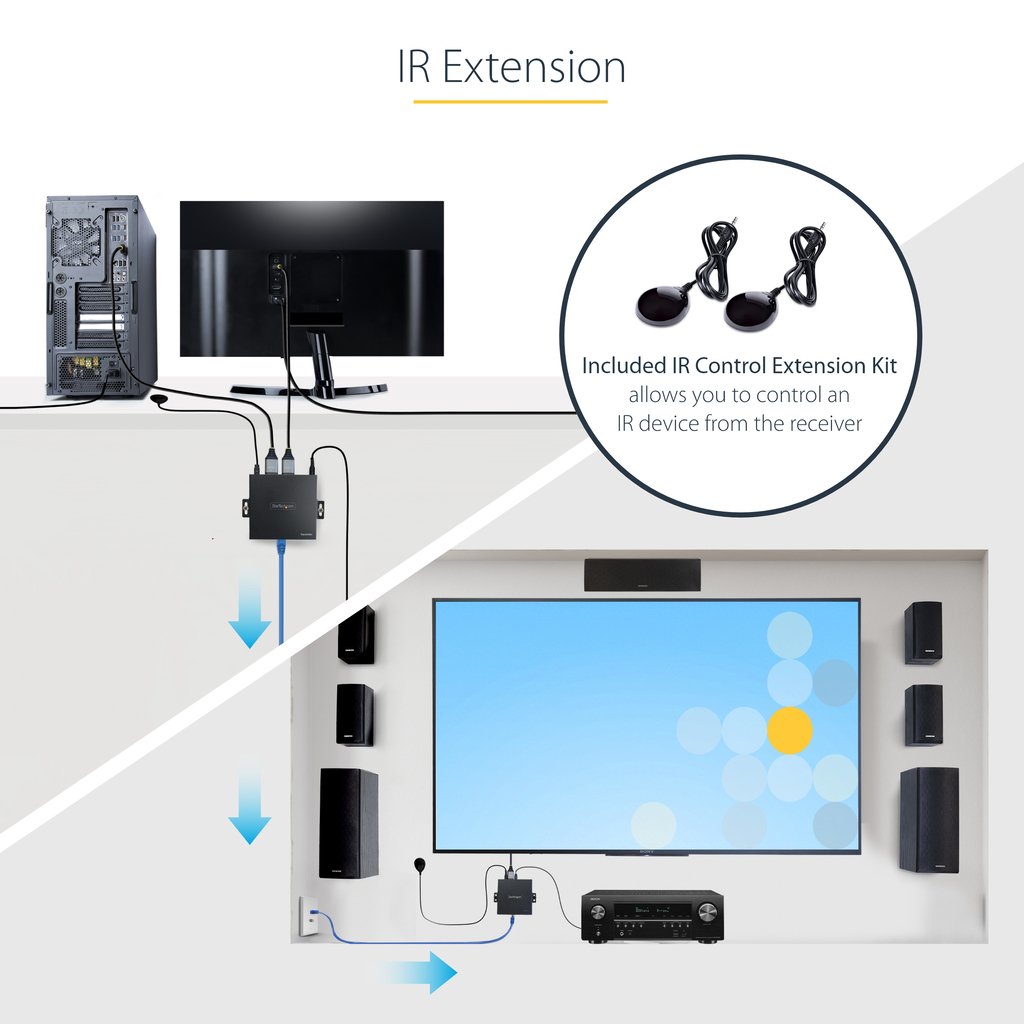

Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.

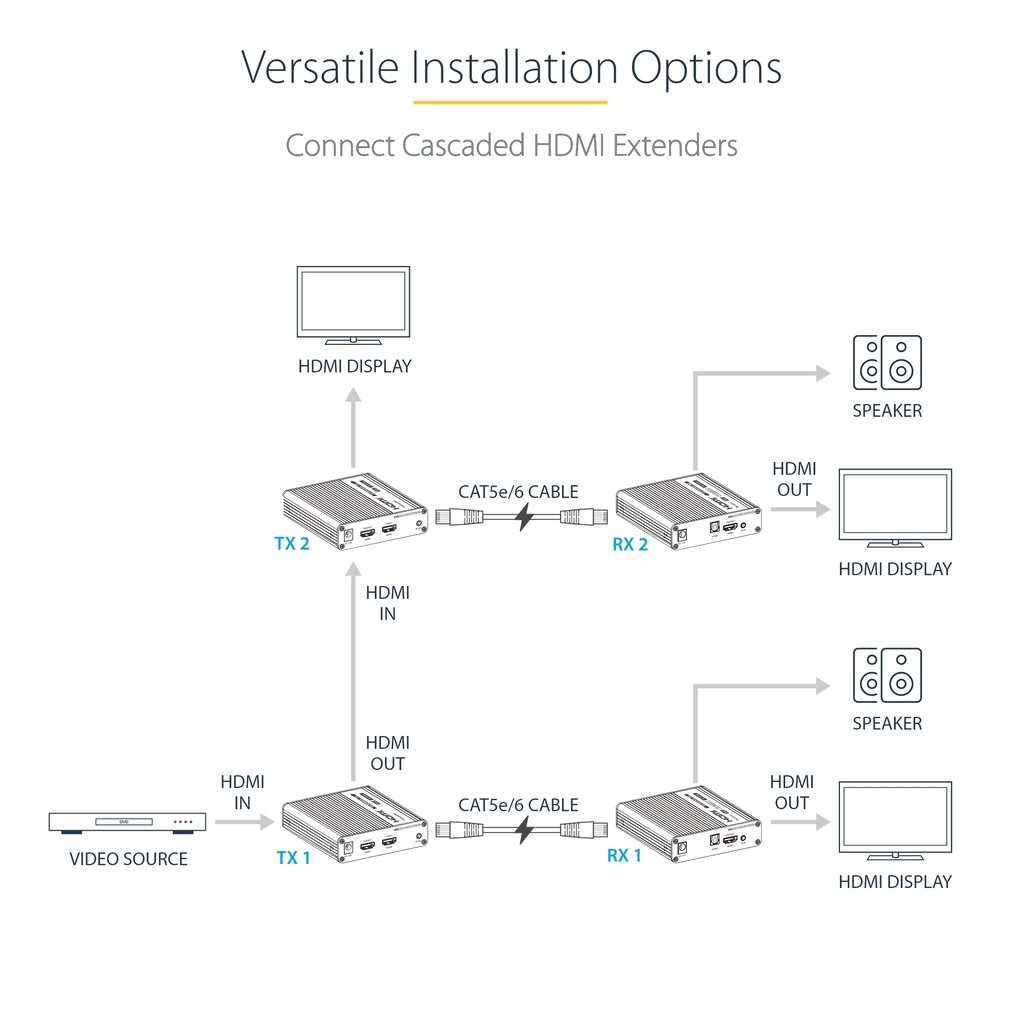

Versatile Installation Options

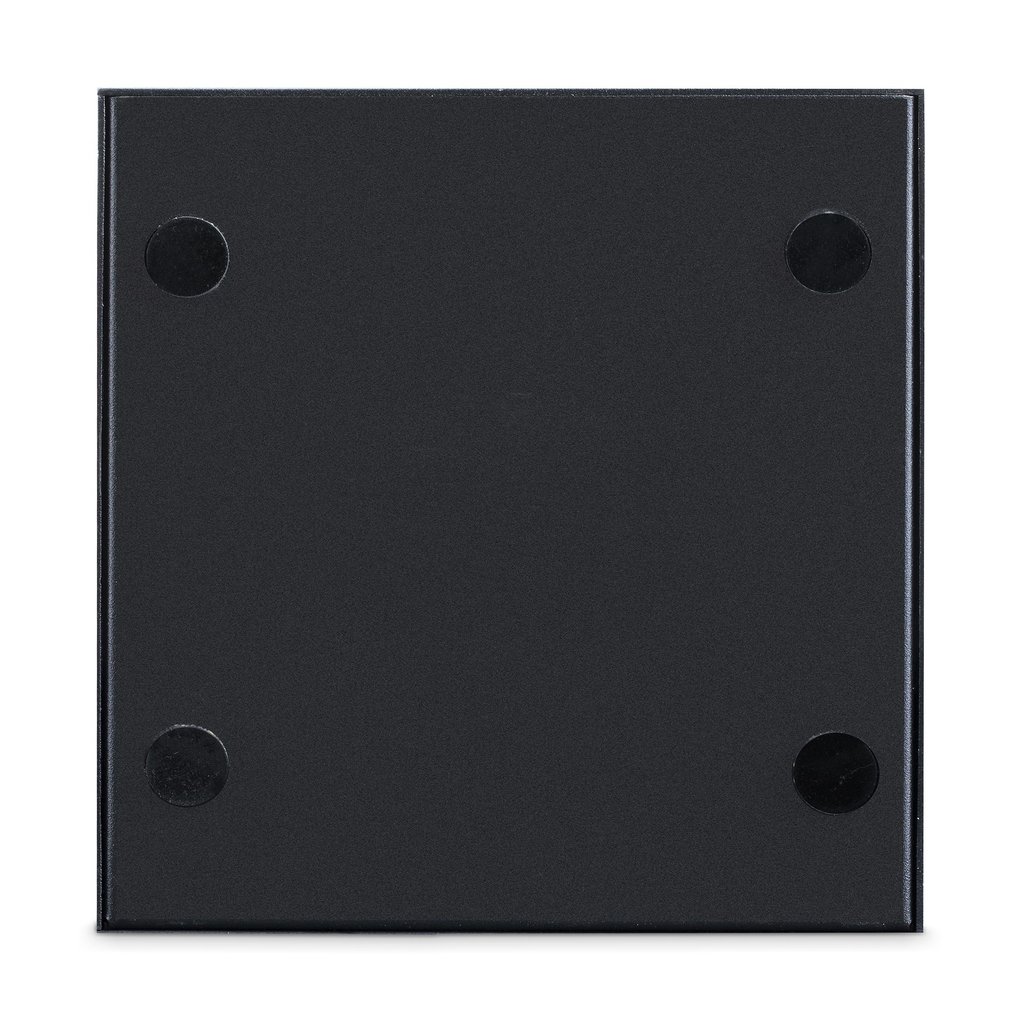

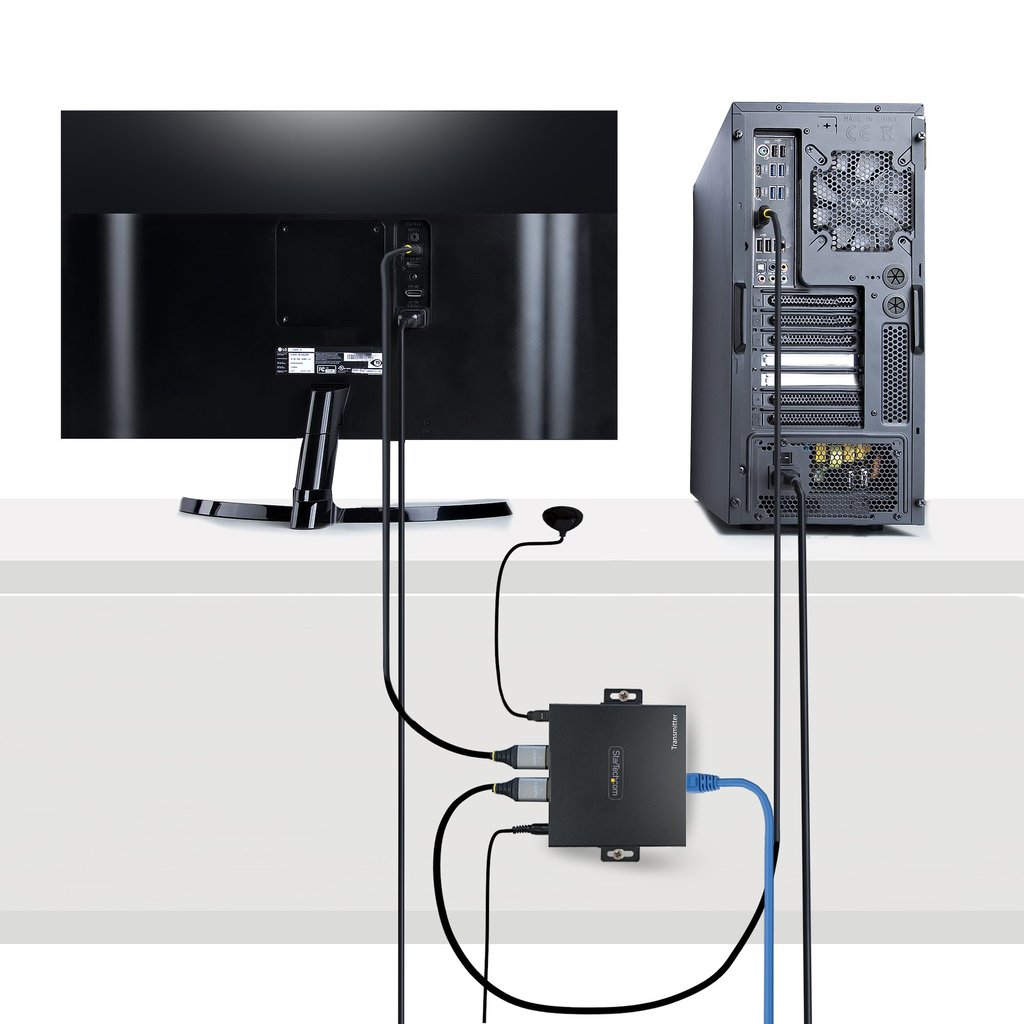

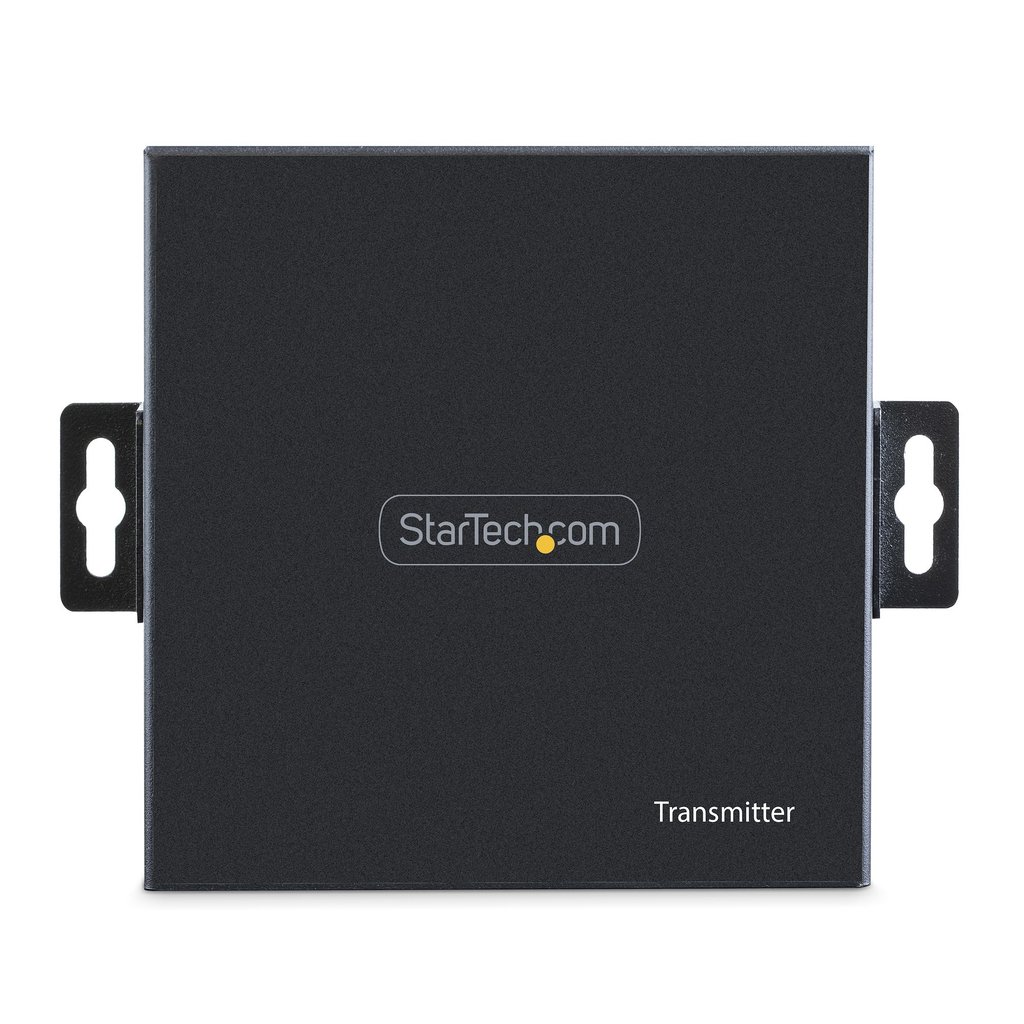

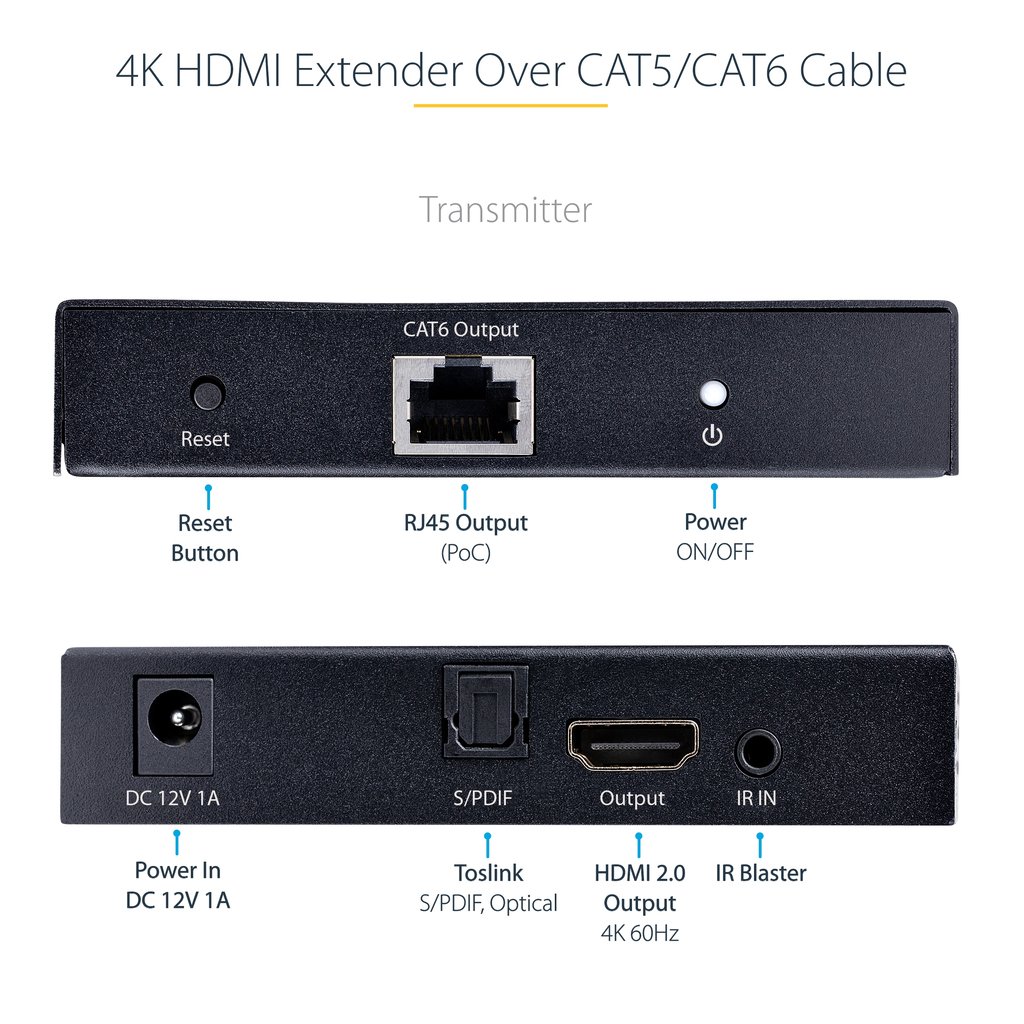

The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders – to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Additional information
| Weight | 0.45 lbs |
|---|---|
| Printing colours | 8 kV |
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | -20 – 60 °C |
| Storage temperature (T-T) | -30 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Compliance certificates | CE, RoHS |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Input current | 0.3 A |
| Sustainability compliance | Yes |
| AC input voltage | 100 – 240 V |
| Weight | 210 g |
| Package width | 240 mm |
| Package depth | 176 mm |
| Package height | 80 mm |
| Package weight | 900 g |
| AC adapter included | Yes |
| Maximum refresh rate | 60 Hz |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Output current | 1 A |

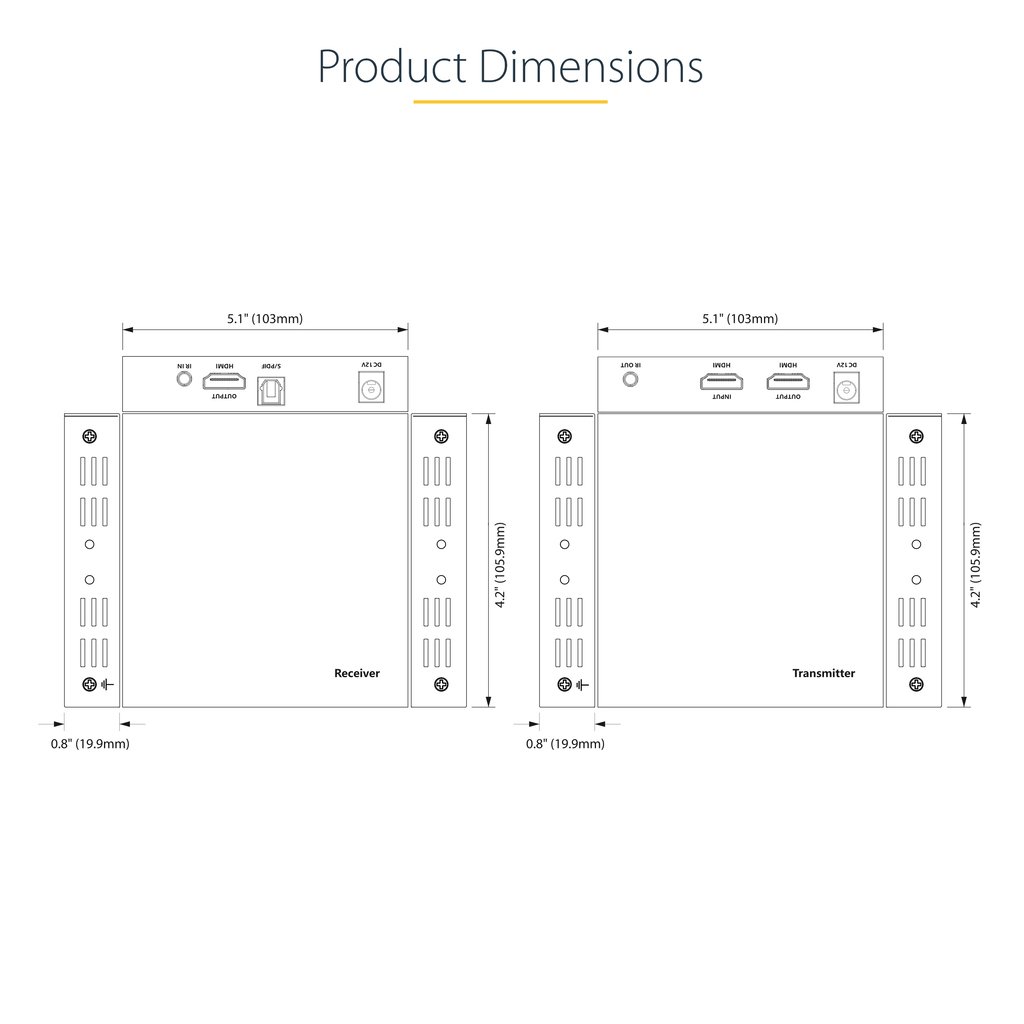

| Width | 99 mm |
| Depth | 106 mm |
| Height | 26 mm |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| External power adapter | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Plug and Play | Yes |
| Daisy chain | Yes |

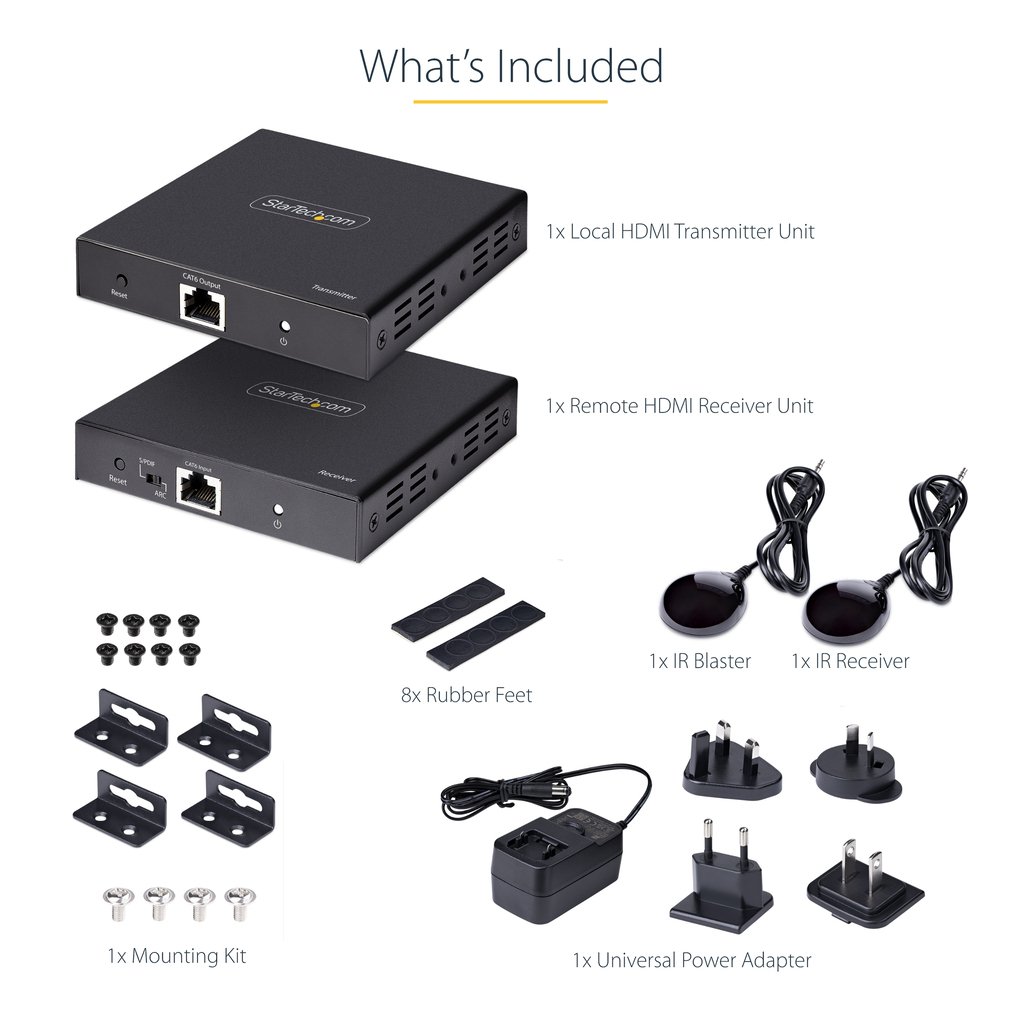

| Quick start guide | Yes |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 10 pc(s) |
| Mounting kit | Yes |
| Power plug type | Type M |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Rubber feet | Yes |
| Digital audio optical out | 1 |
| Operating voltage (transmitter) | 12 V |
| Power consumption (typical) | 0.1 W |
