StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable – Active Mini DP to DVI Adapter Cable – 1080p Video – mDP 1.2 to DVI-D Si
StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable – Active Mini DP to DVI Adapter Cable – 1080p Video – mDP 1.2 to DVI-D Single Link – mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor (MDP2DVIMM6BS)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

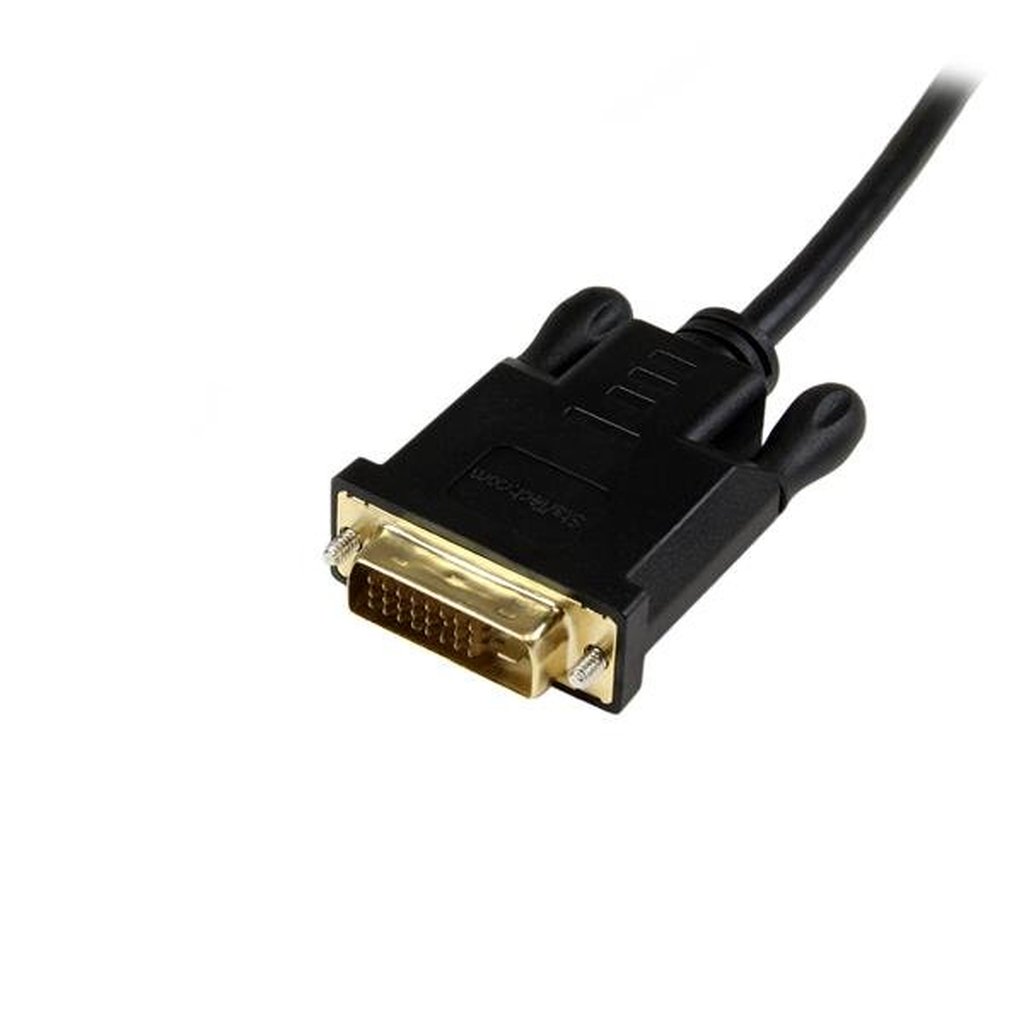

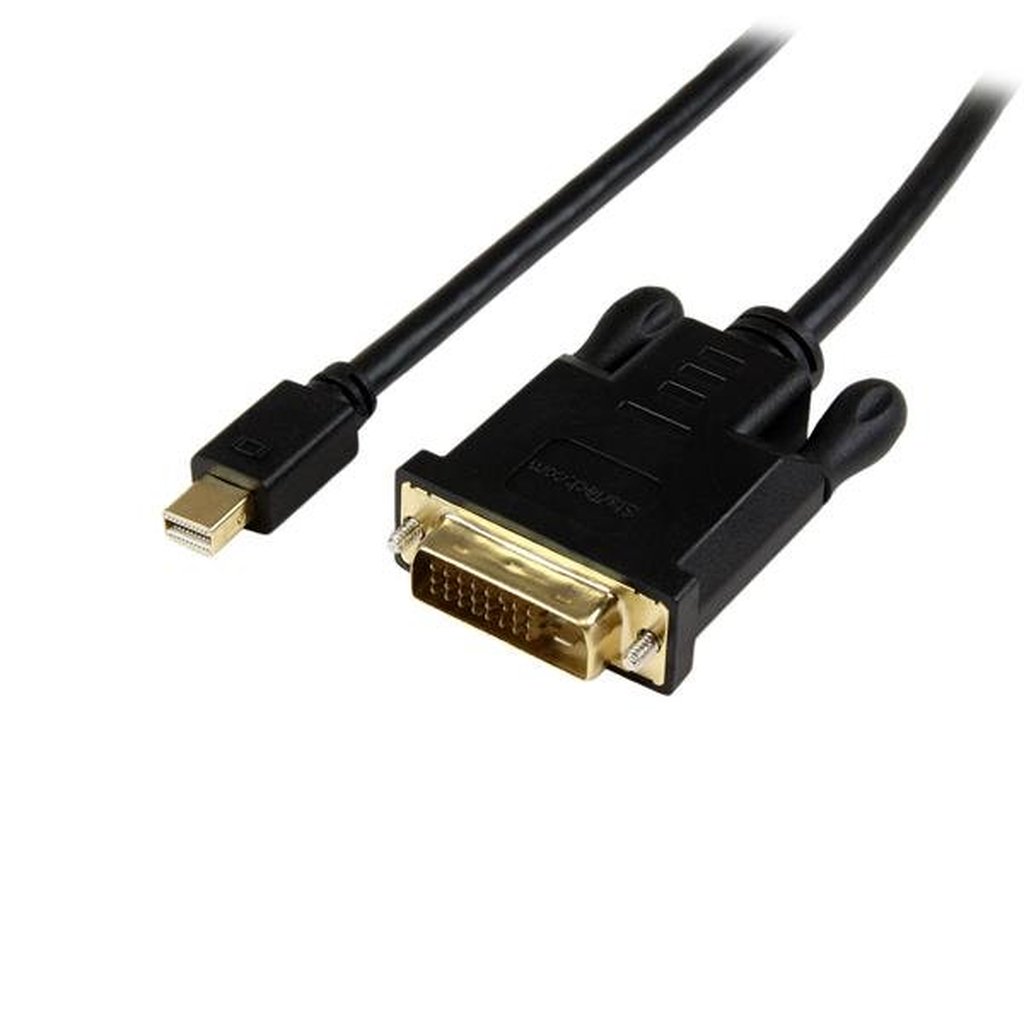

Connect a Mini DisplayPort-equipped PC or MAC to a DVI display, with an active 6ft cable
The MDP2DVIMM6BS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a DVI monitor or projector, saving the expense of additional adapters.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
Additional information
| Weight | 0.12 lbs |
|---|---|
| Cable length | 1.9 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Plug and Play | Yes |
| Compliance certificates | RoHS, CE |
| Certification | CE, FCC, REACH |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 40 – 85% |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Weight | 100.7 g |
| Converter type | Active |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 123 g |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 150 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Chipset | Parade – PS171 |
| Width | 40 mm |
| Depth | 1900 mm |
| Height | 16 mm |
| Dual Link DVI | No |
