StarTech.com Arista Networks QSFP-40G-XSR4 Compatible QSFP+ Module – 40GBASE-SR4 – 40GbE Multimode Fiber MMF Optic Transceiver
StarTech.com Arista Networks QSFP-40G-XSR4 Compatible QSFP+ Module – 40GBASE-SR4 – 40GbE Multimode Fiber MMF Optic Transceiver – 40GbE QSFP+ – MPO 400m – 850nm – DDM (QSFP-40G-XSR4-AR-ST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
40 Gbps | Multi Mode Fiber | LC | 400 m (1312 ft.) | Lifetime Warranty

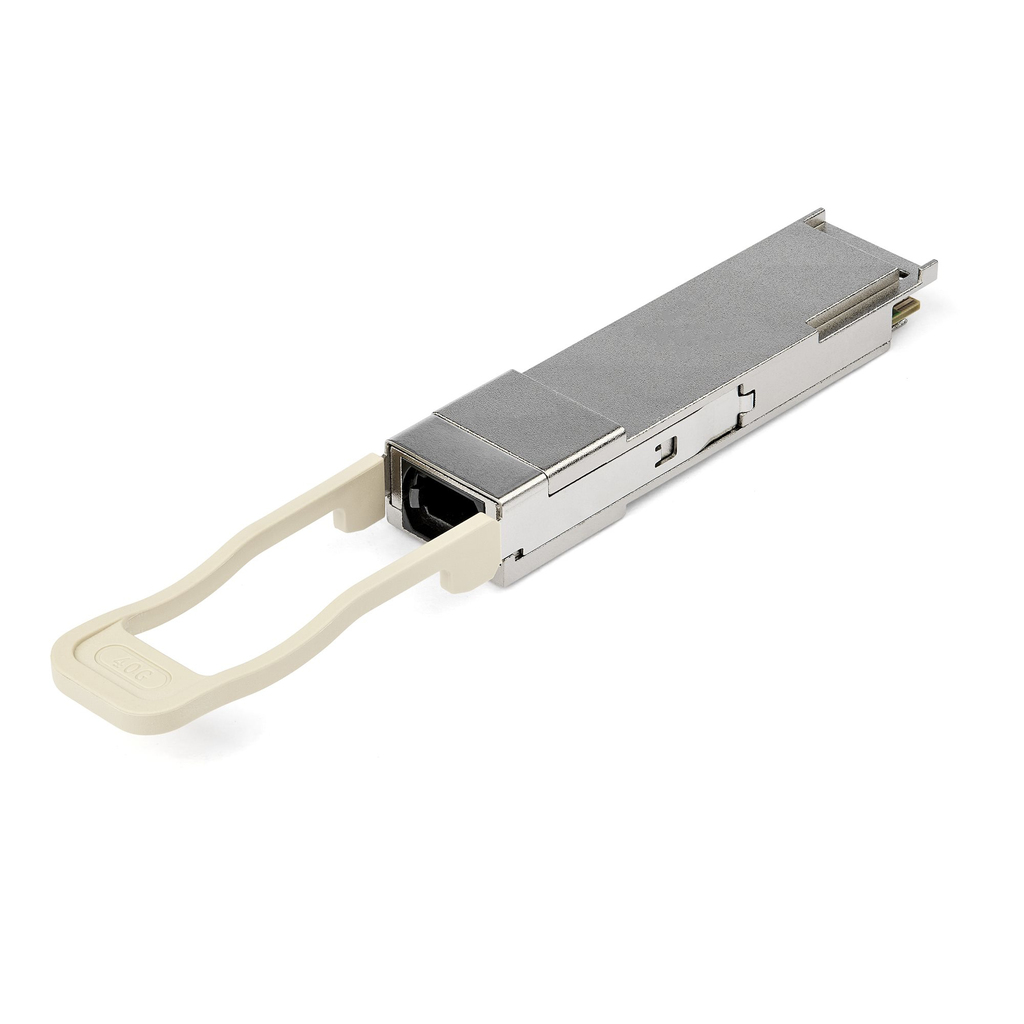

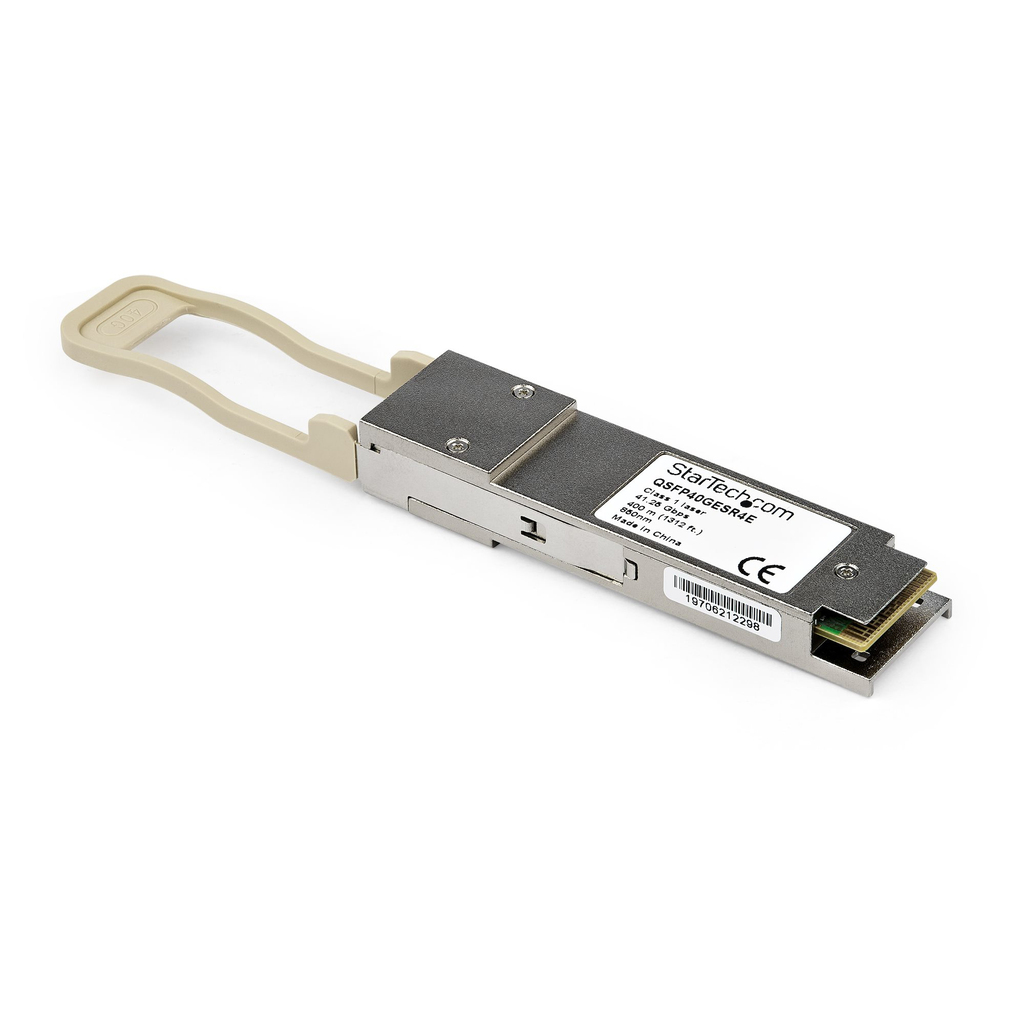

The QSFP-40G-XSR4-AR-ST is an Arista QSFP-40G-XSR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Arista brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode

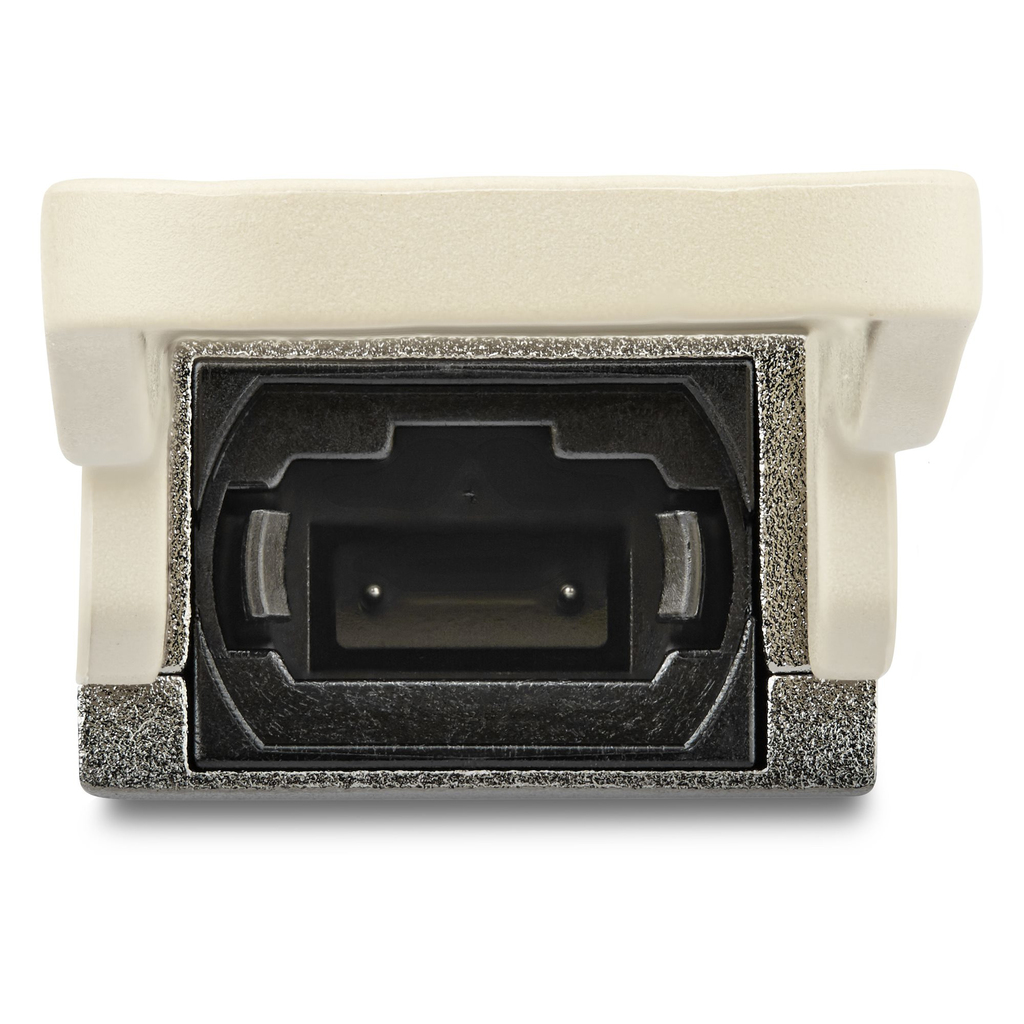

• Connection Type: MPO
• Maximum Transfer Distance: 400m (1312 ft.)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 850 nm |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UR, REACH |

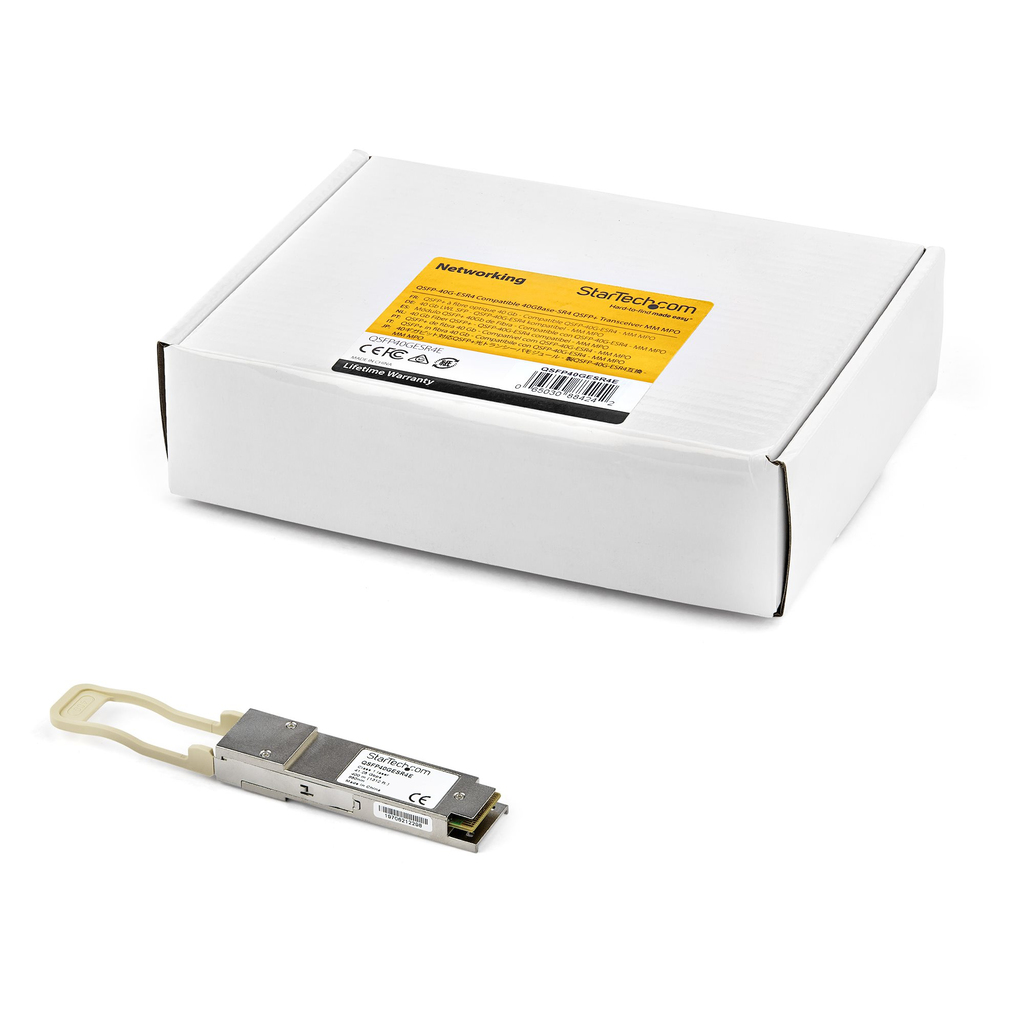

| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 34 mm |
| Package weight | 75 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 244610583 h |
| Brand compatibility | Arista |
| Compatible products | QSFP-40G-XSR4 |
| Width | 122 mm |
| Depth | 18.6 mm |
| Height | 8.5 mm |
| Weight | 37.5 g |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 100 pc(s) |
