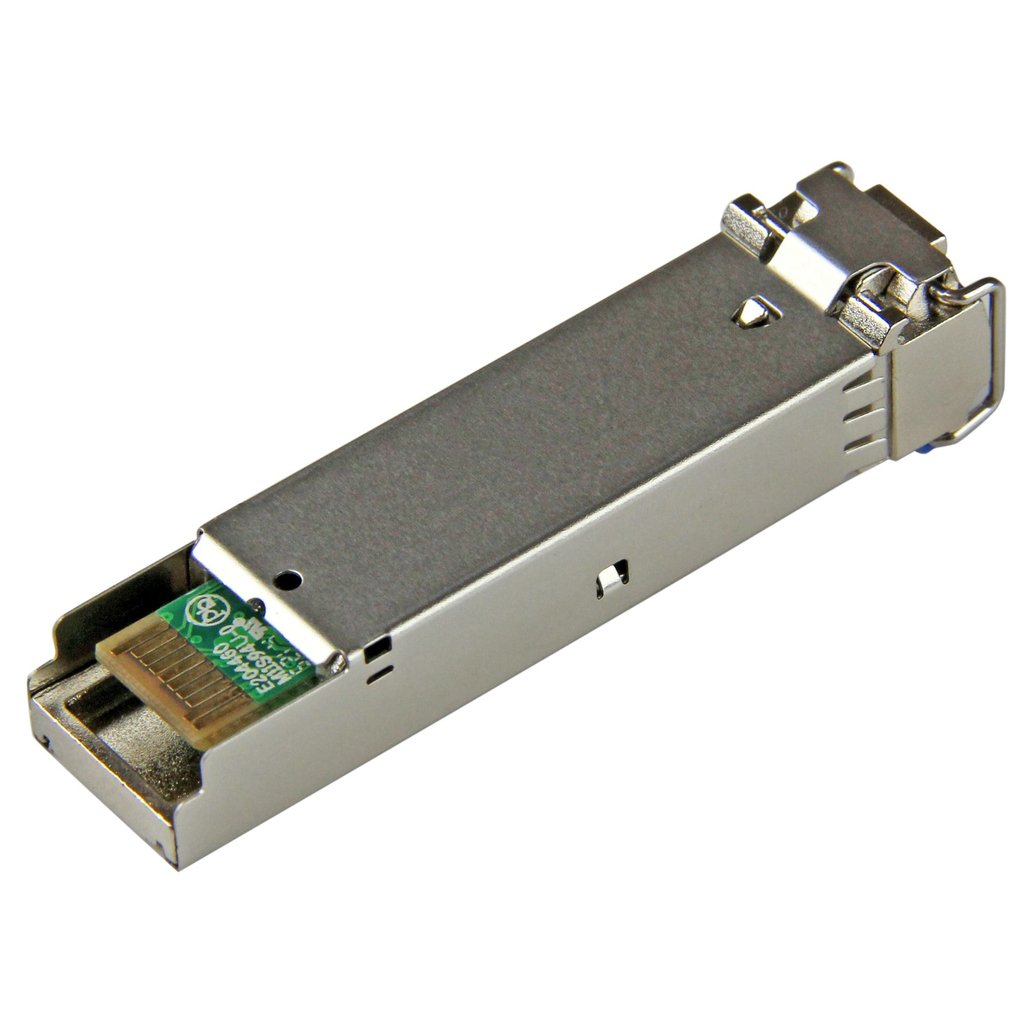

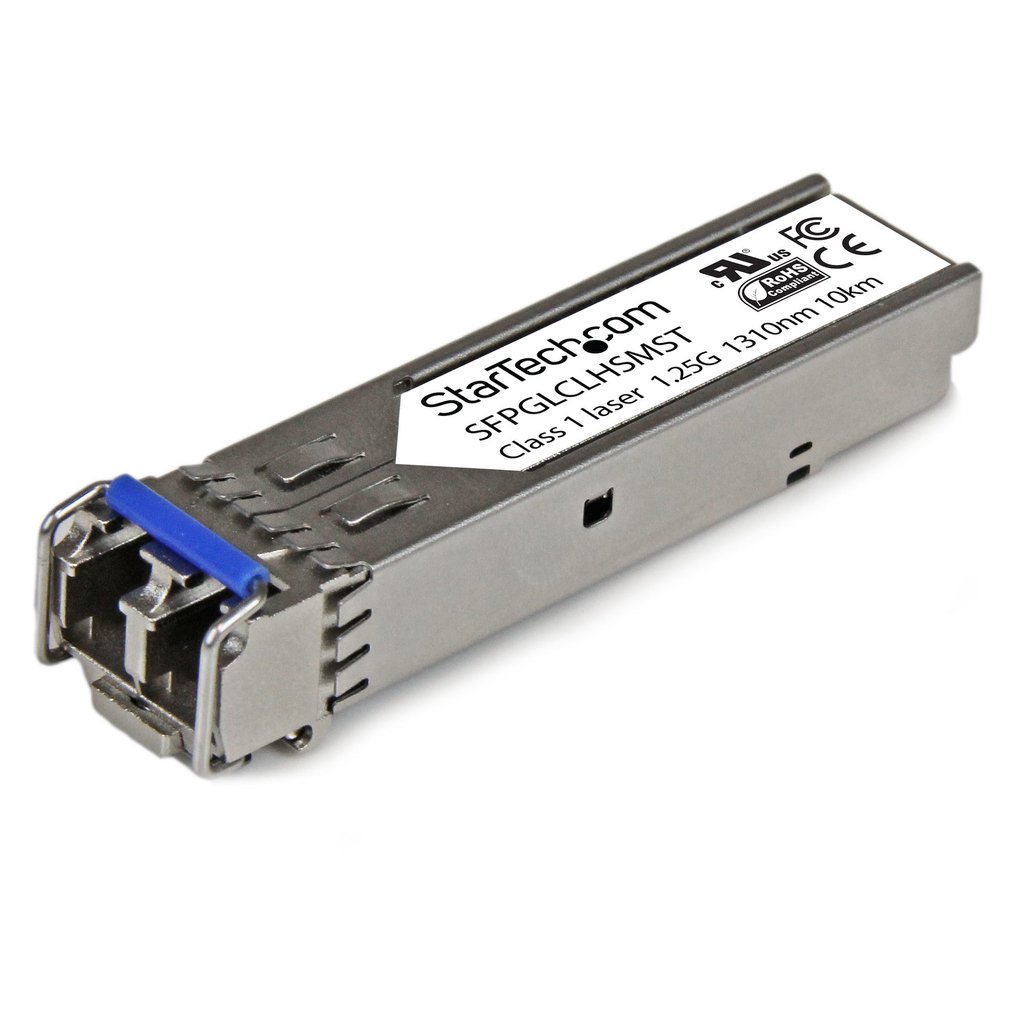

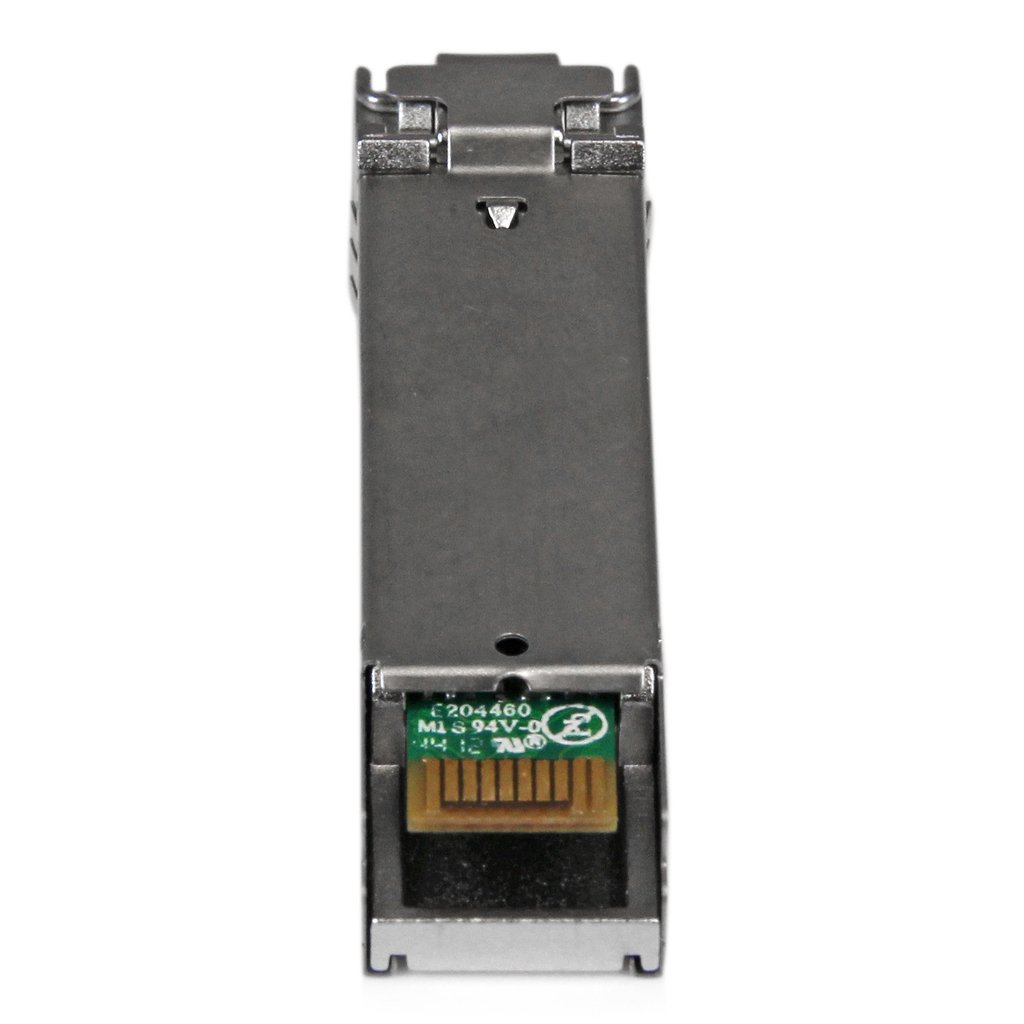

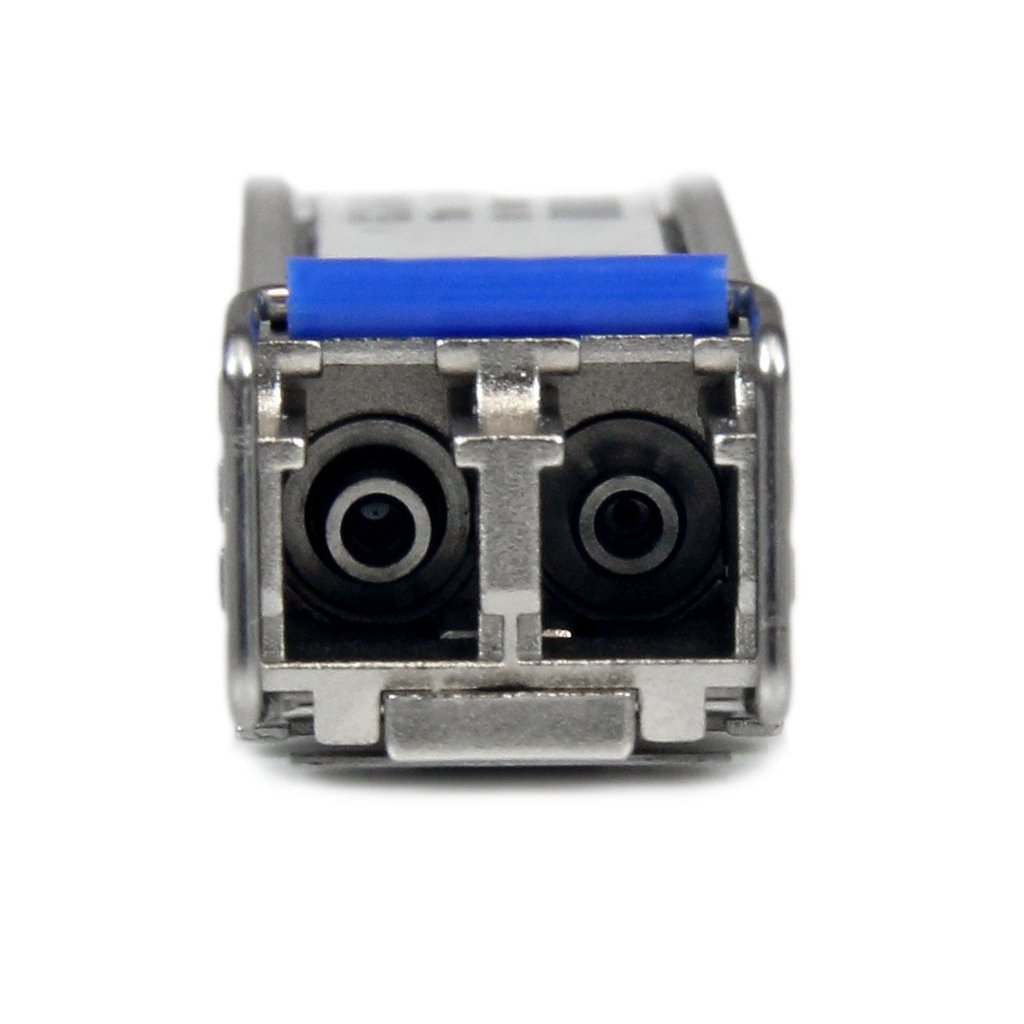

StarTech.com Cisco GLC-LH-SM Compatible SFP Module – 1000BASE-LX/LH – – 1GE Gigabit Ethernet SFP – LC 621 mi – 1310nm – Cisco I
StarTech.com Cisco GLC-LH-SM Compatible SFP Module – 1000BASE-LX/LH – 1GE Gigabit Ethernet SFP – LC 10km – 1310nm – Cisco IE3400, IE3300, IE3200 (SFPGLCLHSMST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) – SM / 1 km (0.6 mi) – MM
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.044 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LH, LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Certification | CE, FCC, UL |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 119 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | No |
| Mean time between failures (MTBF) | 3092408 h |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Width | 12 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 20 g |
| Master (outer) case width | 251 mm |
| Master (outer) case length | 303 mm |
| Master (outer) case height | 211 mm |
| Products per master (outer) case | 36 pc(s) |
| Wavelength-division multiplexing (WDM) | No |
| Operating relative humidity (H-H) | 30 – 70% |
