StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Module – 10GBASE-LR – 10GbE Single Mode Fiber SMF Optic Transceiver – 10GE Giga
StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Module – 10GBASE-LR – 10GbE Single Mode Fiber Optic Transceiver – 10GbE SFP+ – LC 10km 1310nm DDM Cisco Firepower, ASR9000, C9300 (SFP10GLRSTTA)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | TAA | Lifetime Warranty

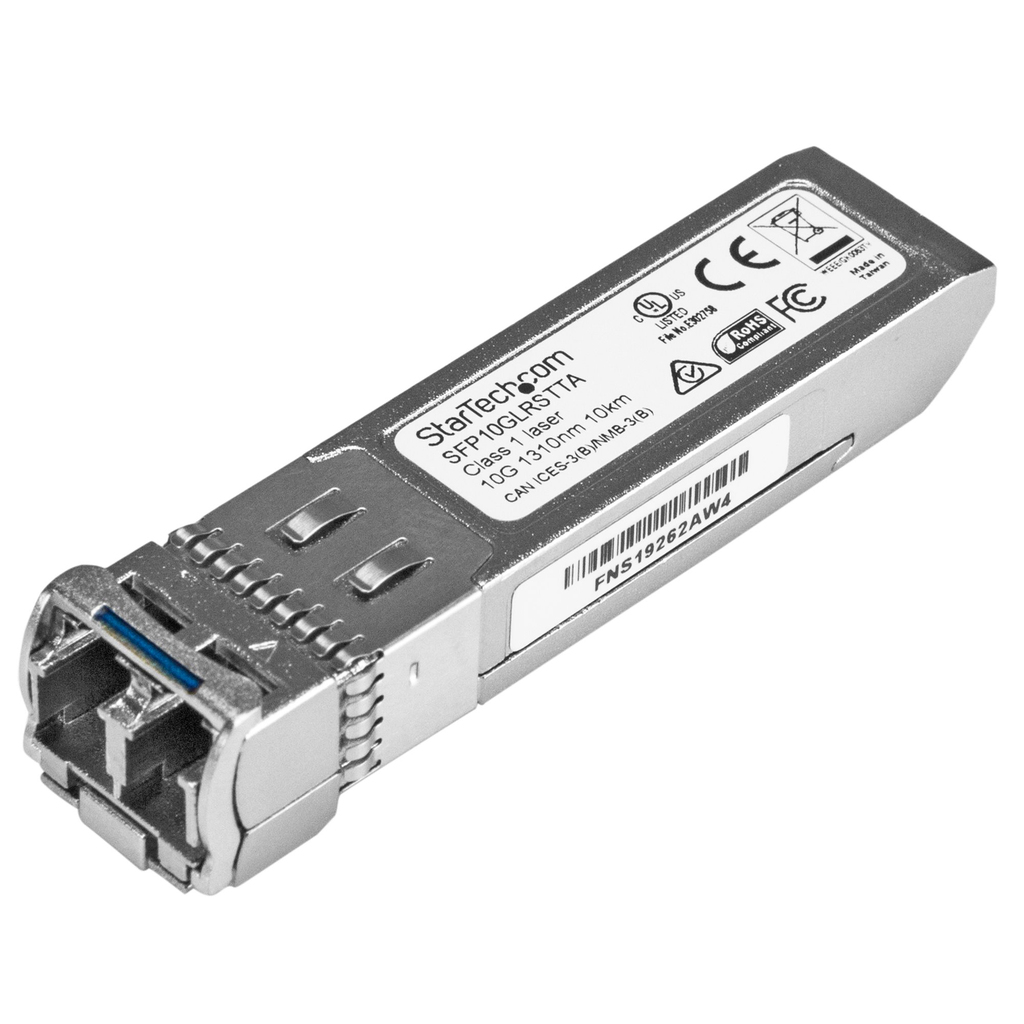

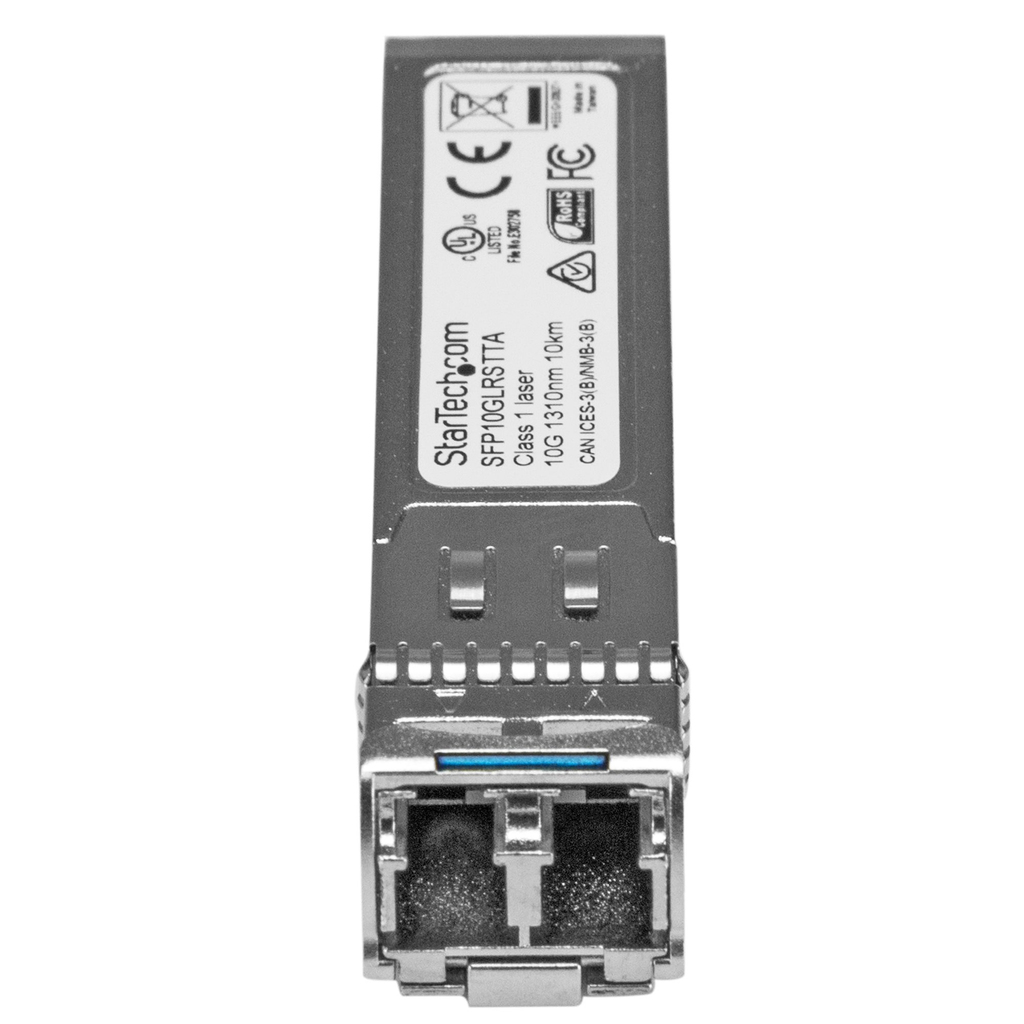

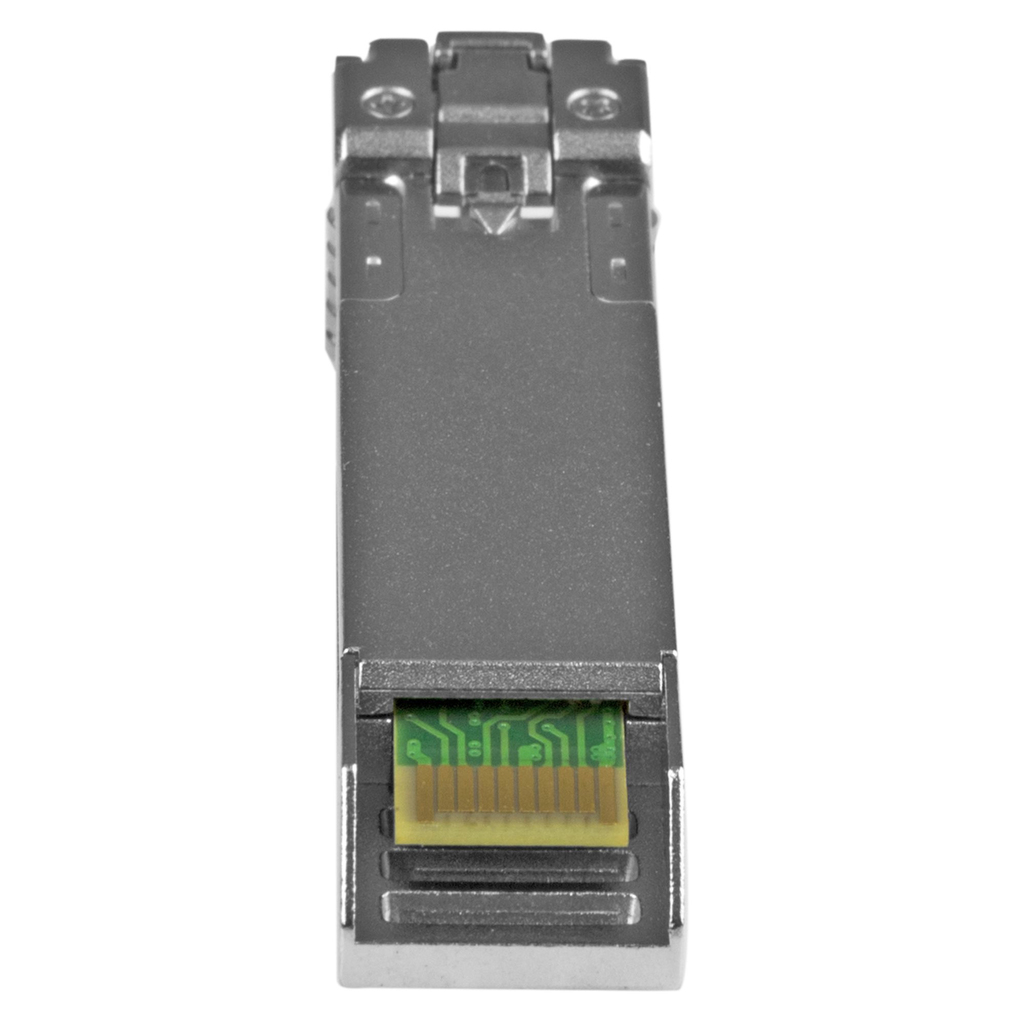

The SFP10GLRST is a TAA compliant Cisco SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,203,430 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
SFP modules
We offer a wide variety of SFP transceiver modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UL, TAA |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 75 mm |
| Package depth | 122 mm |
| Package height | 34 mm |
| Package weight | 100 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 1203430 h |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Width | 13.3 mm |
| Depth | 57 mm |
| Height | 10 mm |
| Weight | 19 g |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 638 mm |
| Master (outer) case height | 296 mm |
| Products per master (outer) case | 150 pc(s) |
| Housing material | Zinc steel |
| Operating relative humidity (H-H) | 5 – 95% |
