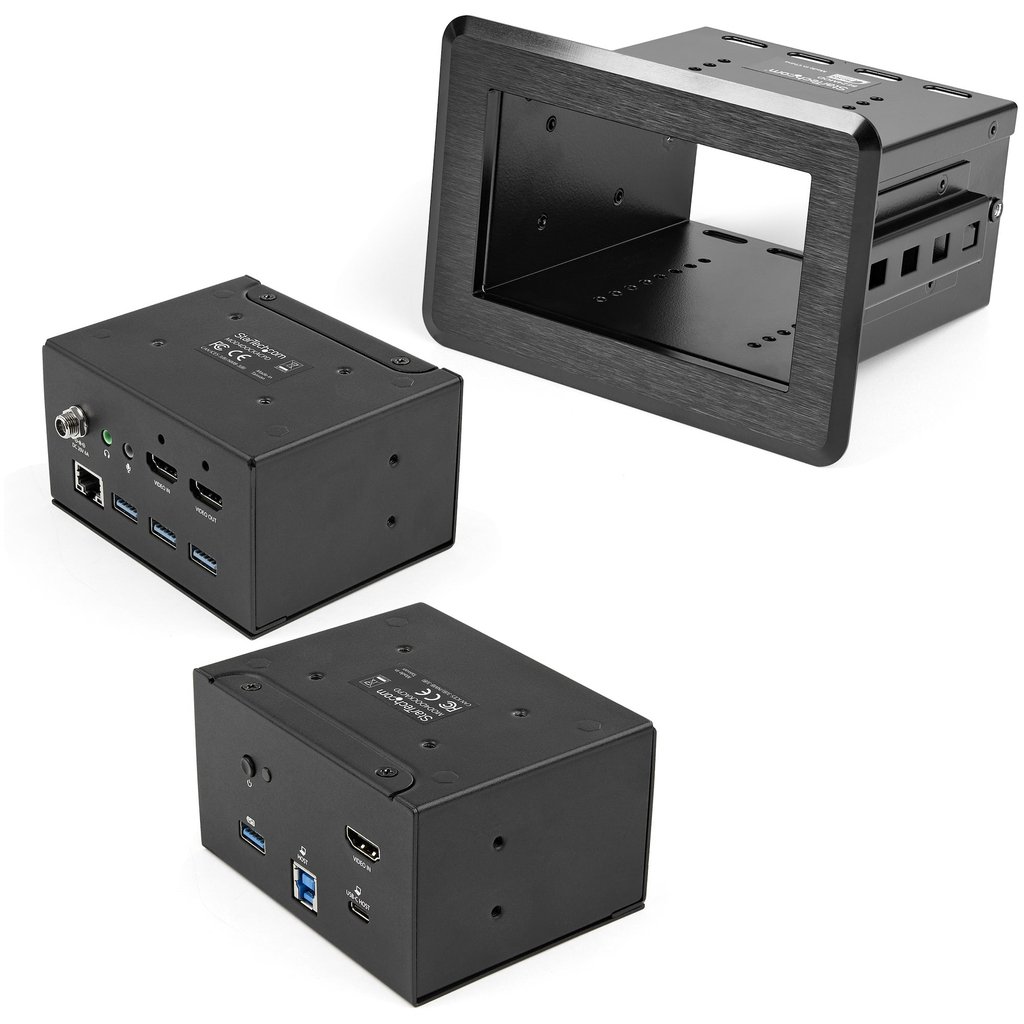

StarTech.com Conference Room Docking Station – Universal Laptop Dock – 4K HDMI, 60W Power Delivery, USB Hub, GbE, Audio – In-Table Connectivity Box For Huddle/Boardroom Collaboration Space (KITBZDOCK)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery

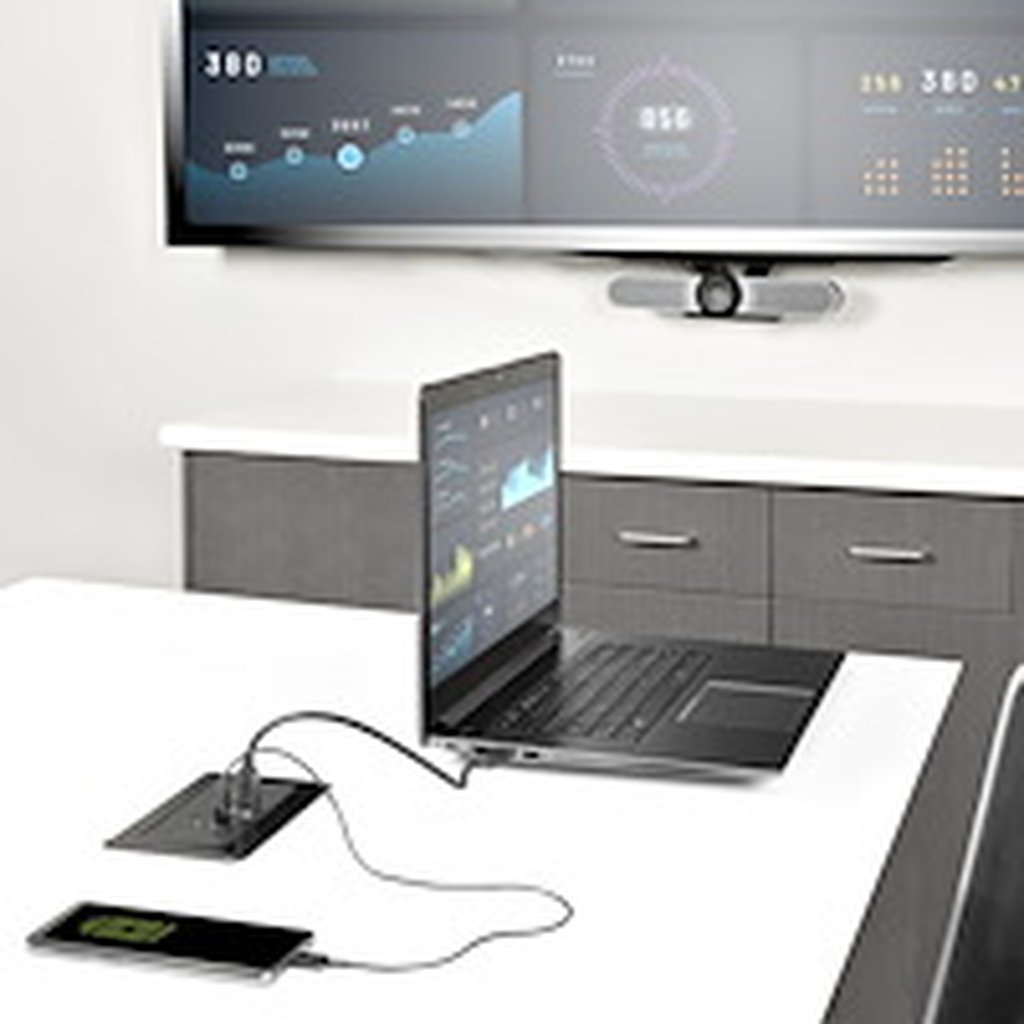

Add docking and video conferencing capabilities to a boardroom, classroom or huddle space. This conference table connectivity box bundle lets you:
• Access your room’s display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.

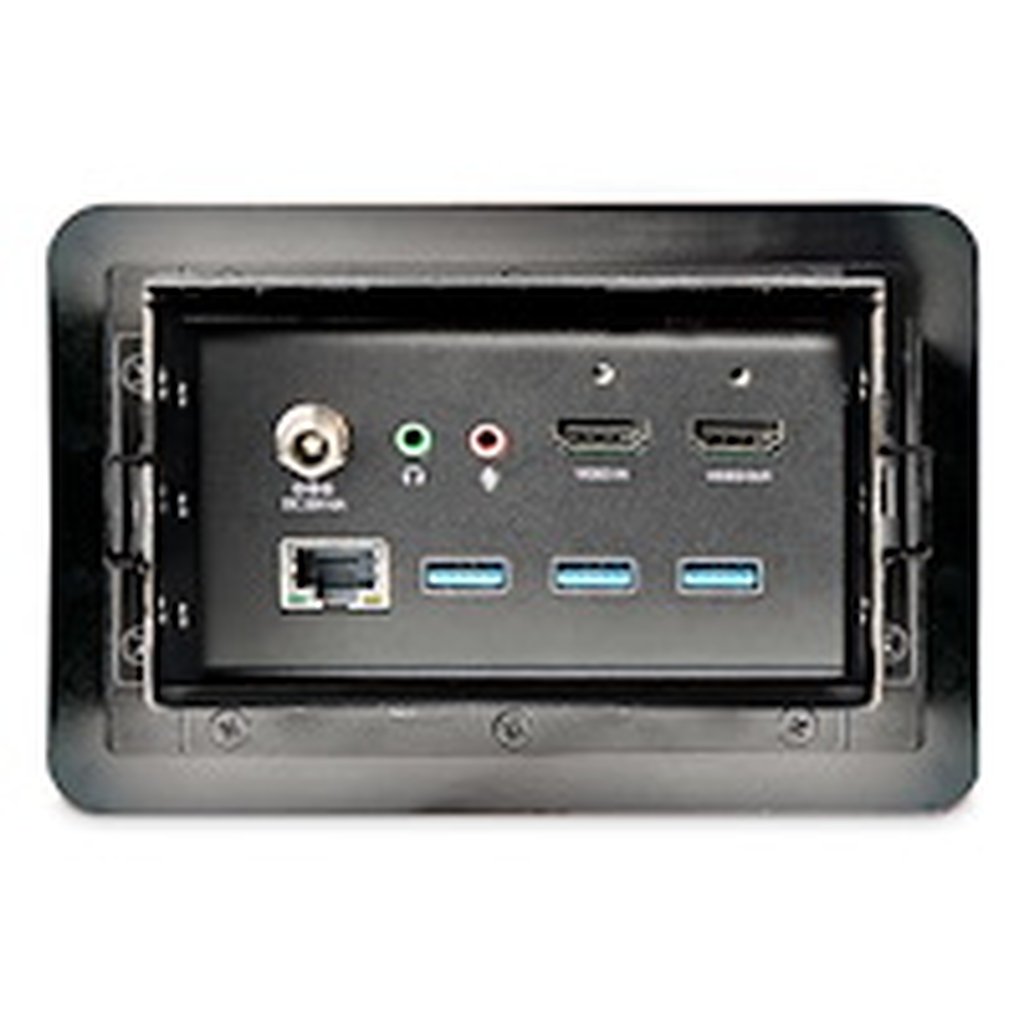

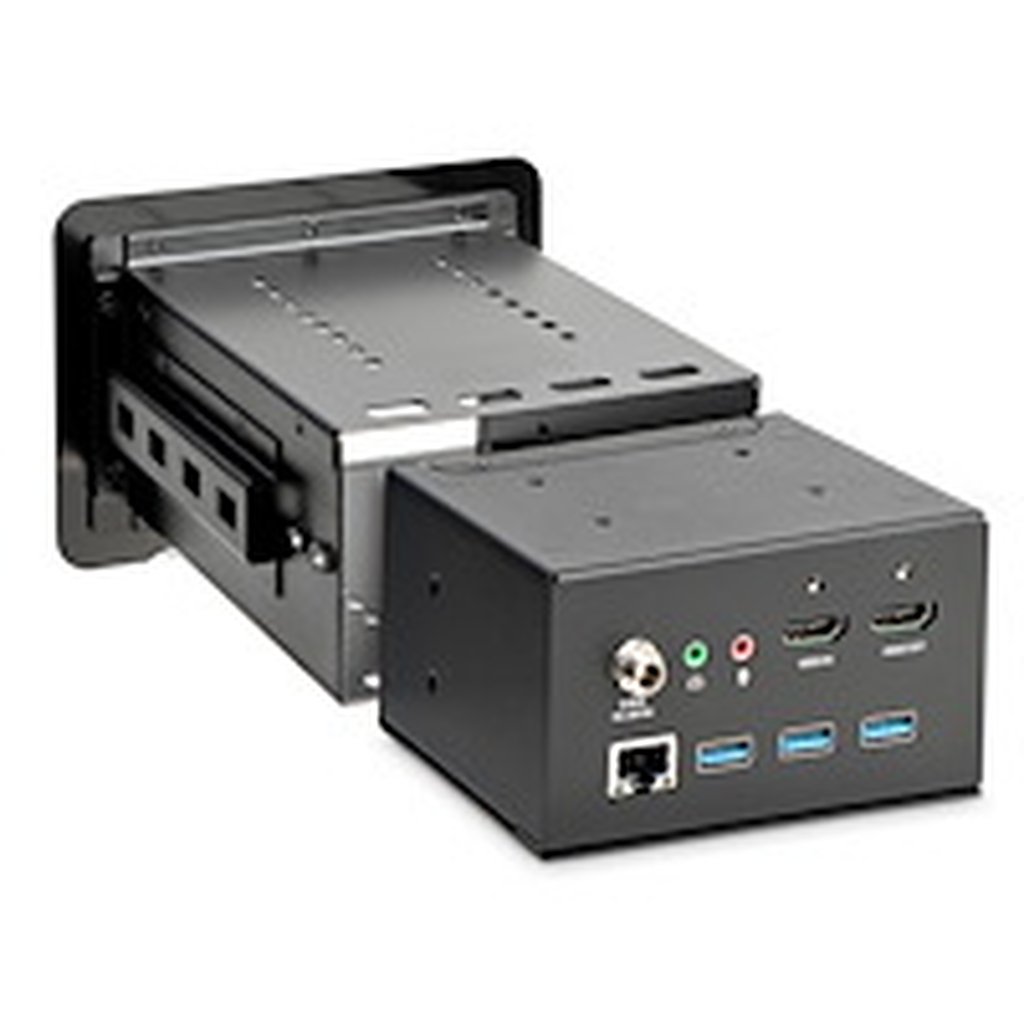

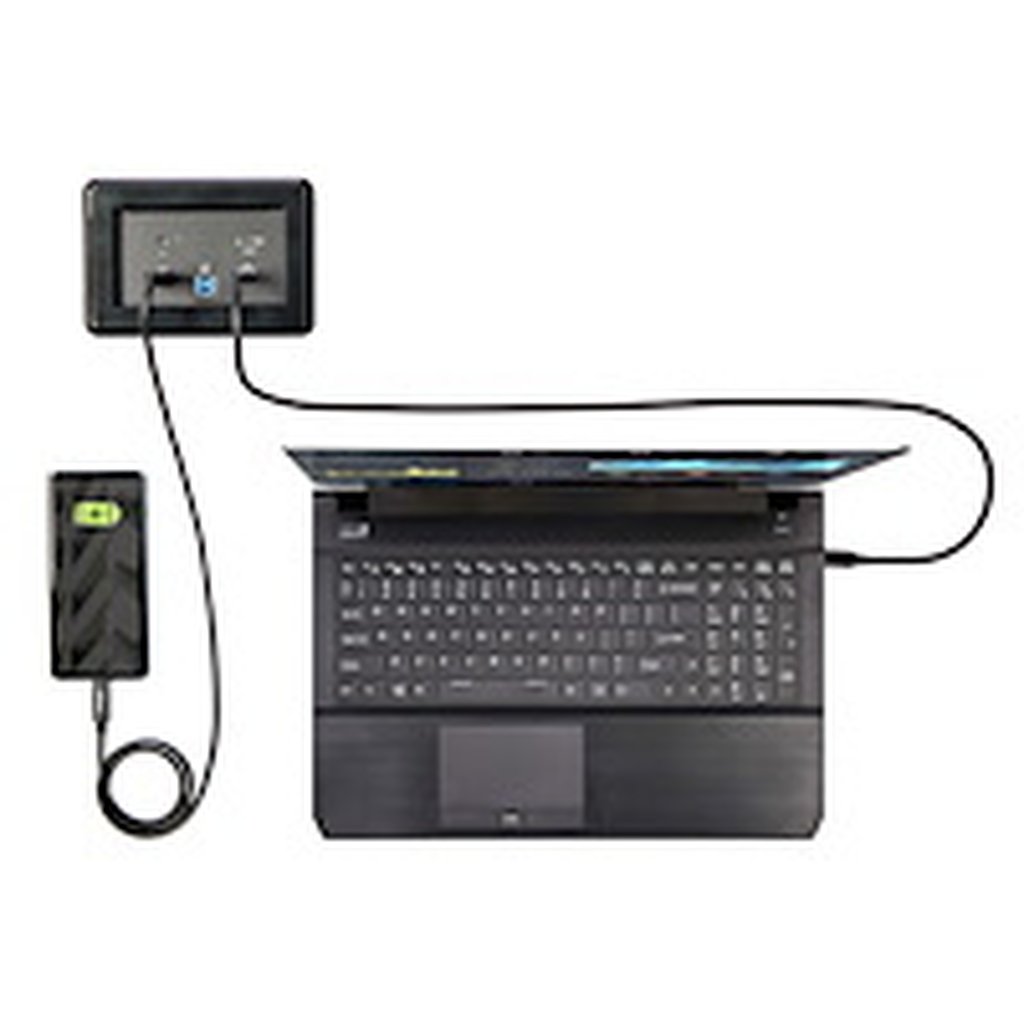

Connect a USB-C or USB-A laptop to the module and access your room’s peripherals, webcams, speakers, mics, network and HDMI display. This conference table AV box and docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.

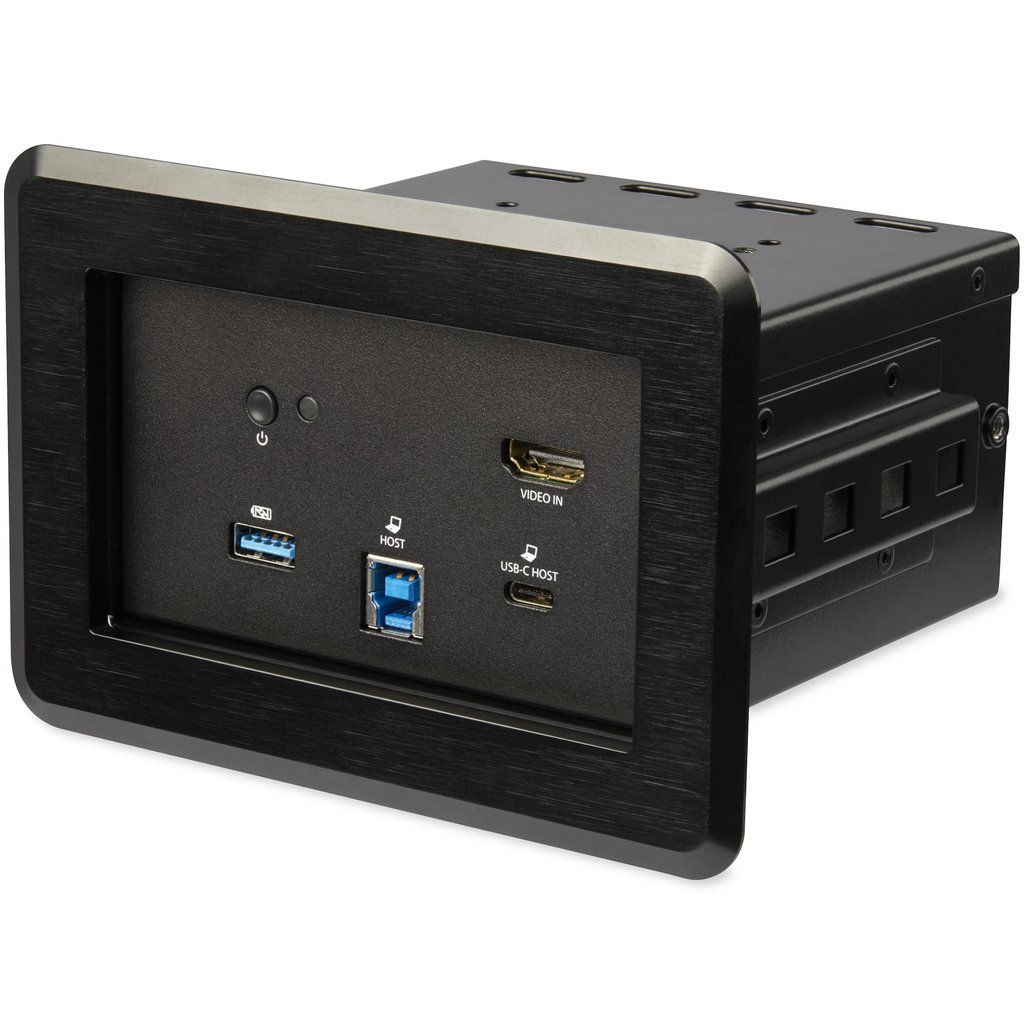

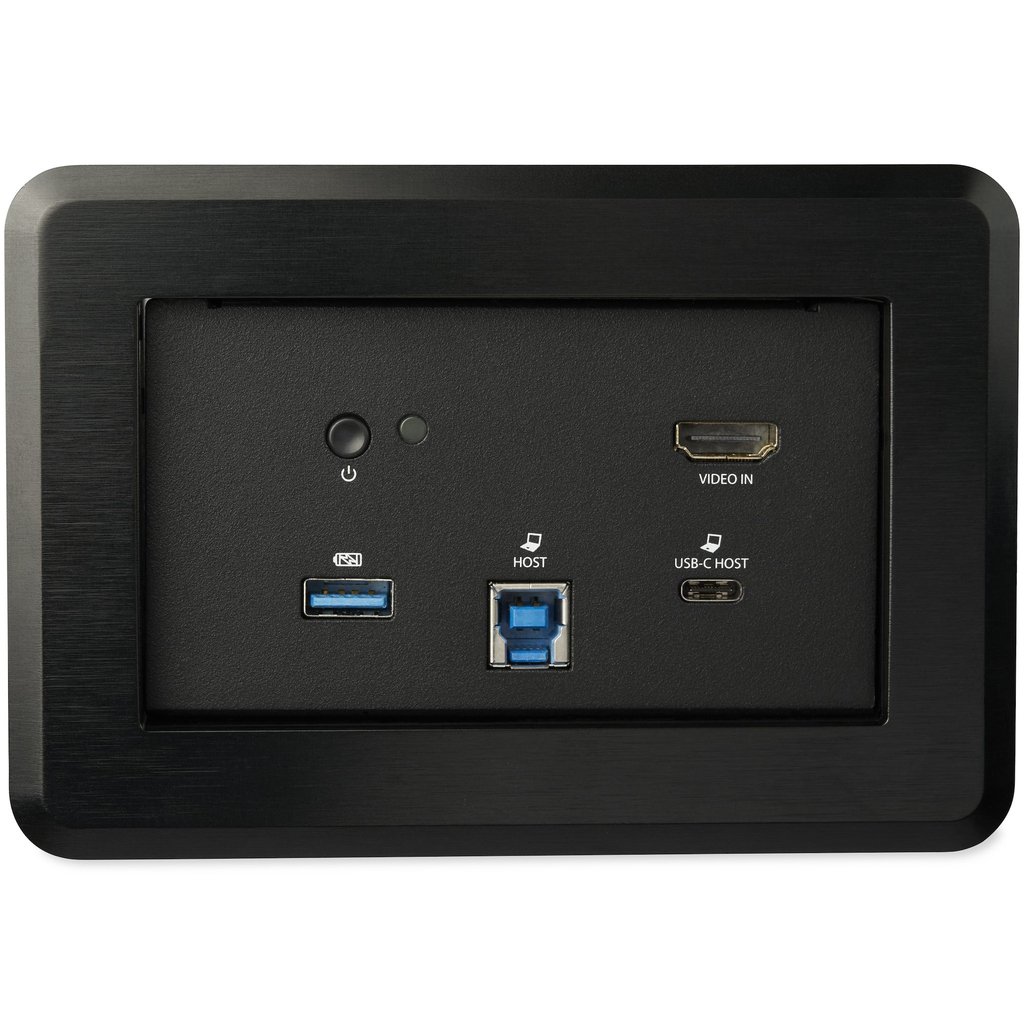

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Easy, Stylish and Clean Installation

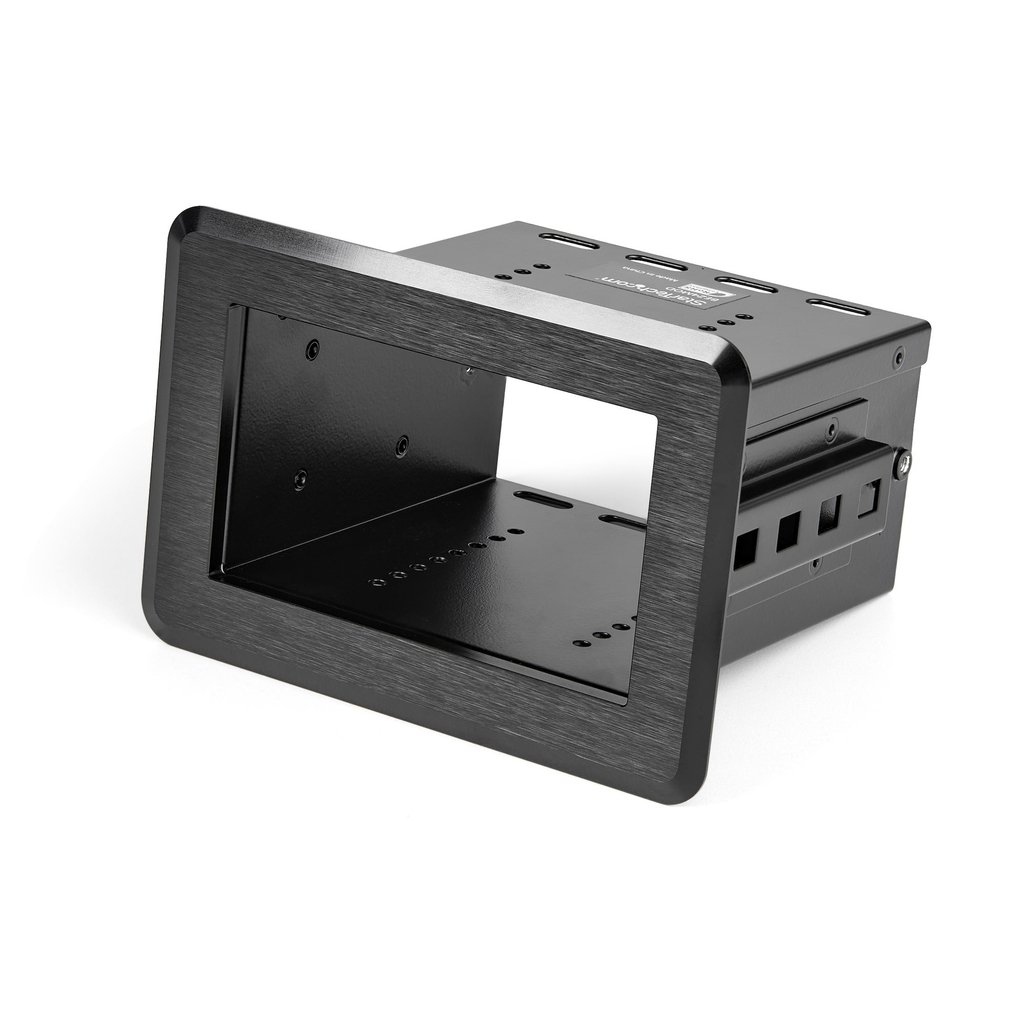

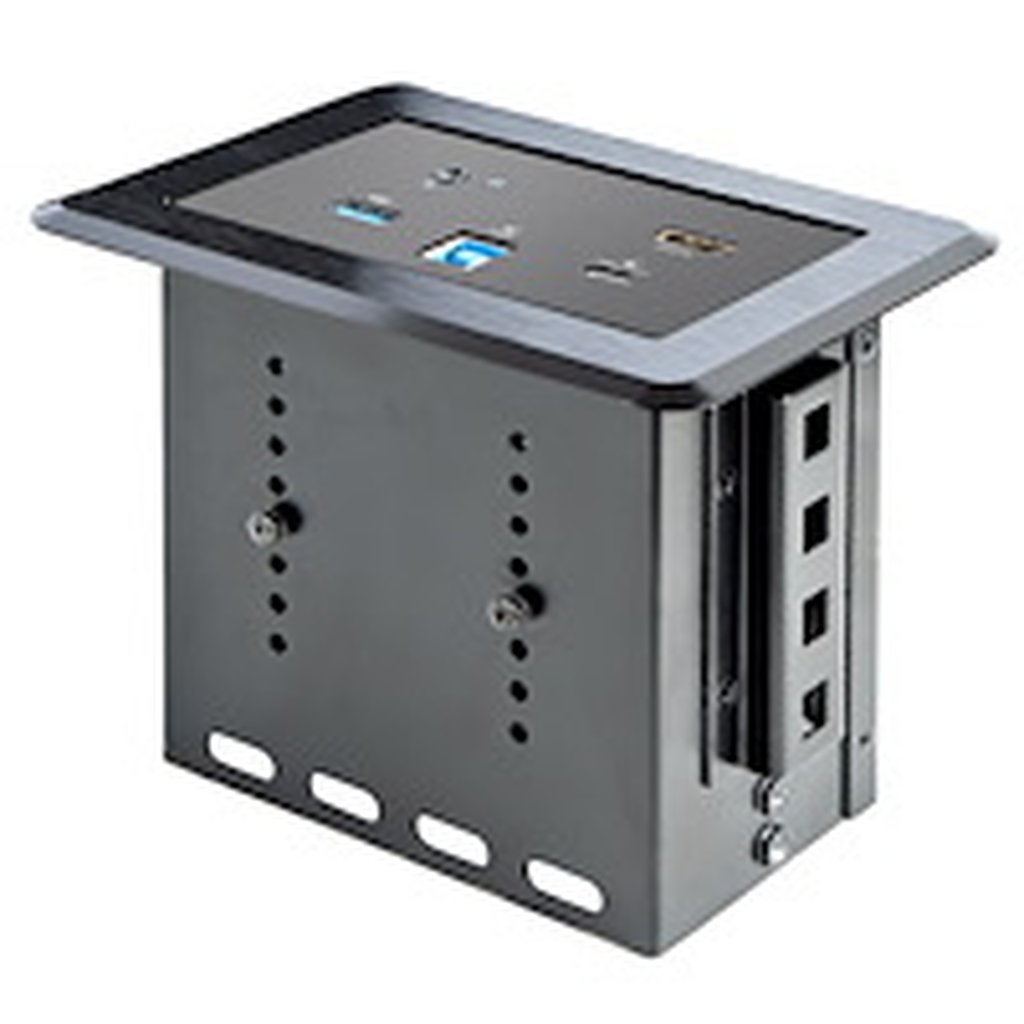

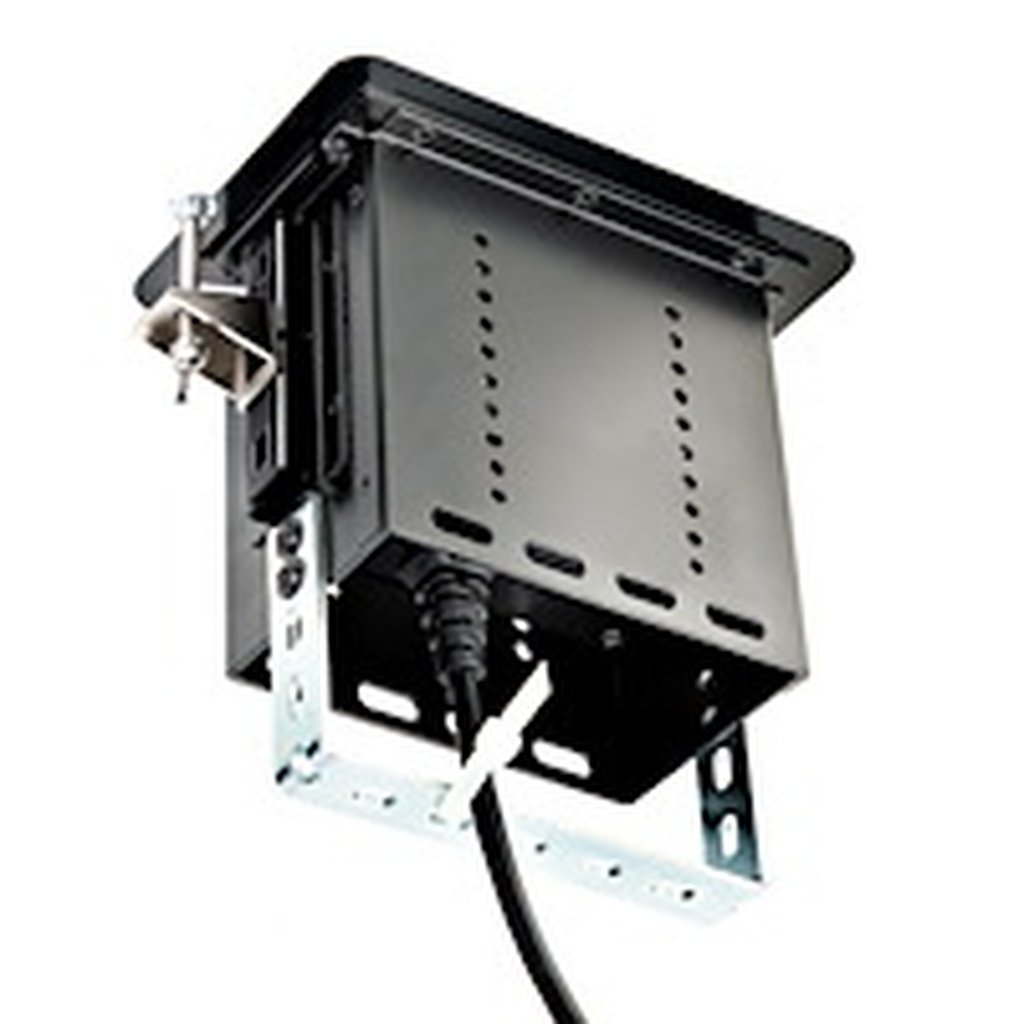

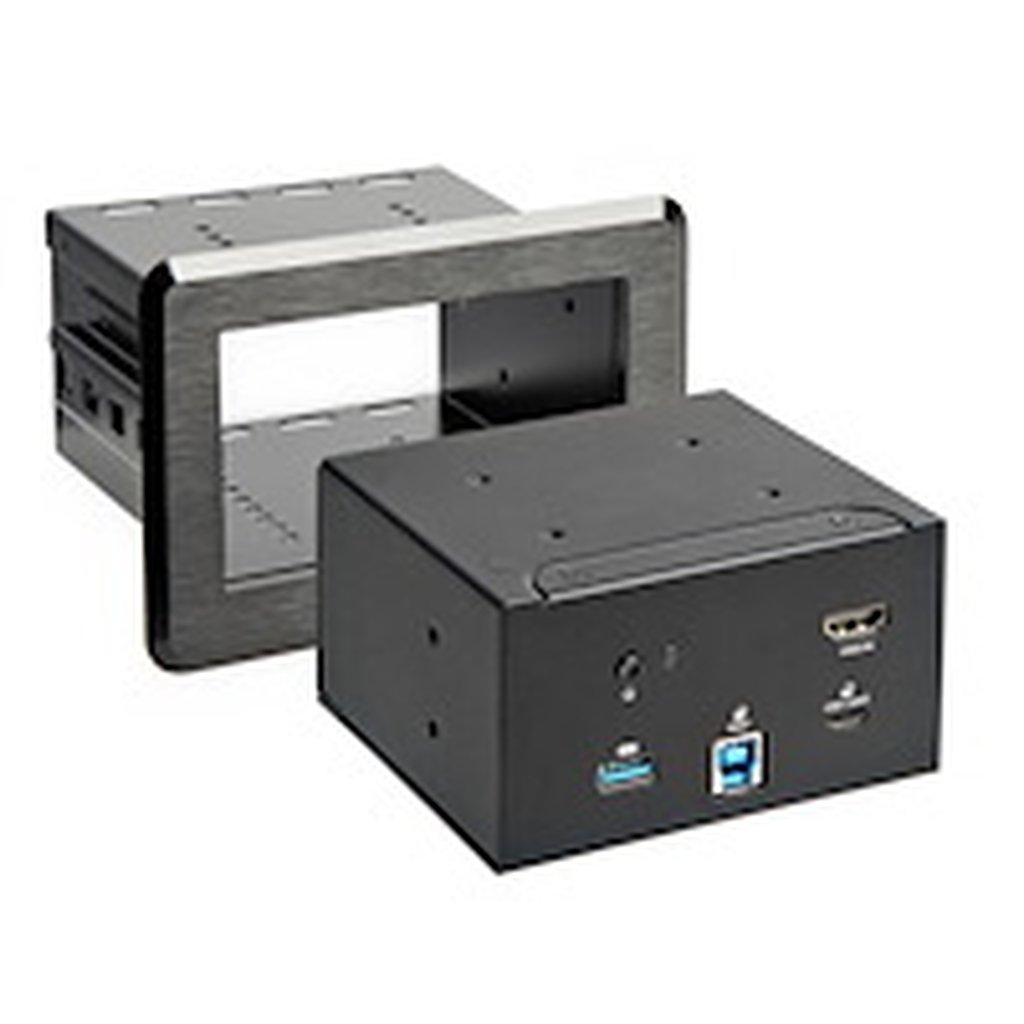

Design a practical and stylish solution that impresses your visitors and facilitates their needs. The in-table connectivity box is easy to install in a conference room table, desk or lectern, and features a black aluminum finish that complements your table and your peripherals.
KITBZDOCK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 3.36 lbs |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| AC adapter input voltage | 100 – 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 6 A |
| Power plug type | Type N |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 65 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Width | 145 mm |
| Depth | 100 mm |
| Height | 115 mm |
| Weight | 1.1 kg |
| Package width | 190 mm |
| Package depth | 192 mm |
| Package height | 134 mm |
| Package weight | 3 kg |
| Master (outer) case width | 190 mm |
| Master (outer) case length | 192 mm |
| Master (outer) case height | 134 mm |
| Products per master (outer) case | 1 pc(s) |
| Input current | 2 A |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| Chipset | DisplayLink – DL-6950, Genesys Logic – GL850G, Texas Instruments – TPS65982, Parade Technologies – PS176, VIA Labs – VL813, Realtek – RTL8153 |
| Operating systems supported | Windows 7, 8, 8.1, 10macOS 10.9 – 10.12, 10.14 – 10.15, 11.0, 12.0, 13.0 VenturaChrome OS v55+ |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| UASP support | Yes |
| Compliance certificates | CE, RoHS |
