StarTech.com Conference Table Box for AV Connectivity & Power/Charging – 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio
StarTech.com Conference Table Box for AV Connectivity & Power/Charging – 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio – Charging Station w/ 2x USB-A & 1x CE Certified UK Plug (KITBXAVHDPUK)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Architectural Connectivity | 4K | HDMI®, DisplayPort™ and VGA | 1x AC and 2x USB-A

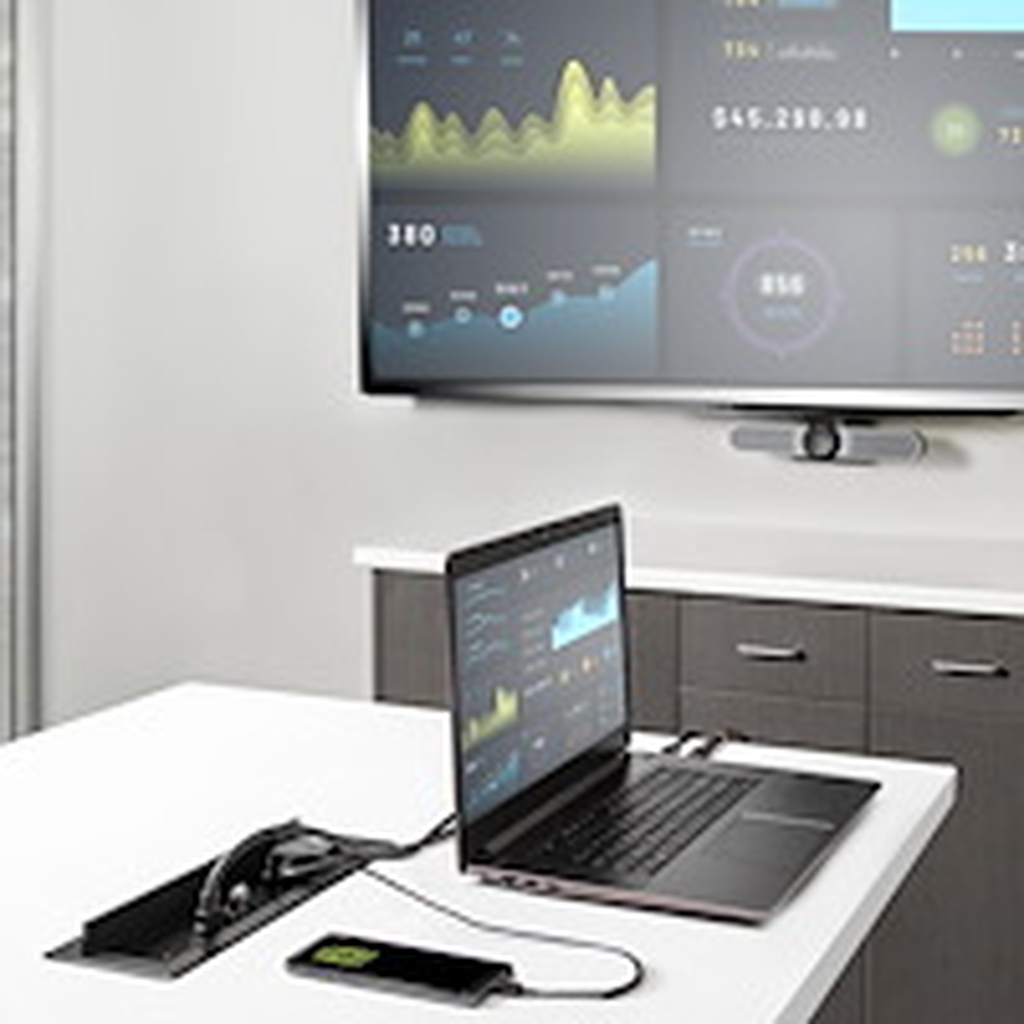

This conference table connectivity box bundle provides power and charging where it’s needed and adds A/V connectivity and network access to your boardroom, classroom or huddle space.

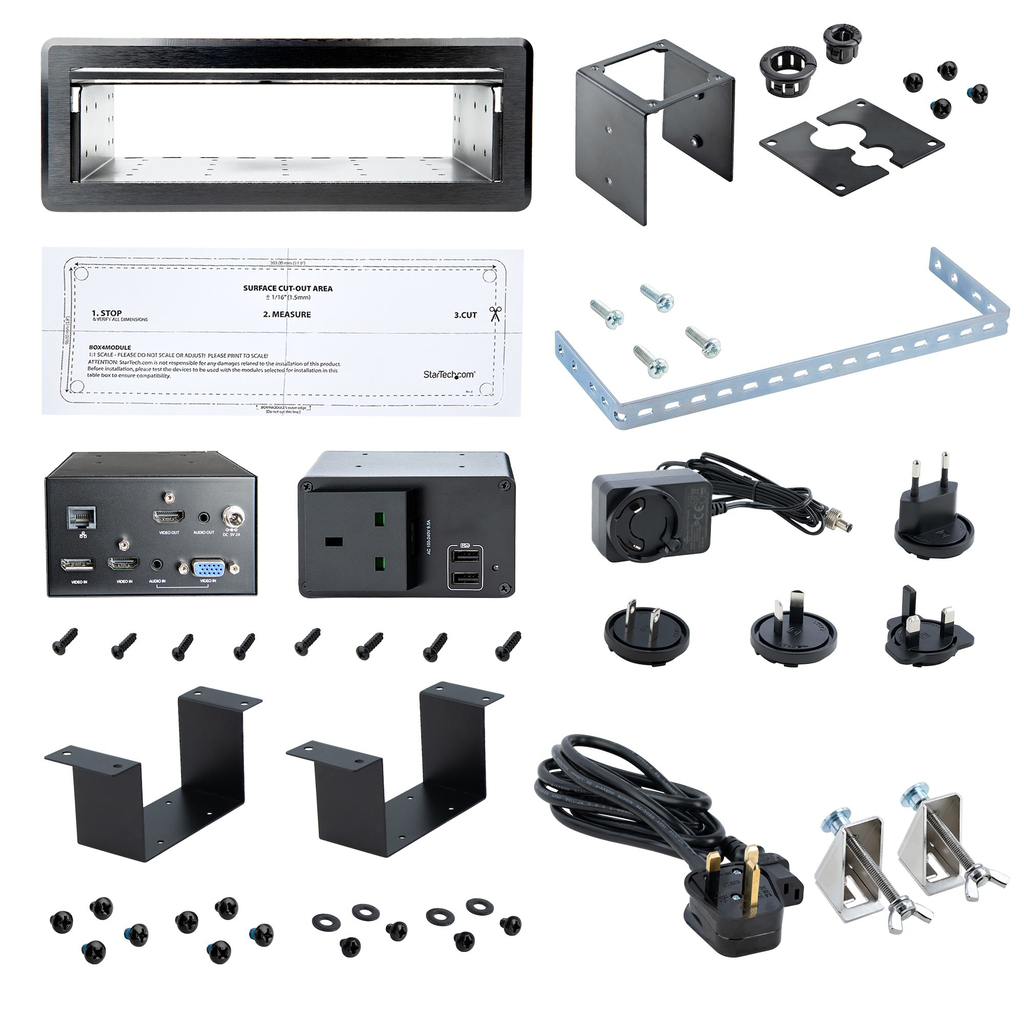

The StarTech.com bundle contains three products to equip you with a convenient out-of-the-box connectivity solution:

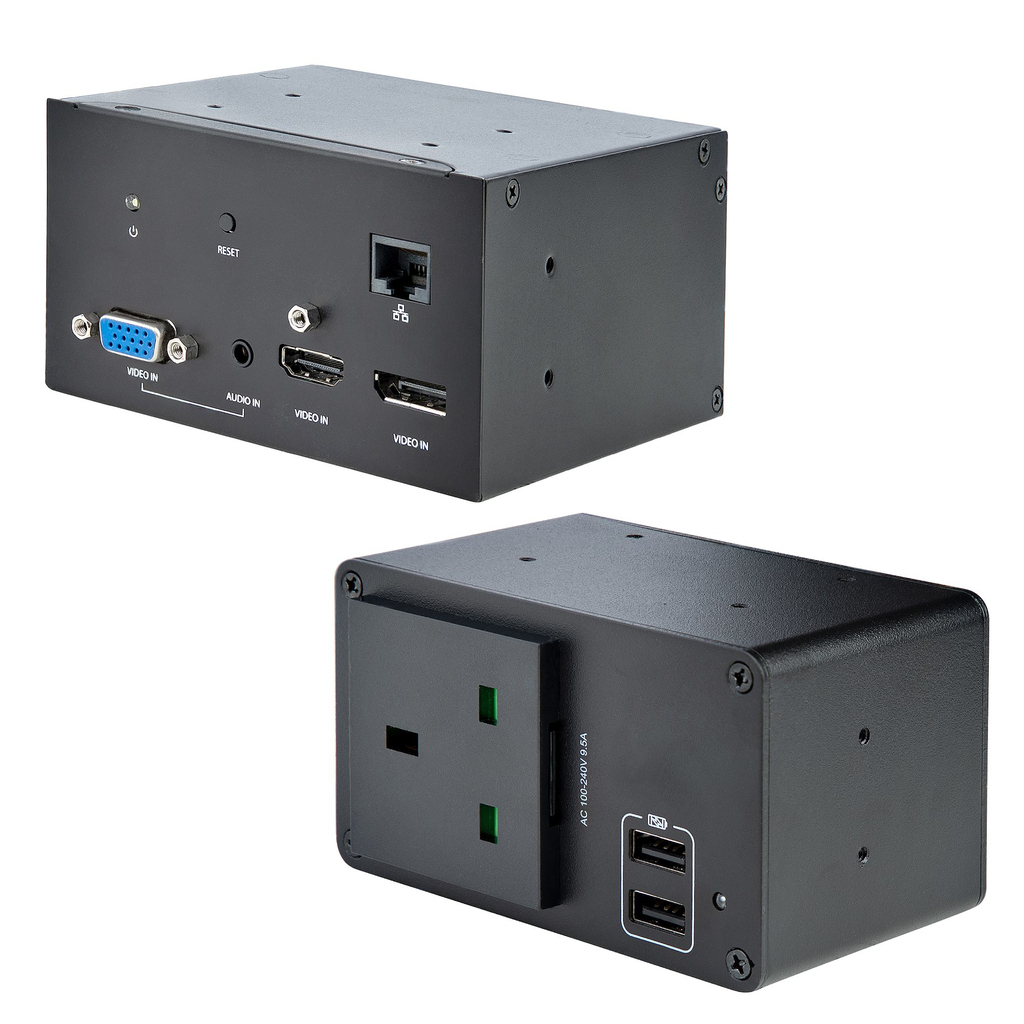

• Power outlet module (MOD4POWERUK)

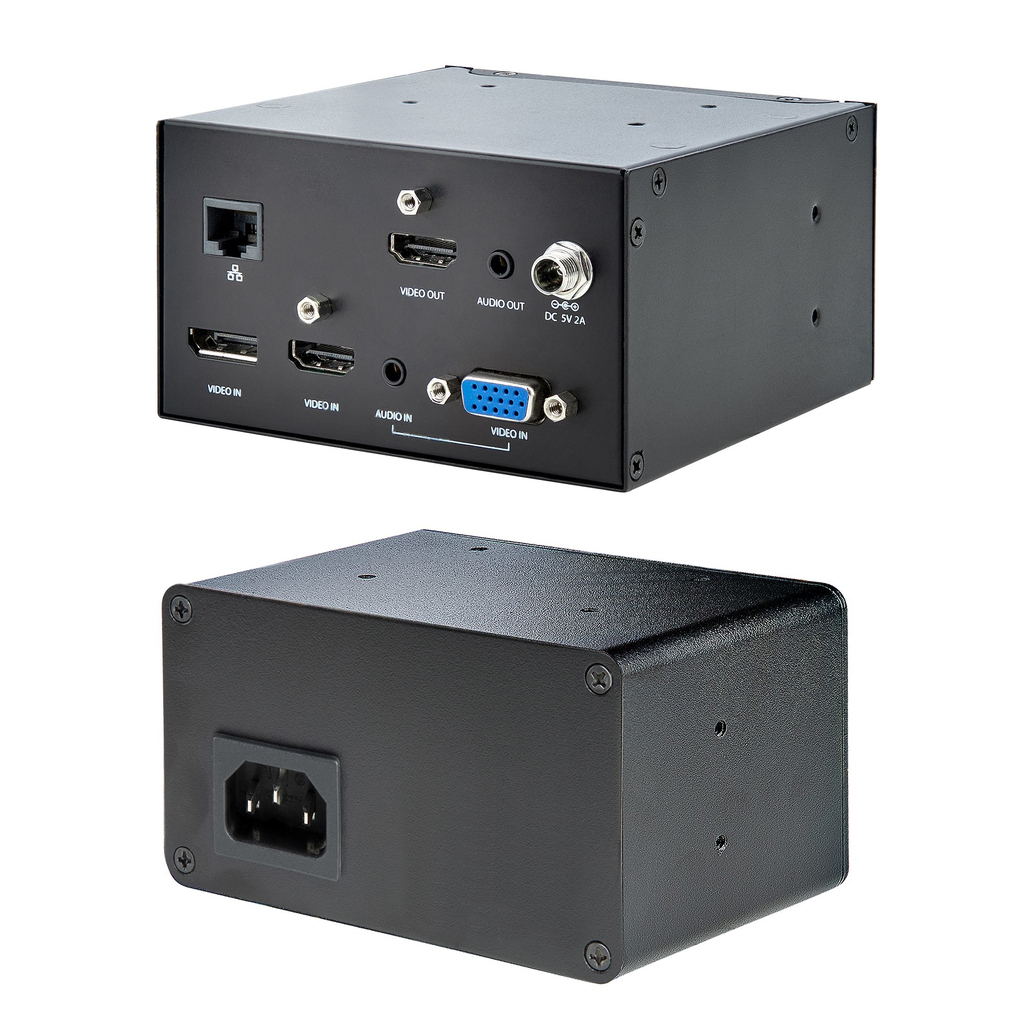

• Audio Video module (MOD4AVHD)

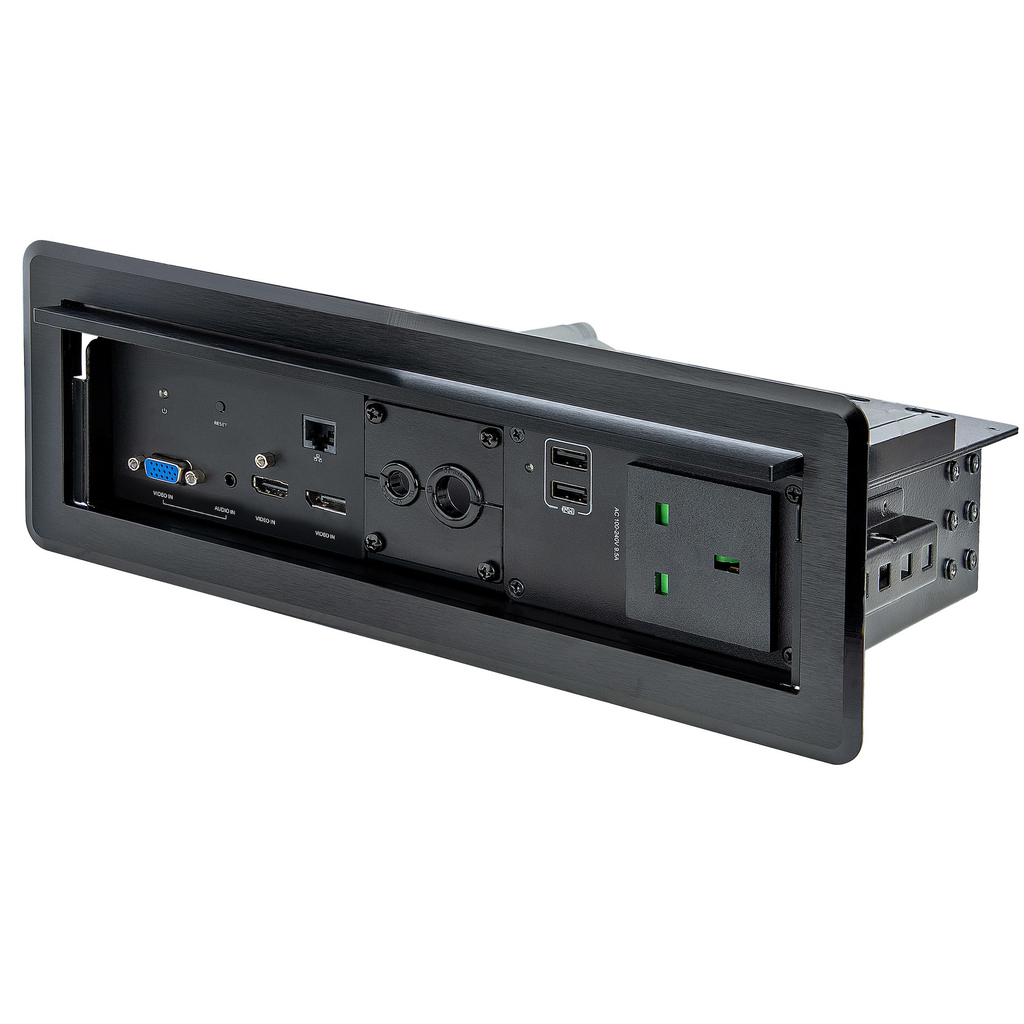

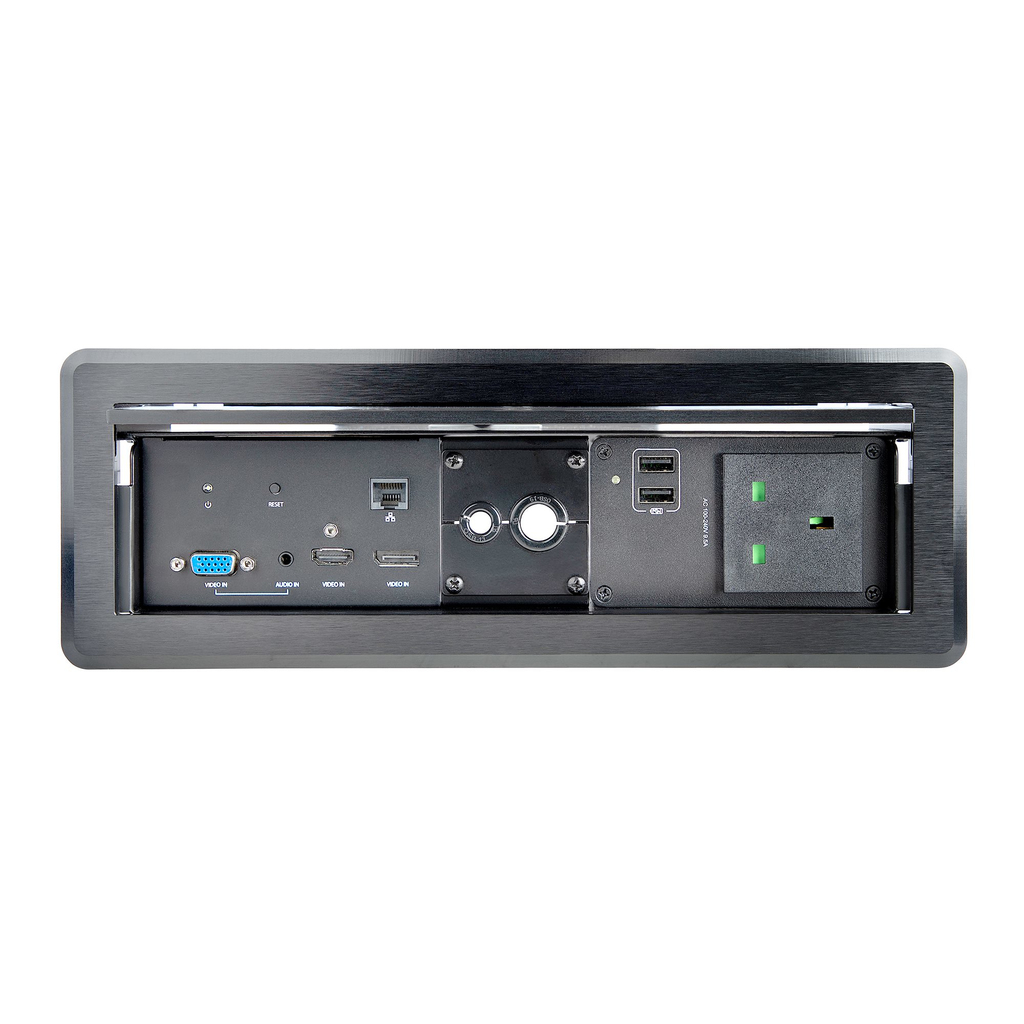

• Dual-module conference table connectivity box (BOX4MODULE)
Power Your Devices and Stay Charged During Meetings
Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings you may need access to power when your battery is running low or a meeting is running long.

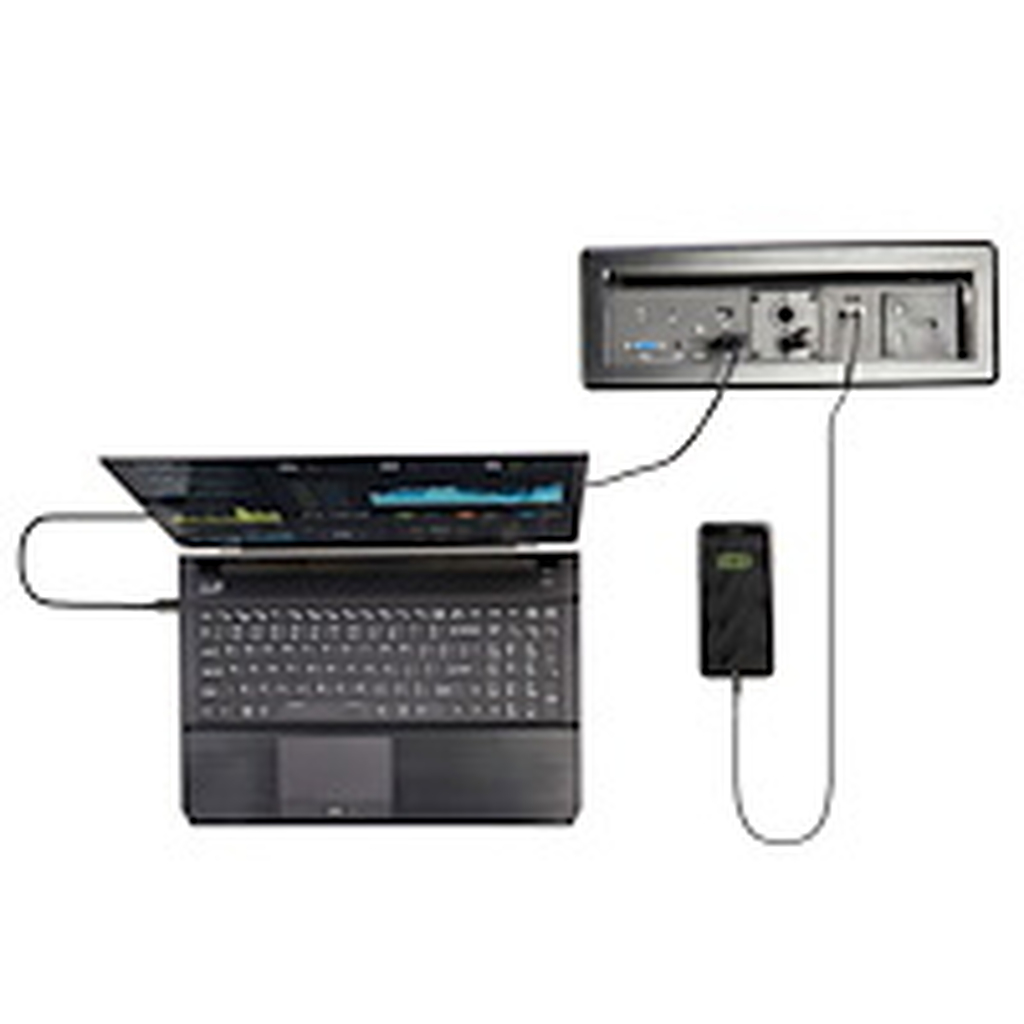

This tabletop power hub lets you power a laptop using the AC power outlet and charge phones and tablets using the 2.4 amp USB ports, directly from your conference table.
Easily Connect to a Display
The A/V module simplifies connectivity with automatic switching and conversion. The module lets you present content from your HDMI, DP or VGA laptop on an HDMI display or projector, without the hassle of menu and input selections. And, it automatically switches to the most recently connected or powered-on laptop.
Simple Installation

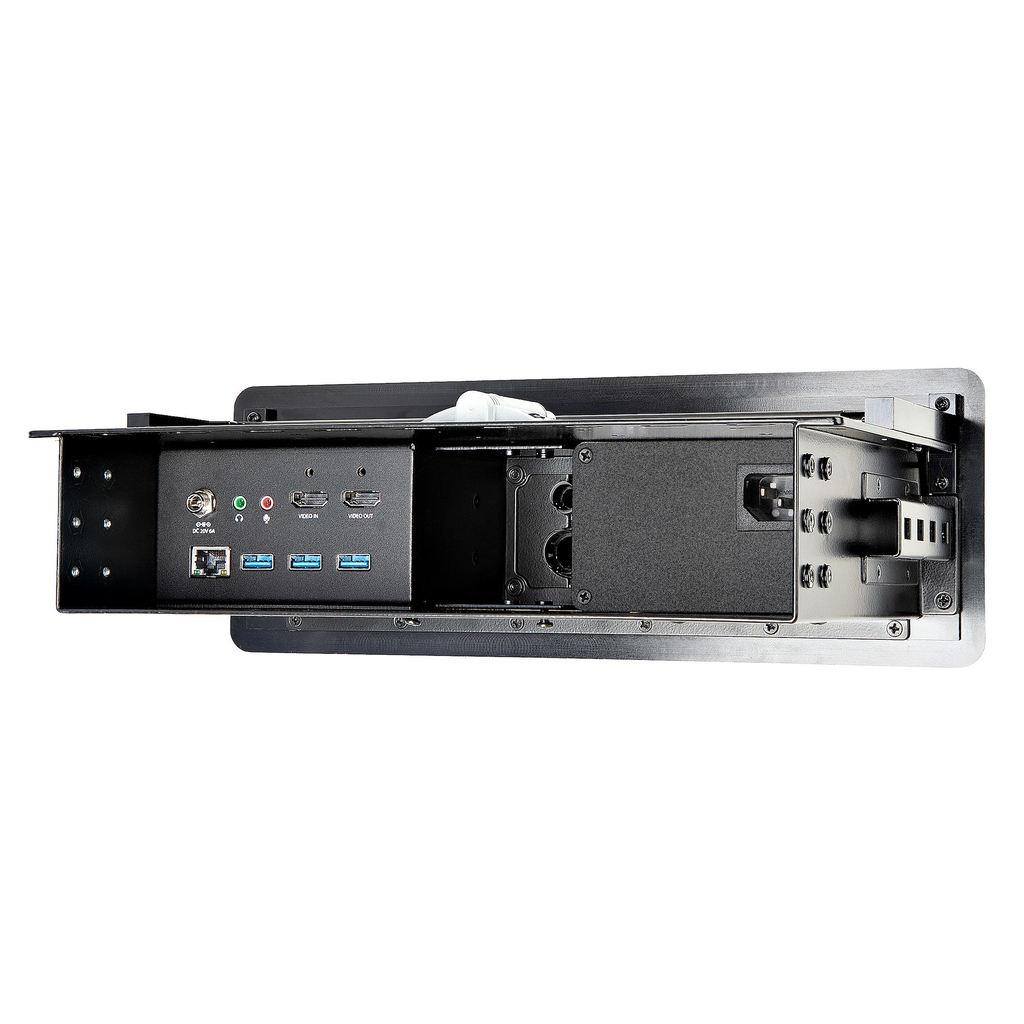

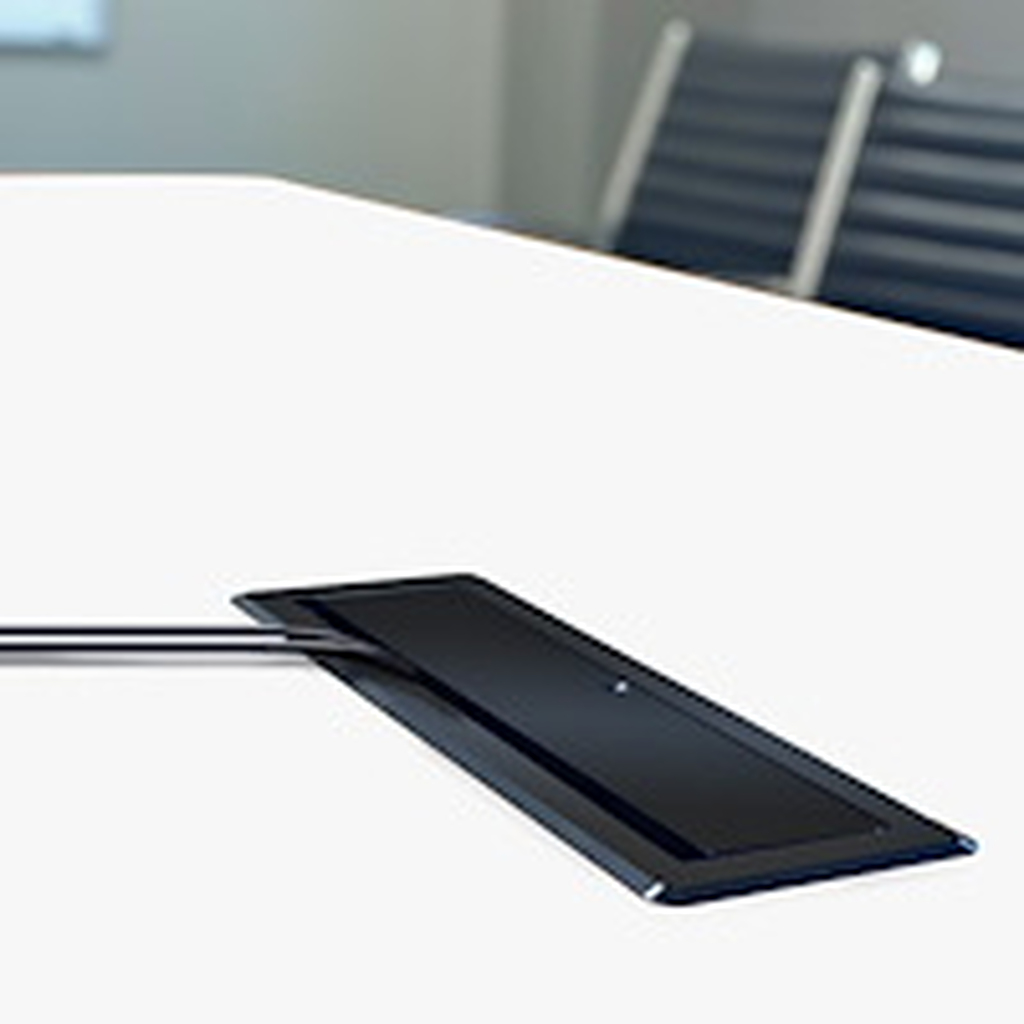

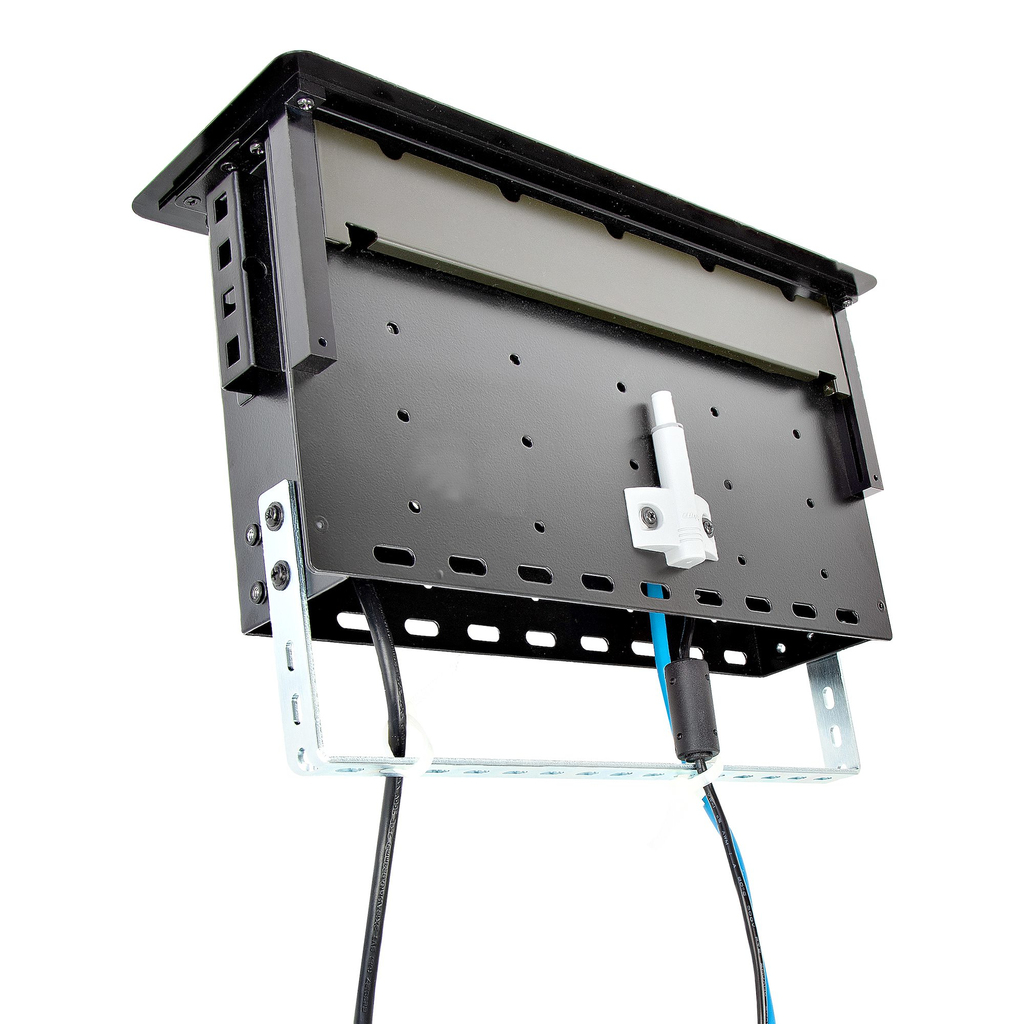

The conference table insert is easy to install and features a lid that closes to conceal connection points. The cable organizer keeps cable accessible.
KITBXAVHDPUK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 60 Hz |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Product colour | Black |
| Housing material | Aluminium, Plastic, Steel |
| LED indicators | Power |
| Reset button | Yes |
| Compatible products | Parade – PS176, Chrontel – CH7035, Explore Micro – EP9442U, TI – TS3DV64 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts in | 2 |
| VGA (D-Sub) input ports | 2 |
| Audio input | 2 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB pass-through | No |
| DC-in jack | Yes |
| Power consumption (typical) | 10 W |
| AC adapter input voltage | 100 – 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power plug type | Type M |
| AC outlet types | BS 1363, C13 coupler |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Width | 318 mm |
| Depth | 165 mm |
| Height | 110 mm |
| Weight | 3.15 kg |
| Package width | 360 mm |
| Package depth | 140 mm |
| Package height | 240 mm |
| Package weight | 5.57 kg |
| Cables included | AC |
| AC adapter included | Yes |
| Included power plug types | EU, NA, UK |
| Screws included | Yes |
| Number of screws | 36 |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 240 mm |
| Products per master (outer) case | 1 pc(s) |
