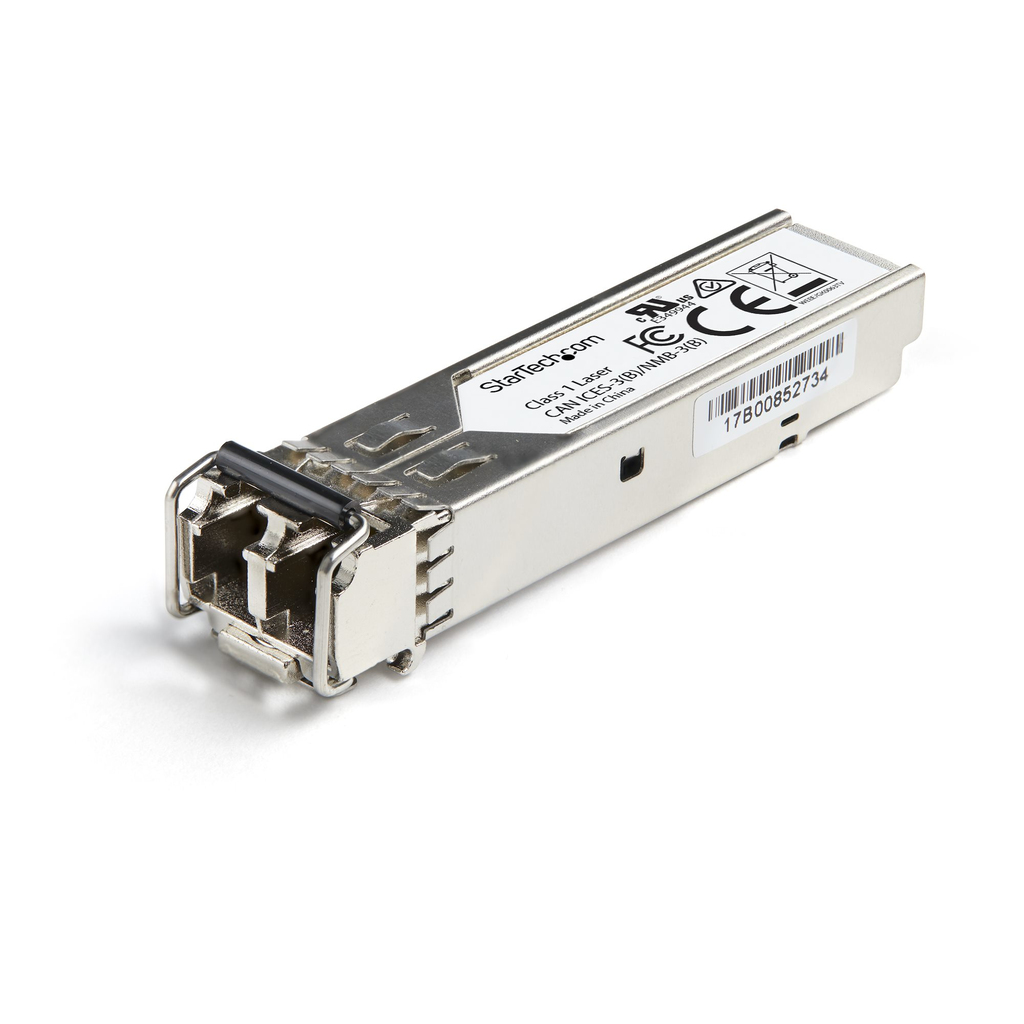

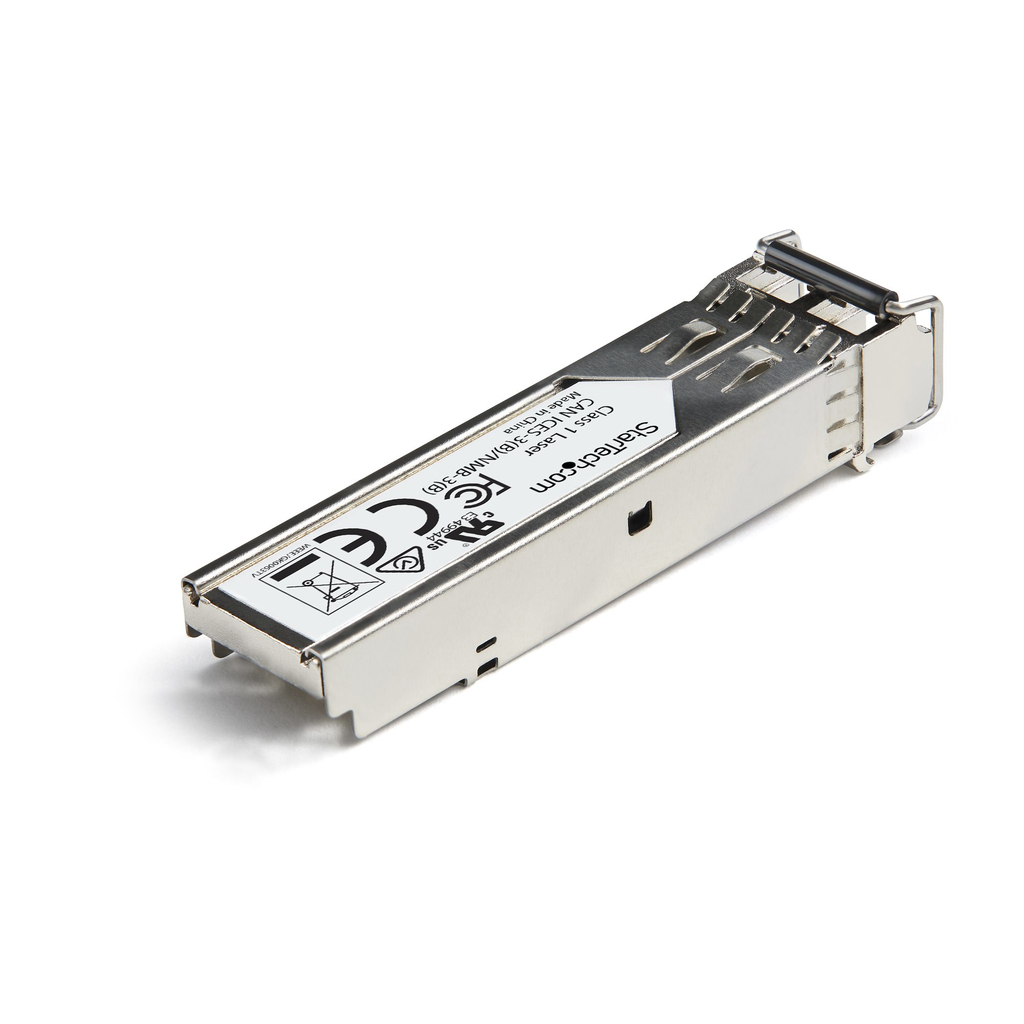

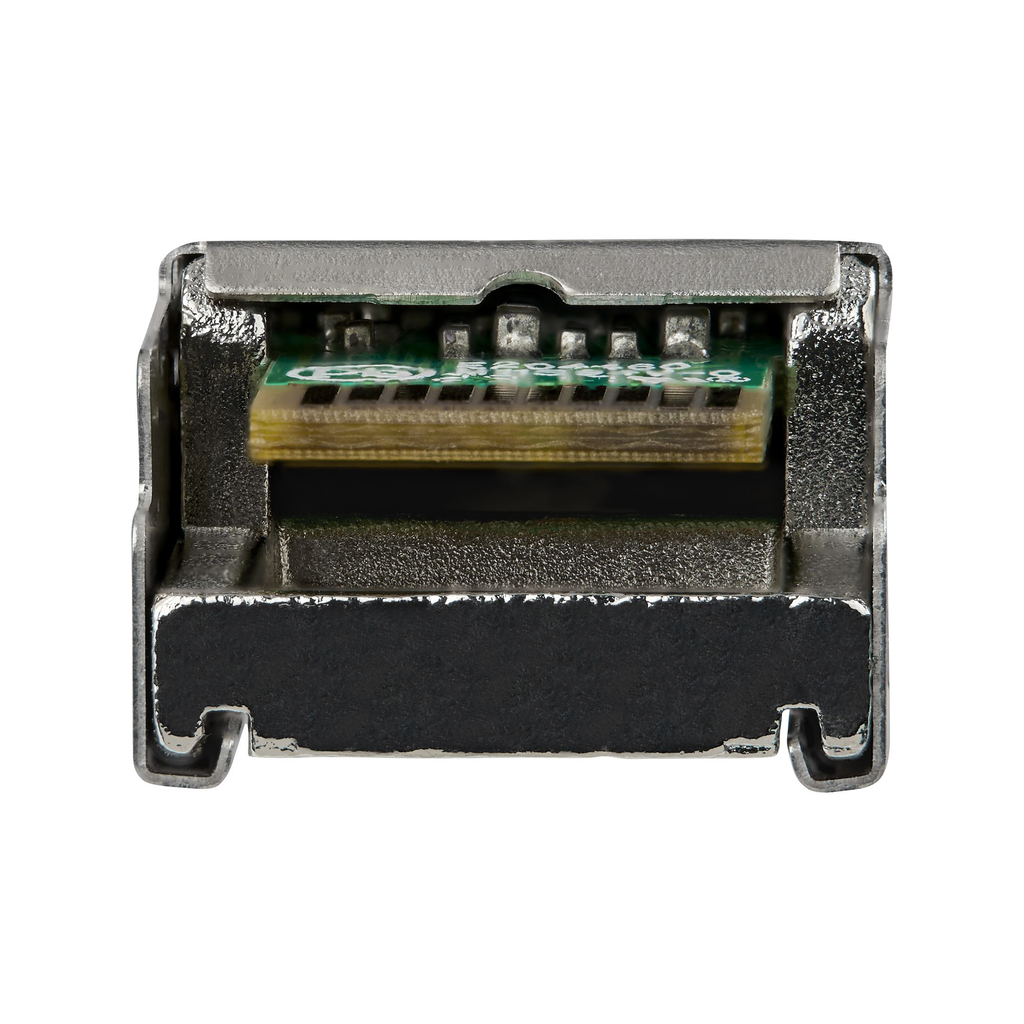

StarTech.com Dell EMC SFP-100M-FX Compatible SFP Module – 100BASE-FX – 100MbE Multi-Mode Fiber MMF / Single Mode Fiber SMF Opti
StarTech.com Dell EMC SFP-100M-FX Compatible SFP Module – 100BASE-FX – 100MbE Multi-Mode Fiber MMF / Single Mode Fiber SMF – 100Mb Ethernet SFP – LC 2km – 1310nm – DDM (SFP100MFXEMS)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
155 Mbps | Multi Mode Fiber & Single Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty
The SFP100MFXEMS is a Dell EMC SFP-100M-FX compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 100 MbE connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 100 Mbps
• Type: Single Mode Fiber & Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 1,472,572 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.14 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | FX |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UL, REACH |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Fiber ethernet cabling technology | 100BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 1472572 h |
| Brand compatibility | Dell |
| Compatible products | SFP-100M-FX |
| Compliance certificates | RoHS |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 30 g |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
