StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840×2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.

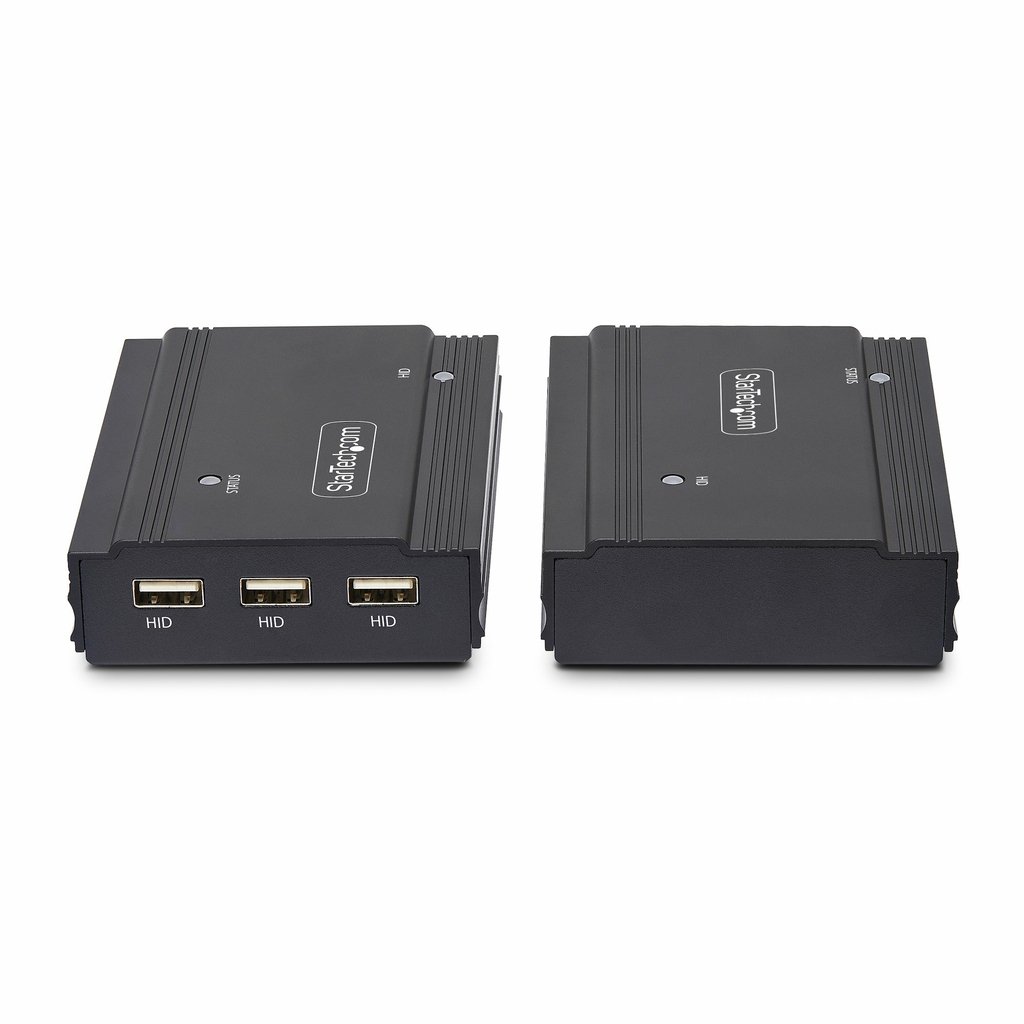

Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
The StarTech.com Advantage
Additional information
| Weight | 1.05 lbs |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| On Screen Display (OSD) | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of displays supported | 1 |
| Receiver local video port type | DisplayPort |
| USB 1.1 ports quantity | 3 |
| AC input voltage | 100 – 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| Transmitter width | 7.4 cm |
| Transmitter depth | 10 cm |
| Transmitter height | 2.8 cm |
| Transmitter weight | 235 g |
| Receiver width | 7.4 cm |
| Receiver depth | 10 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 235 g |
| Package width | 306 mm |
| Package depth | 175 mm |
| Package height | 70 mm |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 323 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
| Supported resolutions | 4096 x 2160 @ 60hz3840 x 2160 @ 60hz3440 x 1440 @ 60hz3200 x 1800 @ 60hz3072 x 1728 @ 60hz2560 x 1440 @ 60hz2048 x 1536 @ 60hz1920 x 1200 @ 60hz3840 x 1080 @ 60hz1920 x 1080 @ 60hz1760 x 990 @ 60hz168 |
| Transmitter local video port | Yes |
| Transmitter local video port type | DisplayPort |
| Transmitter Micro-USB ports quantity | 1 |
| Receiver Micro-USB ports quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Included power plug types | ANZ, EU, NA, UK |
| Extended display identification data (EDID) | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Sustainability compliance | Yes |
