StarTech.com DisplayPort to DVI Dual Link Active Adapter – DisplayPort to DVI-D Adapter Video Converter 2560×1600 60Hz – DP 1.2

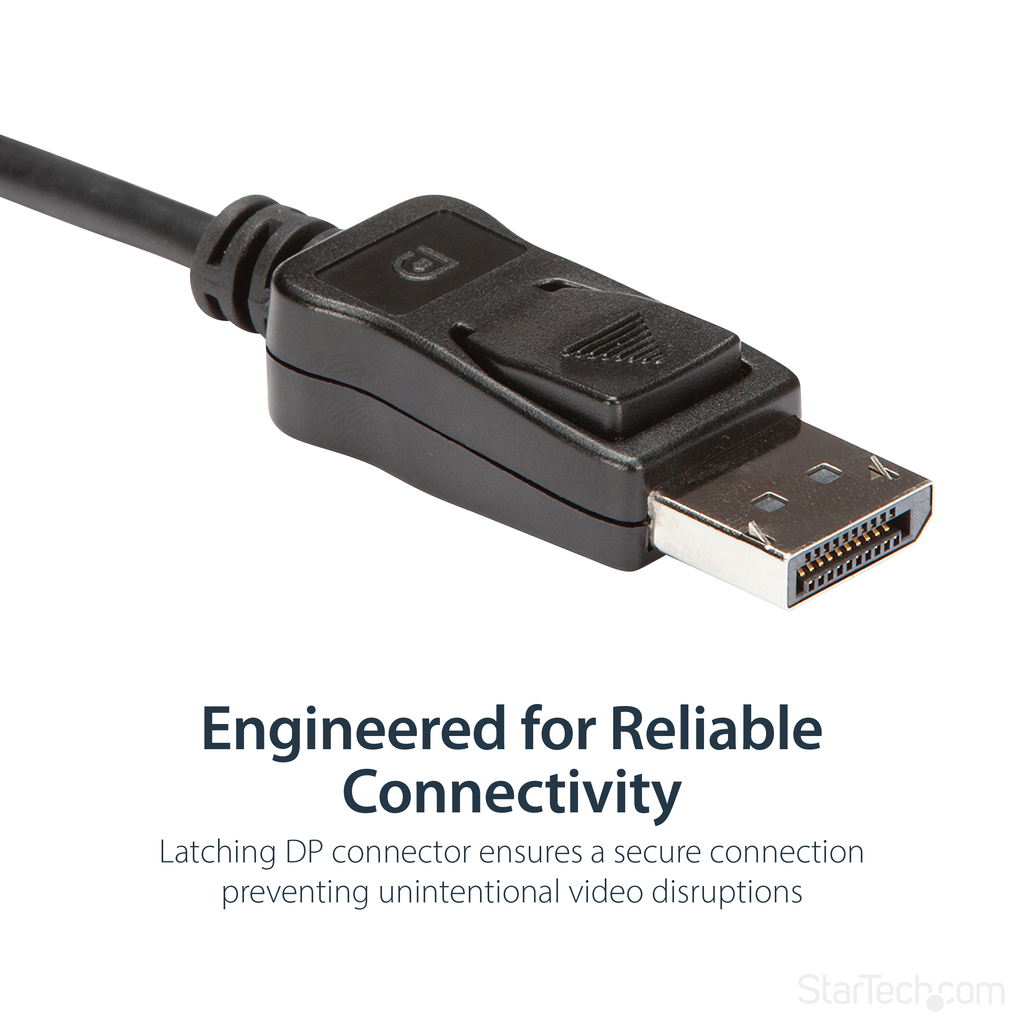

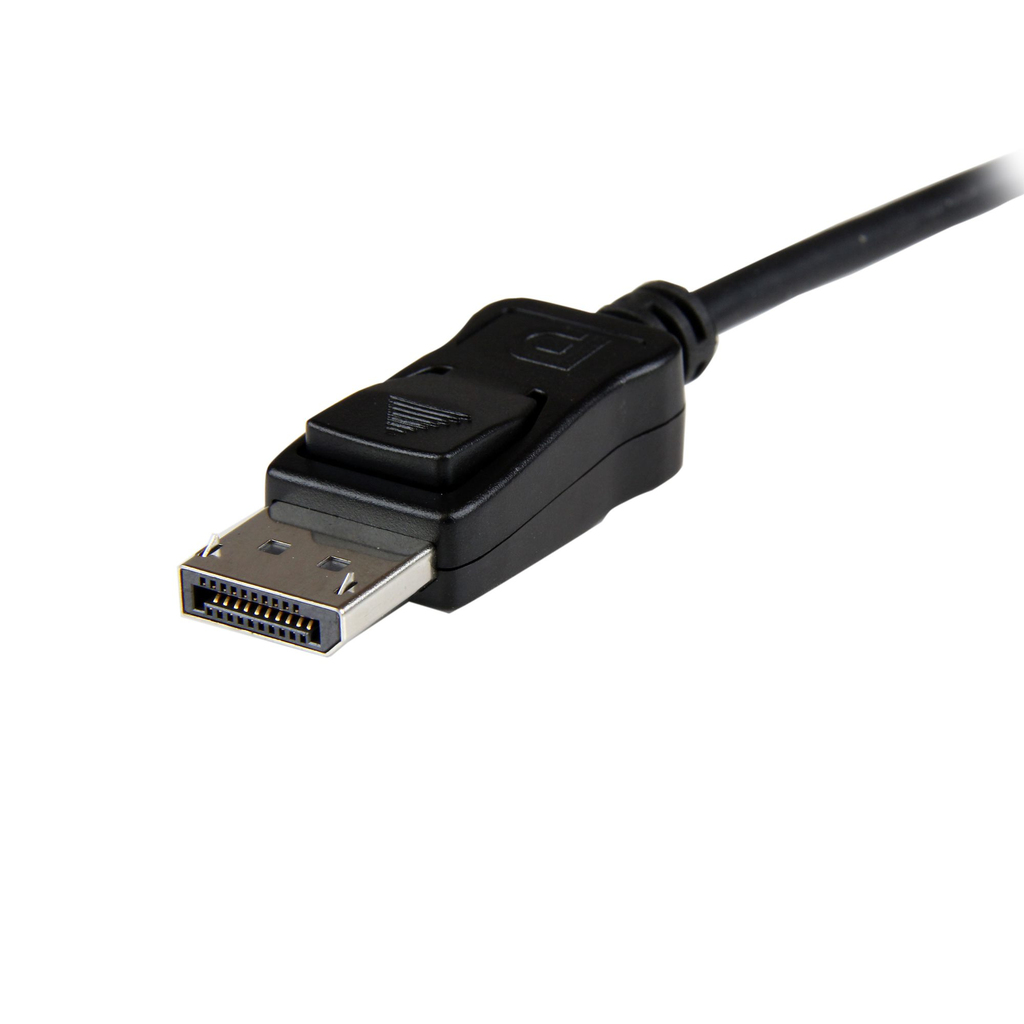

StarTech.com DisplayPort to DVI Dual Link Active Adapter – DisplayPort to DVI-D Adapter Video Converter 2560×1600 60Hz – DP 1.2 to DVI Monitor – USB Powered – Latching DP Connector (DP2DVID2)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

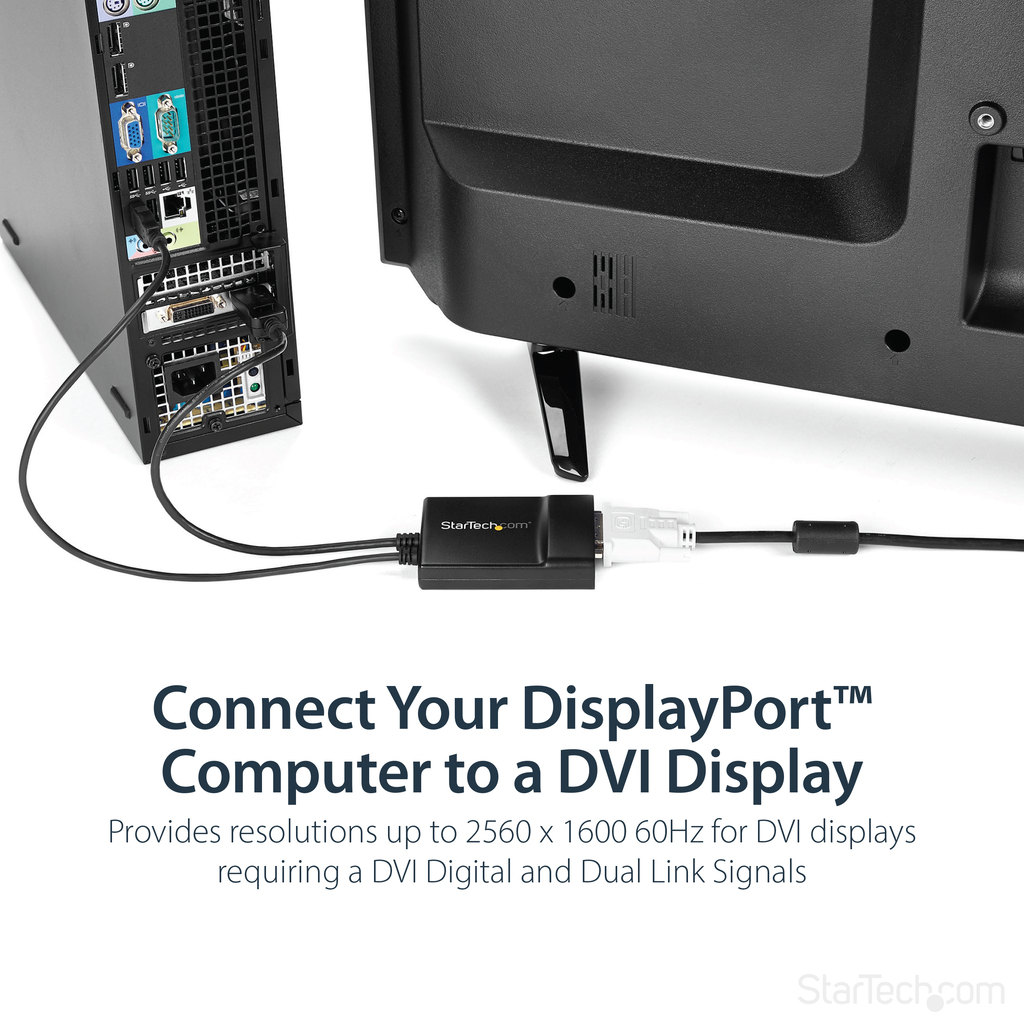

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

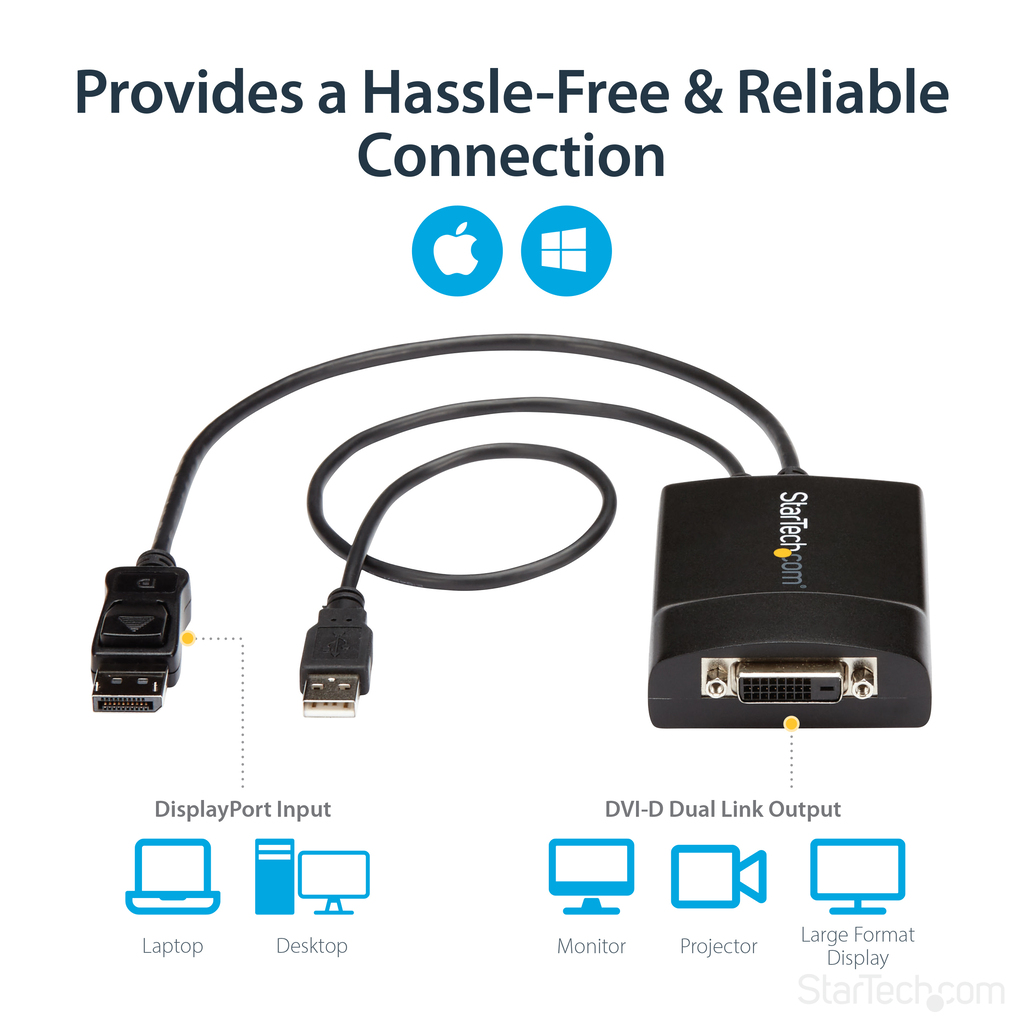

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560×1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.

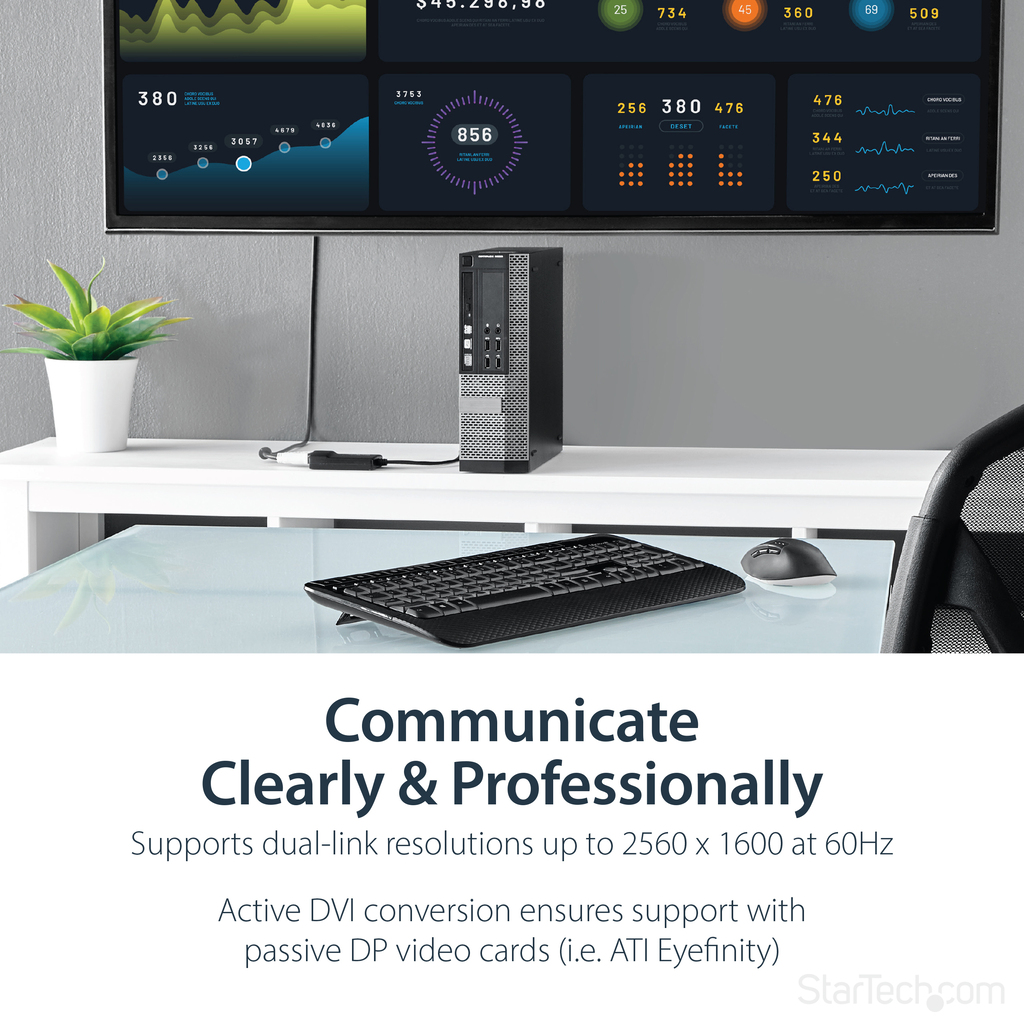

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren’t capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.24 lbs |
|---|---|
| Cable length | 0.37 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 2560 x 1600 pixels |
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Compliance certificates | CE, RoHS |
| Certification | RoHS |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Weight | 160 g |

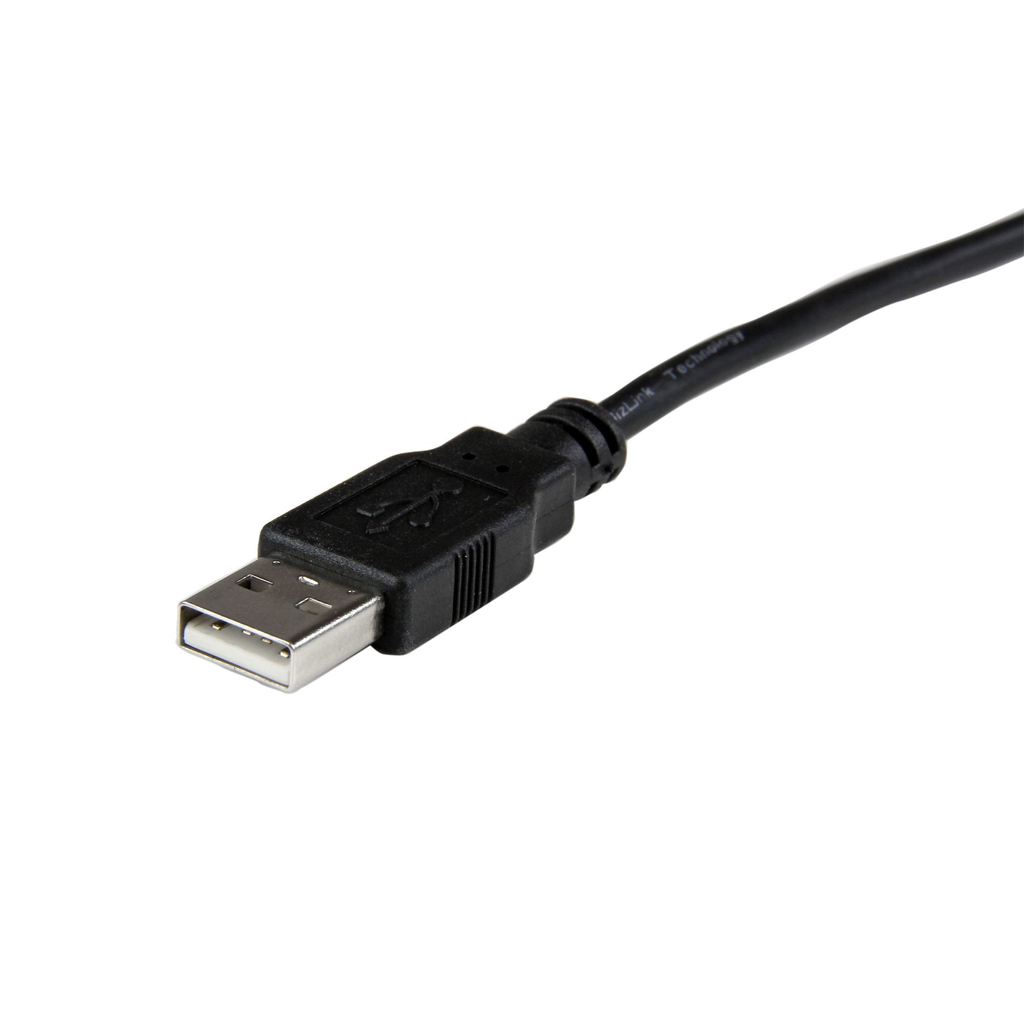

| Power source | USB |
| HDCP | Yes |
| Converter type | Active video converter |
| Package width | 174 mm |
| Package depth | 143 mm |
| Package height | 35 mm |
| Package weight | 232 g |
| Master (outer) case width | 337 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 28 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Width | 64 mm |
| Depth | 549 mm |
| Height | 22 mm |
| Dual Link DVI | Yes |
| HBR2 support | Yes |
