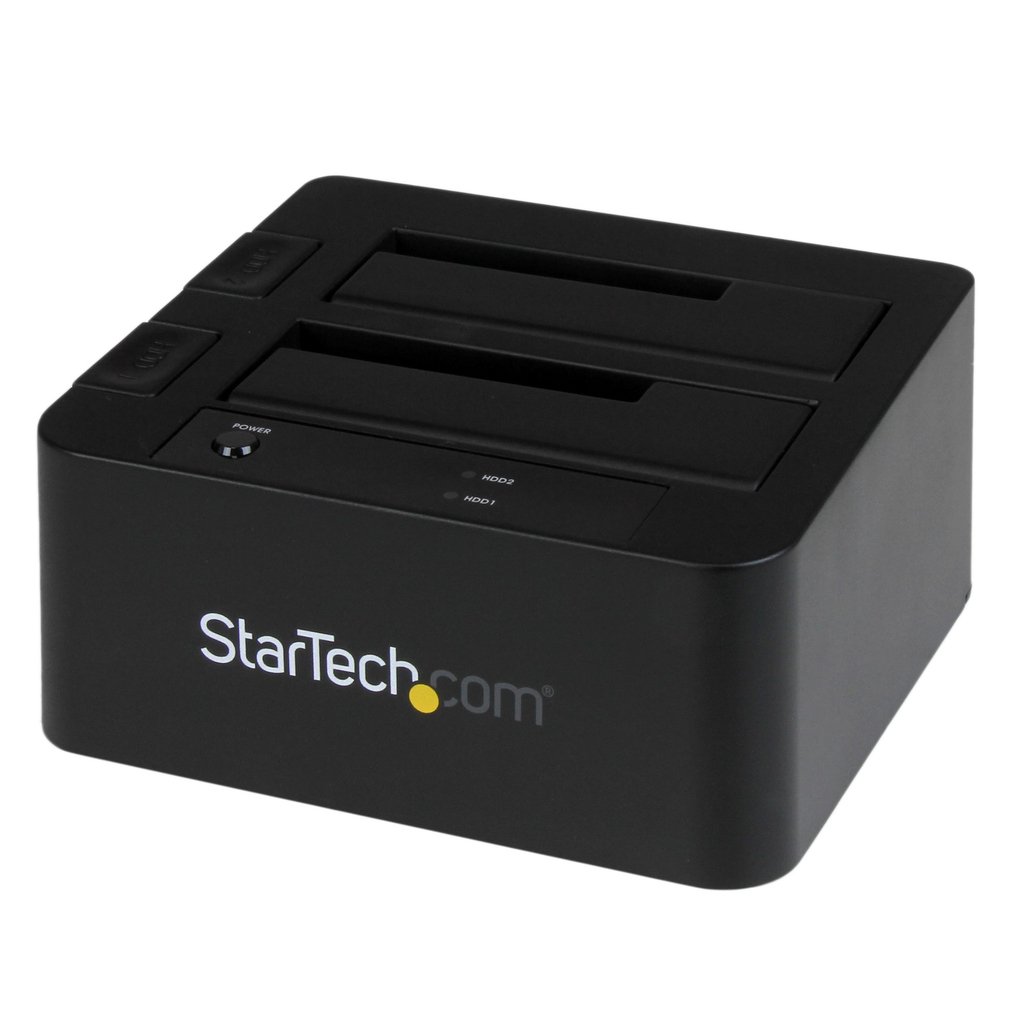

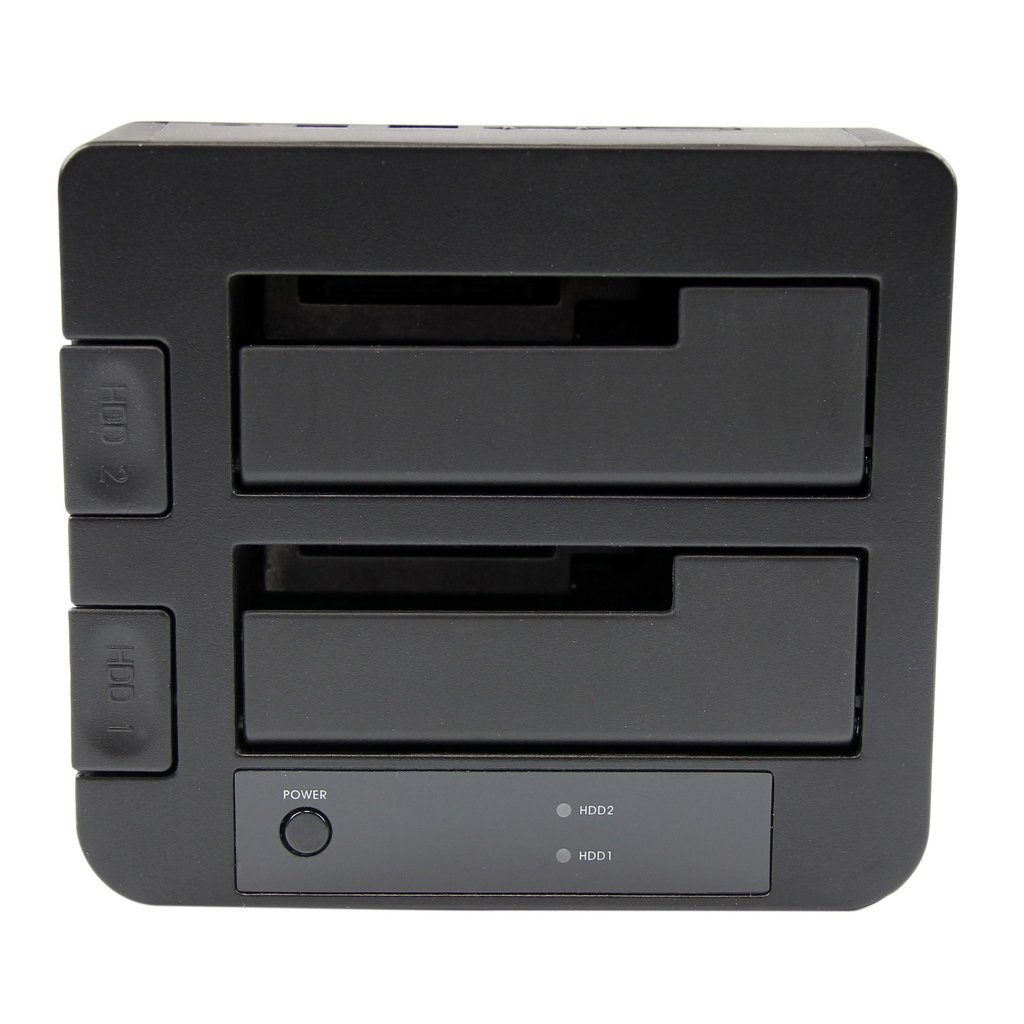

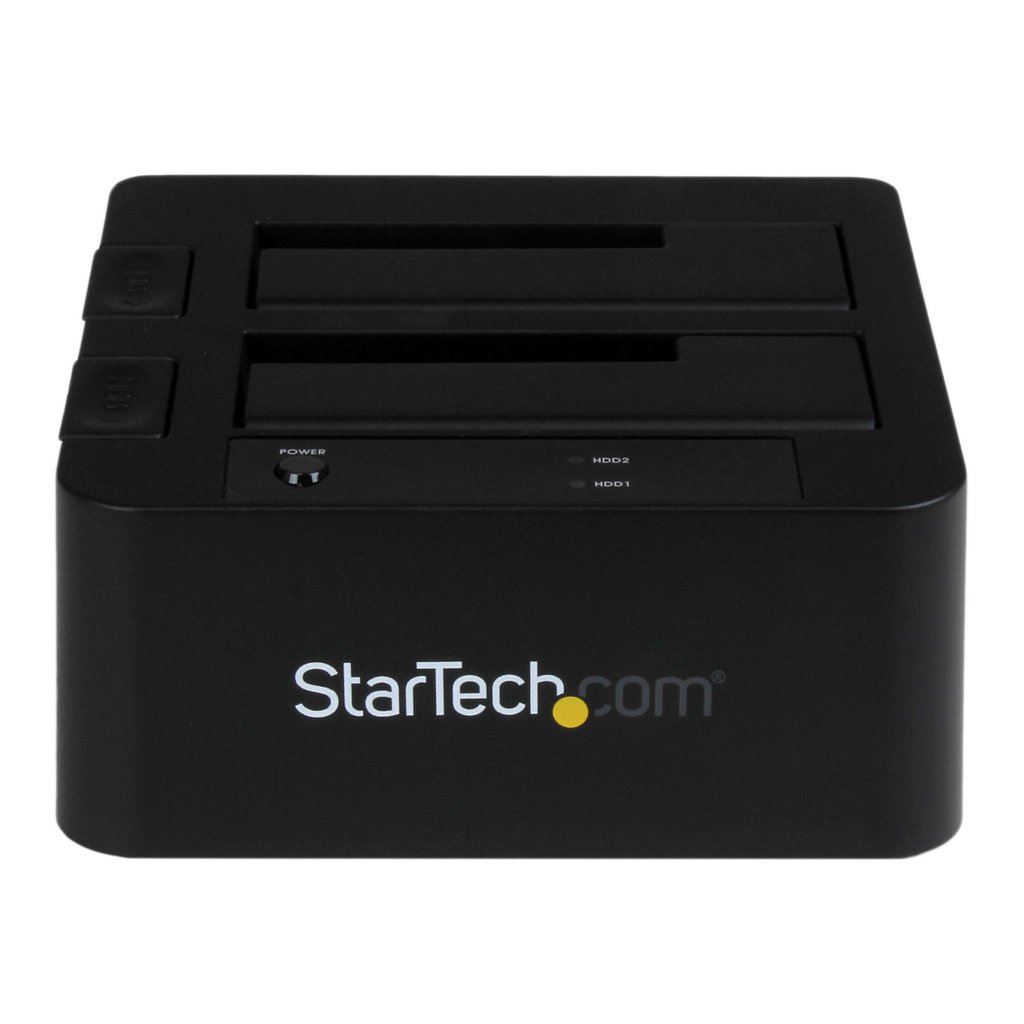

StarTech.com Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III

Description

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA

The SDOCK2U33EB Dual 2.5/3.5″ SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.

For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds — up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

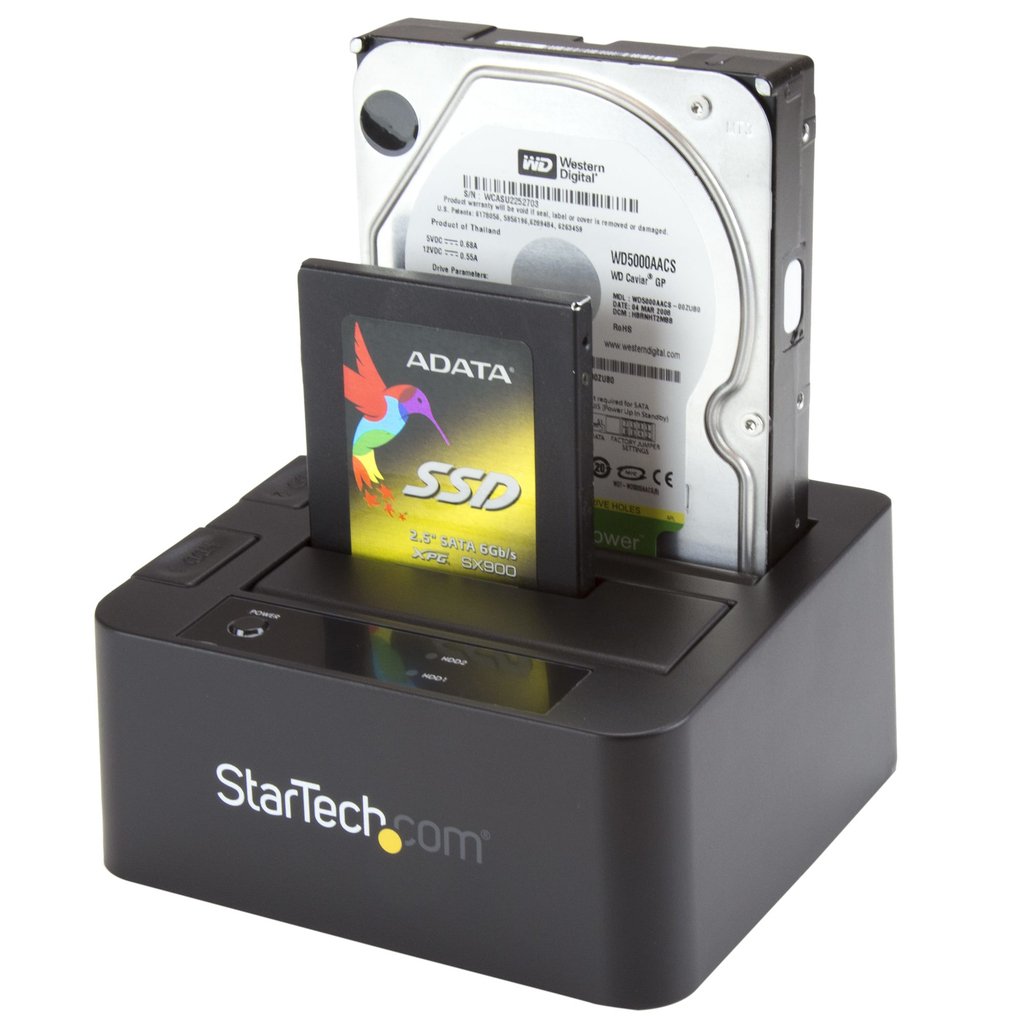

The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Additional information

Weight	0.98 lbs
Storage media type	HDD, SSD
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Maximum storage capacity	8 TB
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Product colour	Black
Material	Plastic
Maximum data transfer rate	6 Gbit/s
LED indicators	Activity, Power
AC input voltage	100-240 V
Input current	1.5 A
Output voltage	12 V
Output current	3 A
Width	132 mm
Depth	143 mm
Height	70 mm
Weight	524 g
Package width	123 mm
Package depth	185 mm
Package height	210 mm
Package weight	1.1 kg
AC adapter included	Yes

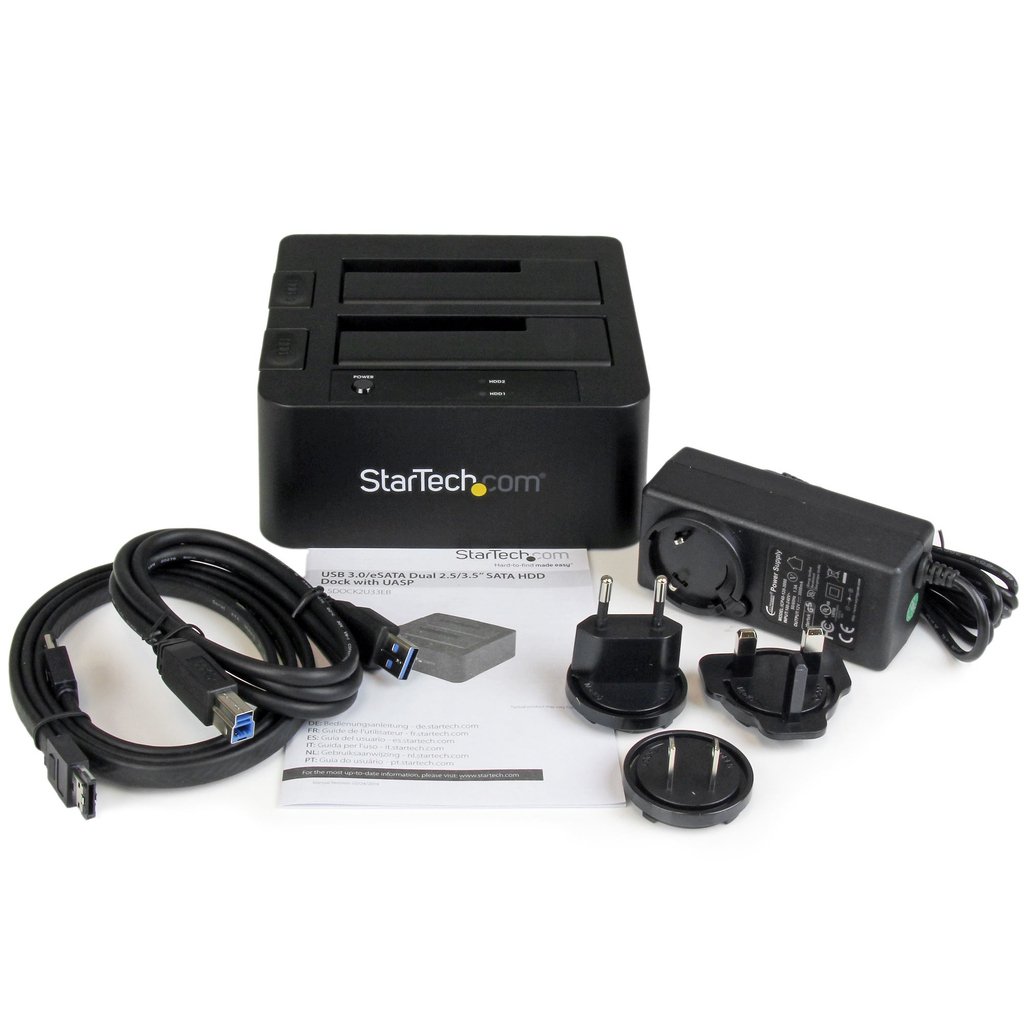

Cables included	eSATA, USB
Included power plug types	ANZ, EU, NA, UK
Operating temperature (T-T)	5 – 35 °C
Storage temperature (T-T)	-20 – 50 °C
Operating relative humidity (H-H)	20 – 80%
Chipset	JMicron – JMS562
Compliance certificates	RoHS
Harmonized System (HS) code	84733080
Master (outer) case width	461 mm
Master (outer) case length	618 mm
Master (outer) case height	200 mm
Products per master (outer) case	10 pc(s)
DC-in jack	Yes
Certification	CE, FCC
Power plug type	Type M
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Windows operating systems supported	Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Manual	Yes
eSATA ports quantity	1

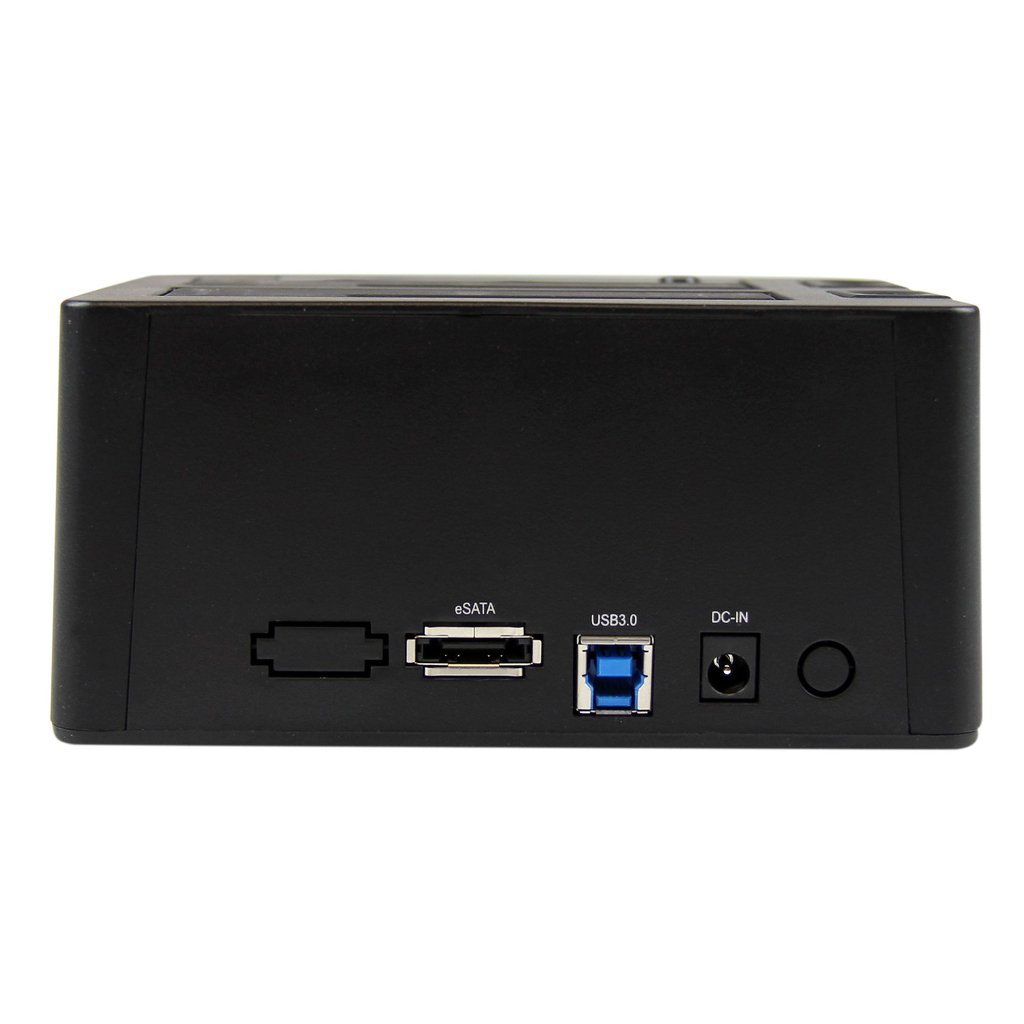

Standard interfaces	eSATA, USB 3.2 Gen 1 (3.1 Gen 1)
