StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compac
StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, TAA, USB Powered
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber

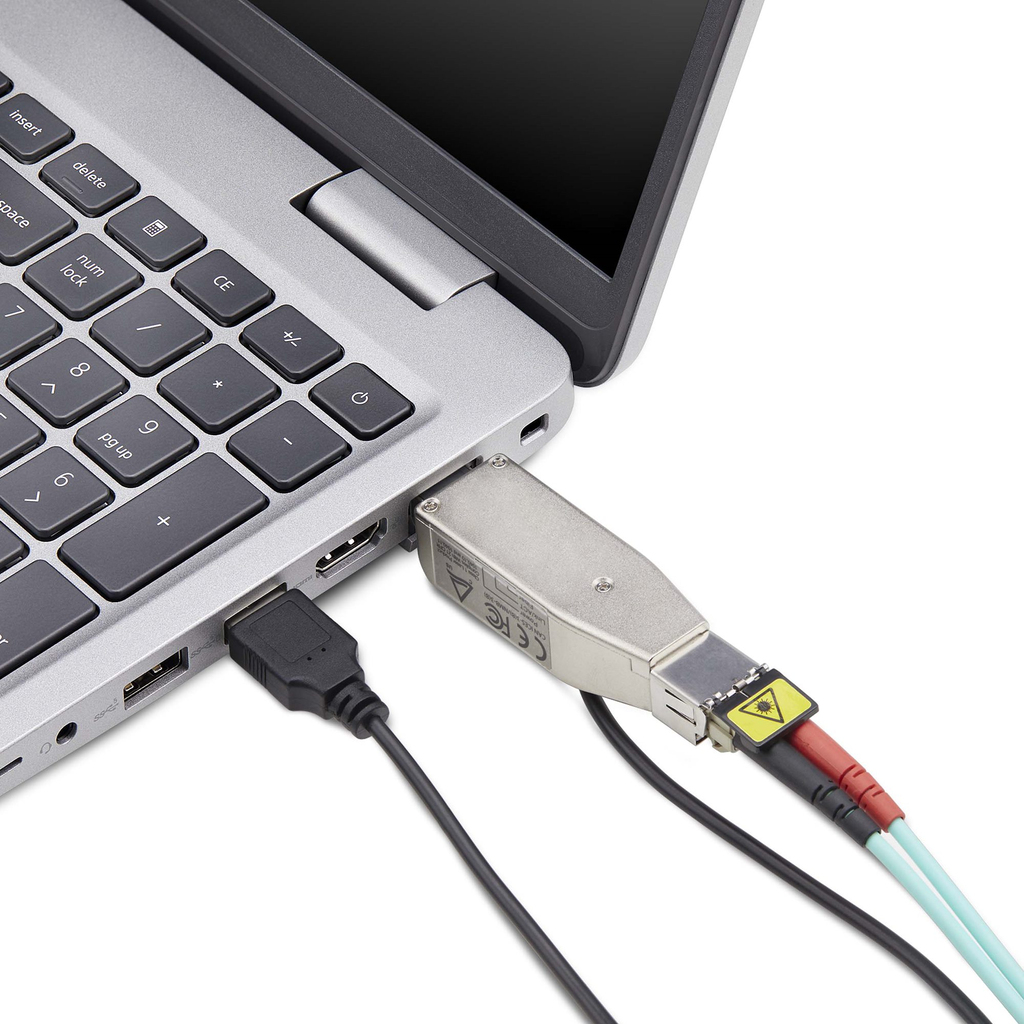

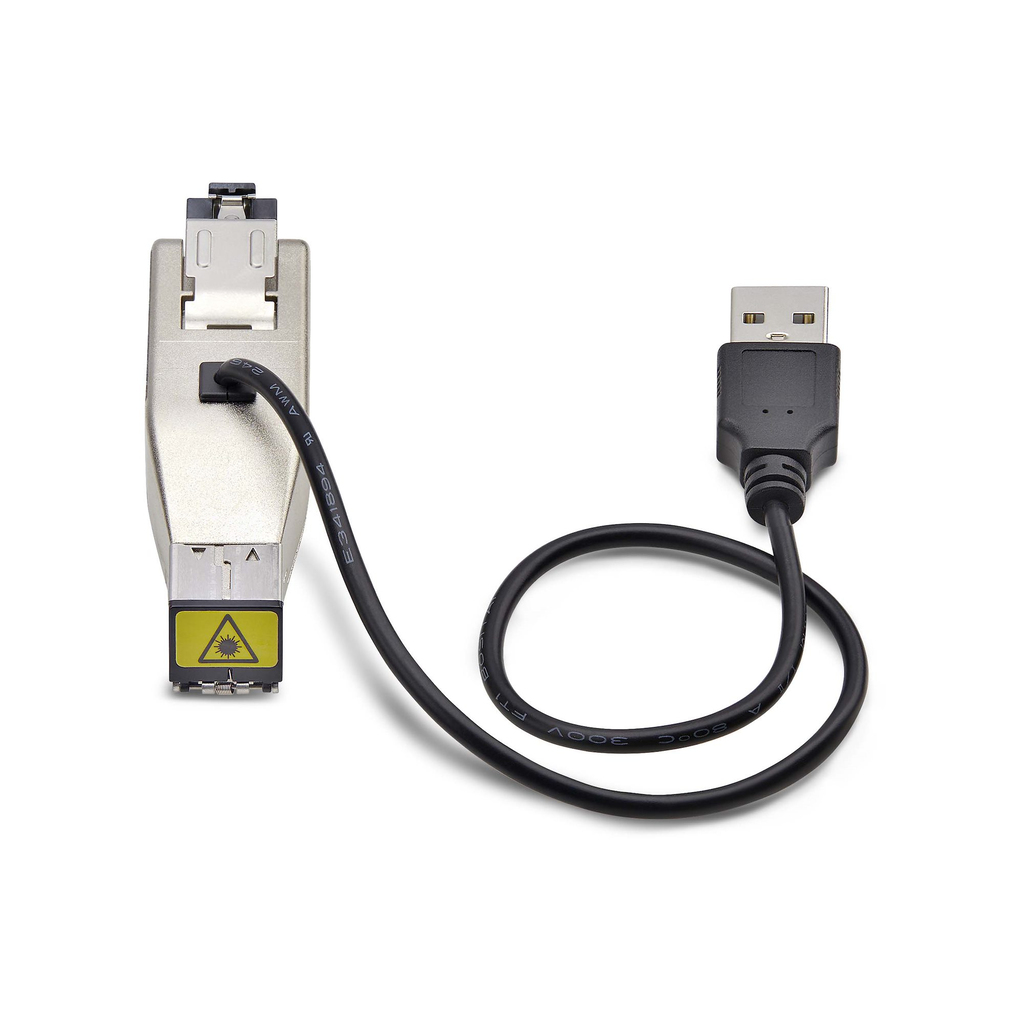

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation

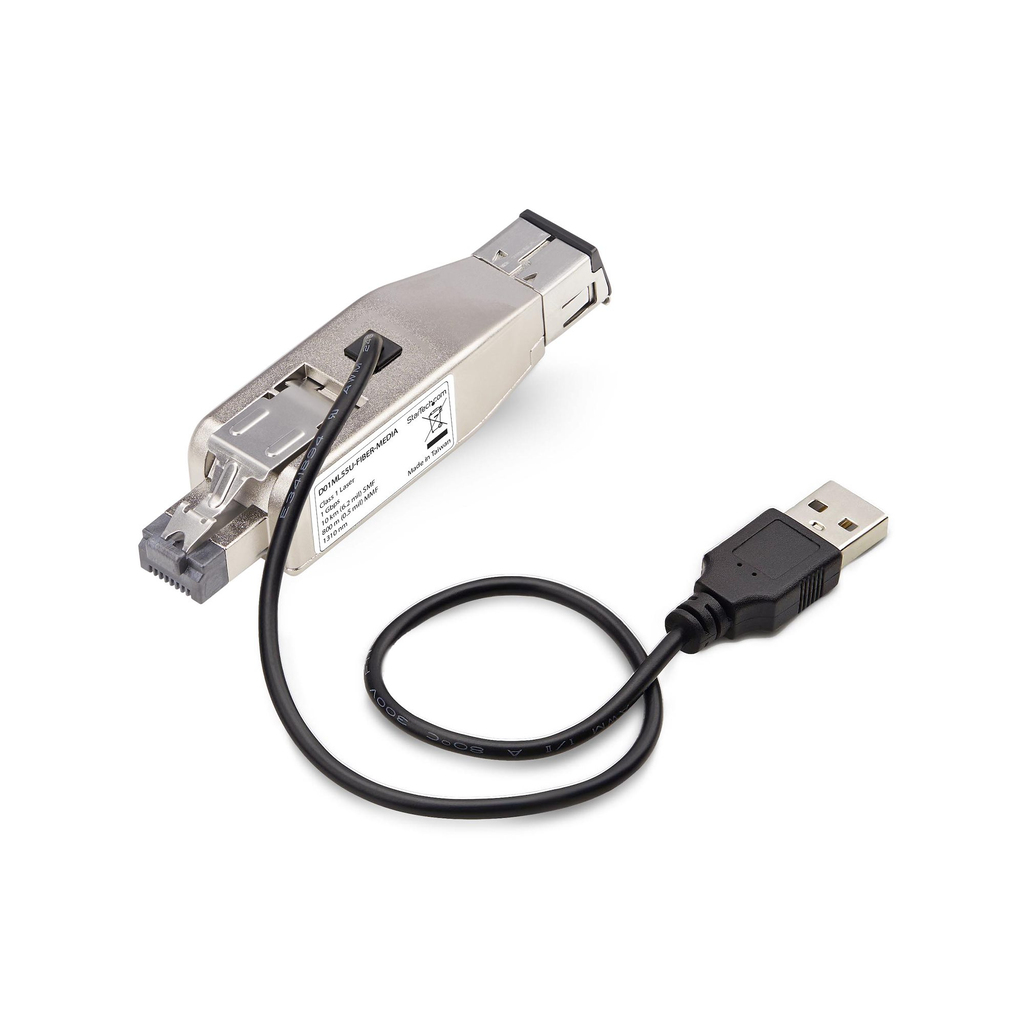

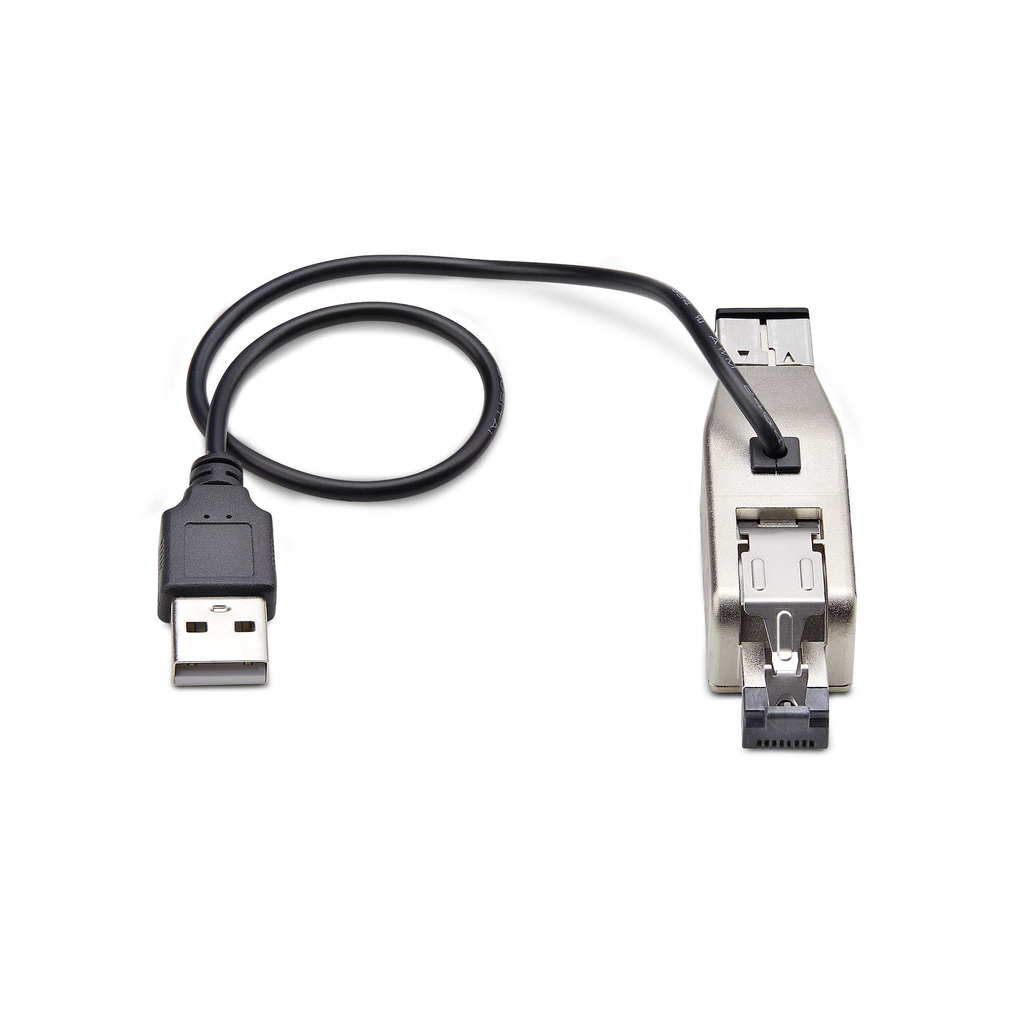

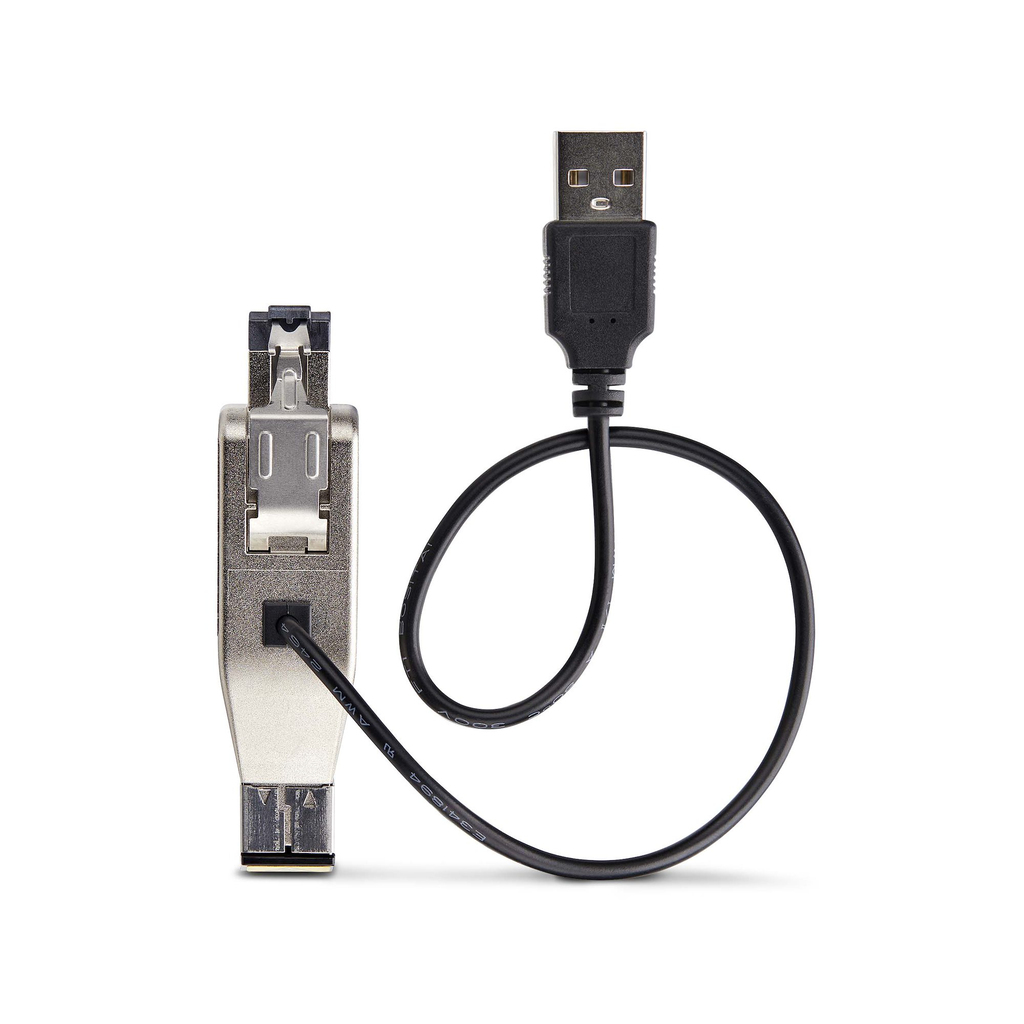

The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features

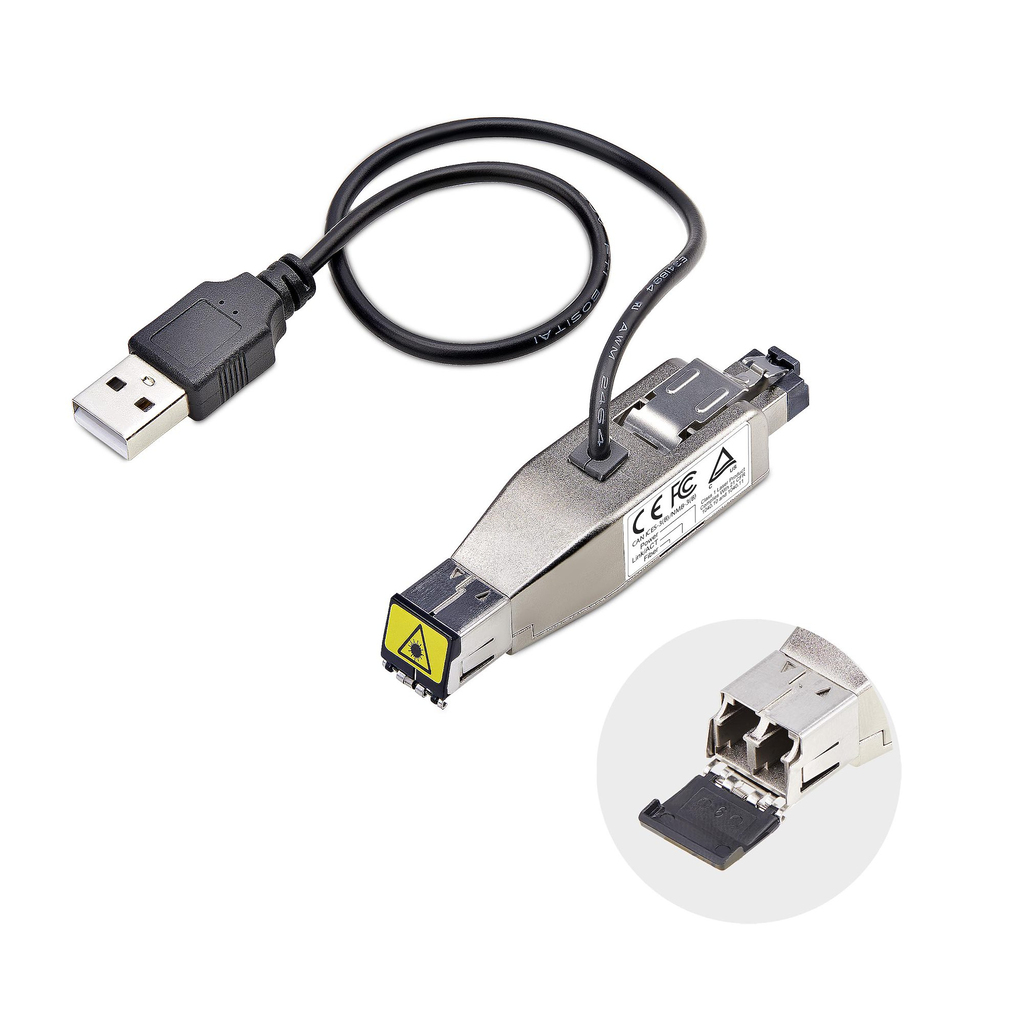

The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
Additional information
| Weight | 0.1 lbs |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Maximum transfer distance | 1000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode, Single-mode |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| Fiber optic connector | LC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Power consumption (max) | 2.5 W |
| Width | 82 mm |
| Depth | 20 mm |
| Height | 18 mm |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Compliance certificates | Trade Agreements Act (TAA) |
| Weight | 49 g |
| Package width | 136 mm |
| Package depth | 80 mm |
| Package height | 32 mm |
| Package weight | 80 g |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Auto-negotiation | Yes |
| Chipset | Marvell – 88E1512 |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP20 |
| Power over Ethernet (PoE) | No |
| User guide | Yes |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 126 mm |
| Products per master (outer) case | 24 pc(s) |
