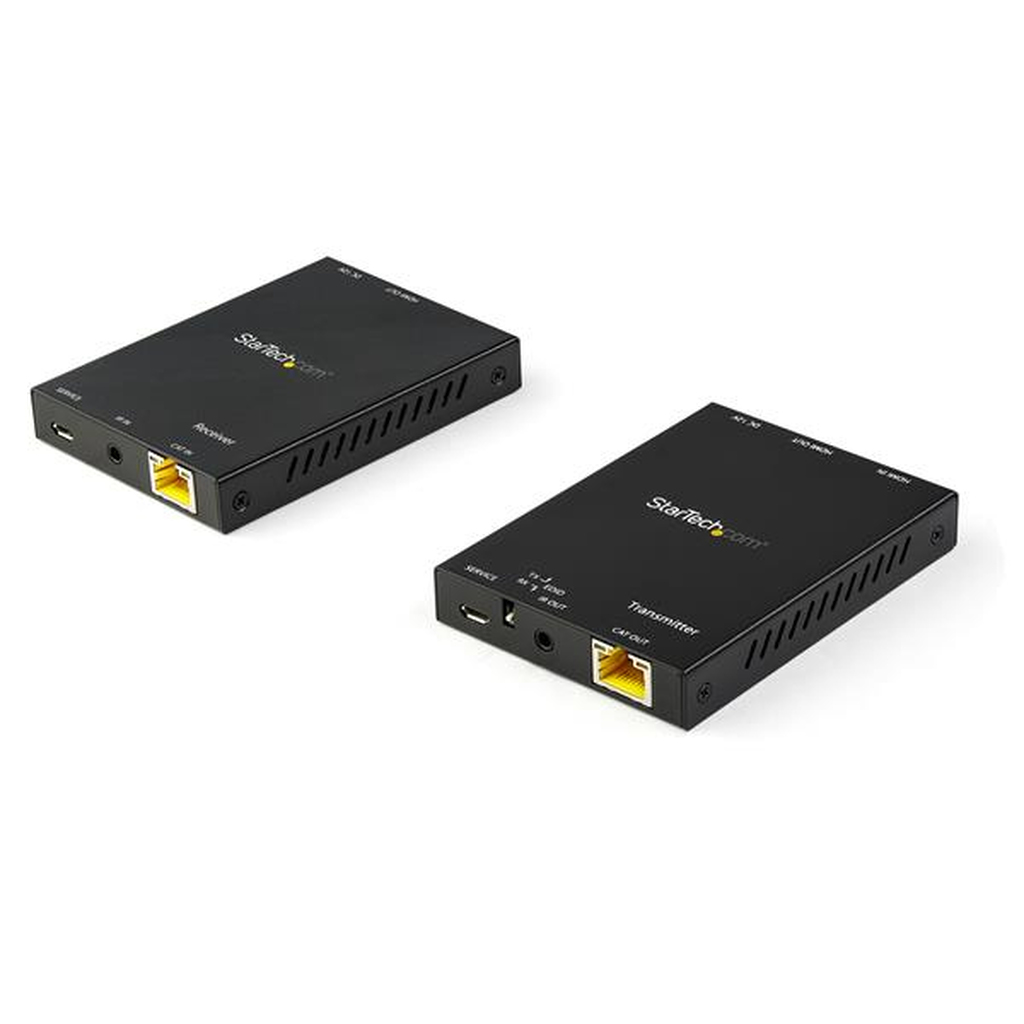

StarTech.com HDMI over CAT6 Extender Kit – 4K 60Hz
StarTech.com HDMI over CAT6 Extender Kit – 4K 60Hz – HDMI Balun Kit – Signal up to 165 ft / 50m – HDR – 4:4:4 – 7.1 Audio Support (ST121HD20V)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
HDMI Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)
This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that’s ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.
Long-Distance Transmission
Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
Compatible with HDCP 2.2 Devices
Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.
The StarTech.com Advantage
– Crystal-clear picture quality with support for resolutions up to 4K 60Hz
– Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
– Hassle-free setup with long-distance transmission over a reliable connection
Additional information
| Weight | 0.8 lbs |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat6 |
| Maximum transfer distance | 50 m |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Compliance certificates | RoHS |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Input current | 0.3 A |
| AC input voltage | 100 – 240 V |
| Weight | 156 g |
| Package width | 130 mm |
| Package depth | 220 mm |
| Package height | 70 mm |
| Package weight | 777 g |
| Maximum refresh rate | 60 Hz |
| Certification | CE, FCC, REACH |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Output current | 1 A |
| Width | 70 mm |
| Depth | 97 mm |
| Height | 13 mm |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Audio output channels | 7.1 channels |
| Quick start guide | Yes |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 457 mm |
| Master (outer) case height | 282 mm |
| Products per master (outer) case | 20 pc(s) |
| Power plug type | Type M |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Operating voltage (transmitter) | 12 V |
| Harmonized System (HS) code | 85176200 |
| Operating voltage (receiver) | 12 V |
