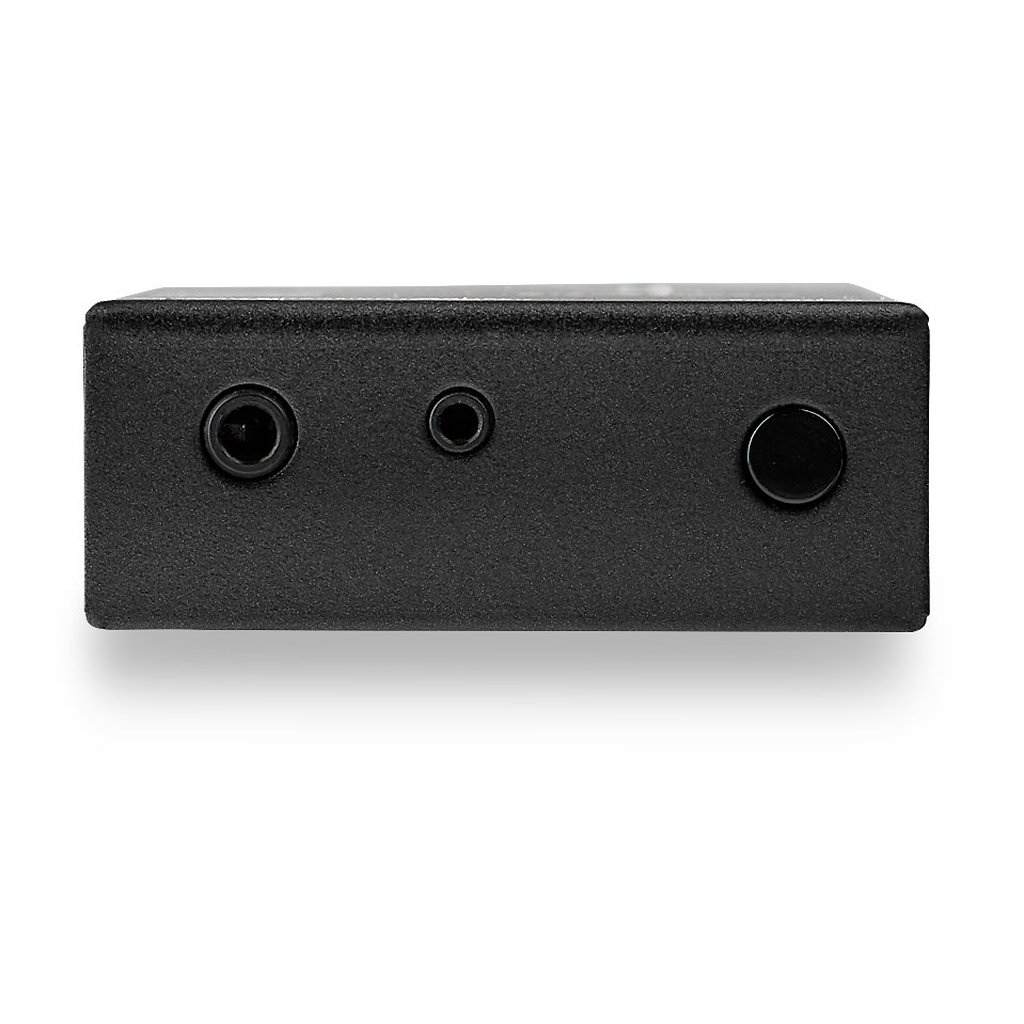

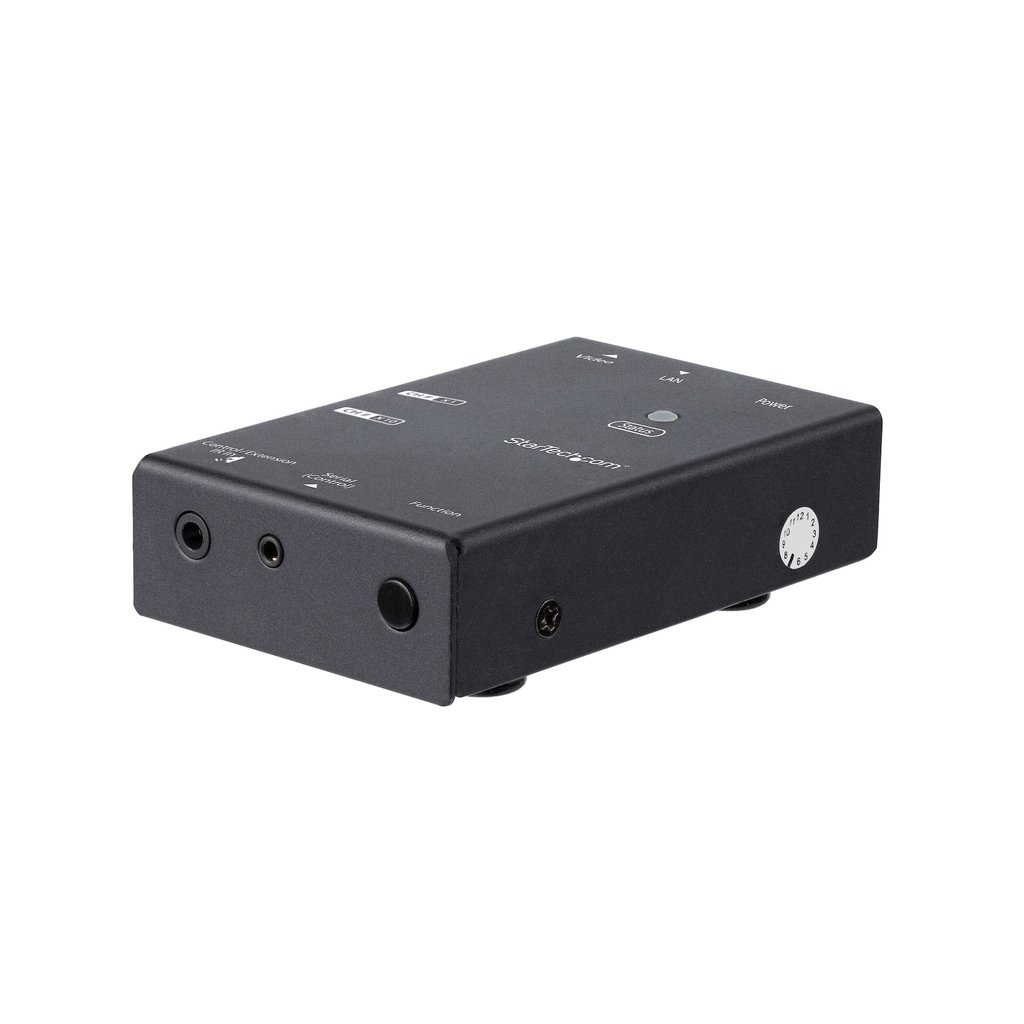

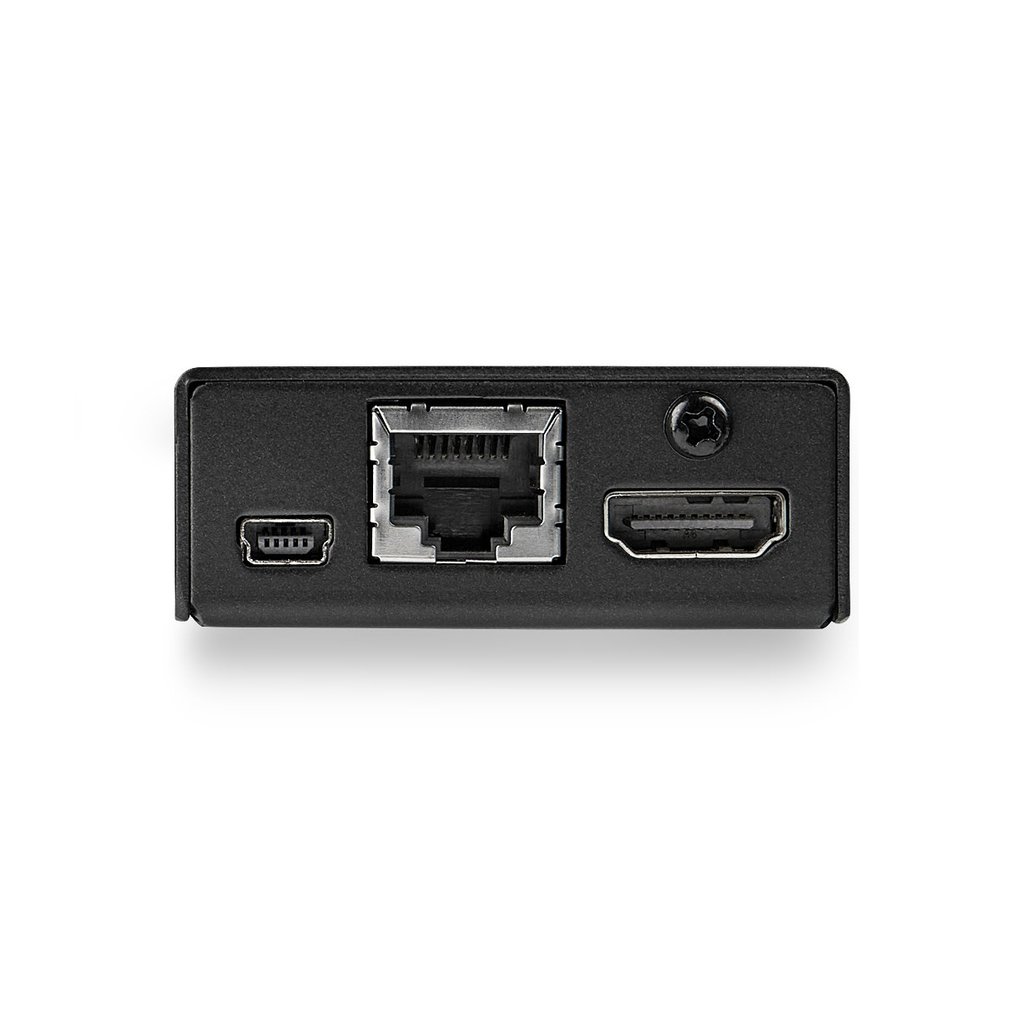

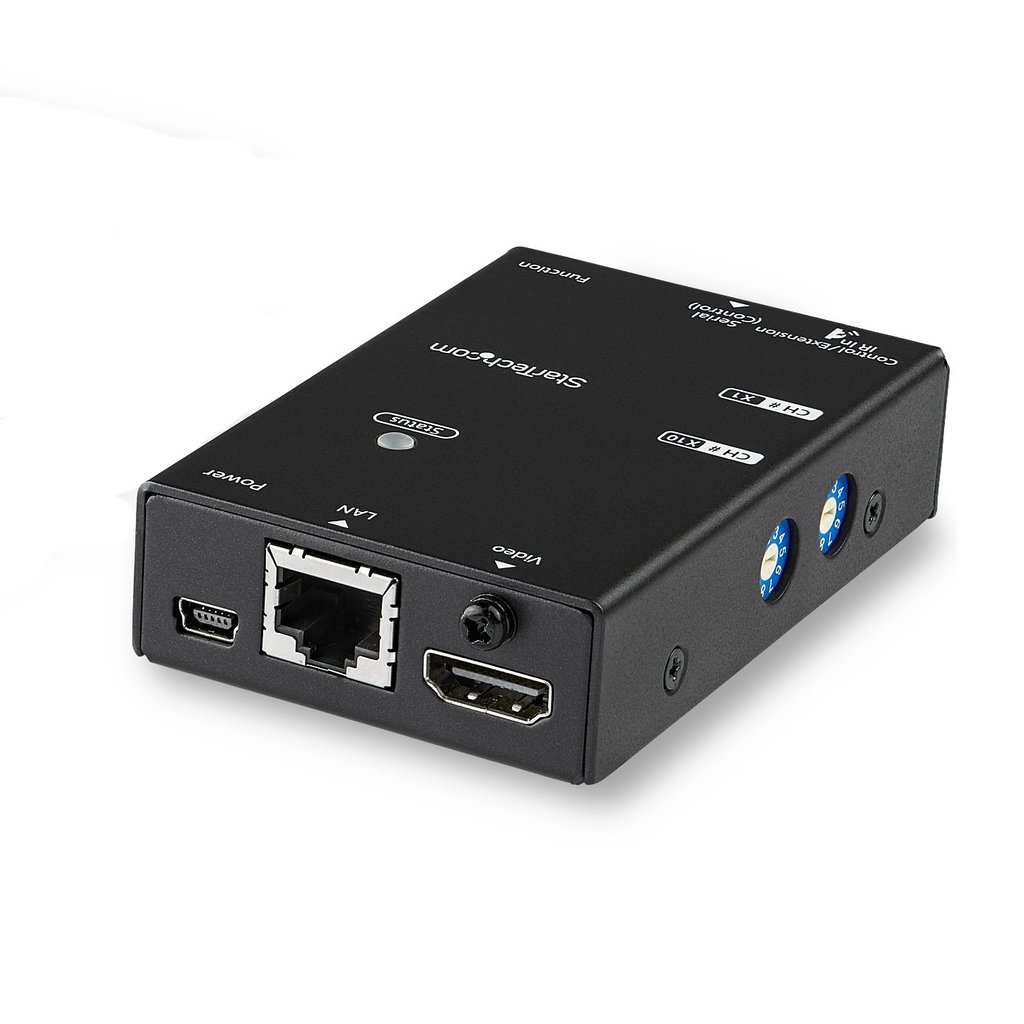

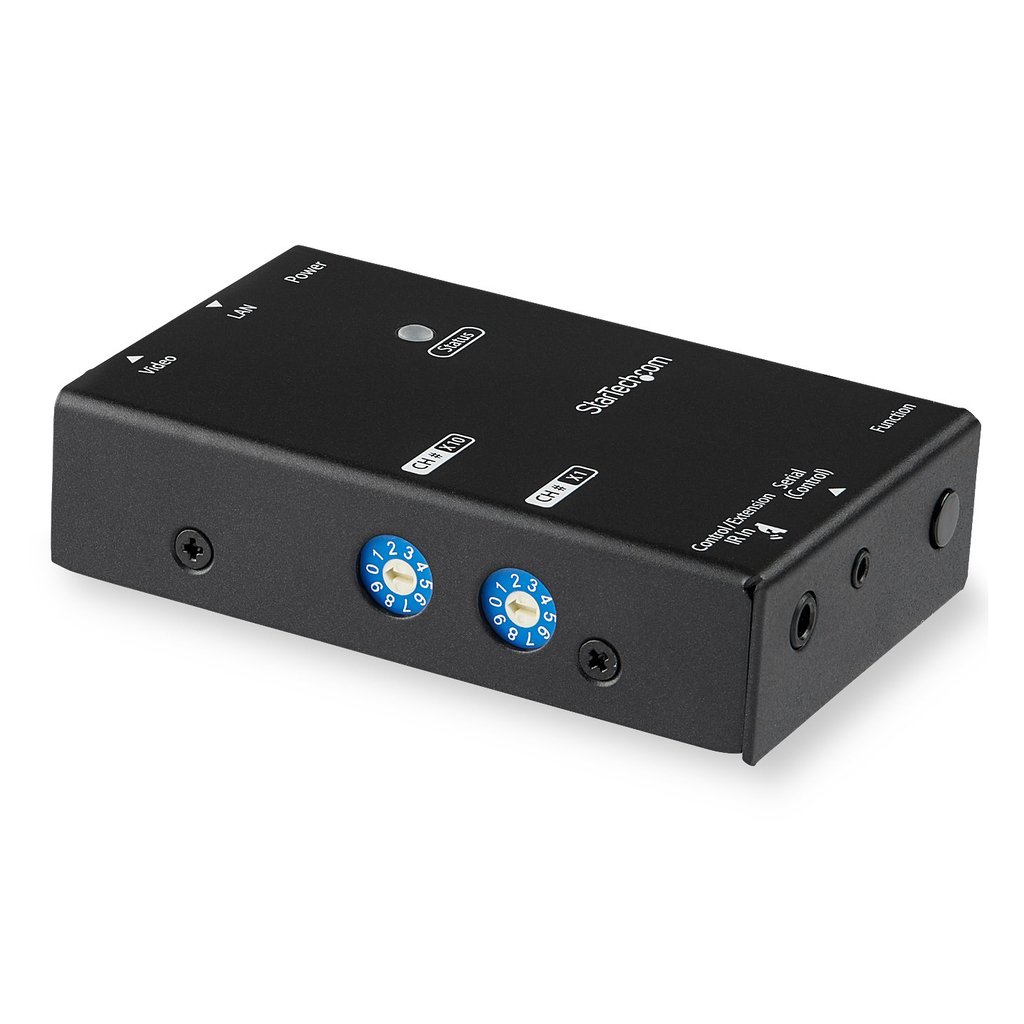

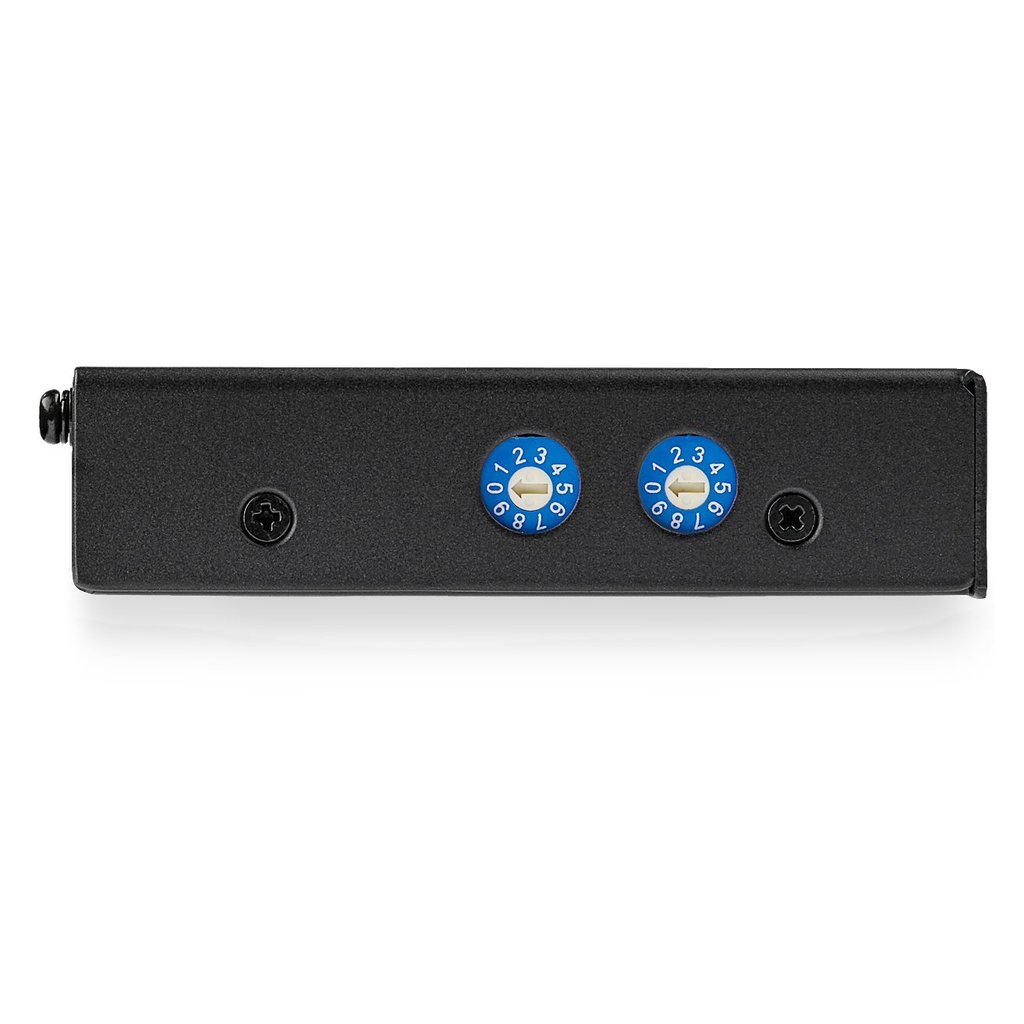

StarTech.com HDMI over IP Receiver for ST12MHDLNHK – 1080p
StarTech.com HDMI over IP Receiver for ST12MHDLNHK – Video over IP – HDMI over IP Extender – 1080p (ST12MHDLNHR)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure
The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.
Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.
The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.85 lbs |
|---|---|
| Type | AV receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance | 15 m |
| LED indicators | Status |
| Material | Aluminium |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| USB ports quantity | 1 |
| USB connector type | Mini-USB B |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Compliance certificates | RoHS |
| Maximum resolution | 1920 x 1200 pixels |
| Input current | 0.3 A |
| AC input voltage | 100 – 240 V |
| Operating voltage | 5 V |
| Weight | 213 g |
| Package width | 155 mm |
| Package depth | 235 mm |
| Package height | 65 mm |
| Package weight | 800 g |
| AC adapter included | Yes |
| Manual | Yes |
| Supported video modes | 1080p |
| Audio output | 1 |
| Cables included | LAN (RJ-45), Serial, USB |
| Maximum refresh rate | 60 Hz |
| Certification | CE, REACH, FCC, TAA |
| Cable length | 15.2 m |
| Number of HDMI outputs | 1 |
| Output current | 1 A |
| Storage relative humidity (H-H) | 0 – 80% |
| Width | 97 mm |
| Depth | 130 mm |
| Height | 24 mm |
| External power adapter | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Audio output channels | 2.0 channels |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 12 pc(s) |
| Mounting kit | Yes |
| IR receiver included | Yes |
| Rubber feet | Yes |
