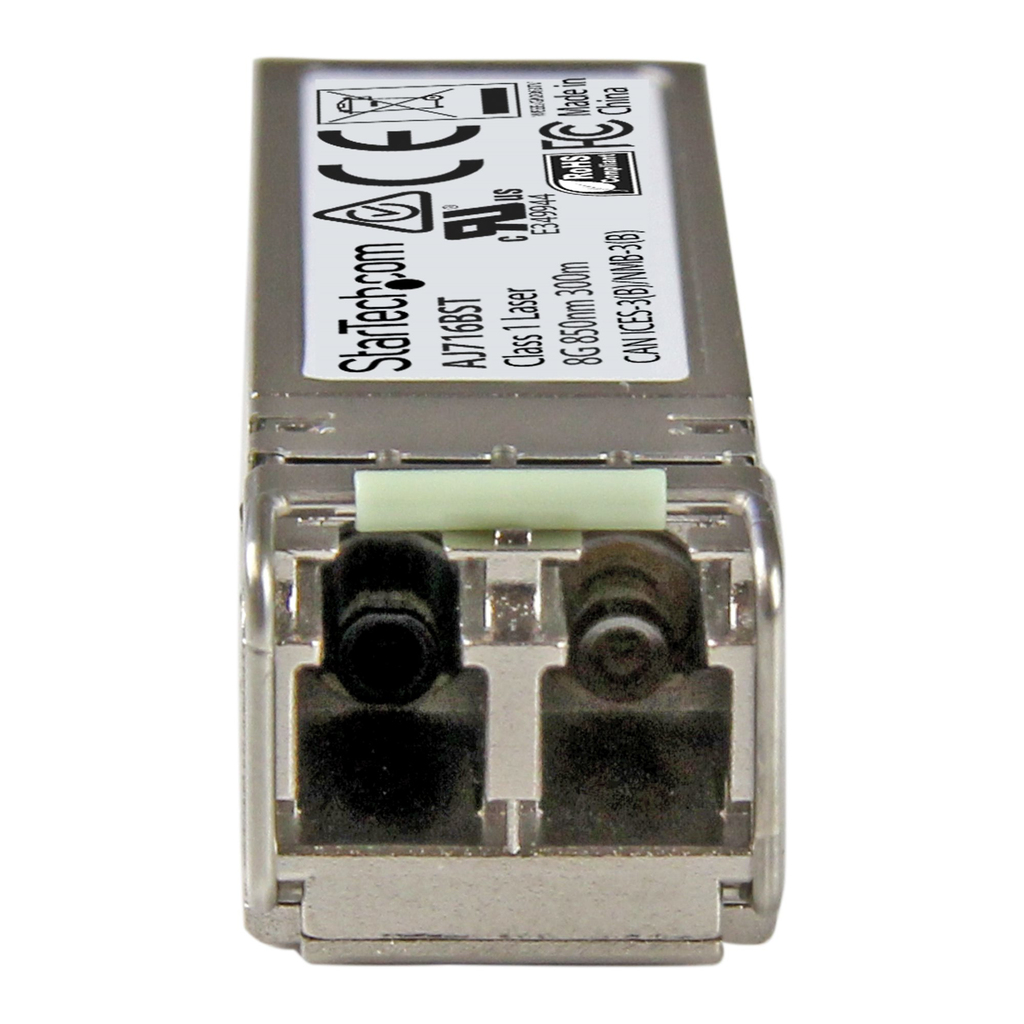

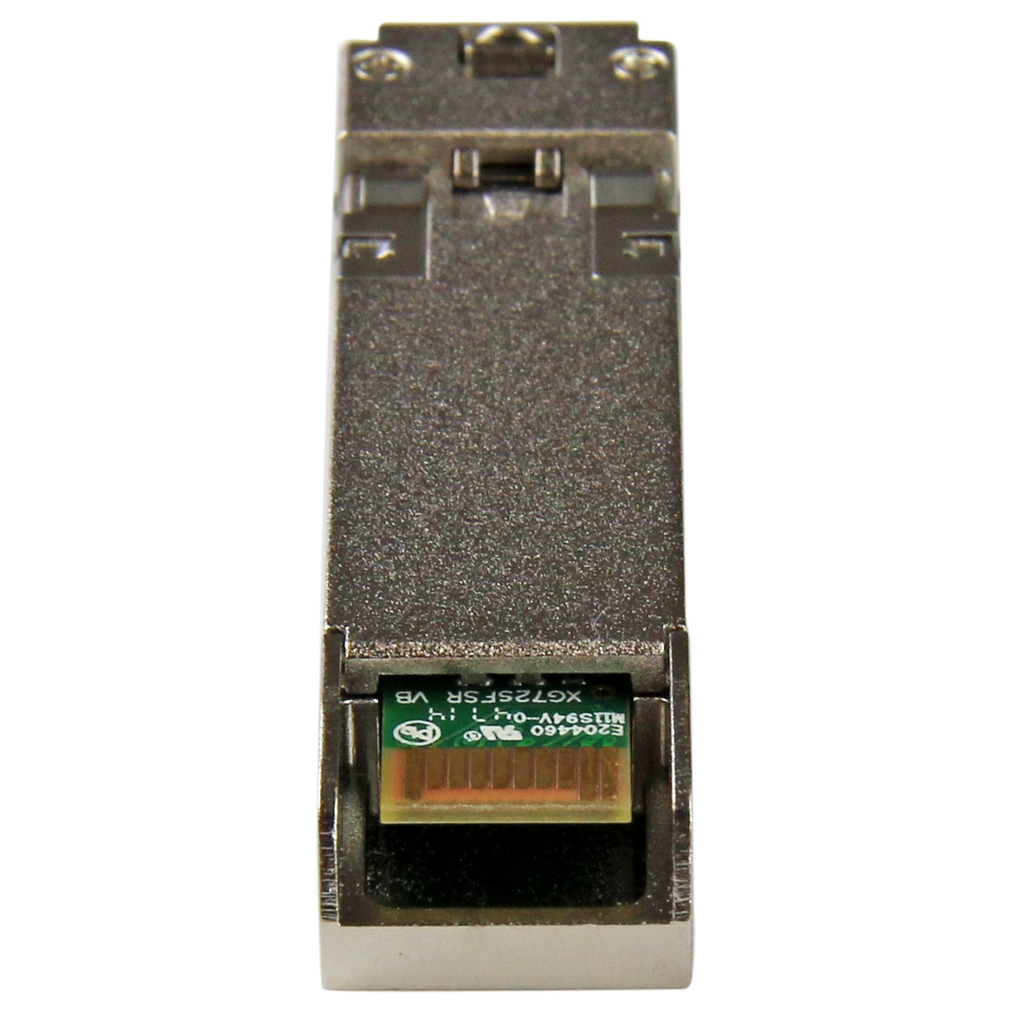

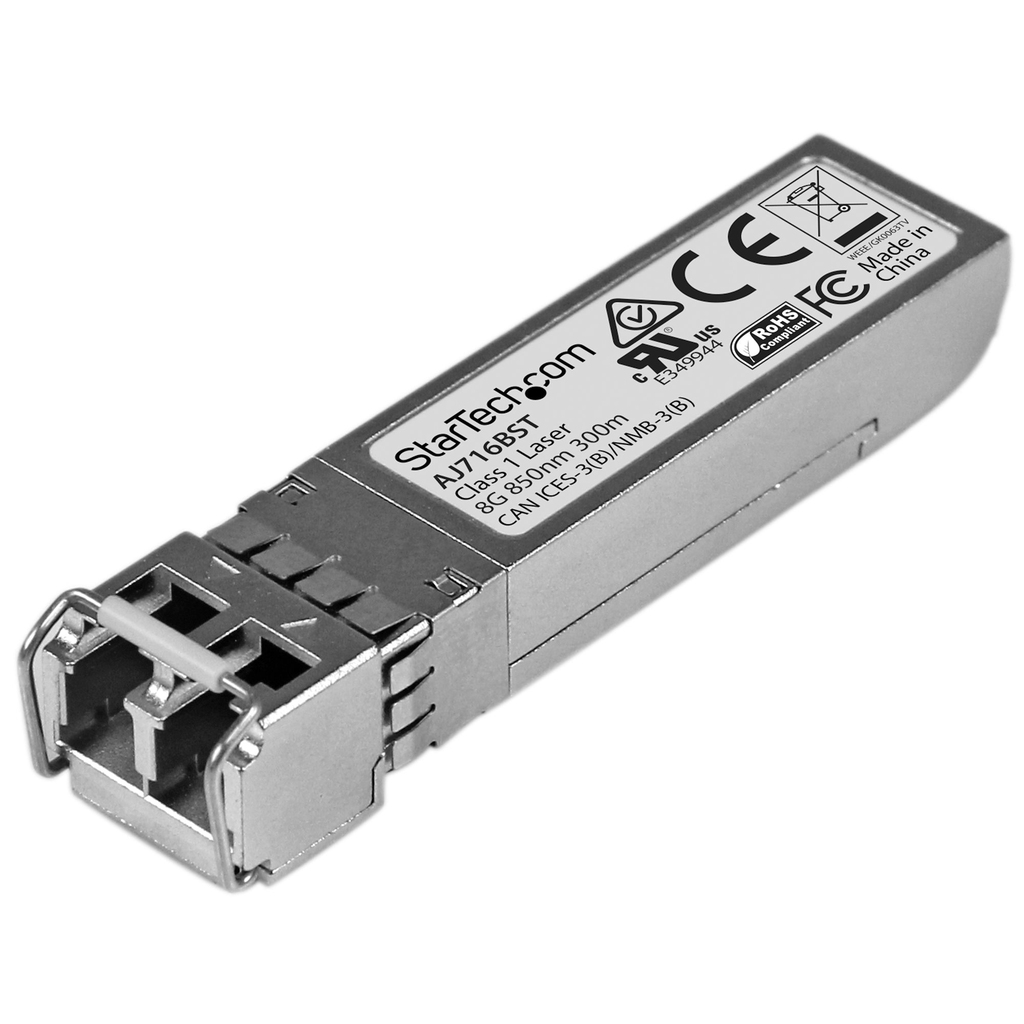

StarTech.com HP AJ716B Compatible SFP+ Transceiver Module – 8GFC~HPE AJ716B Compatible SFP+ Module – 8G Fiber Channel SW – 8GbE
StarTech.com HPE AJ716B Compatible SFP+ Module – 8G Fiber Channel SW – 8GbE Multi Mode (MMF) Fiber Optic Transceiver – LC 300m – 850nm – DDM HPE SN4000, SN6500, SN8600B (AJ716BST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
8 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The AJ716BST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 8 Gbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft.)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 8000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UR |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 1967709 h |
| Power consumption (typical) | 1.2 W |
| Compliance certificates | RoHS |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 18 g |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 256 mm |
| Products per master (outer) case | 100 pc(s) |
| Housing material | Aluminium |
| Operating relative humidity (H-H) | 5 – 95% |
| Country of origin | China |
