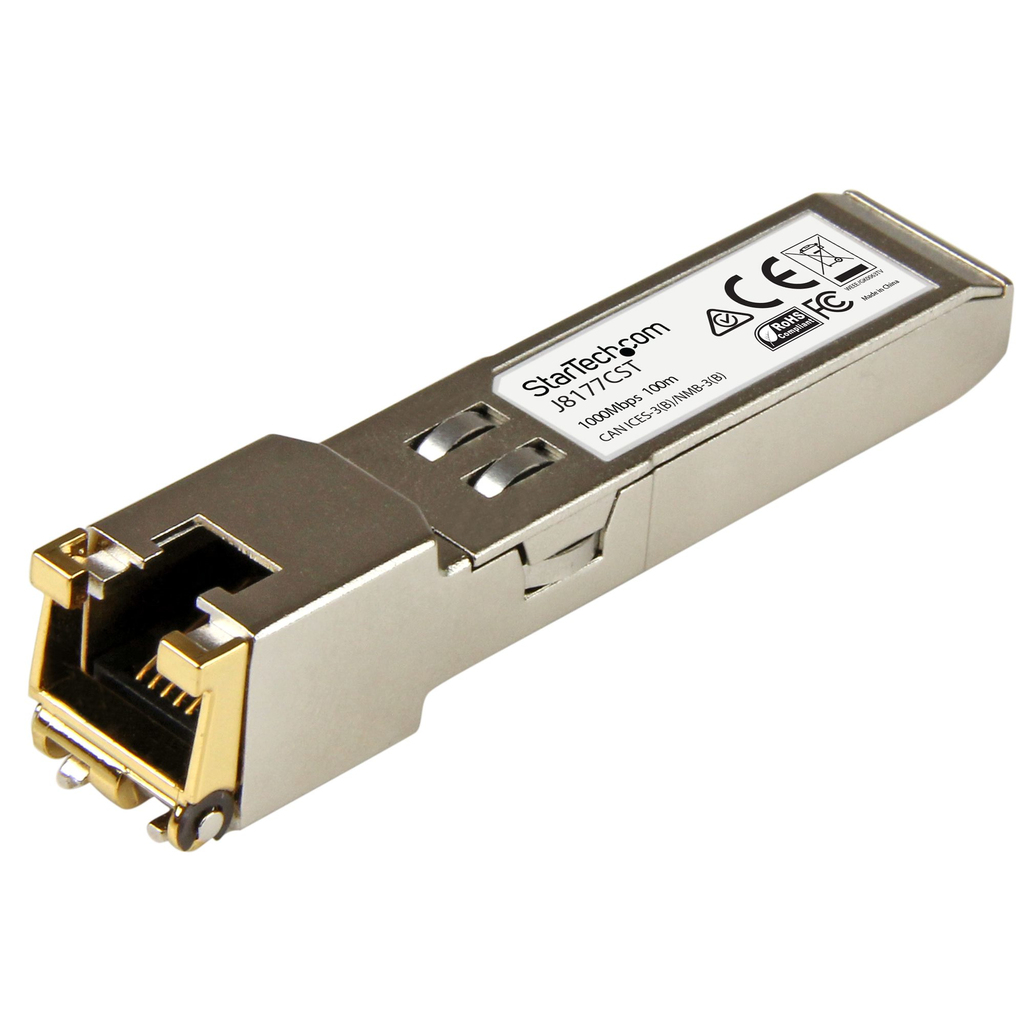

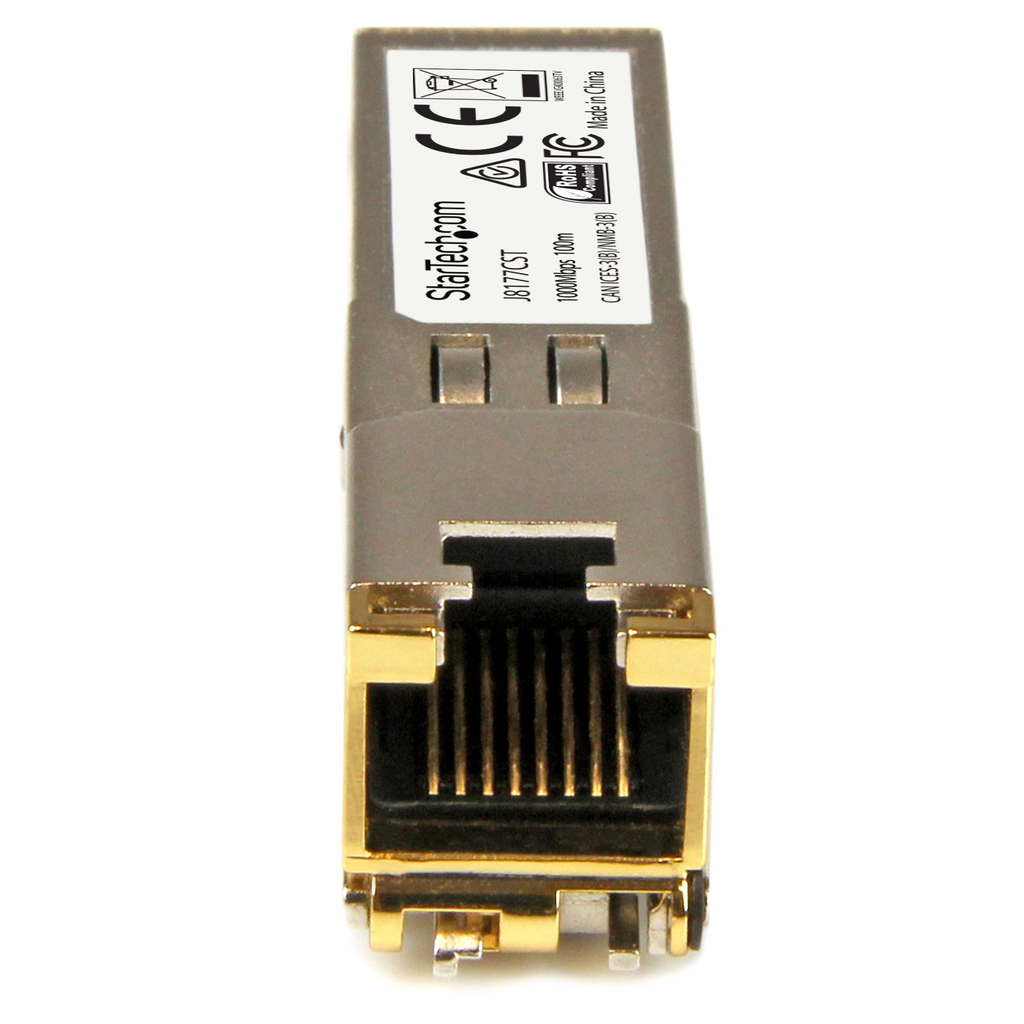

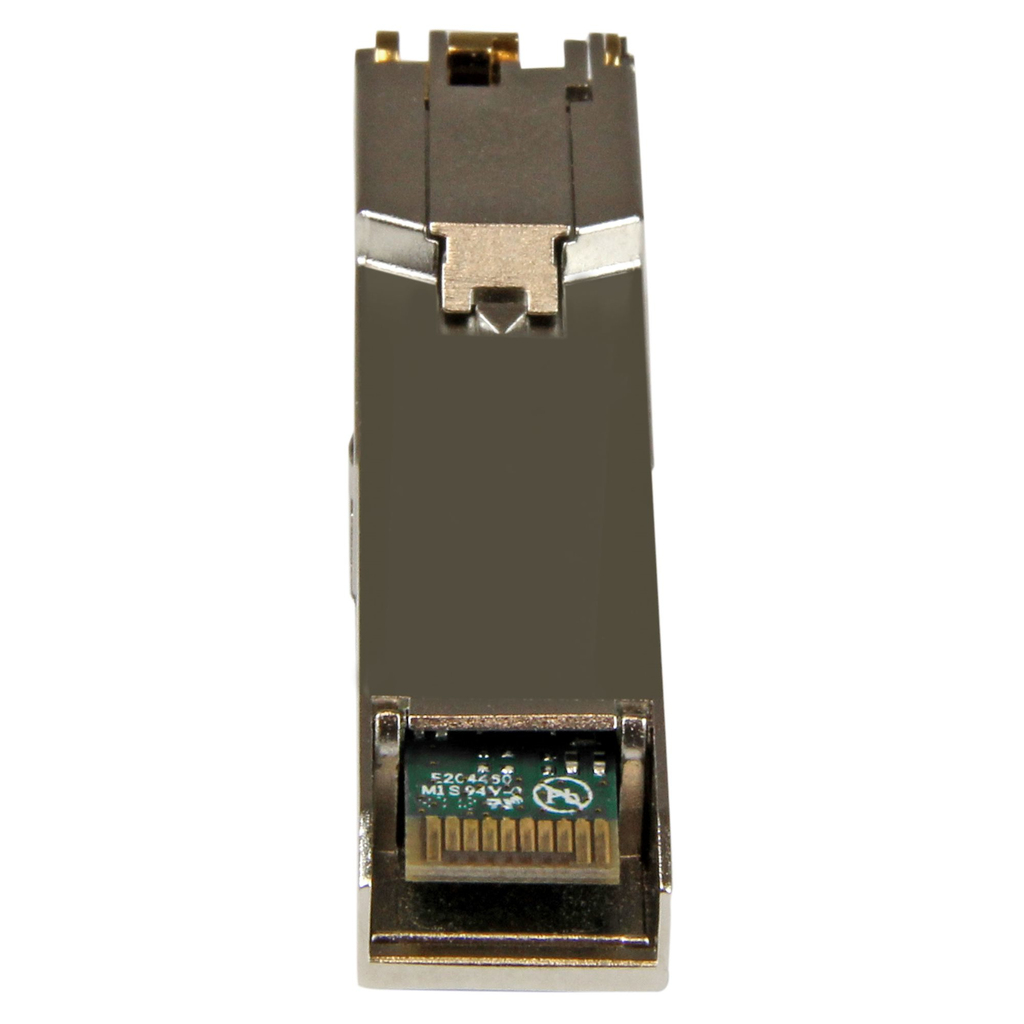

StarTech.com HP J8177C Compatible SFP Transceiver Module – 1000BASE-T~HPE J8177C Compatible SFP Module – 1000BASE-T – SFP to RJ
StarTech.com HPE J8177C Compatible SFP Module – 1000BASE-T – SFP to RJ45 Cat6/Cat5e – 1GE Gigabit Ethernet SFP – RJ-45 100m – HPE 1810, 1820, 2530 (J8177CST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The J8177CST is an HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.06 lbs |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP+ |
| Fiber optic connector | MiniGBIC |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3ab |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 118 mm |
| Package depth | 92 mm |
| Package height | 34 mm |
| Package weight | 53 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | No |
| Mean time between failures (MTBF) | 4655371 h |
| Power consumption (typical) | 1.3 W |
| Compliance certificates | RoHS |
| Width | 14 mm |
| Depth | 68 mm |
| Height | 14 mm |
| Weight | 25 g |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 100 pc(s) |
| Housing material | Aluminium |
| Operating relative humidity (H-H) | 30 – 75% |
| Country of origin | China |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
