StarTech.com Industrial Gigabit PoE Injector – High Speed/High Power 90W – 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Ov
StarTech.com Industrial Gigabit PoE Injector – High Speed/High Power 90W – 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (POEINJ1G90W)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

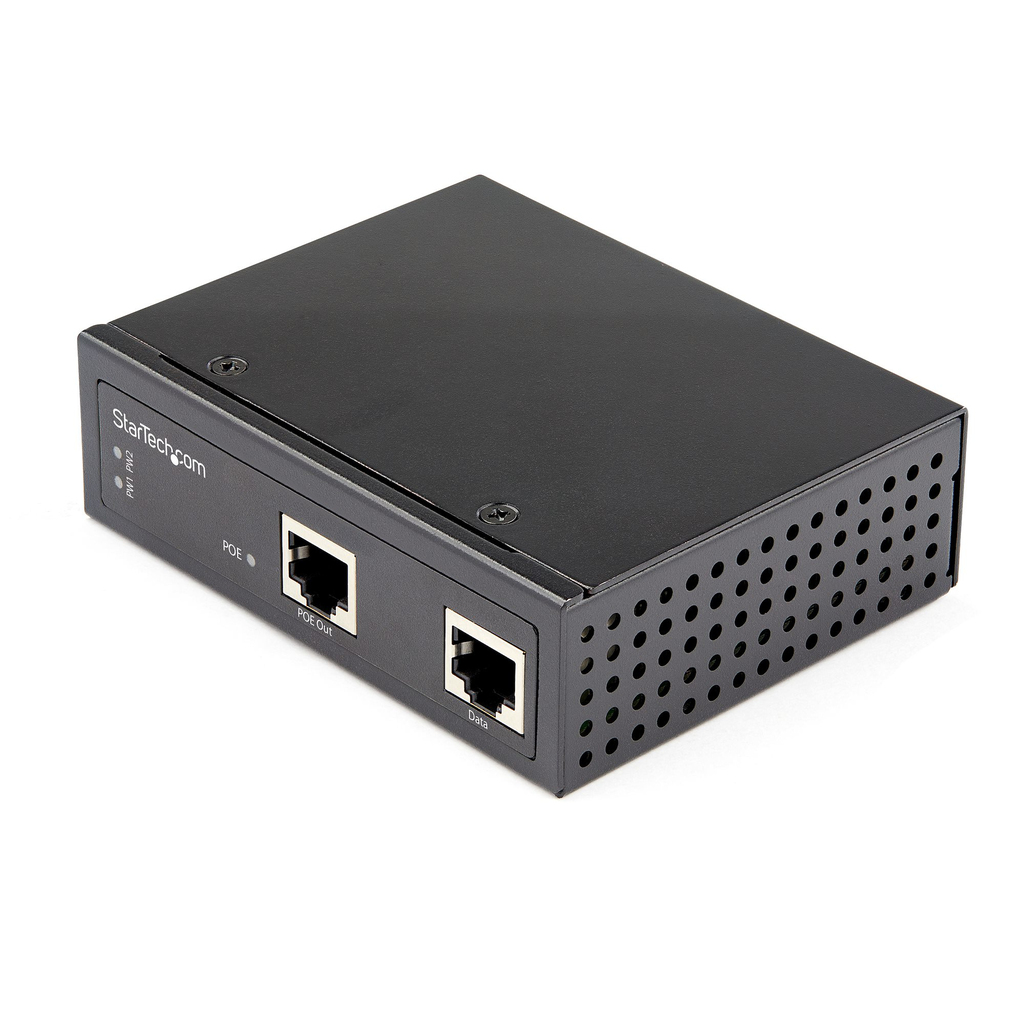

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

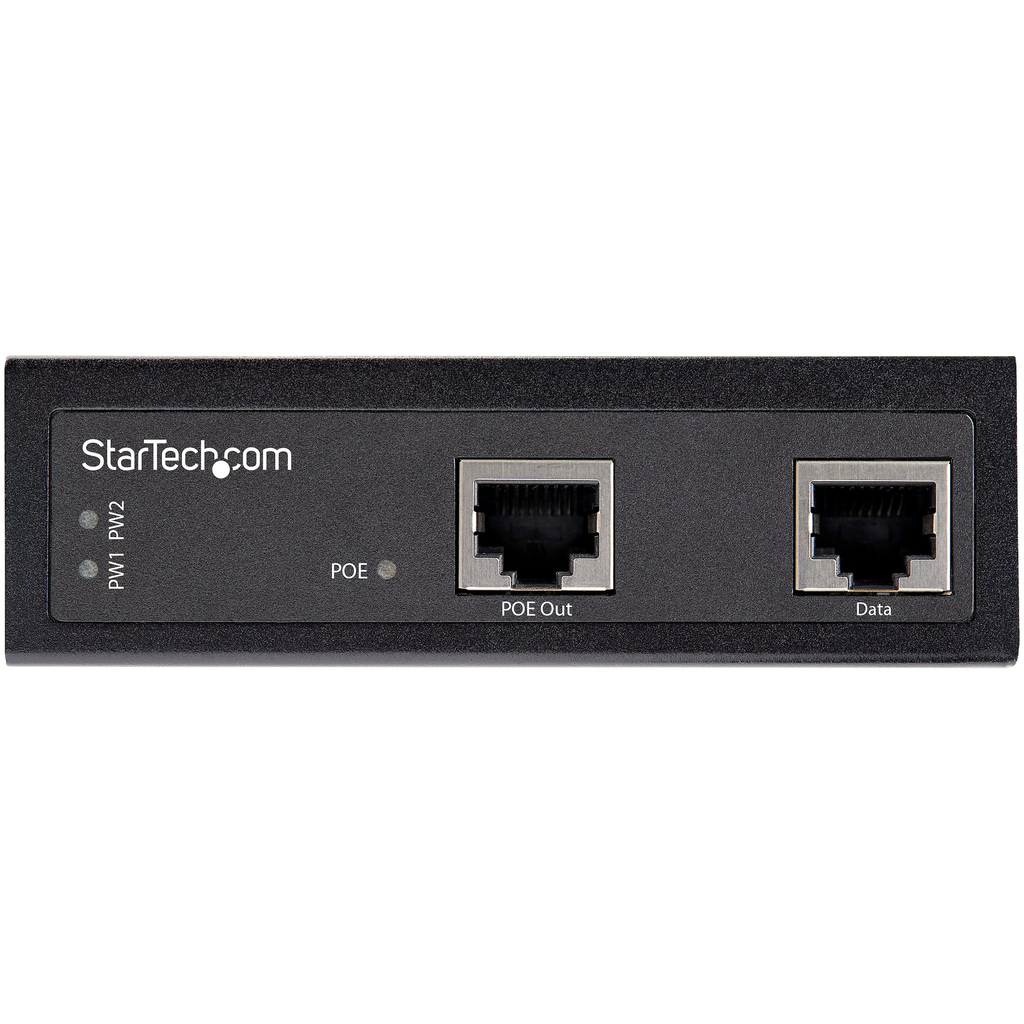

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications

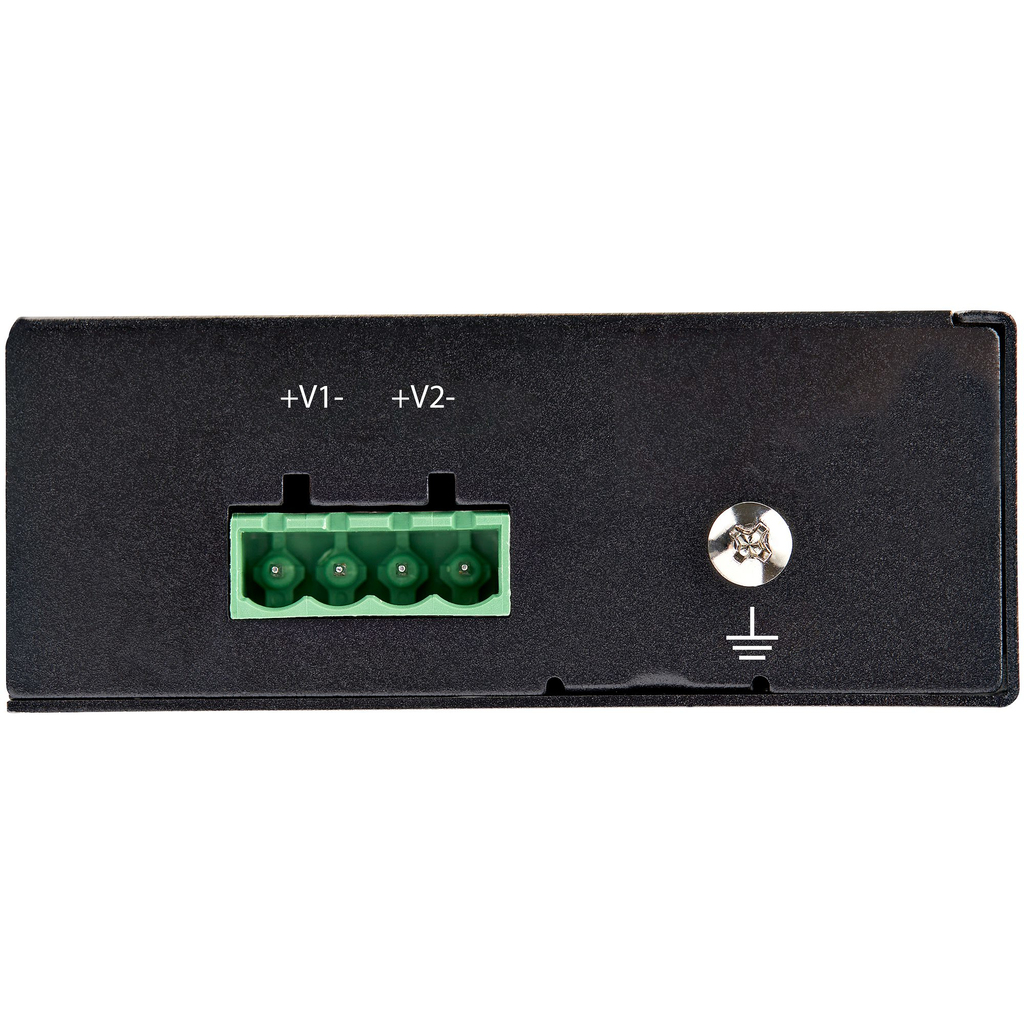

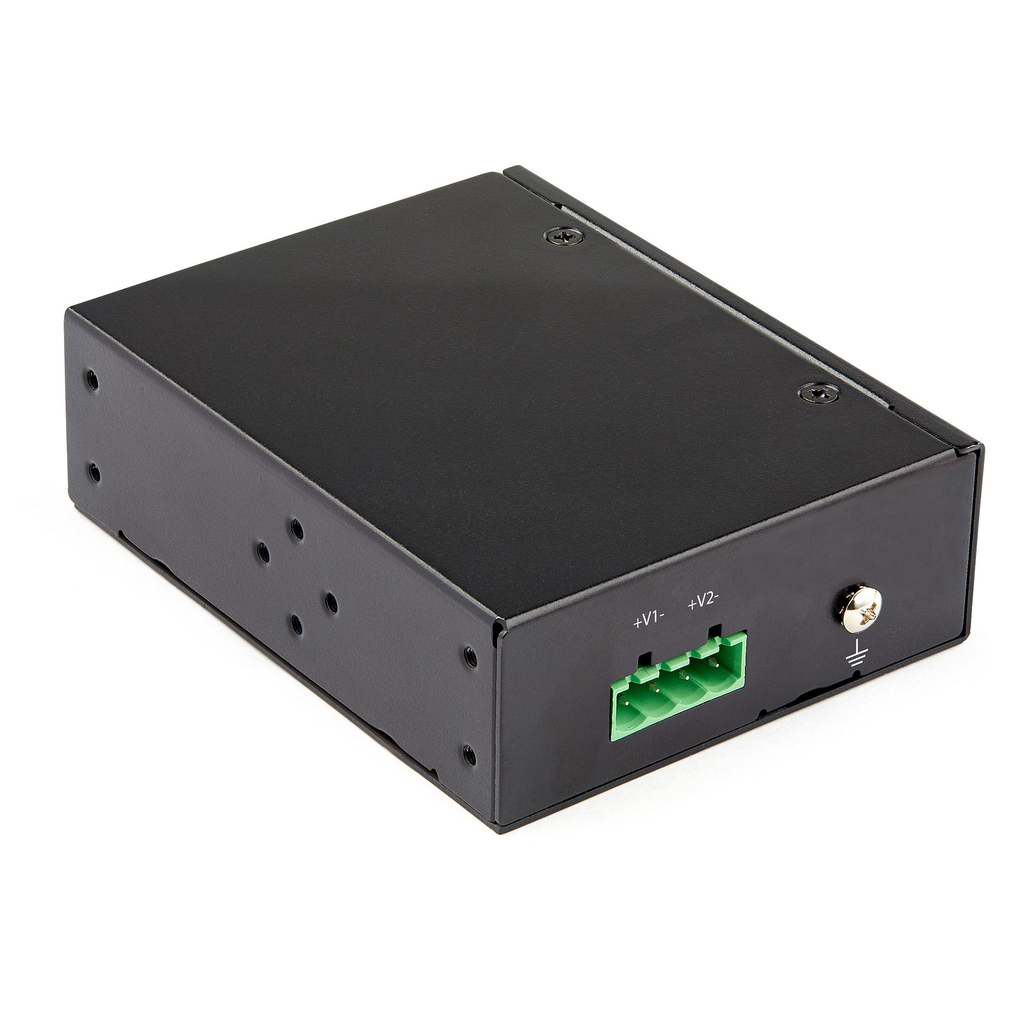

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The StarTech.com Advantage
Additional information
| Weight | 0.96 lbs |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Mean time between failures (MTBF) | 540891 h |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Power over Ethernet (PoE) ports quantity | 2 |
| Terminal block port | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Supported network protocols (IPv4) | CSMA/CD |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power plug type | Type N |
| Power over Ethernet (PoE) voltage range | 48 – 56 V |
| Operating temperature (T-T) | -40 – 75 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Width | 32 mm |
| Depth | 82 mm |
| Height | 104 mm |
| Weight | 174 g |
| Quick start guide | Yes |
| Package width | 211 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 416 g |
| Compliance certificates | CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 10 pc(s) |
