StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Keystone Jack, Duplex Fiber Optic LC Keystone Coupler for Patch Panel
StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Duplex Keystone Jack, Fiber Optic Keystone Coupler for Patch Panel
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

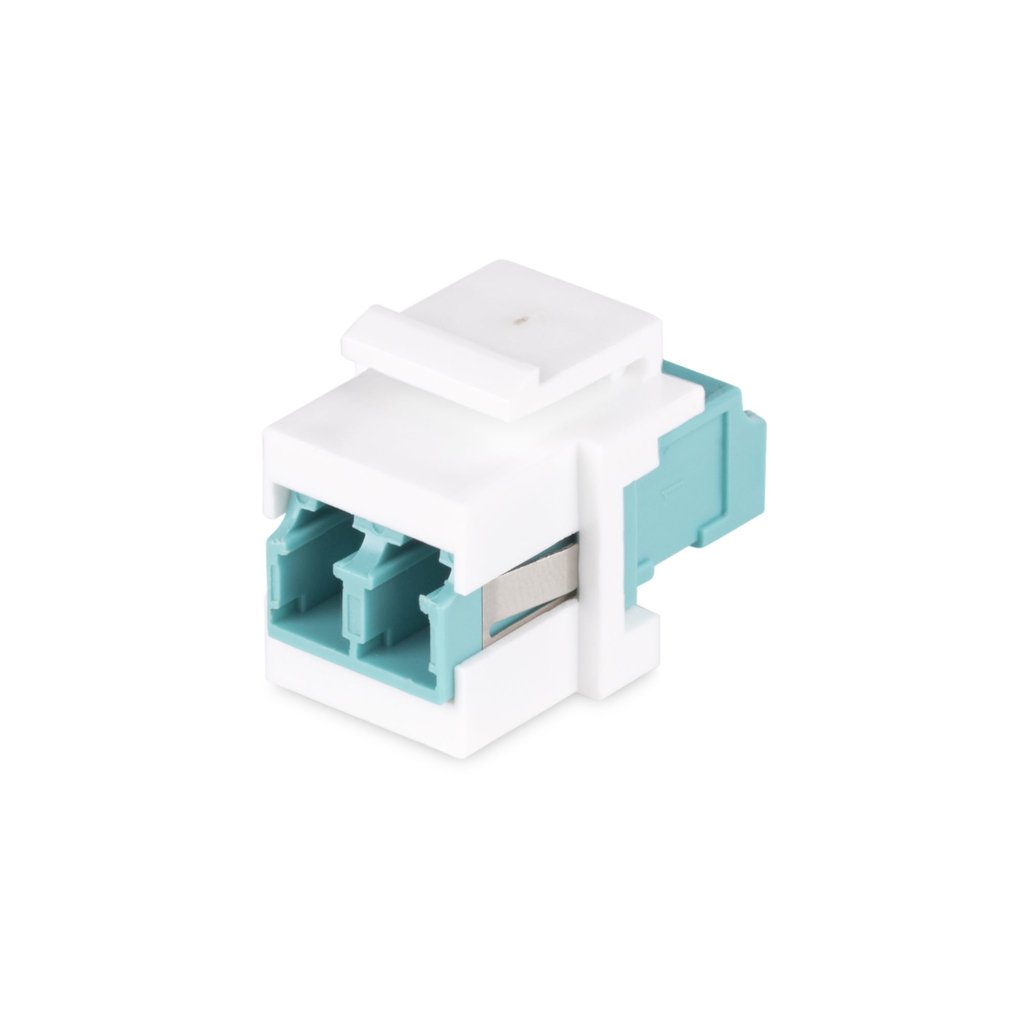

Connect two LC fiber cables or establish fiber connectivity on a keystone patch panel

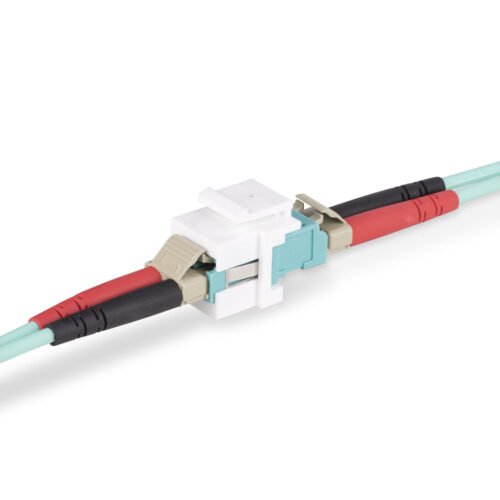

Connect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Compatible with Single Mode and Multimode Fiber Cables

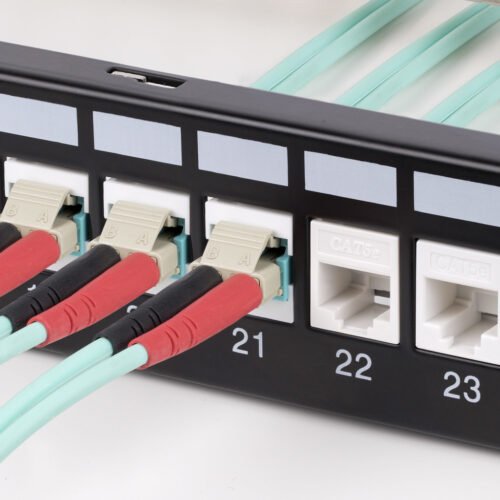

The LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) and OM1/OM2/OM3/OM4/OM5 (62.5/125µm and 50/125µm) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.
Durable Construction
The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
The StarTech.com Advantage
Additional information
| Weight | 0.006 lbs |
|---|---|
| Number of connectors | 2 |
| Connector type | LC |
| Duplex | Yes |
| Product colour | White |
| Fiber mode structure | Multi-mode, Single-mode |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Compliance certificates | CE |
| Width | 19 mm |
| Depth | 18 mm |
| Height | 20 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 90 mm |
| Package height | 20 mm |
| Package weight | 6 g |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 1000 pc(s) |
| Sustainability compliance | Yes |
