StarTech.com Mini DisplayPort to DVI Adapter – Active Mini DisplayPort to DVI-D Adapter Converter – 1080p Video – mDP or Thunde
StarTech.com Mini DisplayPort to DVI Adapter – Active Mini DisplayPort to DVI-D Adapter Converter – 1080p Video – mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link (MDP2DVIS)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Connect a DVI monitor to a single-mode DisplayPort output from your computer

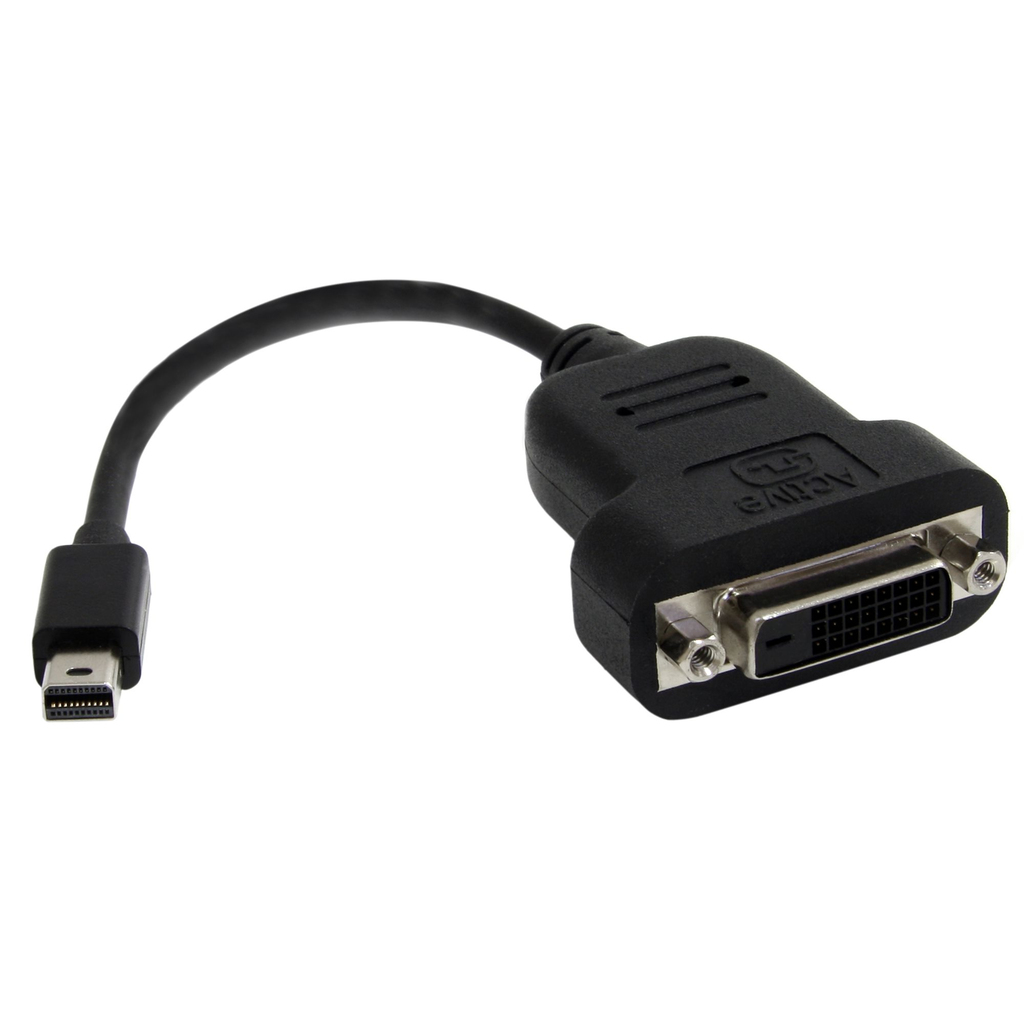

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let’s you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output – ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920×1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.04 lbs |
|---|---|
| Cable length | 0.12 m |

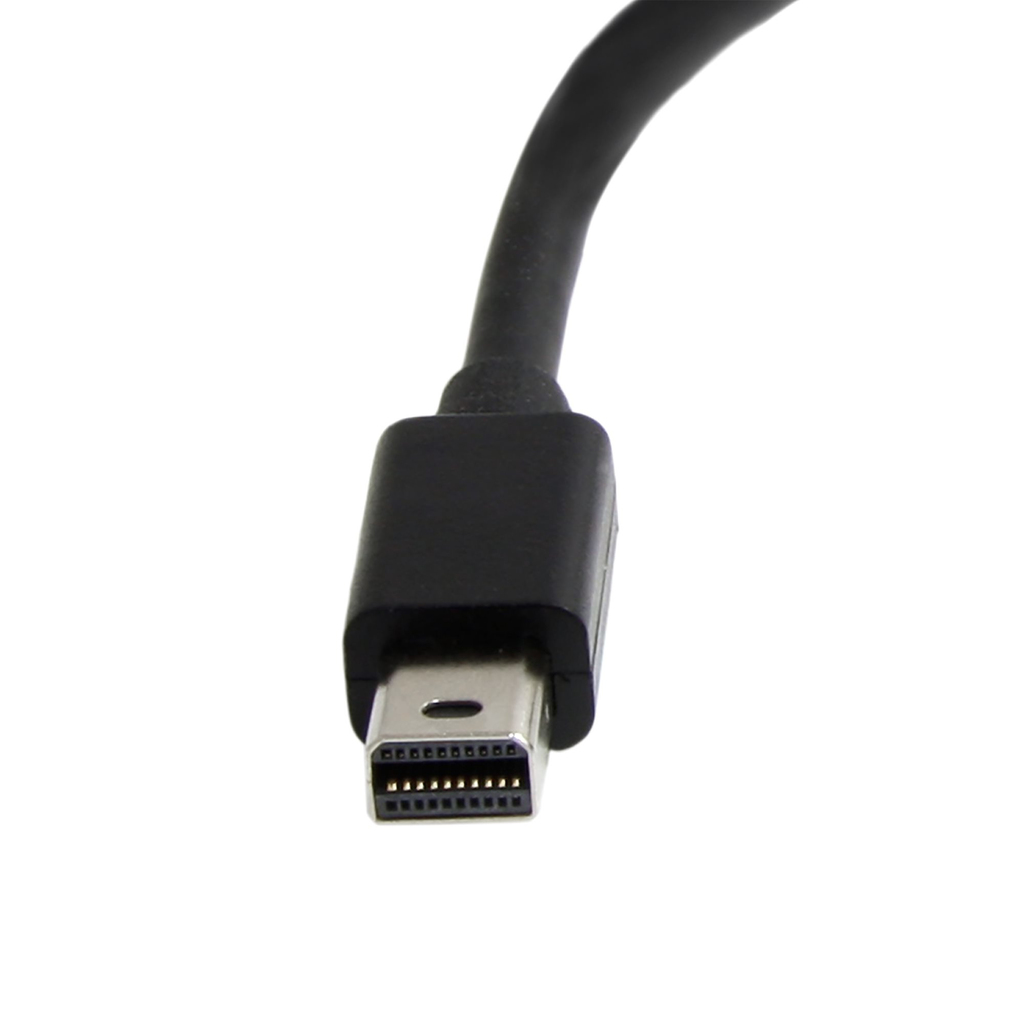

| Connector 1 | Mini DisplayPort |

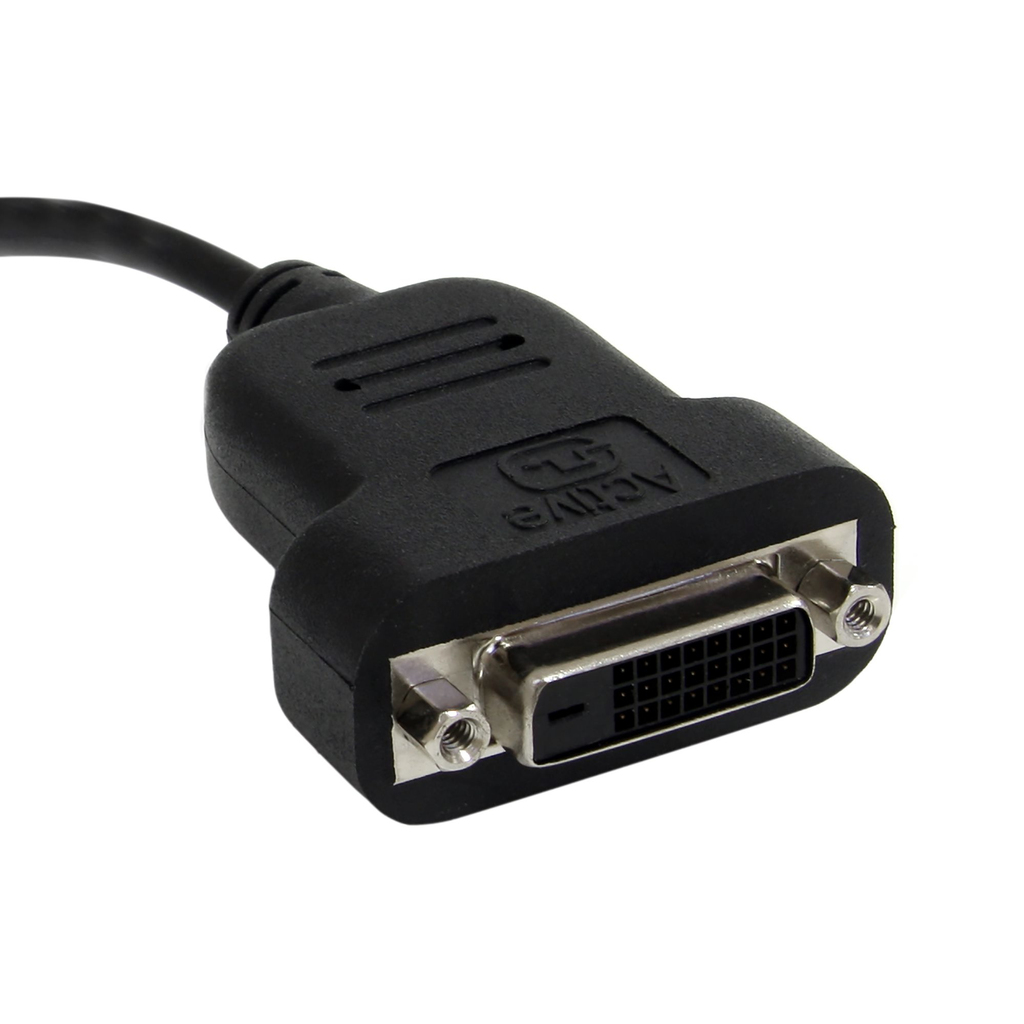

| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Plug and Play | Yes |
| Compliance certificates | CE, RoHS |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | 0 – 70 °C |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Low smoke zero halogen (LSZH) |
| Weight | 38 g |
| HDCP | Yes |
| HDCP version | 1.3 |
| Converter type | Active video converter |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 47 g |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 339 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 90 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Width | 44 mm |
| Depth | 200 mm |
| Height | 20 mm |
| Dual Link DVI | No |
