StarTech.com Mini DisplayPort to HDMI Adapter – Active mDP to HDMI Video Converter – 4K 30Hz – Mini DP or Thunderbolt 1/2 Mac/P

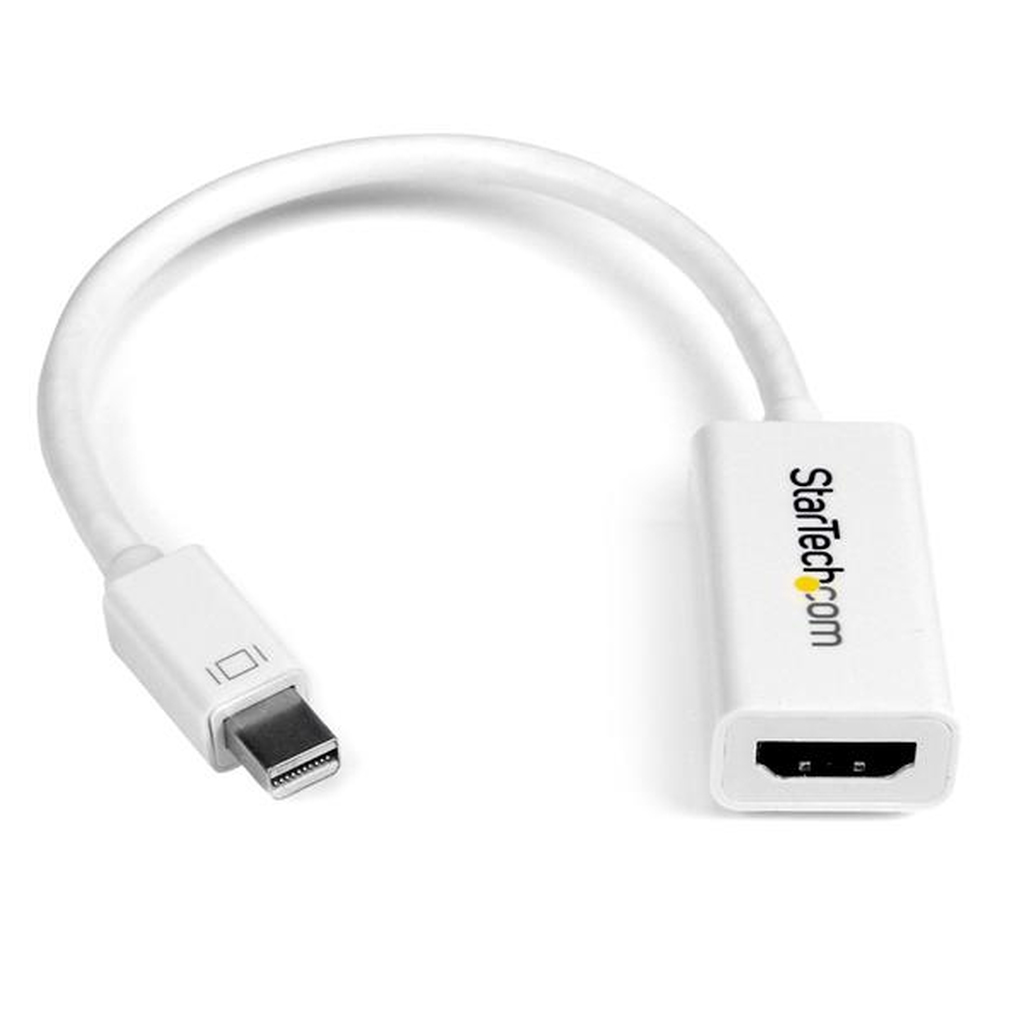

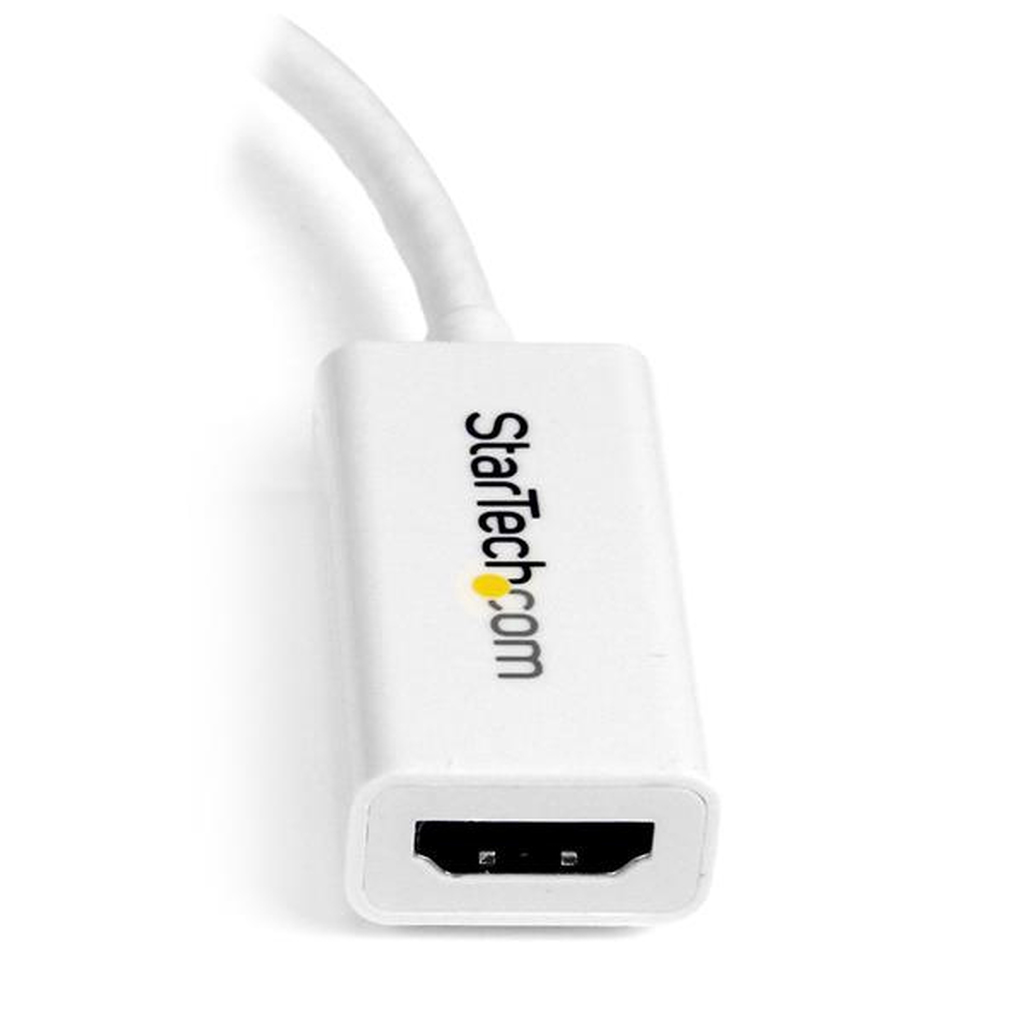

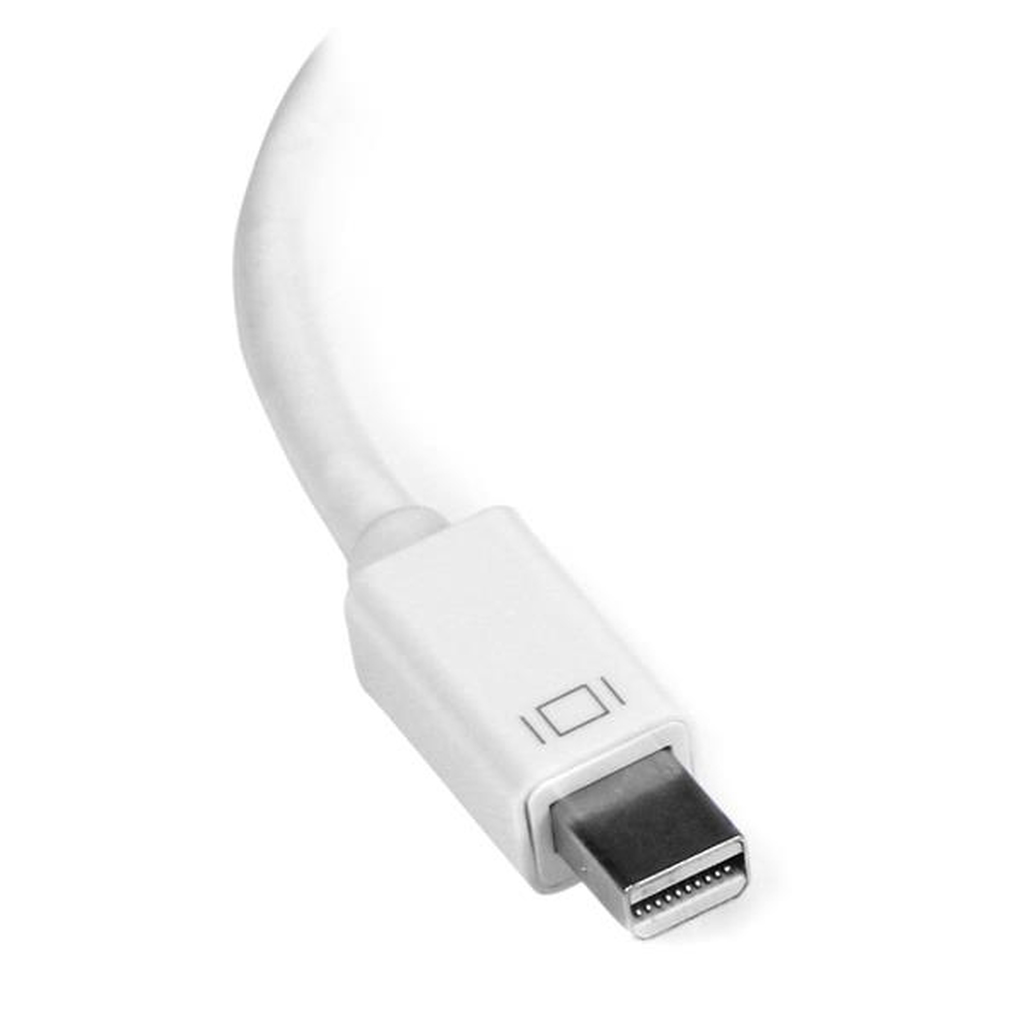

StarTech.com Mini DisplayPort to HDMI Adapter – Active mDP to HDMI Video Converter – 4K 30Hz – Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/TV/Display – mDP 1.2 to HDMI Adapter Dongle – White (MDP2HD4KSW)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Connect an HDMI Display to a Single Mode Mini DisplayPort video source
The MDP2HD4KSW Mini DisplayPort to HDMI adapter enables you to connect devices such as the MacBook® Pro, MacBook® Air and any Microsoft® Surface™ Pro devices with mDP, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.
With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.
For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
To support your Mac® the HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.
With a sleek uniform white design the MDP2HD4KSW looks great next to your Mac®, and is backed by a 3-year StarTech.com warranty, and lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.03 lbs |
|---|---|
| Cable length | 0.15 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Product colour | White |
| Plug and Play | Yes |
| Compliance certificates | CE, RoHS |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Supported video modes | 720p, 1080p, 2160p |
| Weight | 16 g |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| Supported audio channels | 7.1 |
| Converter type | Active |
| Package width | 103 mm |
| Package depth | 188 mm |
| Package height | 13 mm |
| Package weight | 22 g |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case height | 217 mm |
| Products per master (outer) case | 320 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| DisplayPort Content Protection (DPCP) | Yes |
| Compatible products | Mac Book Pro / Mac Book Air |
