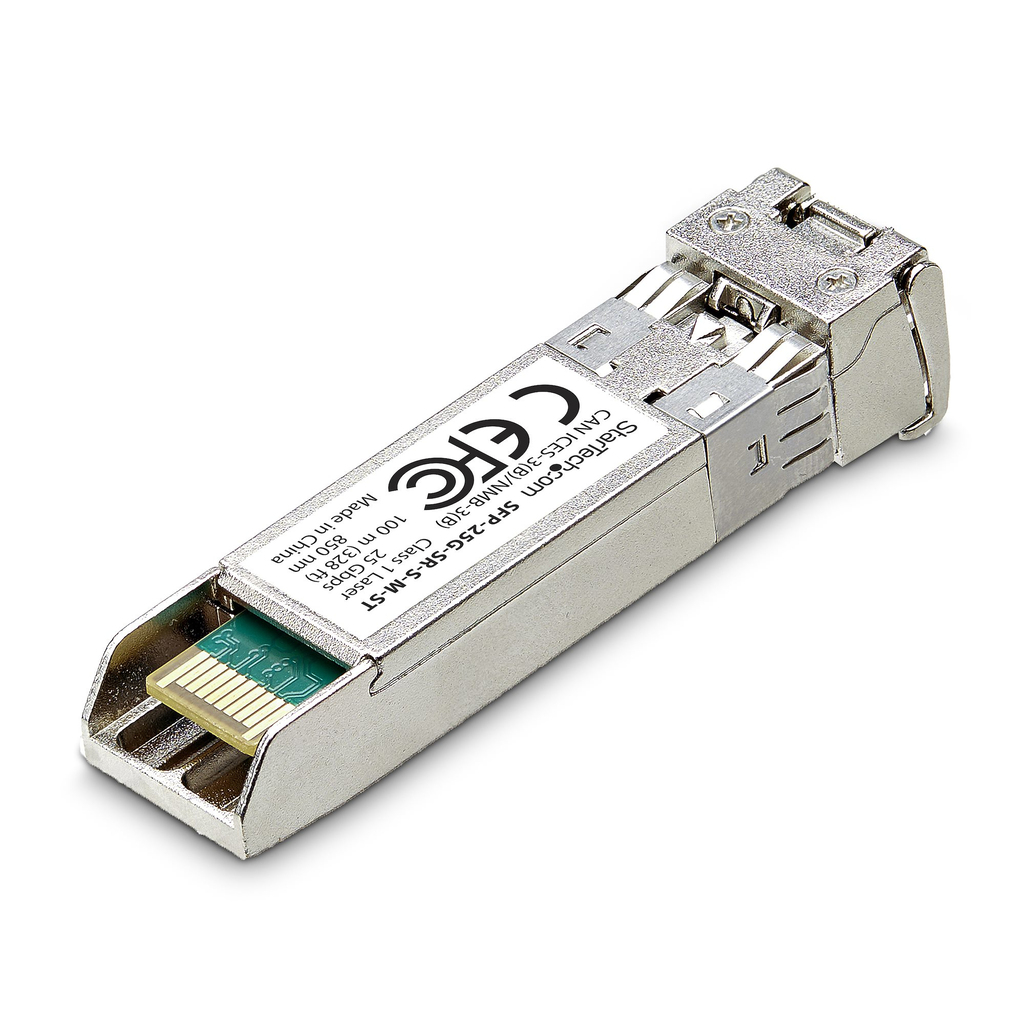

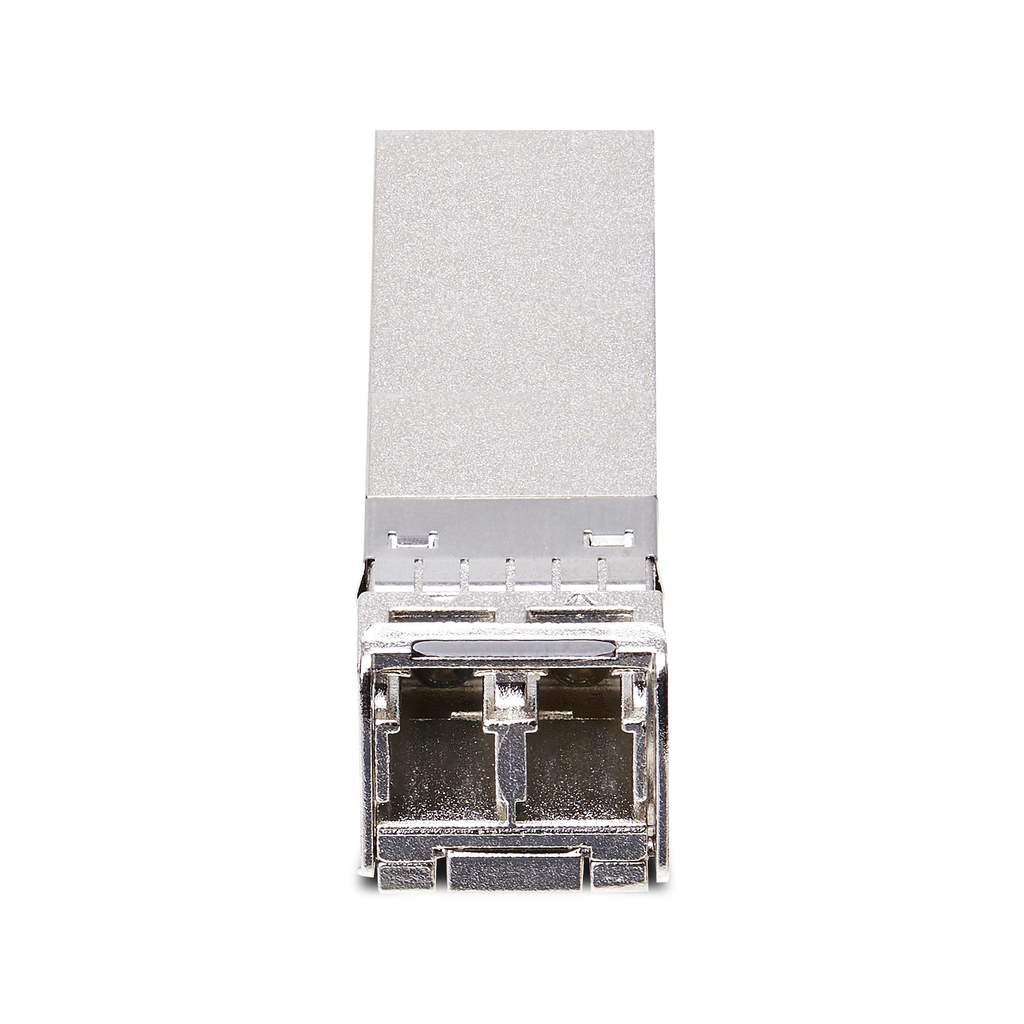

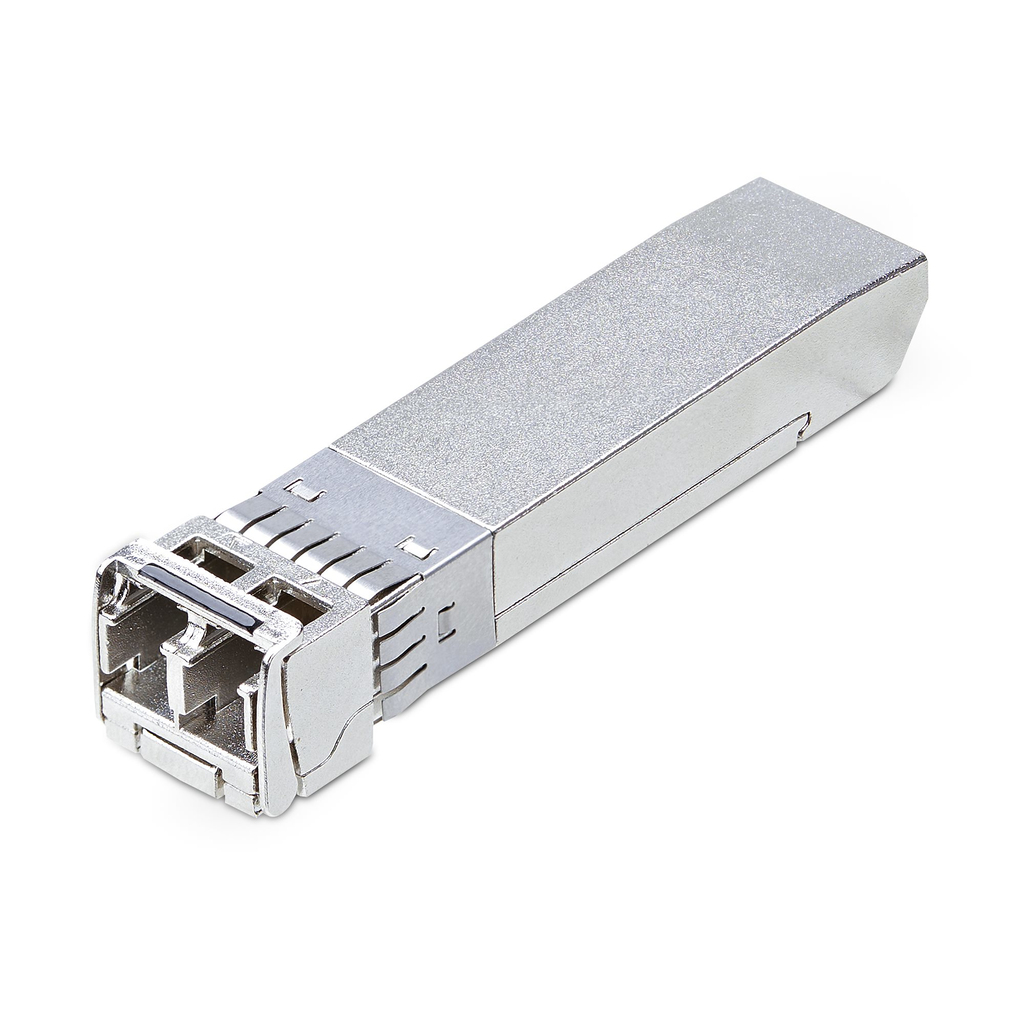

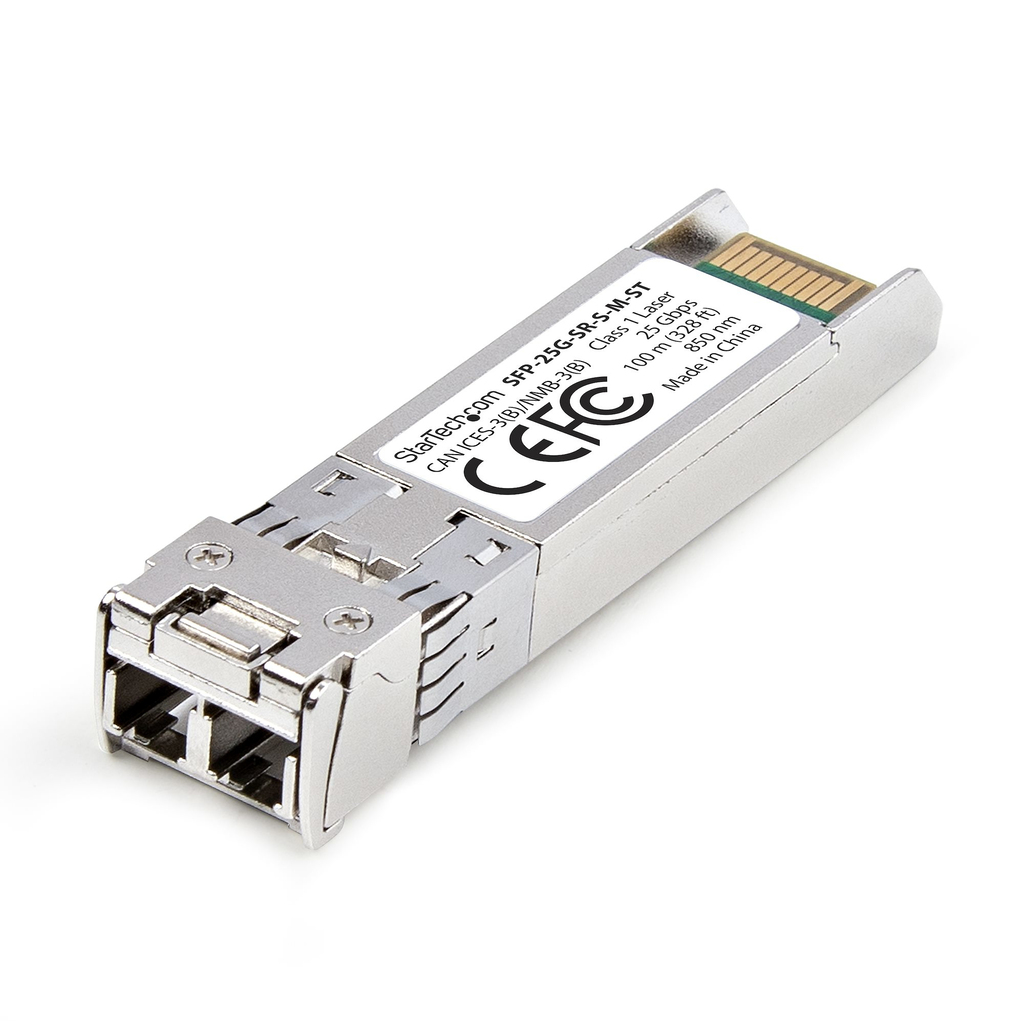

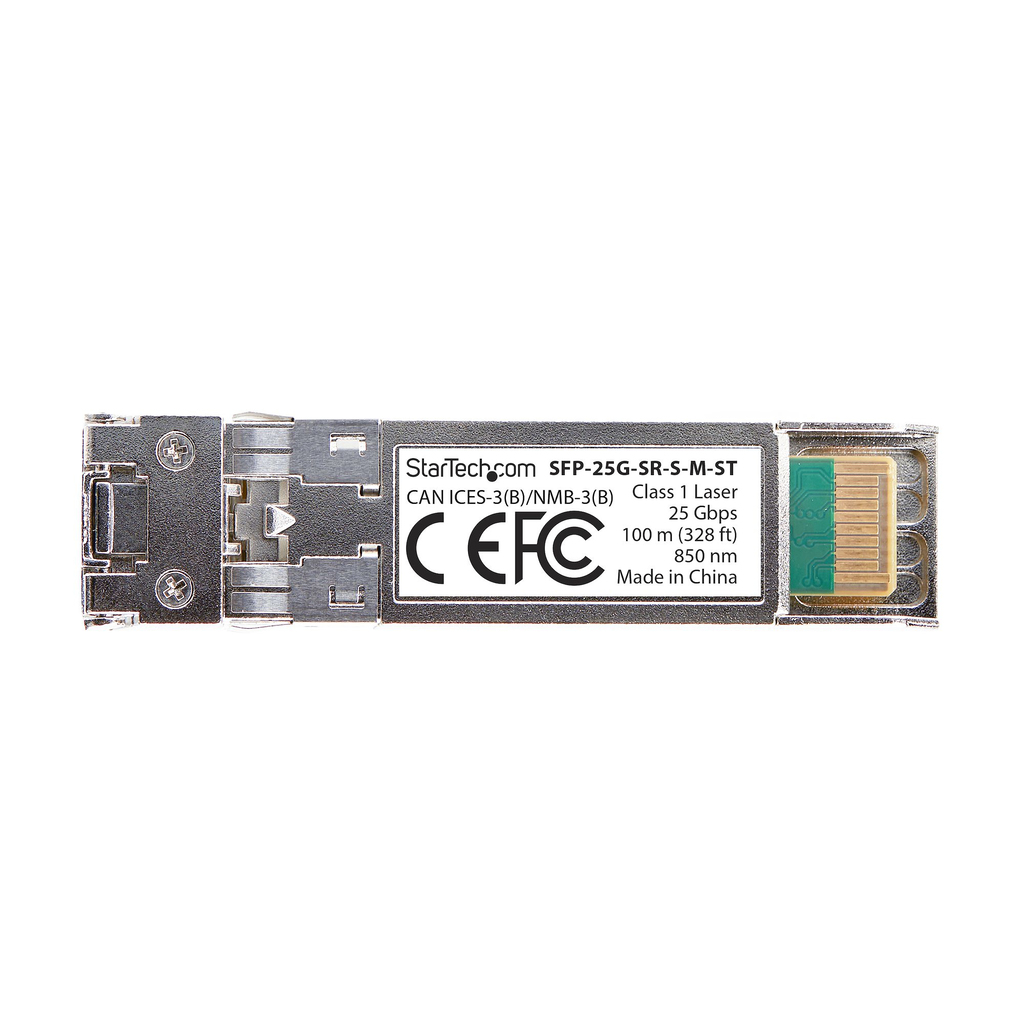

StarTech.com MSA-Compliant SFP-25G-SR-S SFP28 Module, 25Gbps Multimode Fiber (MMF), 100m (328ft), LC Connector, 850nm, 25 Gigab
StarTech.com MSA-Compliant SFP-25G-SR-S SFP28 Module, 25Gb Multimode Fiber (MMF), 25GbE 100m (328ft), LC Transceiver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Enhance the networking infrastructure with this MSA-compatible 25GBASE-SR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 100m
MSA-compliant fiber optic transceiver with 25Gbps connectivity and up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with MSA-compatible switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
• 25GBASE-SR SFP28
• Data Rate: 25Gbps
• Fiber Type: Multimode Fiber (MMF)
• Connector: LC
• Wavelength: 850nm Tx/Rx
• Distances: Up to 100m (328ft)
• Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment from manufacturers that accept uncoded optical modules.
Optimized Network
The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.
The StarTech.com Advantage
Additional information
| Weight | 0.96 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25780 Mbit/s |
| Interface type | SFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SR |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3by |
| Duplex system | Full |
| Product colour | Silver |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 14 mm |
| Package depth | 57 mm |
| Package height | 9 mm |
| Package weight | 200 g |
| Quantity per pack | 1 pc(s) |
| Fiber ethernet cabling technology | 25GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Mean time between failures (MTBF) | 4020594 h |
| Brand compatibility | MSA Compliant |
| Power consumption (typical) | 1.2 W |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Width | 90 mm |
| Depth | 115 mm |
| Height | 31 mm |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
| Operating relative humidity (H-H) | 0 – 85% |
| Sustainability compliance | Yes |
