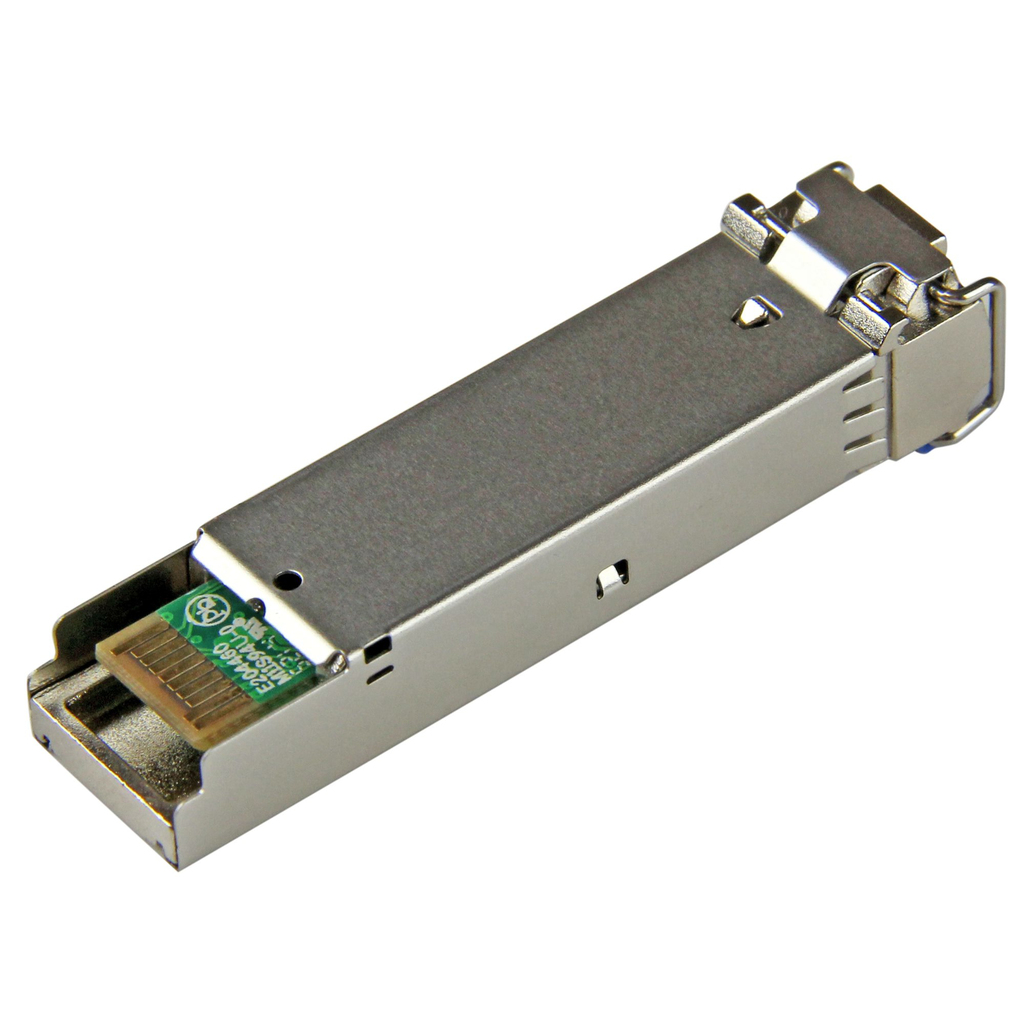

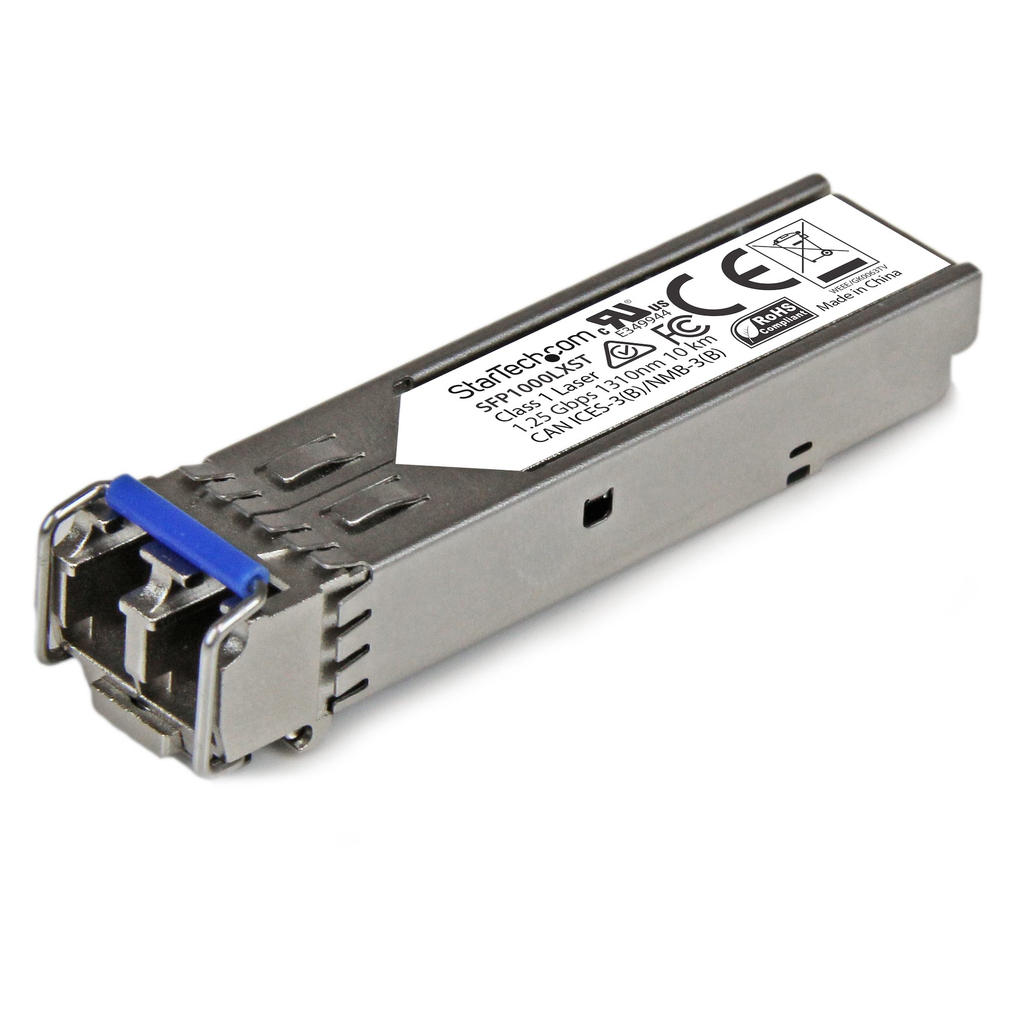

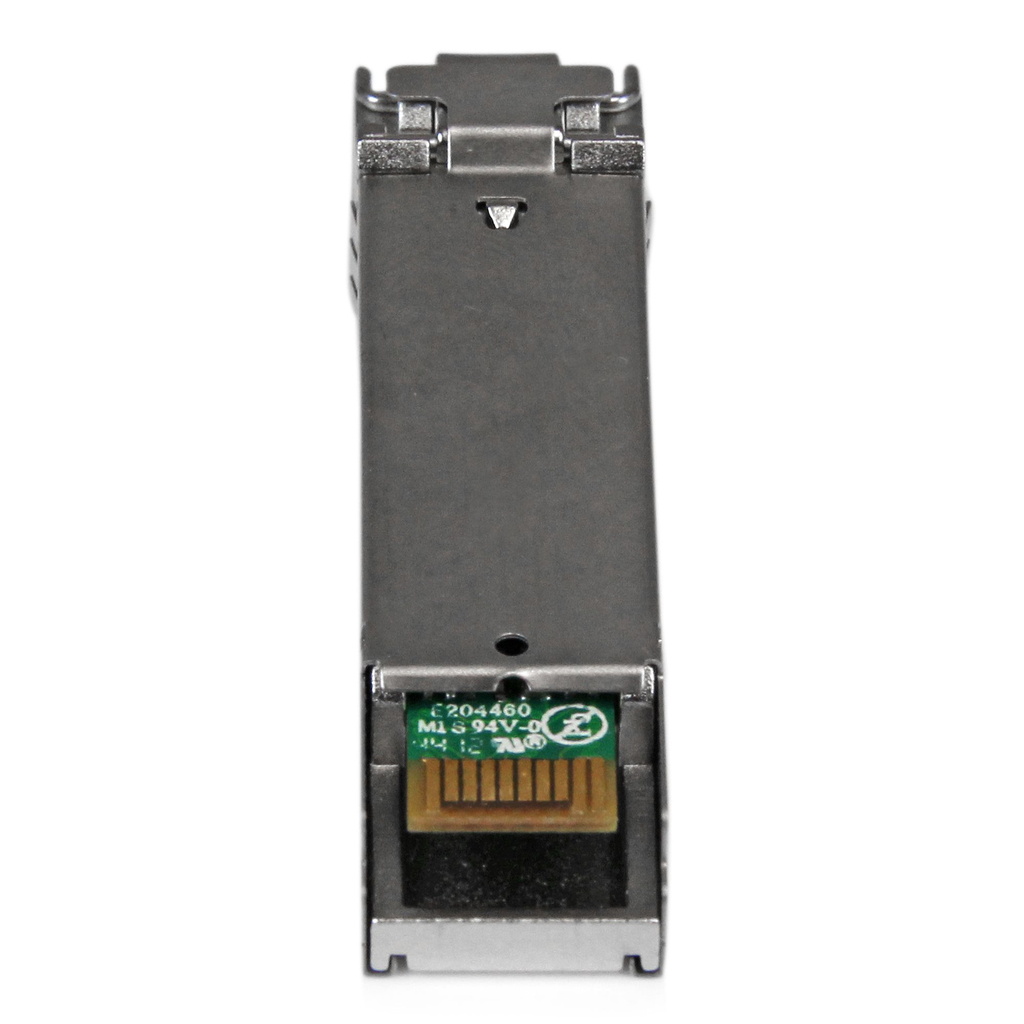

StarTech.com MSA Compliant SFP Transceiver Module – 1000BASE-LX~MSA Uncoded SFP Module – 1000BASE-LX – 1GbE Single Mode Fiber (
StarTech.com MSA Uncoded Compatible SFP Module – 1000BASE-LX – 1GbE Single Mode Fiber (SMF) Optic Transceiver – 1GE Gigabit Ethernet SFP – LC 10km – 1310nm – DDM (SFP1000LXST)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber

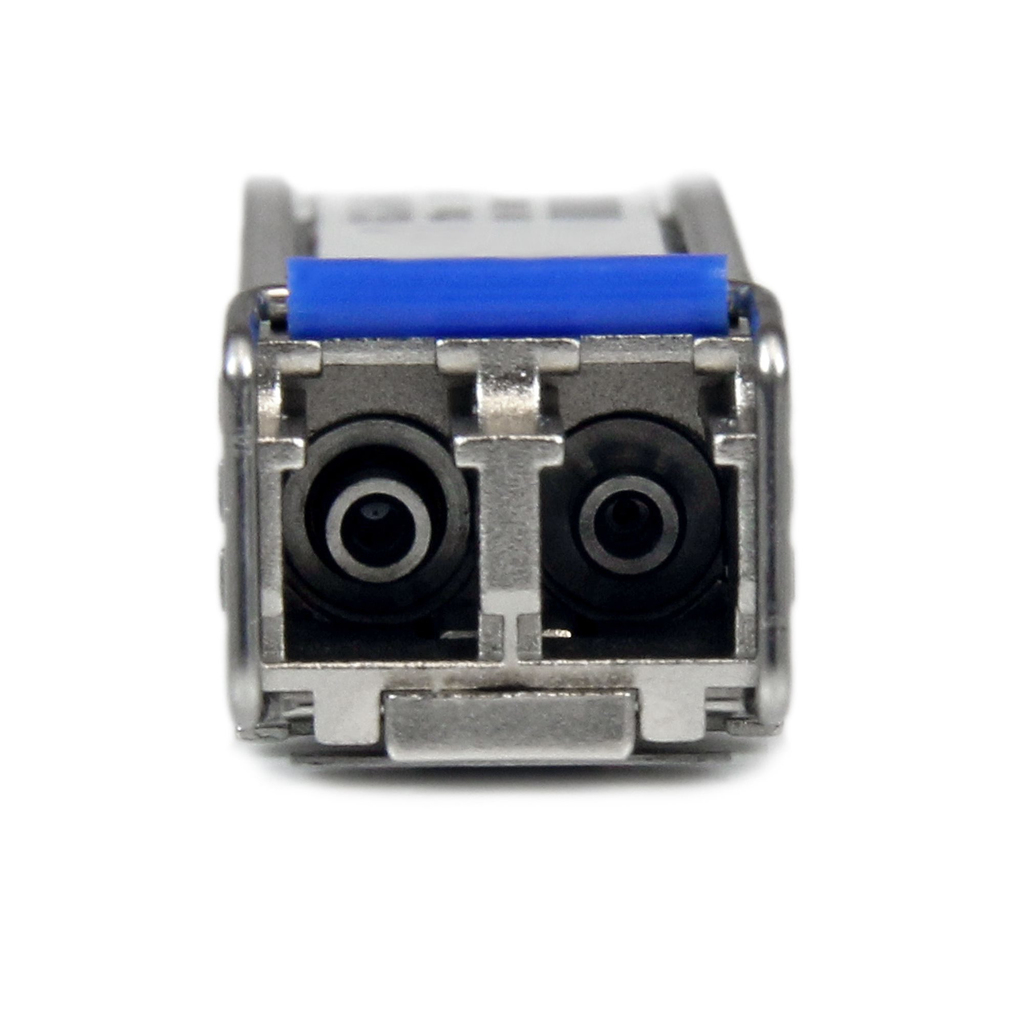

• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Additional information
| Weight | 0.04 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 33 mm |
| Package weight | 47 g |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Width | 15 mm |
| Depth | 59 mm |
| Height | 12 mm |
| Weight | 18 g |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 302 mm |
| Master (outer) case height | 256 mm |
| Products per master (outer) case | 35 pc(s) |
| Wavelength-division multiplexing (WDM) | No |
| Housing material | Aluminium |
| Operating relative humidity (H-H) | 5 – 95% |
| Country of origin | China |
